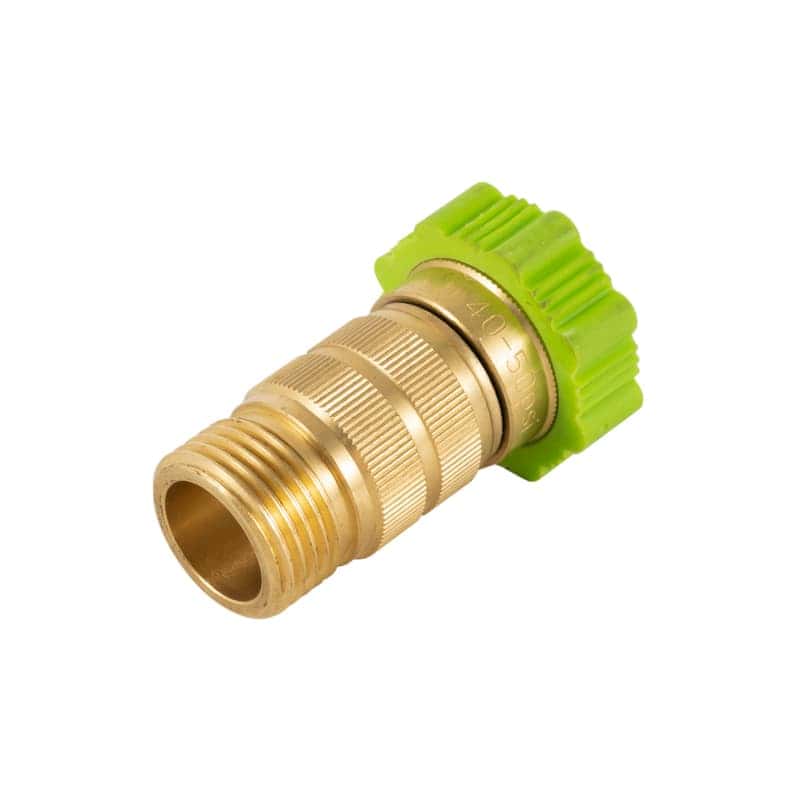

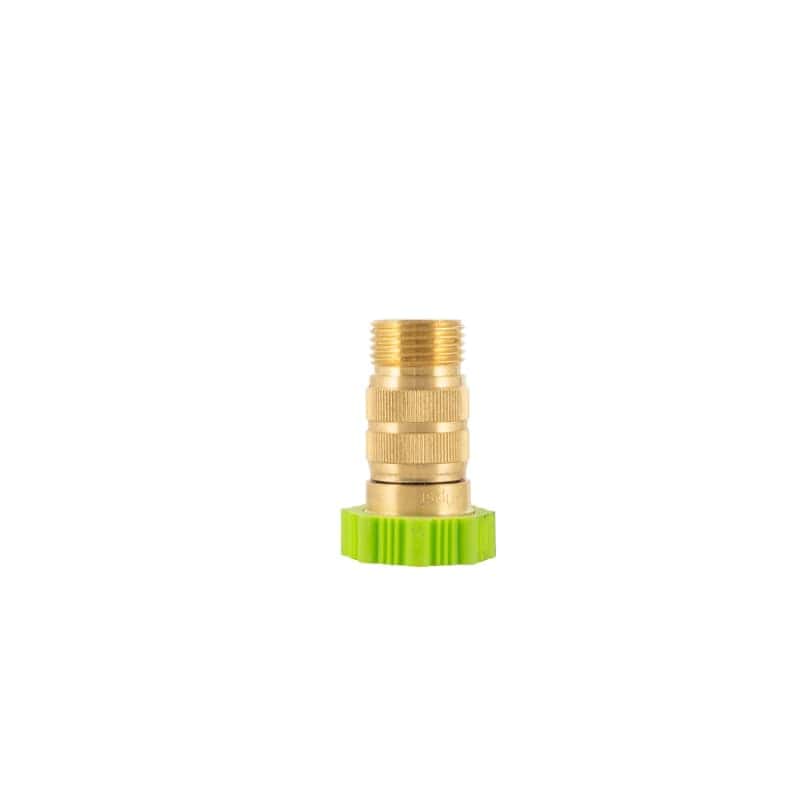

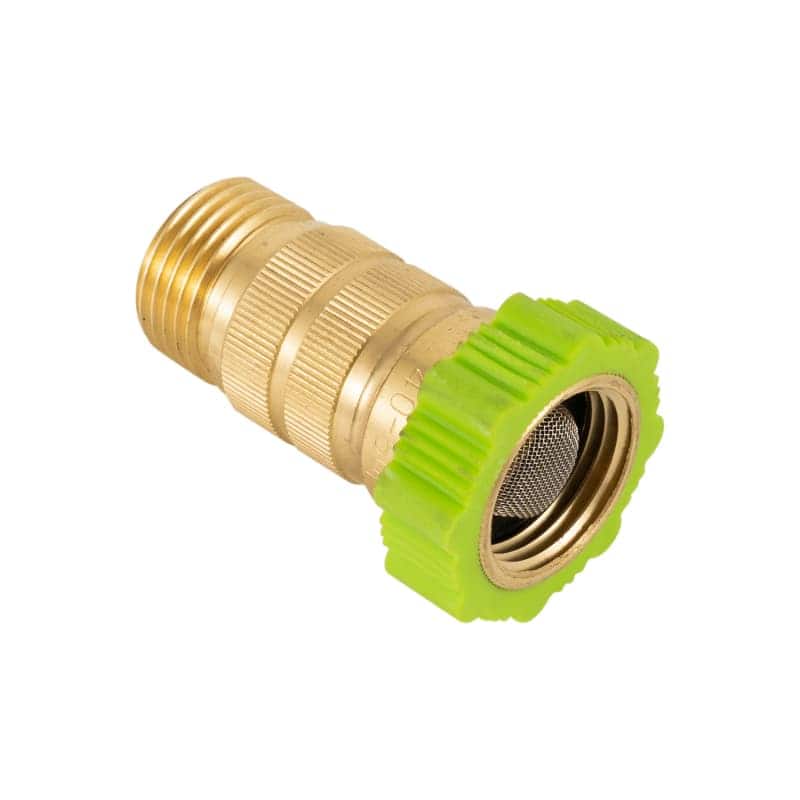

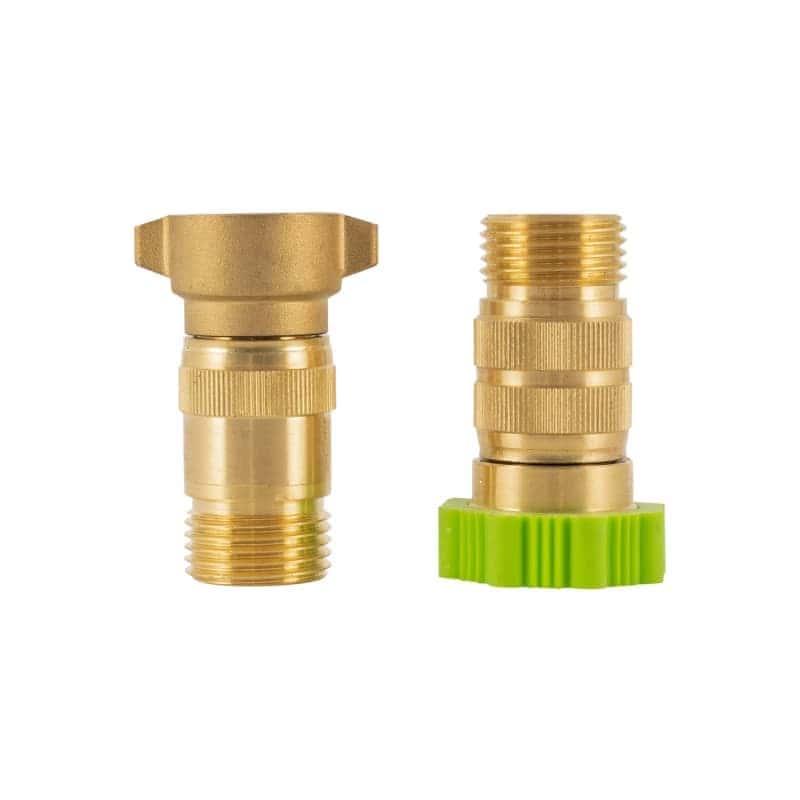

This RV water pressure regulator is designed to control and protect water pressure in RV water systems. It has two ports. One end connects to the RV water inlet. The other links to an external or filtered water source. Inside, the regulator cuts down the incoming high water pressure. A green knob on top allows users to adjust the outlet pressure manually, enabling it to match the needs of various RV water appliances.
Model No.: JX-0982
Size: 3/4″
Material: Lead-free brass
Finish: Natural brass
Medium: Water
Use: Garden, RV
ACS, ISO9001, NF
Connection NPT
Max temperature: 80℃
Working pressure: 40-50psi
Automatically adjust
The impurities in the water are intercepted by the filter
Compatible with all campers, RVs, and travel trailers with a standard Garden Hose Thread female water inlet.
This lockable stainless steel ball valve is a specialized lock-controlled flow-regulating valve engineered for piping systems. A handle integrated with a locking mechanism. Effectively preventing unauthorized operation and misadjustment. Thereby ensuring the operational safety of the entire pipeline system. It is ideally suited for medium and low-pressure fluid systems in industrial, chemical, and similar demanding applications.
Model No.: JX-0412
Size: DN6-DN50
Max pressure: 10000 psi
Finishing: Original
Working temperature: -60-160℃
Material: 316ss, 304ss
Medium: Water
Bearing: PTFE
Connection: NPT, BSP/ISO228
High flow rate with maximum orifice
Handle: Stainless steel with sleeve
Strict gas performance testing is conducted on each valve at the factory’s maximum working pressure.
Water Pressure Reducing Valve
This brass water pressure-reducing valve is a dedicated pressure-stabilizing device engineered for water supply systems. A top-mounted adjustment screw allows manual setting of the target pressure, making it adaptable to the pressure requirements of diverse water-use scenarios. As a critical protective core component, it safeguards the entire water supply system.
Model No.: JX-0906
Size: 1/2″-2″
Material: Bronze, C83600, C84400, C87600, lead free brass
Medium: Water
Finishing: Casting
Connection: NPT/BSP
working pressure: 25bar
MAX temperature: 68℃
With a dual-layer inlet screened filter, the valve is protected from debris.
Brass Pre-filtration Water Filter
The brass pre-filter, designed for installation in the main water pipeline, provides initial rough filtration for the household water supply system. It can remove large particulate suspensions and insoluble impurities in the water supply, such as dirt, sediment, dust, sand grains, and sludge. It has a pressure gauge to monitor water pressure. It also has a drain valve with a red handle, so it is easy to clean and flush the collected impurities.
Model No.: JX-0912
Size: 1/2″, 3/4″, 1″
Material: CW617N, lead free brass
Finishing: Sand blasted and nickel plated
Connection: NPT, BSP(G)
Medium: Water
Max working pressure: 16bar
Working temperatures: -20-90℃
Precision: 20-80um
The medical-grade 316 stainless steel mesh filter
Radiator Valves for Towel Rail
This chrome-plated brass radiator valve for towel rails is a specialized temperature control fitting engineered for electric and plumbing towel rack systems. Crafted from chrome-plated brass, its core function is to control the on/off flow of fluid to the towel rack. A rotating handle enables easy opening and closing of the valve, regulating the flow of hot water or heating medium into the rack. Ideal for both electric and hydronic towel rack setups, it allows precise adjustment of the towel rack’s temperature.
Model No.: JX-0655
Size: 1/2″, 3/4″
Material: CW617N
Processing: Forging, CNC Machining
Connection: BSP, NPT
Max working pressure: 10MPa
Max working temperature: -20-120℃
Certification: CE
Finishing: Polished and chrome plated
With a 12-month warranty
Transport Package: Carton
Manual Forged Brass Radiator Control Valve
This manually operated forged brass angle radiator valve has a 90° angled body. The top-mounted white knob allows for easy rotation to adjust the valve opening, manually regulating the hot water flow into the radiator and enabling precise control of room temperature. Commonly used in traditional heating systems.
Model No.: JX-0650
Size: 1/2″X1/2″
Material: Brass
Handle: ABS handle
Working temperature: 0-90℃
Connection: NPT, BSP,
Finishing: Nickel blasted
Transport Package: Inner box
Plastic head
Medium: Water
Angle Antique Thermostatic Radiator Valve
This antique-style thermostatic radiator valve has a 90° angled body made from brass. It features a textured sensor head on top that responds to room temperature. It automatically adjusts the valve opening according to the ambient temperature. Both practical and decorative, it works well in radiator heating systems where appearance and temperature control are equally important.
Model No.: JX-0656
Material: CW617N, CW602N
Temperature adjustment: -10-120℃
Size: 1/2″, 3/4″
Hydraulic seals: Rubber EPDM
Straight valve and angle type
Media: Water
Connection: BSP/ISO228
Finishing: Oil Rubbed Bronze
O ring: NBR
Package: Individual Package in Carton
FAQs of RV Water Pressure Regulator
1. What materials are used for the RV water pressure regulator?
The body uses lead-free brass that meets NSF/ANSI 61 standards
The pressure-sensing diaphragm and sealing parts adopt food-grade EPDM rubber. (High-end models can opt for PTFE composite film.) They resist aging. No harmful substances leach out. This ensures waterway sealing and precise pressure regulation.
The pressure-regulating spring is 304 stainless steel, too. It resists fatigue and keeps elasticity. It works well even after 100,000 pressure regulation cycles. No performance loss at all.
The pressure-regulating handle is ABS plastic or zinc alloy. It’s anti-skid and durable. Easy to operate outdoors, even with gloves on.
All materials pass RoHS environmental tests. They meet the access requirements of the European and American RV markets.
2. What is the MOQ of the RV water pressure regulator?
Plumberstar RV water pressure regulator’s MOQ is 2,000 units. Tiered price discounts apply for quantities over 1,000 units. For OEM/ODM customized orders, the MOQ will be negotiated. In addition, we have extra rebate policies for our long-term cooperative clients.
A pressure regulator is a type of valve. It adjusts flow. It does this when the inlet pressure changes. It keeps the outlet pressure steady and lower. The pressure relief valve here is a safety device. It opens only when the pressure is too high. The safe setpoint is predetermined. Pressure goes beyond this setpoint. The valve opens. Pressure returns to normal. The valve closes again.
4. What is an RV water pressure regulator’s primary job?
Stabilizes the incoming water pressure coming in, usually at 30-80 PSI. It regulates it to a safe level for RV pipes. A safeguard against pipes bursting, seals breaking, or appliances getting damaged.
5. Can the RV water pressure regulator meet cross-border shipping needs?
Plumberstar RV water pressure reducing valve can fully meet the needs of the entire process of cross-border transportation.
Products meet mainstream market access standards worldwide. They pass NSF/ANSI 61 drinking water safety certification, CE certification, and CSA gas/waterway equipment certification. Materials comply with RoHS environmental standards. Core components like lead-free brass bodies and food-grade EPDM seals contain no harmful substances. They can smoothly pass customs inspections in Europe, America, Australia, and other markets. No compliance issues that cause returns or seizures.
Multi-layer protective packaging fits the harsh conditions of cross-border transportation. Inner packaging utilizes anti-static PE film individual wrapping, thickened five-layer corrugated boxes, and buffer foam filling. The outer layer is paired with standard pallets and wrapped with 3 layers of high-strength stretch film. Plastic corner protectors are added to all corners. This can effectively resist bumps, extrusion, humidity, and air pressure changes during sea transportation. It prevents product scratches, deformation, and leakage.
6. Can you provide samples of the RV water pressure regulator for testing?
1-2 Free samples are available, freight collect. Third-party testing by the client is also accepted for such aspects as pressure stability, temperature resistance, flow fate, durability, and corrosion resistance.
7. How to choose an RV water pressure regulator?
From Miller’s RV
As you select an RV water pressure regulator, go for an adjustable brass type that incorporates an in-built pressure gauge. This type gives decent control and durability. This valve adjusts to the recommended pressure of your RV. The recommended pressures are normally within 40 to 50 PSI. The valve has a good flow rate. They don’t constrict the volume of water. You prefer models that have an integrated filter. They filter out sediments and prevent blockage of your RV’s water supply system.
8. What is the warranty policy of the RV water pressure regulator?
It carries a 2-year warranty. This will cover repair or replacement due to manufacturing defects, not human error.
We provide 24/7 technical support. Bulk orders enjoy priority return or exchange channels. We also provide after-sales maintenance training.
9. Can RV regulators support long-term distribution agreements?
Sufficient Production Capacity & Stable Supply: Lay a Solid Foundation for Long-Term Cooperation Plumberstar manufacturer has an exclusive production line for the RV water pressure regulator. Daily and monthly output is more than enough.
We also keep a 60-day safety stock of core raw materials (lead-free brass, 304 stainless steel, EPDM seals). We’ve signed long-term supply agreements with top suppliers. This avoids raw material shortages and price fluctuation risks from the very start.
For long-term contract customers, the factory reserves 15% emergency production capacity. We prioritize order scheduling and delivery. We make sure your orders arrive on time. No stock-outs in your distribution channels due to insufficient capacity.
Customized Products & Price System: Meet Long-Term Distribution Needs
For dealers with long-term cooperation, we offer exclusive customization services. This includes customized product specs (like interface types, pressure regulation ranges, and appearance logos) and co-branded packaging. No extra mold fees if you reach the agreed purchase volume.
We also set up tiered pricing and annual rebate policies. The bigger your order, the lower the unit price. Hit your annual sales target, and you get extra rebates. This boosts your profit margin a lot.
Besides, our price system stays stable for a long time. We agree on a price adjustment mechanism in advance. No frequent price changes that mess up your market pricing and sales plans.
