The water pressure regulator is a valve used in buildings to regulate the water system’s flow. It is also known as pressure-reducing valves. Adjusting water pressure is an essential task that helps us control it. Water pressure is most used in commercial, residential, and industrial tasks.

They offer durability, working to optimize the plumbing system to the flow of water pressure. Water pressure regulator valves help to maintain the flow rate of water with the help of pipes at a fixed and stable pressure. In this article, you will learn about water pressure regulators, their working, adjusting, and selection criteria of water pressure regulators.

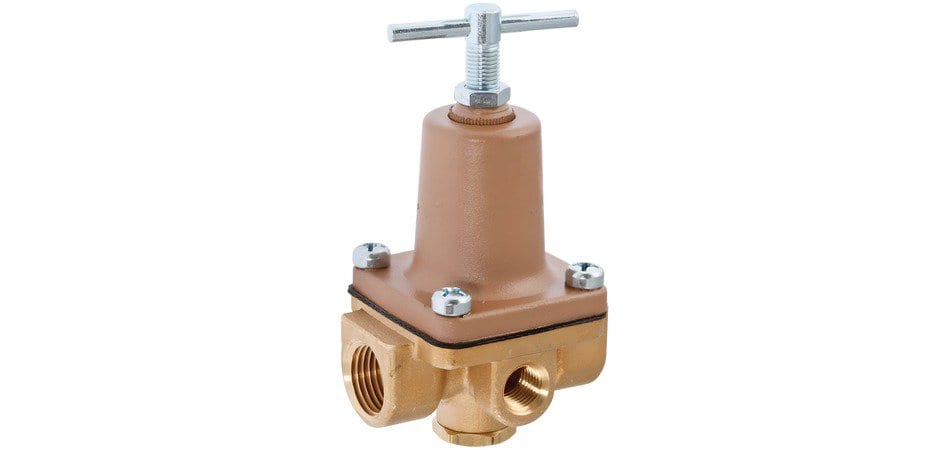

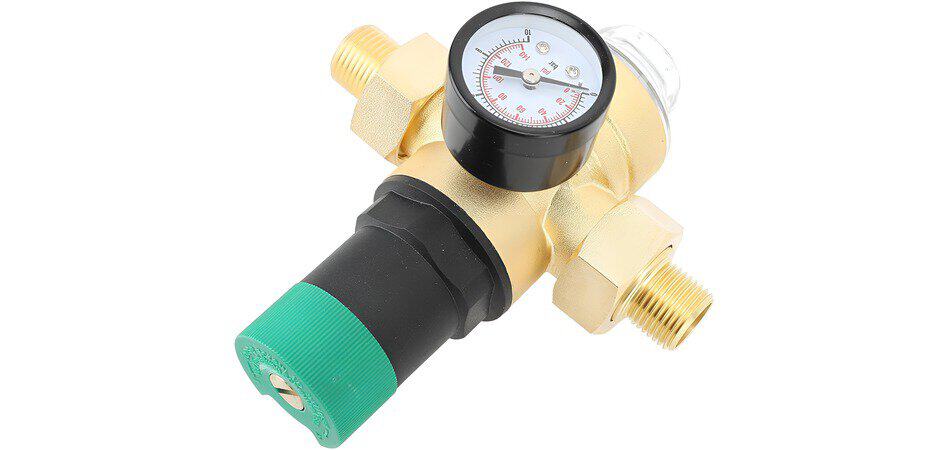

What Is a Water Pressure Regulator?

The water pressure regulator is a valve that helps to reduce the incoming pressure of water to a controllable level for the home in the plumbing system. These valves are also known as pressure-reducing valves (PRV). Water pressure regulators play an important role in public water supply systems.

When the water enters at a very high pressure or where water pressure is unbalanced, it controls the flowing pressure. A water pressure regulator can fix the place where the main line of water enters the home only after the main shutoff valve.

When water enters a home with high pressure through the main water line, its pressure is naturally very high for its plumbing system to control. These valves decrease the flowing pressure of water and pass to the common valves of water.

Why it Is Necessary to Adjust a Water Pressure Regulator

Water pressure regulators require adjustment when there are fluctuations in water pressure, whether excessively high or excessively low. The water pressure for a residence should typically be between 2.7 and 4 bar (40 and 60 kPa). The water pressure regulator necessitates adjustment or replacement for the following reasons:

Improper adjustment: Pressure regulators are typically installed on the principal water supply line that enters the building’s plumbing network. Occasionally, a pressure regulator may be altered to a shallow setting, resulting in an excessive decrease in water pressure.

At the factory, pressure regulators are typically pre-set to a 3.1 to 3.8 bar (45 to 55 psi). Even so, it may be necessary to regulate the pressure within a range of 2.7 to 4.8 bar (40 to 70 psi) to ensure that the property has sufficient water pressure.

Improper water pressure: The consequences of inappropriate water pressure include high water pressure. It results in damage, including water impact and unsecured fixtures. Appliances fill slowly, and water flow is diminished due to low pressure.

A faulty regulator or the municipal supply can result in high pressure. A partially closed main valve, municipal line work, leakage, or pump issues can all contribute to low pressure. Otherwise, the regulator may require cleansing, adjustment, or replacement.

How to Adjust Water Pressure Regulator?

· Adjusting the Screw

Firstly, you must set the valves and the screw; you must loose the locknut all the way. The screw is your adjuster, and it can scheme only by losing the locknut—the screw work as a water pressure regulator.

If you will more tighten the screw the pressure of the water will increase, while when the screw is loose, the pressure of the water will decrease. In simple words, Turning the screw right-handed to tight it will increase the pressure, or turn it right to left it will reduce the pressure.

· Check the Pressure

Secondly, when you have adjusted the screw, the water pressure should be controlled. Check the faucets in the house to see if there is a transformation in the pressure of water linked to before. If you find that after adjusting the pressure valve, there is no major betterment, your valve might be damaged and need to be restored. Changing a valve could be a moment of puzzling, and it is usually best to seek help from an experienced, professional plumber.

· Wrench or Pliers and a Screwdriver

Thirdly, if you notice any problem with the water pressure in your home, you must change the regulator. If you have one that has not been changed correctly, you could have too much or too little pressure on your faucet or shower.

You can adjust the correct water pressure regulator with the right tools instead of requesting a plumber. Exchanging the water supply to adjust a water pressure regulator is unimportant.

· Locate the Supply Line

Fourthly, locate the supply line which provides water to your home. It can help to find the water meter, usually installed in the basement near the supply line. If you live in a flat or a house in a small space in cold weather, the water meter could freeze and not work properly in a crawl space.

A water meter can be under the utility room or kitchen sink. On the other hand, those living on mobile lines or service lines longer than 150 feet can find a water pressure regulator near the roadside.

· Find the Valve

Fifthly, when you find the water meter with the help of a supply line, you must select a valve, which is made of brass material, and the mid-section will be bell-shaped in a medium size screw at the angle of the bell. Before adjusting the water pressure regulator, ensure your supply line has adequate pressure.

· Tighten the Screw Slowly

You need to tighten the screw little by little and slowly increase it. Check the result whenever you tighten the screw. If the water pressure is very high, it could result in leakages and the toilets running constantly.

· Loosen the Locknut

Lose the locknut on the regulator using the wrench. It will help you to adjust the water pressure regulator screw to increase or decrease the flowing pressure of water.

· Verify the Adjustment

After adjusting the water pressure regulator, it is essential to verify the adjustment. Check for any leakages or misdeeds in the water supply system. Watch the pressure gauge over time and ensure the pressure remains stable.

Additional tips

• It is important to make minor adjustments to prevent an abrupt increase or decrease in pressure that could damage the plumbing system.
• If the regulator cannot maintain a stable pressure or respond to adjustments, it should be repaired or replaced.
• Certain regions may have specific codes or regulations regarding water pressure; consult with local authorities if necessary.

Benefits of Adjusting the Water Pressure Regulator

There are numerous advantages to adjusting the water pressure regulator:

Preventing Damage: Proper water pressure is essential for preventing commotion, leakage, and damage to your property. To mitigate these risks, the regulator is adjusted to ensure the pressure is optimal.

Extend the Life of Appliances: Appliances may experience duress due to high water pressure, which can shorten their lifespan. The regulator is adjusted to ensure the pressure is safe and does not unduly wear out your appliances.

Optimization of Water Efficiency: By adjusting the water pressure regulator, your plumbing system can operate more efficiently. It ensures that the flow is optimal for washing dishes, showering, and laundry.

How to Choose the Right Water Pressure Regulator?

· System Temperature

Temperature systems are a choice for industrial applications. You ensure that your choice of water pressure regulator is accurate for the natural working situations. Before choosing a water pressure regulator, consider fluid temperature or factors such as the Joule – Thomson effect and environmental factors. Joule-Thomson causes fast cooling due to pressure drops.

· Durability & Maintenance Requirements

Before selecting a water pressure regulator, durability and maintenance must considered. The duration of the water meter depends on many factors, e.g., operating mechanism, maintenance, installation, workload, and technology. An accurate water meter can work for at least 12 years before needing a replacement.

The water meter must be strong and easy to maintain. Moreover, the water meter’s replacement parts should be available for easy repairs. Ensure the water meter’s place is easily accessible and pure of any dangerous materials for proper maintenance.

· Water Demand & Flow Rate

Before choosing the water pressure regulator, ensure that the water demand and flow rate are according to its use for a building, the number of occupants, the time of day, and the weather. On the other hand, some applications have very little instability in water use, while others can experience significant changes. Therefore, it is important to choose a water meter capable of working under the flow conditions of the building or application, whether it is moveable or more or less stable.

· System Media

Material compatibility between all components of your regulator and your system media ensures permanent factors and avoids lost time. While some natural rubber and elastomer elements corrosion is expected, certain system media may contribute to faster corrosion and hasty regulator failure.

· Meter Size

Size is the first point to consider when choosing a water meter. The meter size controls the minimum and maximum water flow rate from the supply source to your commercial, residential, or industrial uses. It affects water pressure and can influence readings and the service life of the meter.

· Installation and Maintenance

Before choosing the water pressure regulator, it is essential to ensure the valve is installed and maintained properly to certify that it functions properly. An expert plumber can help ensure the valve is appropriately installed and offer maintenance facilities to help keep the valve working correctly.

Conclusion

In the end, a safe level of the water pressure regulator can help keep your piping system if you want to maintain the water pressure in your home. Water pressure regulators help decrease the high water pressure from your reliable suppliers.

Sometimes, the water pressure regulator needs to adjust to increase or decrease your water pressure in the piping system. For good results in the plumbing system, you must know how to adjust your pressure regulator and check the flowing pressure of water.

FAQ

Are you capable of adjusting a water pressure regulator?

A water pressure regulator can be adjusted, but it is important to exercise caution to prevent the pressure from being set too high or low.

What pressure should a residential water pressure regulator be adjusted to?

The plumbing system and the fixtures in a residence can generate variations in this regard. However, the typical residential water pressure range is between 40 and 60 psi.

Why is reduced water pressure a cause for concern?

A lack of water pressure can lead to insufficient water flow, which can impede the efficiency of daily duties. Modifying the water pressure regulator may be necessary to augment the water pressure in your residence.

What is the appropriate time for adjusting a pressure-reducing valve?

Adjusting the pressure-reducing valve may be required if you are experiencing abnormal water pressure and your neighbors are not. Determining whether the issue is unique to your residence or a transient issue with the municipal water supply is crucial.
