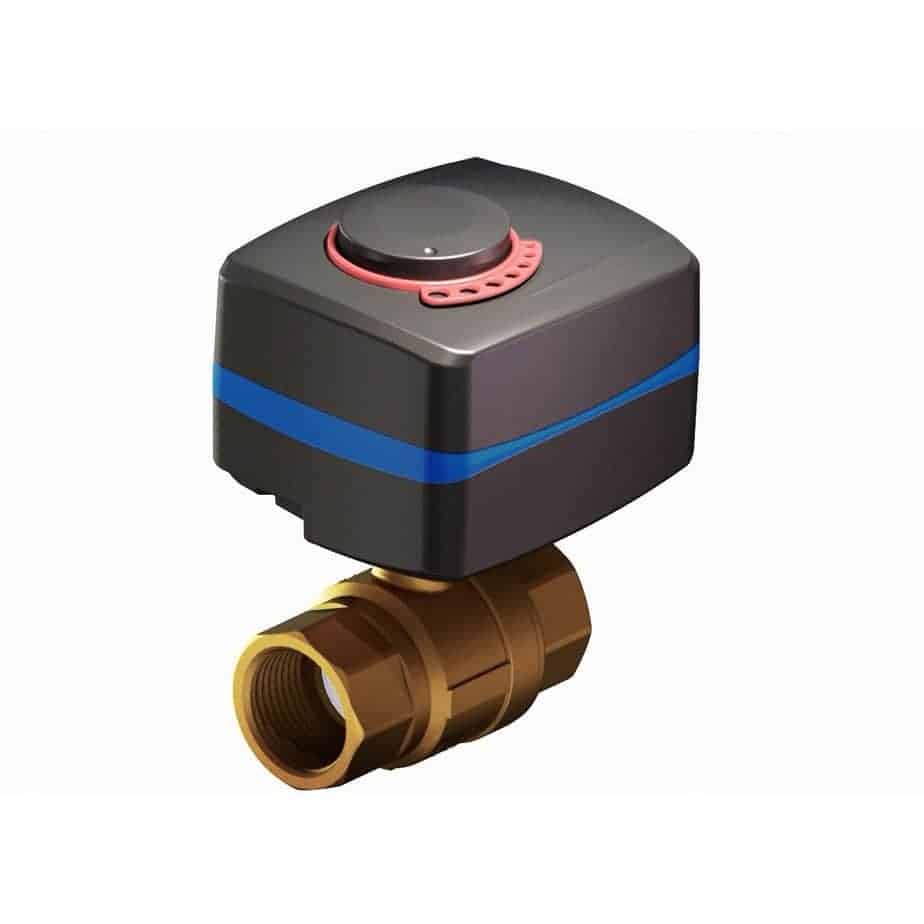

Motorized Control Electric Motor Valve

Parameters of Motorized Control Electric Motor Valve

It is suitable for HVAC and status control of the water system. The valve body is adopting the ISO228 standard platform, the actuator’s using a synchronous machine that drives the gears steady.

Additional information


Brass, CW617N


Sand blasted, Sand blasted and Nickel plated


1", 1/2", 3/4"

Thread connection




Action time


Drive Power

220VAC, 24VAC

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days


24 months

Details about Motorized Control Electric Motor Valve

Automatic 230v 24v AC Water Motorized Control Electric Motor Valve actuator


Automatic Valve Actuator 230v 24v AC, DC Water Motorized Control Electric Motor Valve actuator

motorized ball valve is suitable for HVAC and status control of the water system. The valve body adopts the ISO5211 standard platform; the actuators use a synchronous machine that drives the gears steadily.
The new product is to meet customers’ requirements with compact size, ample torque, simple operation, free maintenance, and convenient installation under different working conditions. In addition, the actuator is equipped with a manual handle to open or close the valve in case of a power cut or other emergency.

Driving mode
Electric/Manual, with Position indicator
PN Class; PN16
Valve characteristic;90°Rotary(ON-OFF Type)
Power supply; AC230V /24V AC/DC 24V/DC 12V
Protection grade: IP44
Torque;5 Nm
Running time: 60-120 seconds
Shell material; ABS
Cable length: 1.0 M x 4 wires.

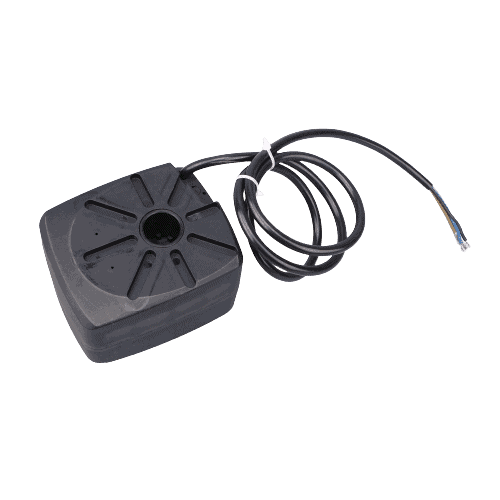

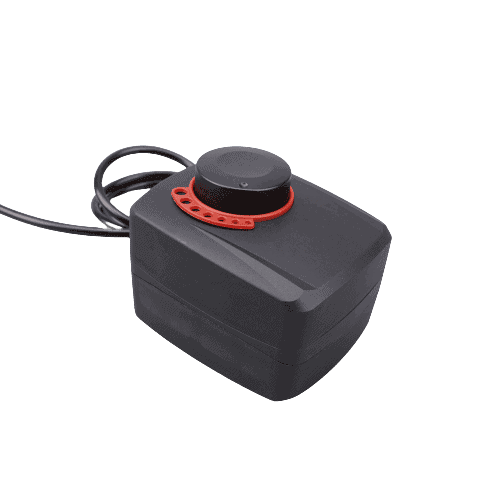

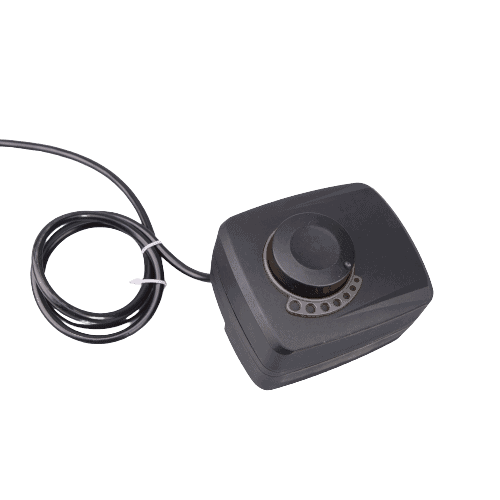

electrical actuators
electrical actuators

DC 24V
With an electric auxiliary switching valve function
Power consumption; 6W, running time; 5-15 seconds
Maximum differential pressure: 1.0Mpa
Low noise, operation noise less than 40DB;
The ball valve and the actuator are threaded following the way, quick disassembly.
Suitable for water or ethylene glycol with a concentration of less than 60%
Fluid temperature 2-94 °C degrees, storage temperature -20-65 °C.
Working pressure PN 1.6Mpa
The valve body is brass
Three lines 2 control
High temperature resistant


So, what’s the deal with motorized ball valves? They’re workhorses in many industrial setups, offering spot-on control over liquid and gas flow. Thanks to their electric motors, they’re perfect for situations where manual operation just doesn’t cut it. This article is your one-stop-shop for everything about these valves, including their uses, unique features, top picks from our range, why you should opt for our products, our custom and OEM offerings, and even our current deals.


Motorized ball valves are jack-of-all-trades. Here’s where you’ll find them most:

HVAC Systems are the gatekeepers of coolant or heating fluid flow, keeping temperatures just right.

Water Treatment Plants: They’re the traffic cops, directing water flow during various treatment stages.

Industrial Process Control: In industries like pharma, food and beverage, and chemical processing, these valves keep process fluids flowing just right.

Home Automation Systems: For automated watering systems, pools, and smart home water management, these valves offer hands-off operation.

Special Features

What sets motorized ball valves apart?

Energy Efficiency: They’re light on power, making them a green choice for many applications.

Precision Control: They allow dead-on fluid flow control, even under high pressure.

Durability: Built like tanks, these valves are usually made from sturdy brass or stainless steel, promising a long life.

Easy Integration: Their electric operation makes them a cinch to incorporate into automated systems.

Top Rated Items of the Product

Here’s a peek at some crowd favorites from our range:

2-Way Stainless Steel Motorized Ball Valve: Praised for its durability and rust resistance, it’s a champ for heavy-duty applications.

Miniature Motorized Ball Valve: Ideal for tight spaces, offering all the functionality in a smaller package.

3-Way Motorized Ball Valve: Great for more complex flow control, with three ports to direct fluid in multiple directions.

Why Choose Our Products

Why pick our motorized ball valves? Here’s why:

Quality: We’re all about high-grade materials and strict testing, promising top-notch product quality.

Versatility: Our comprehensive product range has something for everyone, from HVAC systems to industrial process control.

Customer Support: We’re here for you, offering expert advice on product selection, installation, and maintenance.

Customized and OEM Products Based on Requirement

We get it, and off-the-shelf might not always work for you. We offer custom options and OEM products to suit your needs. Do you need a specific pressure rating or a valve of a custom size? We’ve got you covered.


We’re offering deals on motorized ball valves to thank our customers. Give significant discounts on top-rated items and use our free technical consultation service. It’s time to upgrade your system with our reliable, top-quality motorized ball valves.

Wrapping it up, motorized ball valves are key players in many applications, offering pinpoint control, reliability, and energy efficiency. With our top-rated products, custom options, and current deals, there’s no better time to invest in these versatile components.

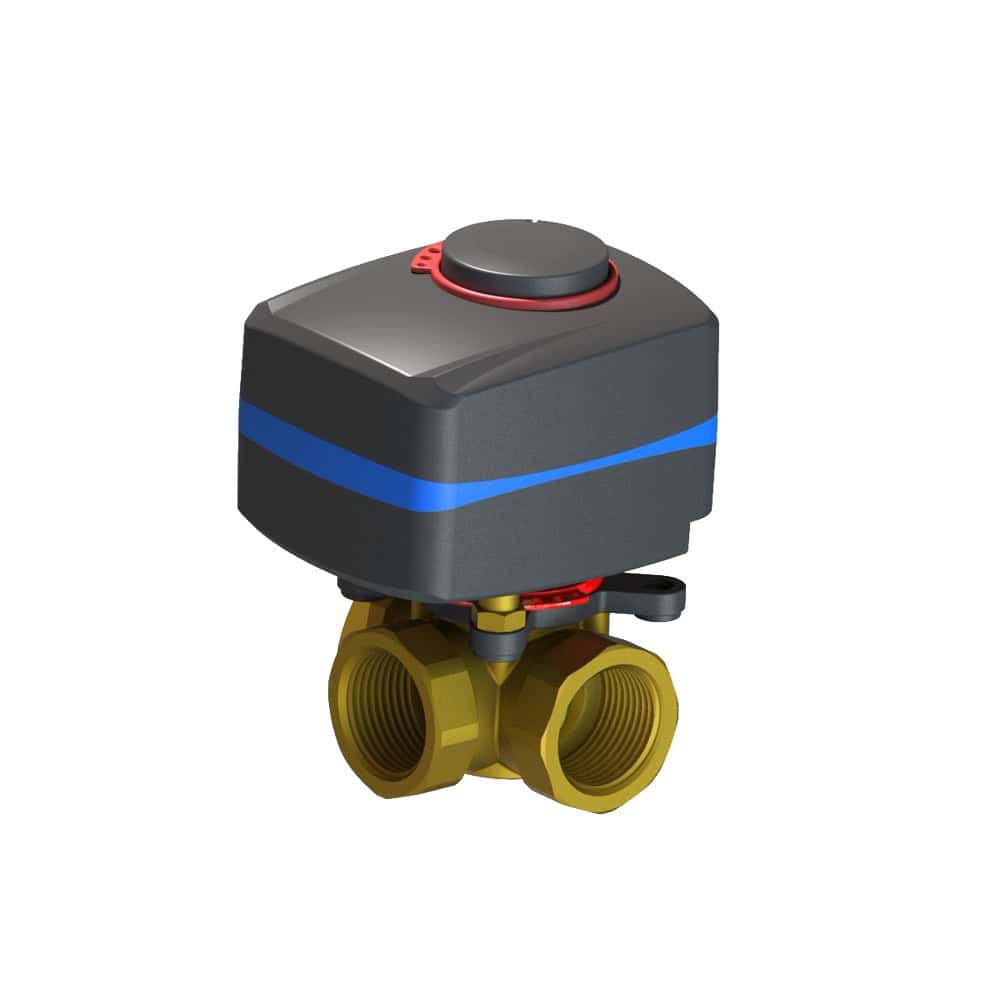

ball valves actuator
ball valves actuator

Motorized Control Electric Motor Valves

Motorized control electric motor valves are a crucial part of any water system. These devices allow for automatic control over the flow and pressure of water, ensuring optimal performance and efficiency in various applications. The motorized valve is composed of an electric motor, which is used to open and close the valve, and a positioner that controls the action of the valve. This device can be used for industrial applications such as process cooling systems, wastewater treatment plants, fire hydrant systems, etc.

The primary benefit of using motorized control valves is their ability to automate processes without requiring manual intervention from operators or technicians. This allows operators to focus on other aspects of their operations while continuing to monitor the performance of their system remotely or from afar. In addition, these devices offer precise flow rates and accurate regulation regardless of changes in pressure or temperature.


Motorized valves are essential to water systems, providing automated control to ensure safe and efficient operation. These valves offer numerous advantages over manual models by using electric motors to drive the valve’s movement. Here are some of the key benefits of motorized valves for water systems:

Firstly, motorized valves provide precise adjustment capabilities. They can be programmed with a range of settings that allow for accurate control over the rate and direction of flow in a system. This makes them ideal for regulating pressure or temperature in water lines and protecting against flooding or hazardous substances entering the system. In addition, these valves are much more reliable than their manual counterparts since they reduce potential human error.

Furthermore, motorized valves require minimal maintenance due to their self-contained designs, which protect internal mechanisms from corrosion and dirt buildup.


Types of Motorized Valves can be a difficult choice when controlling water flow. They provide an automated solution for regulating fluid movement and are used in many industrial, commercial, and residential applications.

The most common type of motorized valve is an electric motor valve, which consists of an electric motor connected to a manual control or actuator. This system allows precise control over the valve opening or closing flow rate, pressure, and angle. Another type is a pneumatic motor valve, which uses compressed air instead of electricity to operate its solenoid-actuated diaphragm mechanism.
