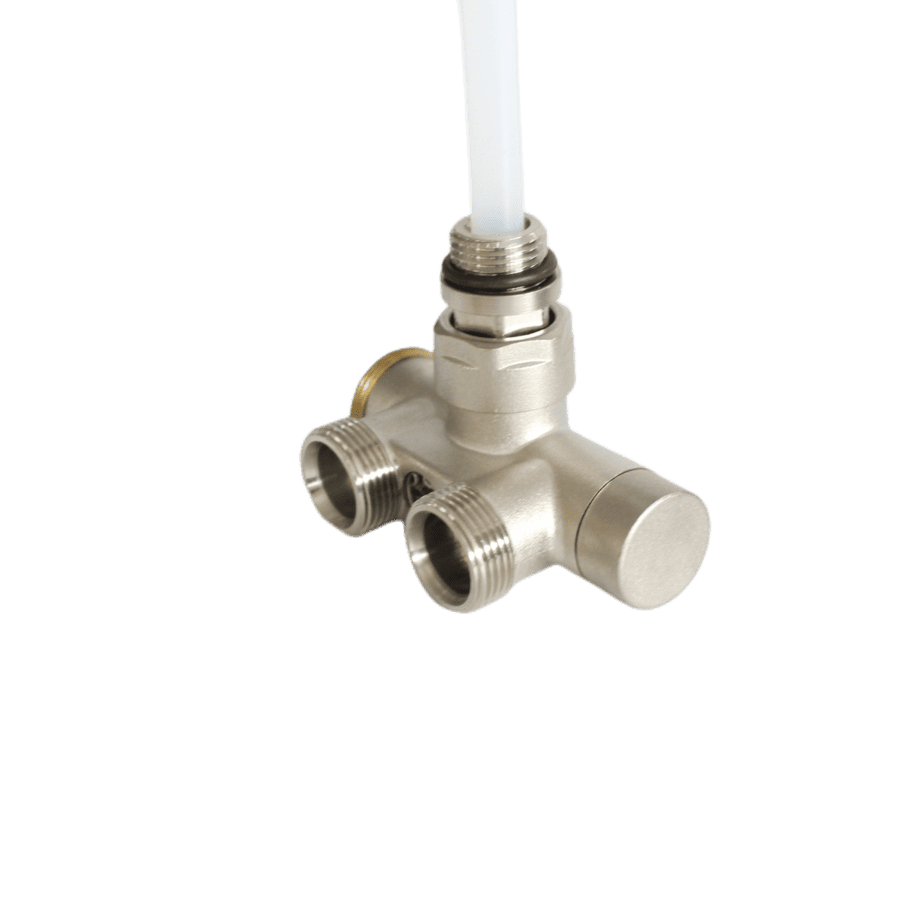

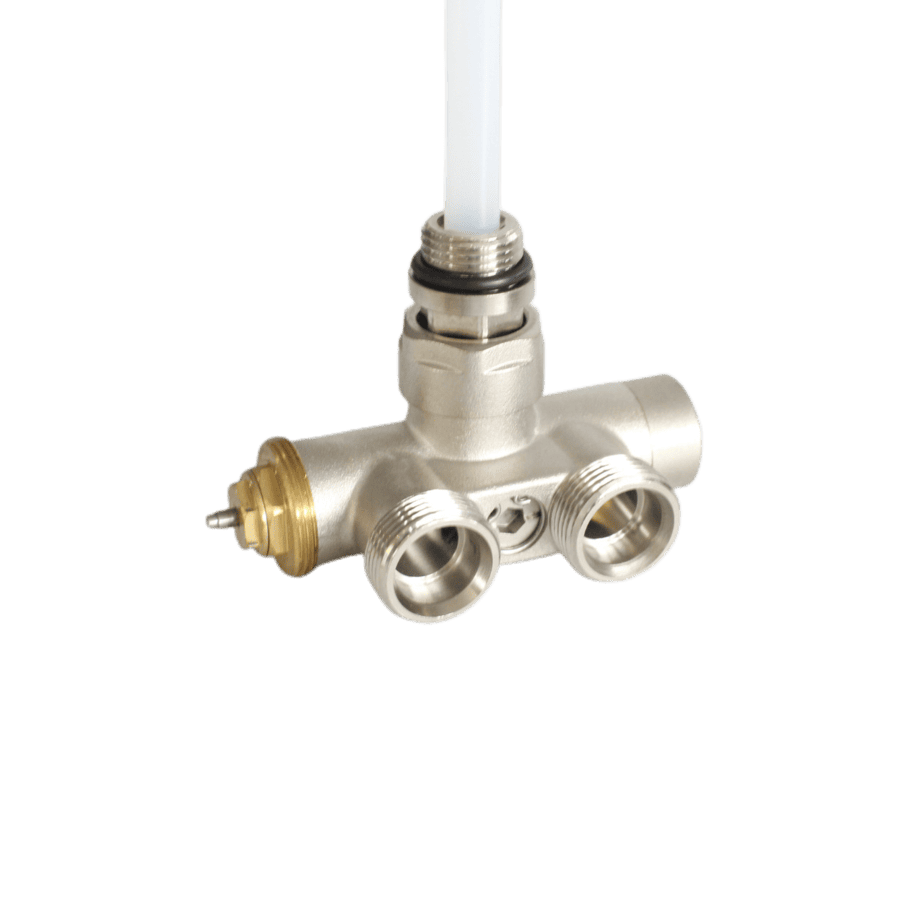

Three-way temperature control valve head for thermostat

Parameters of Three-way temperature control valve head for thermostat

It is suitable for ironing steam and status control of the water system, the actuators using an ironing machine.

Additional information


CW617N, H58-3


Sand blasted, Sand blasted and Nickel plated



Thread connection




Lead time:

30 days


24 months

Details about Three-way temperature control valve head for thermostat

Three-way temperature control valve head for the thermostat

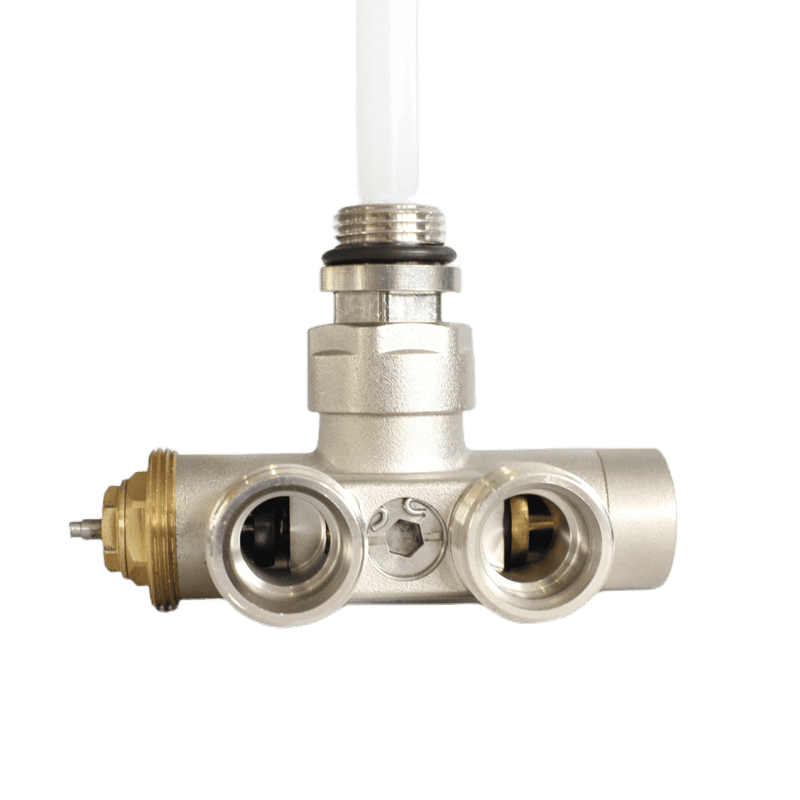

Body Brass/Low lead-free CW617N
Brand Plumberstar
DN 86mm
Standard EN331/ASME ISO 228
Size 1/2″
Medium Water
Flow type 2-way flow
Finish Sandblasted with nickel plated
Operation Manual
Type Shape plug type

Purpose of the valve head

The purpose of the valve head is to help control the temperature in a thermostat. A three-way temperature control valve head regulates water flow into and out of the thermostat, allowing it to change temperatures. This helps maintain a comfortable environment in any building or home where a thermostat is installed. The three-way valve head also assists with energy conservation by blocking off warmer or cooler water as needed, making it more efficient than other valves without this feature. By controlling the amount of hot and cold water that goes into and leaves the heater or air conditioner, this type of valve head can save energy costs for homeowners or business owners over time. It can also reduce wear and tear on heating systems since it reduces how hard they work to maintain an acceptable comfort level.

ironing solenoid valve
Thermostat valves

Features: Benefits of 3-way control

For those looking for greater temperature control, a three-way control valve head for the thermostat offers numerous benefits. This valve style allows users to precisely regulate the temperature in their home by controlling the flow rate and direction of coolant. This feature will enable homeowners to customize their home temperatures more accurately, enjoying better comfort and energy efficiency.


The valve head is designed with two ports that allow warm and cold water to be mixed at different levels—depending on the desired temperature setting—and then sent through one port into the system. The three-way control provides greater flexibility than traditional two-port valves; it allows for a broader range of temperatures and settings, giving you more precise control over your environment.

Installation: Requirements for installation

Installing a three-way temperature control valve head for the thermostat is ideal to ensure that your home is always at a comfortable temperature. To successfully install this type of device, specific requirements must be met. First, you will need access to the necessary tools and materials, such as a screwdriver, wire cutters, and conduit tubing. Second, you’ll need to be familiar with basic electrical wiring tasks to connect the valves safely. Finally, ensuring that your existing thermostat has all the necessary components to work correctly with the new valve head is essential. With these requirements in mind, this type of device can be installed quickly and easily.

Operation: How it works.

We focus on the thermostat’s three-way temperature control valve head and explain how it works. The three-way temperature control valve head is an essential component of a home’s HVAC system, as it regulates the flow of heated or cooled air through the vents. It consists of an inlet port and two outlet ports – one open to the atmosphere and one connected to a bypass line. By controlling the flow between these ports, it effectively controls the thermostat setting in your home.

The operation of this unit is relatively simple. When you set your desired temperature on your thermostat, the valve opens or closes depending on whether you want hot or cold air entering your home via different outlets around your house.

Maintenance: Tips for upkeep

It is an essential guide for any homeowner and those responsible for the thermostat. A three-way temperature control valve head is key in providing accurate and efficient temperature regulation in the home. Still, it could lead to more significant problems if it isn’t correctly cared for. To keep your thermostat functioning at its best, here are a few tips on maintaining this critical device.

First, you should periodically check that the wires in the valve head are secure and tightly connected. Any exposed wiring can be hazardous and cause temperature regulation issues in your home. Additionally, it would be best if you routinely inspected the valve head to ensure no dirt or buildup may affect its performance. Cleaning off any debris or dust will help ensure the optimal function of your system.

Advantages: Reasons to purchase

A Three-way temperature control valve head for the thermostat offers several advantages that can improve the performance of your home or office’s heating, ventilation, and air conditioning (HVAC) system. By purchasing this item, you are giving yourself an efficient and economical way to manage temperature control.


A three-way temperature control valve head is the perfect solution if you’re looking to reduce energy costs. This type of valve head allows for precise adjustment of temperatures within each zone in your building with minimal effort on your part. You won’t need to constantly adjust the thermostat throughout the day to keep up with changing climates or seasons, saving time and money. It also prevents wasted energy due to incorrect settings, which would have been caused by manual intervention – something that could have profound financial implications over time.


Disadvantages: Potential drawbacks

As with any device, the three-way temperature control valve head for the thermostat has some potential drawbacks. The first disadvantage is that installing the valve head requires additional wiring and space to accommodate it. This can be a costly endeavor and one that some homeowners may not be able to afford or may not have room for in their homes. Additionally, if this new technology is installed incorrectly, it can cause further issues with the thermostat and its operation.

The second disadvantage is that these valves require frequent maintenance checks to ensure they are working correctly; otherwise, they can malfunction and cause discomfort in the home due to improper heating or cooling temperatures. These maintenance checkups are often necessary every few months, depending on usage and other factors, resulting in added costs over time.

Conclusion: Final thoughts

The three-way temperature control valve head for the thermostat is essential to any well-maintained HVAC system. It provides precise control over the temperature within a home, ensuring the environment is comfortable and safe for occupants.


Ultimately, proper use of the three-way temperature control valve head helps to keep energy costs down while providing a reliable source of heating or cooling throughout a home. In addition, regular maintenance and inspection of this valuable piece of equipment can help to ensure that it continues to operate at peak efficiency over its lifetime. With its combination of accuracy, cost savings, and reliability, installing a three-way temperature control valve head can be an excellent investment in any homeowner’s future comfort and peace of mind.
