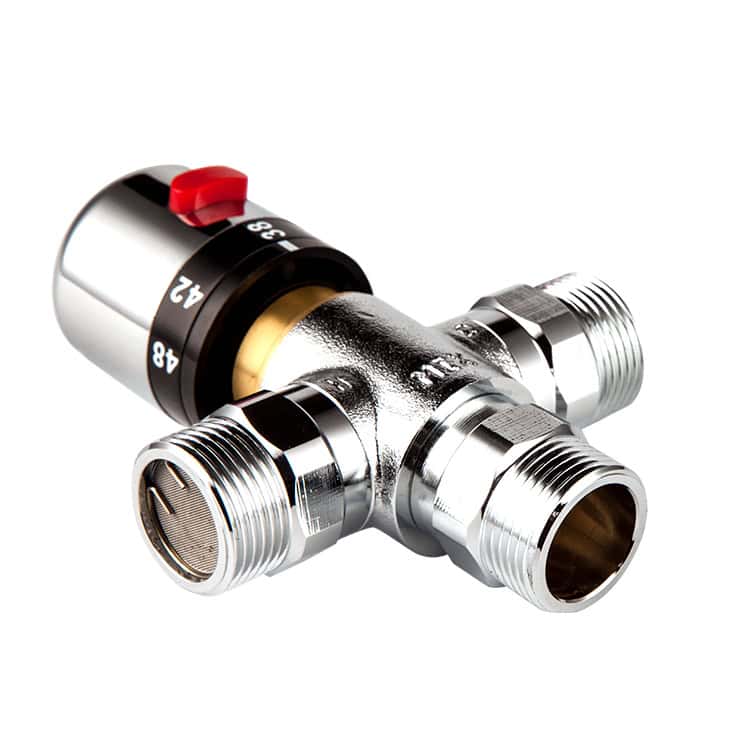

Mix Water Thermostatic Valve

Parameters of Mix Water Thermostatic Valve

It is suitable for HVAC and status control of the water system. The valve body is adopting the ISO228 standard platform, the actuator’s using a synchronous machine that drives the gears steady.

Additional information

Materials:

CW617N, H58-3

Finising:

Sand blasted, Sand blasted and Chrome plated, Sand blasted and Nickel plated

Size:

1", 1/2", 3/4"

Thread connection

BSP, NPT

MOQ:

500pcs

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days

Warranty:

12 months

Details about Mix Water Thermostatic Valve

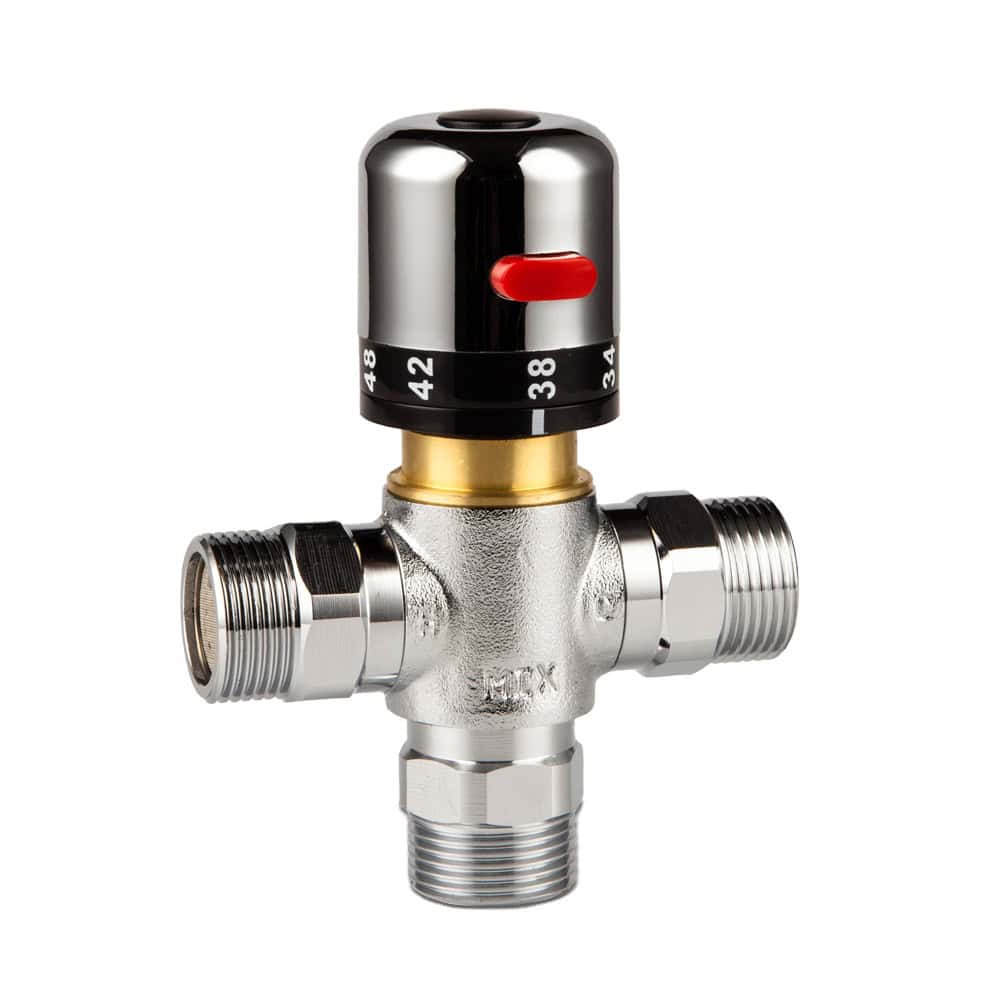

Water Temperature Control Valve /Thermostatic Mixing Valve

JX-0306

  • 3 Way body; DN15-DN25 ( 1/2″ – 1 “)
  • Driving model; Electric/Manual with position indicate;
  • Temperature Inlet Cold Water: 5-29°c, Inlet Hot Water: 50-95°c, Mixing Water: 35-45°c,

Adjustment Accuracy: ±2°c

Brass materials with nickel-plated,

ABS handle+Stainless steel spring,

The thickness of chrome plating Nickel ≥ 8μm, chrome ≥ 0.2μm

Water flow:67L/min in 1 Bar Water Pressure

— Available panel (surface) mounted where valve needs to be easily accessed or inline where it is less accessible
— 1/2″ 3/4″  and 1″ BSP connections
— Provides easy-to-adjust maximum temperature control to help prevent scalding
— Can be used to supply water to any outlet (bathroom taps, showers, or kitchen taps)
— Panel mount version supplied with chrome panel mount faceplate

Body Material: Premium Solid Brass
-Connection: 1/2″ NPT tapered threads, American plumbing standards
-Inlet Cold Water Temperature Requirement: 34-84°F
-Inlet Hot Water Temperature Requirement: 113-210°F
-Outlet Water Temprature: 68-122 °F

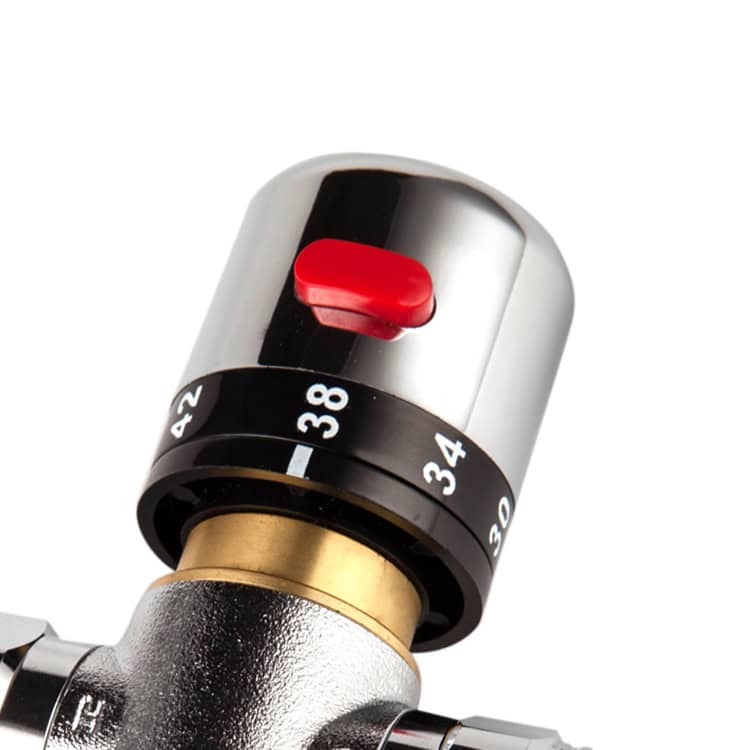

-Notice: press the red knob and adjust the temperature
1x Thermostatic Mixing Valve,3X G1/2 to 1/2NPT adapters

Position Min 1 2 3 4 5 6 7 Max
Temperature /℃ 30 34 39 43 47 51 55

Water Temperature Control Valve is a device that can control hot and cold water, usually needed in many households for washing dishes and taking showers. It’s also one of the most popular valves because it can save energy by mixing hot and cold water at an optimal temperature. The thermostatic Mixing Valve has been designed with modern technology so that you can adjust the flow rate of water coming through your faucet. The valve will then turn on or off depending on how much hot or cold water is required, meaning that you’ll get just as much warm or cool water as you need but not excess supply!

Mix Valve Dn15
Mix Valve Dn15



A thermostatic Mixing Valve is a device that can be used to control hot and cold water, which is usually needed in many households for washing dishes and taking showers. It’s also one of the most popular valves because it can save energy by mixing hot and cold water at an optimal temperature. The thermostatic Mixing Valve has been designed with modern technology so that you can adjust the flow rate of water coming through your faucet. The valve will then turn on or off depending on how much hot or cold water is required, meaning that you’ll get just as much warm or cool water as you need but not excess supply! One of the best features of a Thermostatic Mixing Valve is that it is straightforward to install. The installation usually takes less than an hour and can be completed by anyone with some basic plumbing skills. You will need to shut off the water supply, remove the old valve, and replace it with the new one. After that, you’ll need to reattach the water supply and turn on the faucet!
