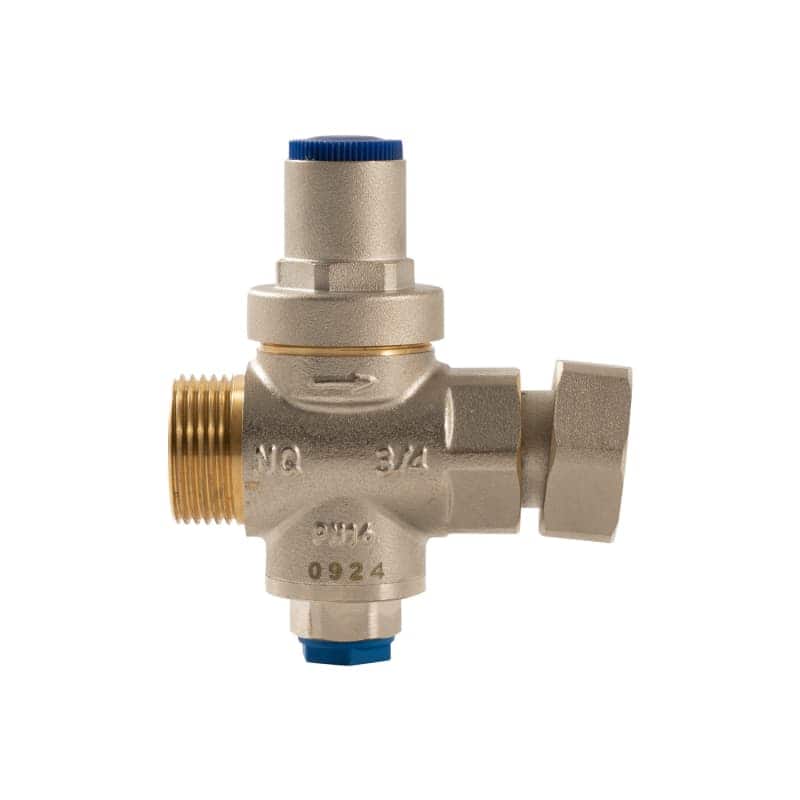

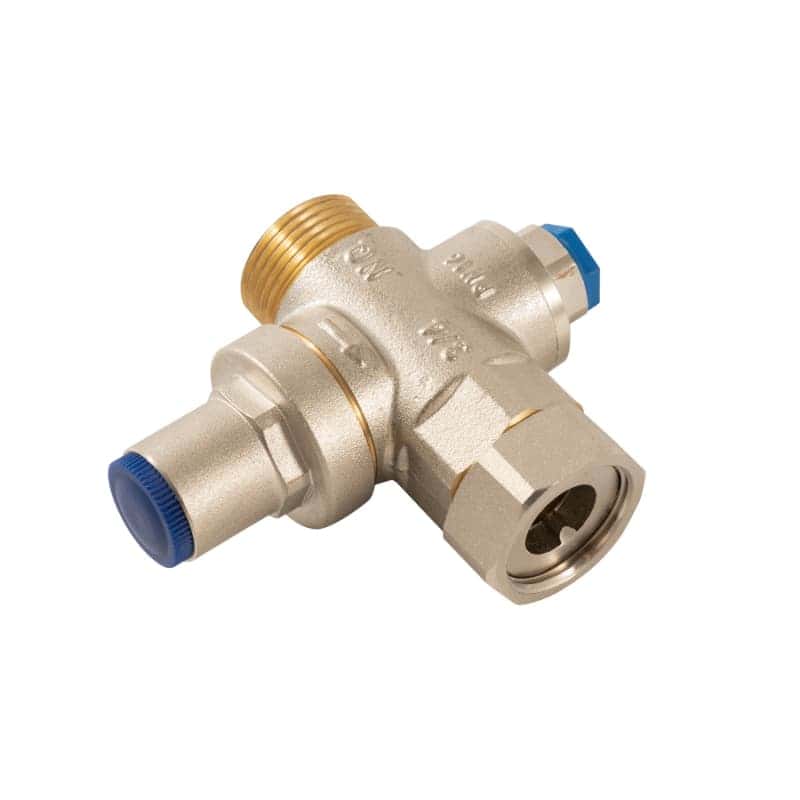

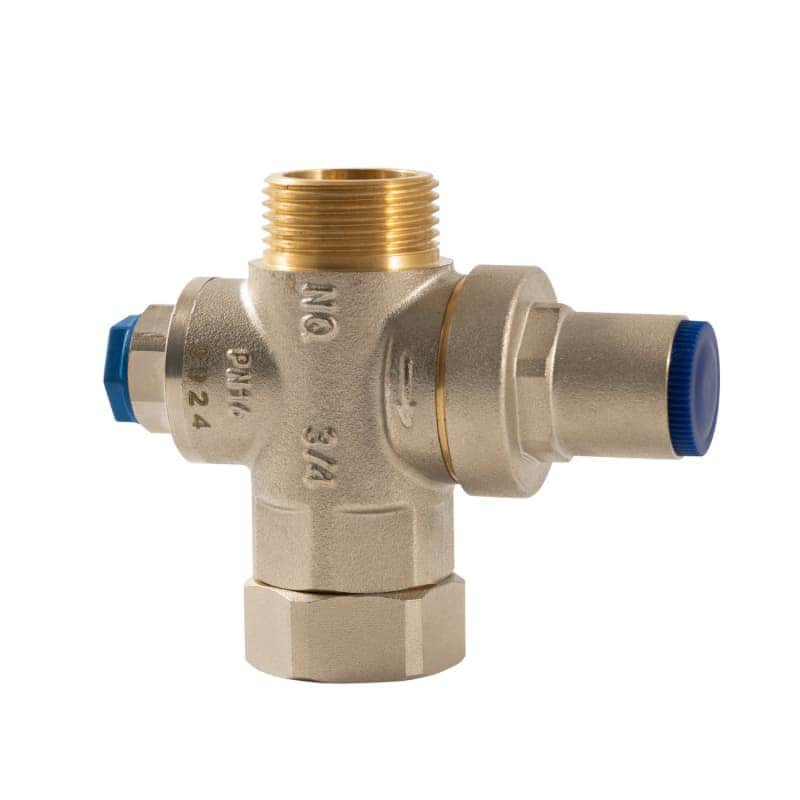

The Thermostatic Reducing Valve has a built-in part that senses temperature and parts that control pressure. It can simultaneously achieve stable control of medium pressure and automatic adjustment of temperature. It can automatically open and close the valve core according to changes in medium temperature without an external power supply. It can reduce the high pressure in the pipeline to a safe range for the equipment. And it can also keep the outlet water temperature constant within the set range. It reacts quickly and controls temperature accurately.
Model No.: 8095-PL20
Material: CW617N,CW511L,CW602N/DZR
Reliable material with 3-year warranty
Certification: NF,ACS
OEM and ODM are both welcome
Connections: M 20/27 (3/4″), F 20/27 (3/4″)
Pressure gauge: F 8/13 (1/4″)
It could put the system in water and alternate every 3 minutes between hot water at 60 °C and cold water at 10 °C
Preset: 8 bar inlet and 3 bar outlet, maximum pressure of supply 10 bar
A three-way solenoid mixing valve is a specialized fitting for piping and heating systems. It accurately mixes hot and cold fluids and maintains a stable outlet temperature. When the temperature and pressure fluctuate, it will automatically adjust the ratio to offset the change. It not only prevents scalds but also maintains a stable temperature.
The reducing valve works by itself without extra power. It lowers the inlet pressure to a set outlet pressure and keeps it stable. It controls pressure by changing how much water can pass through, which creates pressure loss. When the pressure after the valve changes, the spring inside helps balance it, so the outlet pressure stays within a safe and acceptable range.
It uses the power of the water or fluid itself to lower the high inlet pressure to the pressure needed by the pipe or equipment. It can keep the outlet pressure stable on its own. The zinc-resistant brass material makes it suitable for more applications and helps it last longer.
Model No.: 8092-PL15,PL20,PL25
Size : 1/2″,3/4″,1″
Body Material: CW617N,CW511L,CW602N/DZR
Body in anti-dezincification brass
Connection: Female Thread
Working Temperature: 0-80℃
Maximum inlet pressure: 25 bar
Outlet pressure:1/2″,3/4″,1″ between 1 and 5.5 bar
Outlet pressure gauge connection 1/4″ on both sides
Threads: ISO 228, NF, ACS

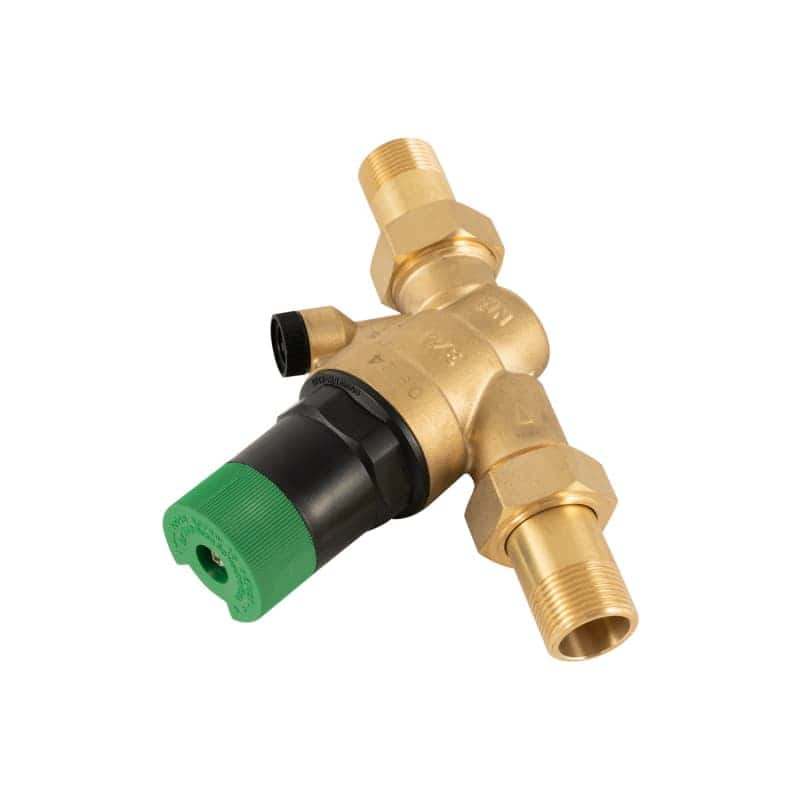

Pressure Reducing Valve With R1 1/2″ Threaded Connections Installing a pressure reducer prevents damage from overpressure and reduces water consumption. The set pressure remains constant even when there is a wide fluctuation in the inlet pressure. The reduction in operating pressure and maintaining it at a steady level minimises noise in the installation.
Model No: 8097-PL20
Size : 1/2″,3/4″
Material: CW617N,CW511L,CW602N/DZR
Dezincification-resistant brass body
Adjustable outlet pressure: 1/5 to 6 times
It could put the system in water and alternate every 3 minutes between hot water at 60 °C and cold water at 10 °C.
Downstream pressure measurement: 3 bar
Fluid type: water
Connection type: gear
Inlet pressure: up to 25 bar
Outlet pressure setting point: 1/5 to 6 times
Nominal diameter: 70dn
DVGW certified
All materials are ACS and NF certified
All materials used are UBA-compliant
Minimum pressure drop: 1 time
Watts Pressure Reducing Valve
It can adjust the input high-pressure fluid pressure to the required value and maintain stability. It automatically responds to pressure changes to avoid damage to downstream equipment due to high pressure. And it adapts to the pressure stabilization requirements of multi-scene fluid transmission.
Model No.: JX-0946
Material: CW617N,CW511L,CW602N/DZR
Size: DN15, DN20, DN25
Finish: Sandblasted and nickel-plated according to CW617N
Media: Water
Connection Mode: External Thread
Working Pressure: 0.03-1(MPa)
Flow Range: 0.5-5L/Min
Noise-tested: Class 1
The membranes and O-rings are made of NBR
Max pressure: 25 bar (DVGW-tested 16 bar)
Output pressure: 1.5 – 6 bar
Operating Temperature: 30 °C
Brass Water Regulator/Water Pressure Gauge Combo
The brass combination device integrates pressure measurement and pressure regulation functions. It visually displays water pressure. It accurately regulates within a safe range. Ensuring the stable operation of waterway systems and terminal water equipment.
Model No: JX-0949
Material: Brass
Medium: Water, Steam
Drain Style: Straight
Surface Treatment: Sand Polishing
Water Pressure:40-50 psi
Orange grippers indicate lead-free
Limited 3 Year Warranty
Specification:3/4F*3/4M
Max Static Inlet Pressure:16bar
RV Pressure Gauge: Helps you monitor your RV to prevent the damage that can come from high water pressure
FAQs of Thermostatic Reducing Valves
1. What is the Thermostatic Reducing Valve’s packing method?
For product packaging, we offer two flexible and standardized solutions. On the one hand, according to the specific requirements and specified standards put forward by customers, tailor-made customized packaging for products is provided; on the other hand, standard cartons and wooden cases conforming to our factory specifications are used to provide stable and reliable protection for products.
2. What kind of quotation method does the thermostatic pressure reducing valve support?
Our current transport terms of service, mainly FOB and CIF, are the core support program. These two terms can meet the cross-border logistics needs of most customers. If you want to know more about the cooperation possibilities of non-mainstream terms, please feel free to contact our business interface personnel.
A constant temperature pressure reducing valve is used to keep the water pressure and temperature steady. It is installed in systems like water heaters, floor heating, and bathroom pipes. Stabilize the medium pressure within the safe operation range of the equipment, while precisely controlling the outlet water temperature within the set range.
From Владимир Пекарь
4. What are the specifications and models of the Thermostatic Reducing Valve?
The specification and model of the thermostatic pressure reducing valve are mainly divided around the interface size, rated pressure, temperature control range, and three core parameters.
The common interface size covers mainstream specifications such as G1/2 inch, G3/4 inch, and G1 inch. The rated pressure is mostly PN10 and PN16. They are suitable for pipeline systems under different pressure conditions.
The temperature control range is 30 °C-80 °C. Some industrial models can be extended to temperatures ranging from 0 °C to 120 °C. It is designed to meet the diverse temperature requirements of hot water supply and floor heating circulation.
Model names on the market are often combined with parameter codes. The name, such as TRV-PN16-G3/4-BR (representing thermostatic pressure relief valve, PN16 pressure rating, G3/4 interface, brass material). Different manufacturers will add functional suffixes according to their own standards on this basis to adapt to scenarios.
5. What materials are used in your thermostatic reducing valves?
The materials usually used in the production process of our products mainly include brass, stainless steel, and so on. They are suitable for a variety of media scenarios, including water, seawater, oxygen, air, various industrial oils, and steam. Specific conditions can be met, a particular temperature range from-40 °C to 250°C.
6. Are your Thermostatic Reducing Valves customizable?
Our valve products have customized service capabilities to meet various specific needs of customers, including valve size specifications, material selection, connection methods, and other requirements. In order to meet the needs of diversified application scenarios, we provide customers with high-quality solutions that are more suitable for actual use needs.
7. What testing do your Thermostatic Reducing Valves undergo?
We produce valves that typically undergo three core performance tests prior to delivery. These three tests are the temperature adaptability test, the pressure test covering upper and lower pressure limits, and the fracture point strength test of the core material. To verify the performance of the valve under different conditions to ensure its quality and reliability.
8. How is timely delivery ensured for Thermostatic Reducing Valves?

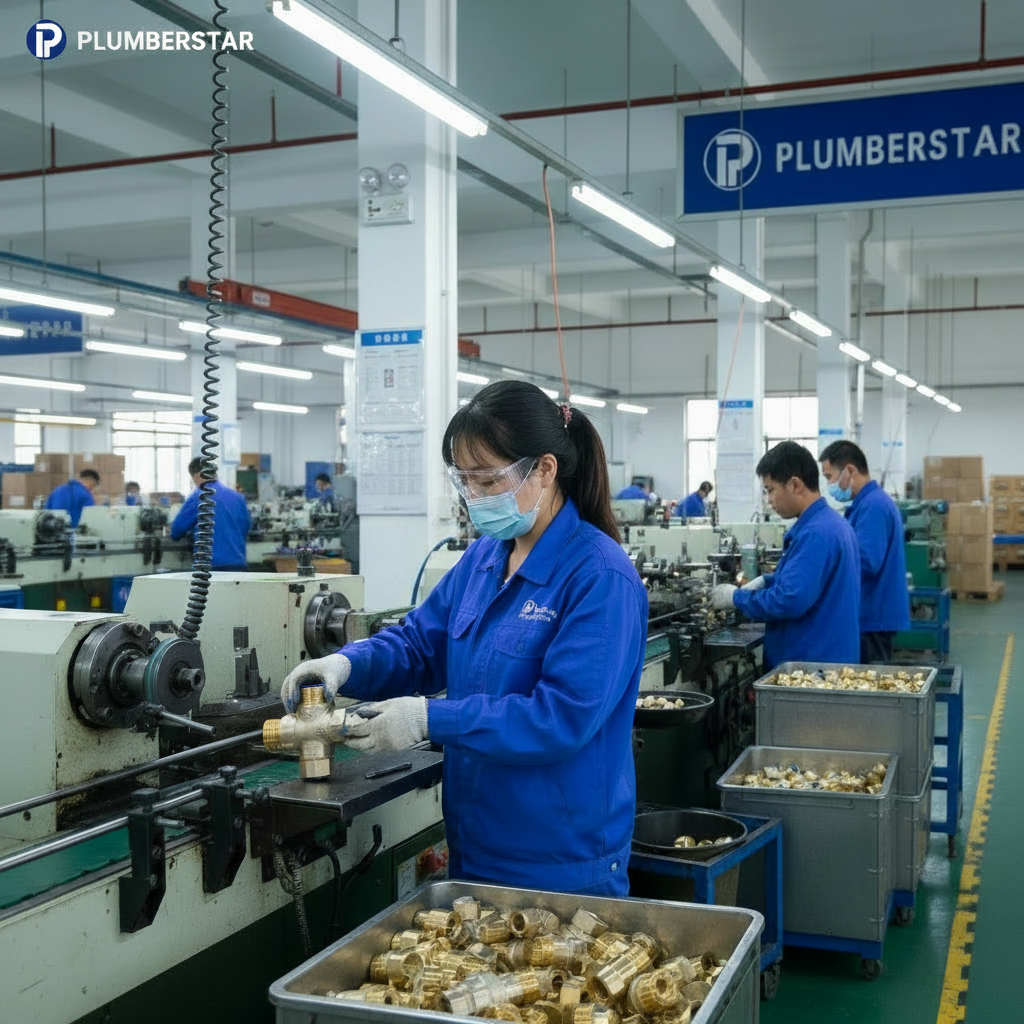

Our factories have efficient production arrangements that enable inventory management and rapid response. Manufacturers often work with multiple logistics companies. For high-volume, long-distance goods, rail and air transportation are frequently used.
9. Do you offer a warranty on thermostatic reducing valves?
Yes, we provide warranty service for thermostatic pressure-reducing valves. Most regular models have a 1-year warranty. Some higher-end or custom products can have a longer warranty of 2 to 3 years, based on the agreement.
If a problem happens because of material or manufacturing issues during the warranty time, we can repair the valve, change parts, or replace the product for free. Problems caused by wrong installation, incorrect use, too much pressure, or special events are not included.
At the same time, we also provide lifelong technical support and maintenance services beyond the warranty period to help you use the product stably for a long time.
