Angle Valve For Toilet

Parameters of Angle Valve For Toilet

When an angle valve is used as a shut-off valve for residential plumbing fixtures, it is called an angle stop valve, or simply an angle stop.

Additional information

Finising:

Polishing and Chrome plated

Materials:

C37700, CW602N, H58-3

Size:

1/2", 3/8"

Temperature:

-10˚C-100˚C

Thread connection

BSP, BSPT, NPT

Working pressure

12 bar

Handle:

Zinc alloy

Cartridge:

Brass

Life time:

200000 times On-Off, 300000 times On-Off

Details about Angle Valve For Toilet

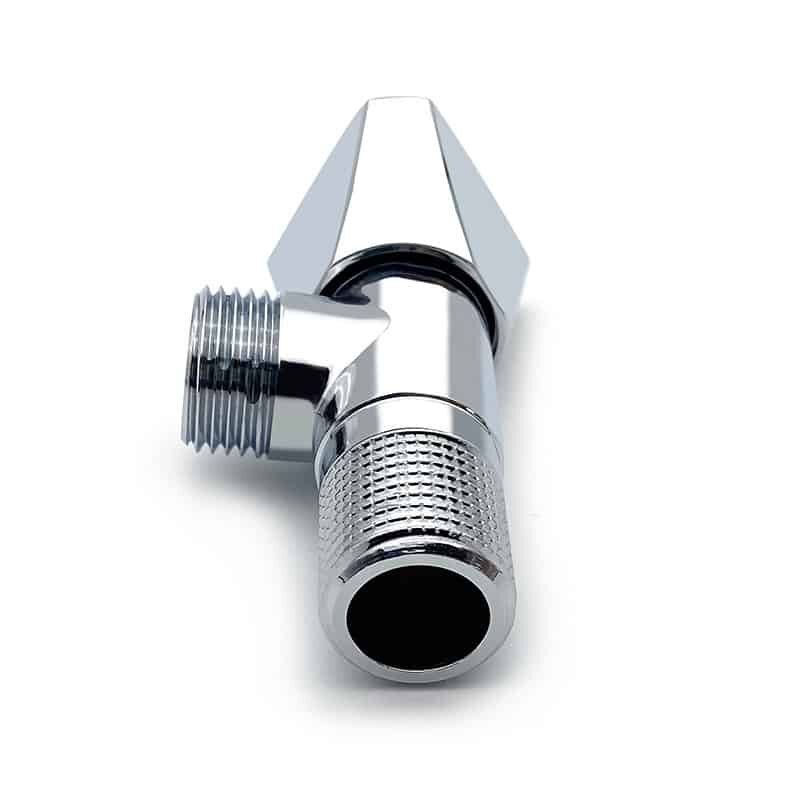

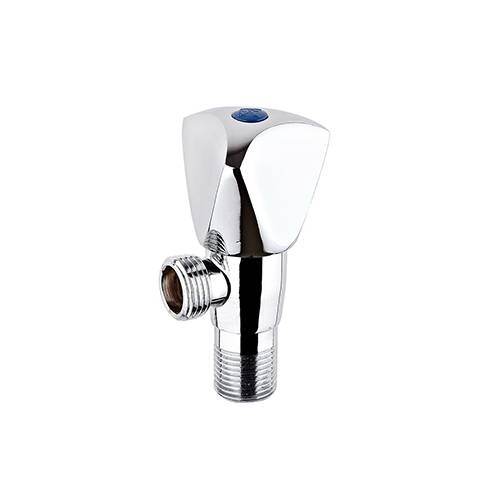

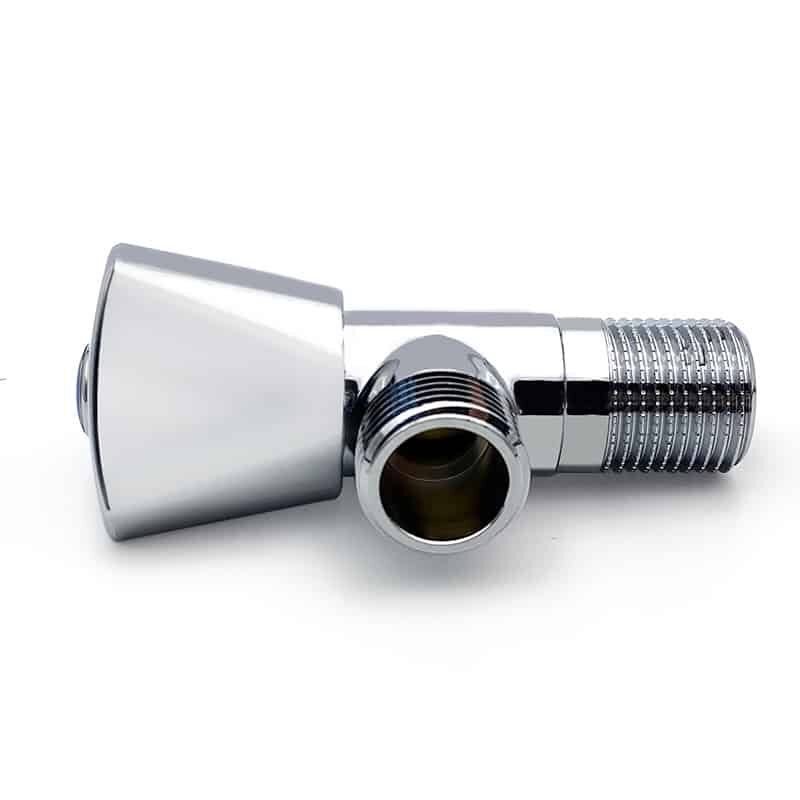

Angle Valve For Toilet

JX-0214

  • Size : 3/8″ X1/2″ ,1/2″ X 1/2″
  • Name:  Brass Angle Valve
  • Body Material: Brass
  • Connection:  Female Thread
  • Power: Manual
  • Media: Water, Oil
  • Working Pressure: 12 bar
  • Working Temperature:  -10-+100℃
  • Style: Handle-controlled
  • Surface Treatment: Chrome Plated
  • Function: Kitchen, Home, and Garden
  • Solid Brass: The valve is made of quality solid brass and electroplated polished chrome
  • Quarter Turn: Quarter turn valve means more effortless shutoff open close and only need to turn 1/4 way

Modern: Contemporary chrome finish. This designer angle valve stop puts a premium touch on those ugly pipe fittings for sinks, bathrooms, and toilet kitchen showers.

Materials of  Water Supply Valve Parts from Plumberstar

No. Part Materials
1 Body Brass
2 Cartridge Brass
3 Stem Brass
4 Seal EPDM/cartridge
5 Seal Gasket NBR
6 O ring NBR
7 Thread BSP, 1/2″x3/8″
8 Handle Wheel Zinc Alloy
9 Finish Polishing and chrome plated

Introduction: what is an angle valve?

An angle valve is a type used to regulate water flow in a plumbing system. It is usually installed where the water supply enters the home and is often used to control water flow to a toilet. The angle valve has two handles that control water flow; one controls the amount of water that flows into the home, and the other controls the amount of water that flows to the toilet. The angle valve is a vital part of a plumbing system because it helps to ensure that the right amount of water flows to each fixture in the home.

How does an angle valve work?

An angle valve is a type of quarter-turn valve often used for toilets. It consists of a handle connected to a stem attached to a disk. The disk has a hole in it through which water can flow. When the handle is turned, the branch moves the disk and opens or closes the hole. This allows water to flow into or out of the toilet bowl.

angle valve for toilet
angle valve workshop

The benefits of using an angle valve for toilets.

An angle valve is an excellent option for toilets because it is easier to install and use than a traditional valve. Angle valves are also less likely to leak, making them a more reliable option. In addition, angle valves provide a consistent flow of water.

How to install an angle valve.

An angle valve is a type of valve that is installed at the bottom of a toilet tank. The angle valve allows water to flow into the bowl when the handle is turned on and prevents water from flowing back into the tank.

To install an angle valve, first turn off the water supply to the toilet. Next, remove the old valve from the bottom of the tank. To do this, unscrew the nut that holds the valve in place and then pull out the valve.

Now, insert the new angle valve into the old valve’s hole. Tighten the nut to hold it in place. Finally, turn on the water supply and check for leaks. If there are no leaks, your new angle valve is installed correctly!



Angle valves are an excellent source for creating patches in large pipelines. It can prove beneficial at times when there is a plumbing malfunction. Angle valves are more than necessary to install at critical points.

Angle valves are controlled manually. Their inner and outer openings lie at right angles to each other. Whenever the fluid enters, it faces valve walls at 90 degrees. They vary in shape and size. The industrial use of angle valves requires a different structure than used for household purposes.

Bathrooms and kitchens usually have a routine application of angle valves. They are used as shutoff valves there. Their installation’s primary purpose is temporarily to block flow in a particular area. Small-sized angle valves are suitable for pipelines in kitchens and bathrooms.



Significance of Angle Valves:

For several reasons, we cannot deny the significance of angle valves. They play a central role in residential plumbing and fixing. Besides this, angle valves have crucial applications for industrial use. They ensure safety by maintaining a smooth and regular flow of chemicals and liquids.

Depending upon their types, they can be used as regulators or stoppers. Below are the reasons that mark the significance of angle valves.

  • It is impossible for any building or industry not to involve pipelines and sewage drains. It ultimately means that they would require high-end regulations to control fluids. It can be done by installing angle valves. You can install them at regular intervals or where necessary. It will not only be easy to control flow but also ensure safety.
  • Chemical industries carry out hundreds and thousands of reactions. There, reactants are added that react to form products. This process is done on a large scale. A controlled amount of reactants and products had to be collected. Angle valves can save the day. They can carefully regulate the delicate amounts when installed with additional features.
  • Some sensitive places need an instant shutoff from water or fluid supply. It could be because of any emergency leakage or something else.

The problem is solved when there is an angle valve installed there. Turning the knob or twisting the valve handle can create a complete blockage or flow of liquids. You can quickly repair a damaged portion by stopping fluid flow. It will help you to save them from wasting fluids and lesson leakages.
