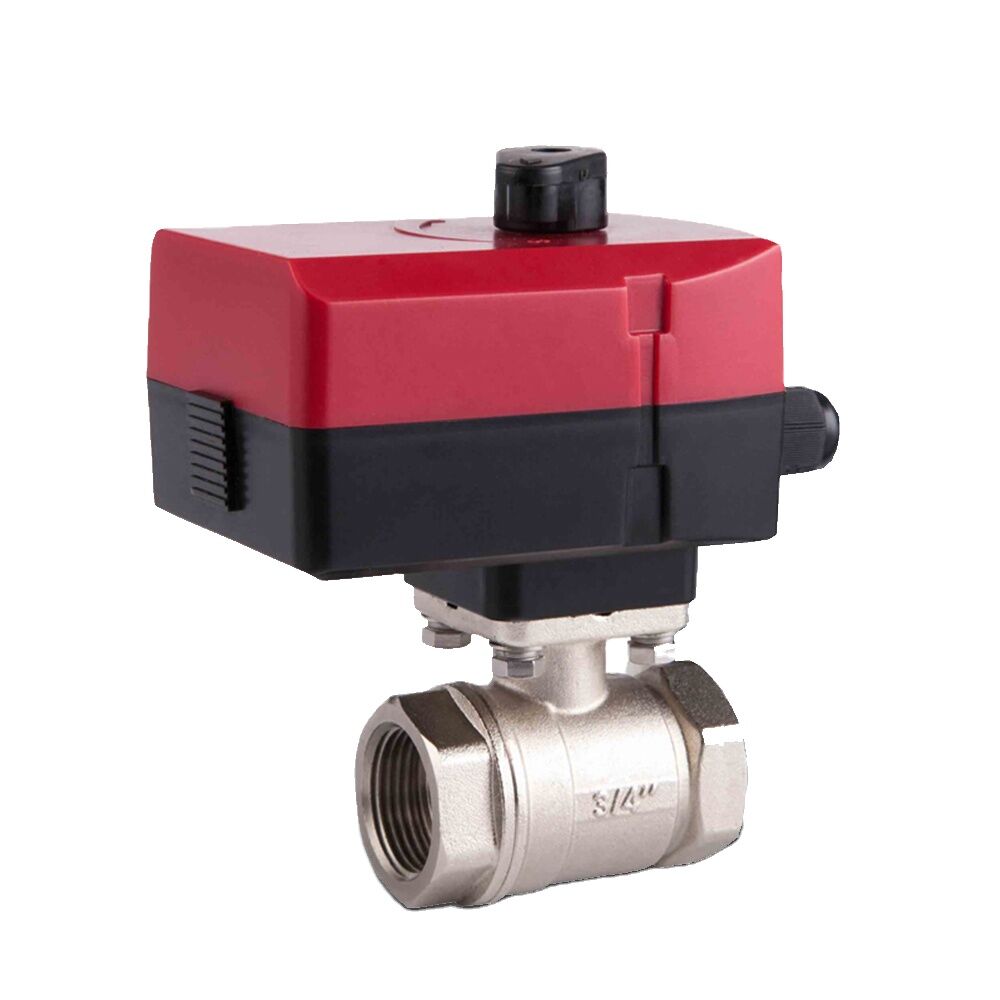

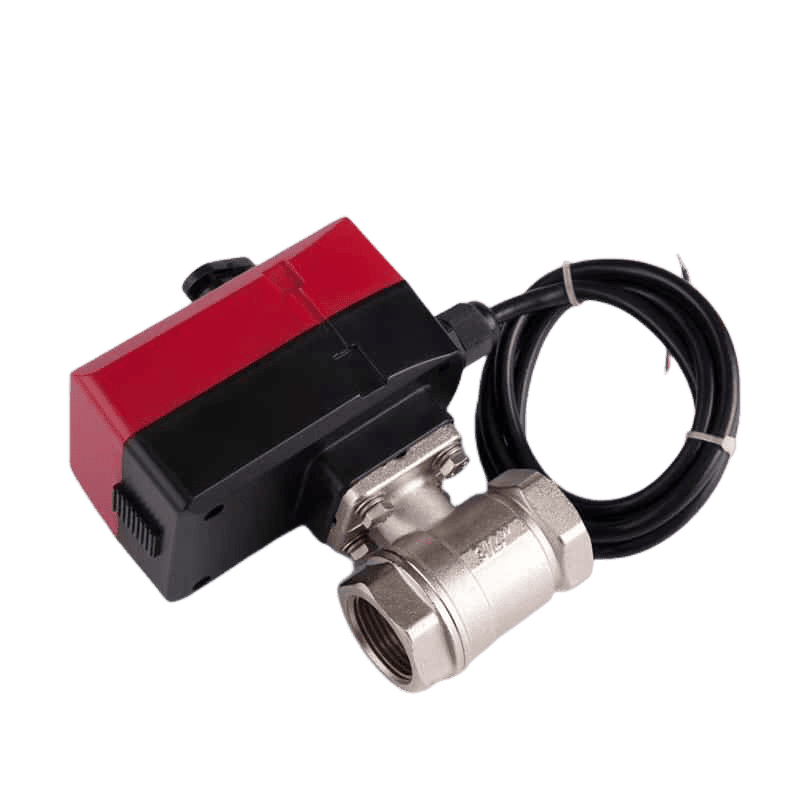

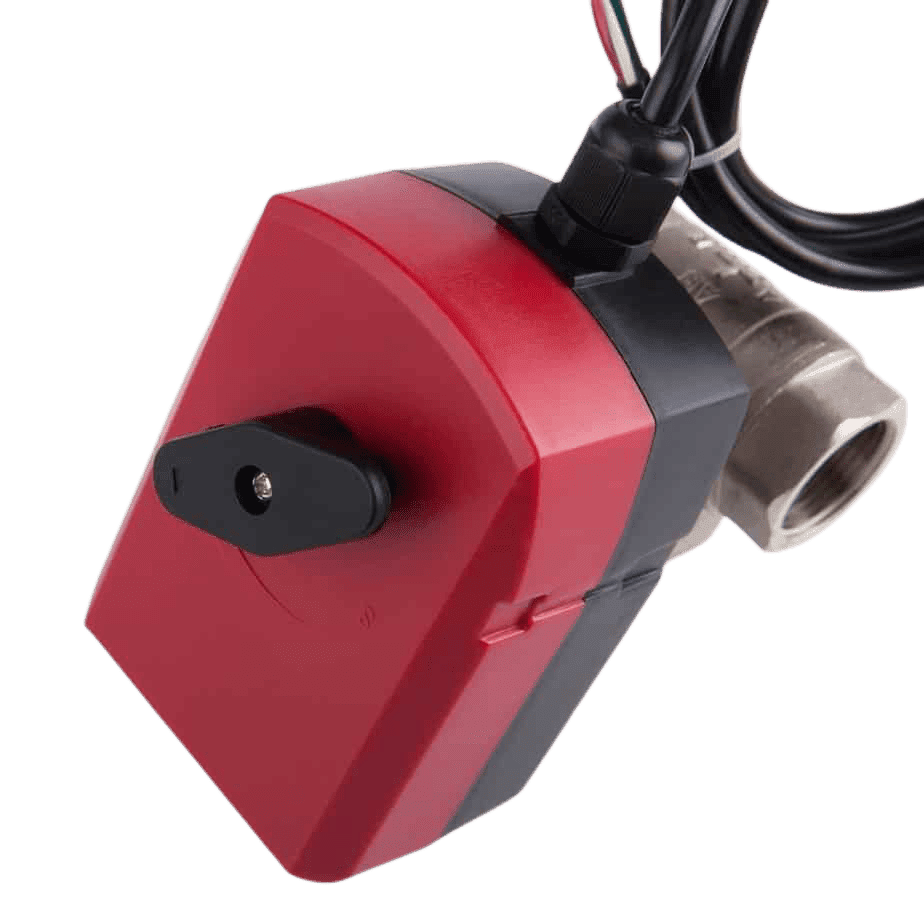

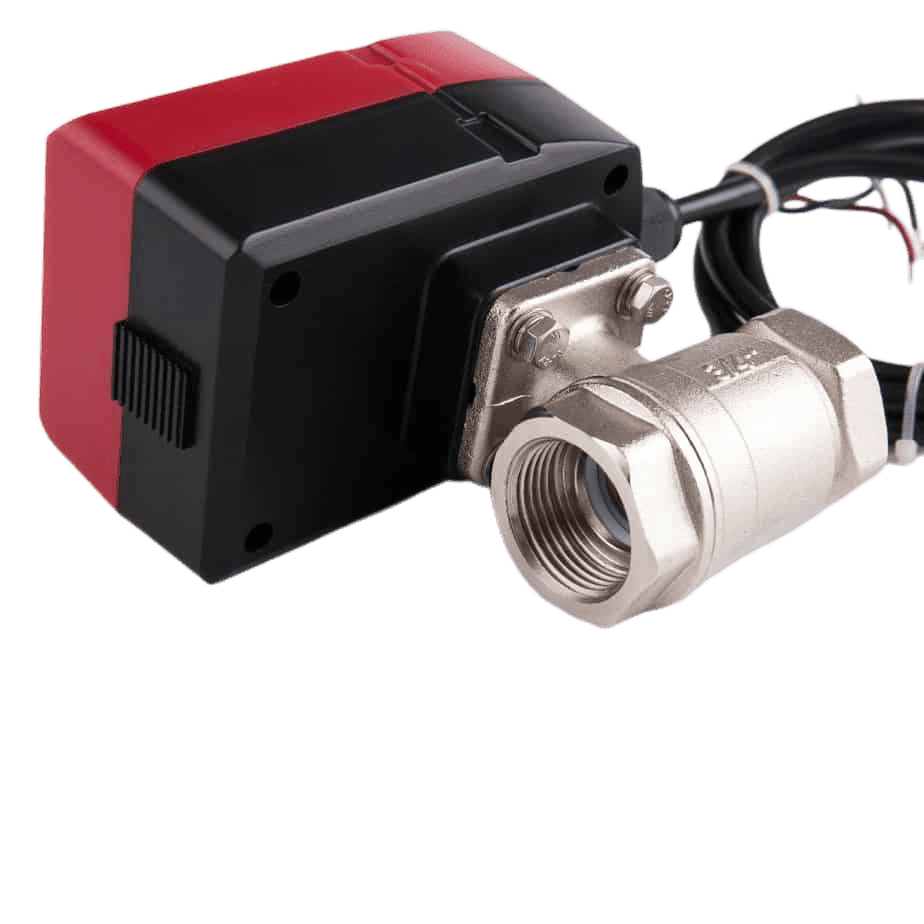

Motorized Electric Ball Valve

Parameters of Motorized Electric Ball Valve

It is suitable for HVAC and status control of the water system. The valve body is adopting the ISO228 standard platform, the actuator’s using a synchronous machine that drives the gears steady.

Additional information

Materials:

CW617N, H58-3

Finising:

Sand blasted, Sand blasted and Nickel plated

Size:

1", 1/2", 3/4"

Thread connection

BSP, NPT

MOQ:

100pcs, 200pcs

Action time

15s

Drive Power

220VAC, 24VAC

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days

Warranty:

12 months, 24 months

Details about Motorized Electric Ball Valve

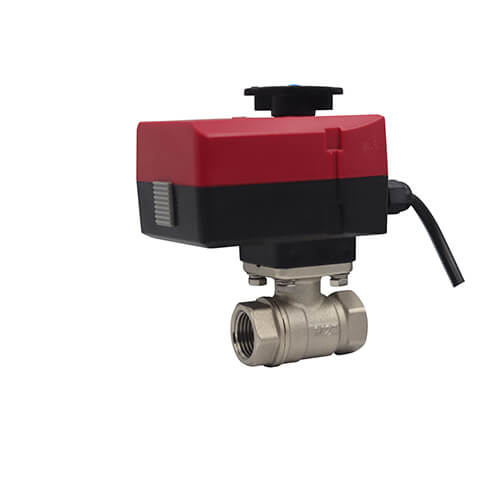

Electric Ball Valve

JX-0312

  • Type: DN15, DN20, DN25 (optional)
  • Voltage: 24v,220V,230v, 50/60Hz
  • Power: 60W
  • Cable Length: 300mm / 11.8in
  • Working Time: 25-30 seconds
  • Torque Force: 3.5 N.m
  • Medium: Water, Air, etc.
  • Medium Temperature: 15 – 95℃
  • Closing Differential Pressure: ≤0.6Mpa
  • Nominal Pressure: PN16-PN20

What Is A Valve?

A valve is a control device. It regulates or directs flow within a system or process. It has characteristics that help to define its ideal application. There is a lot of variety in valves. But their purpose is almost the same. How a valve opens and closes is very important. It will affect the overall performance of the system. It influences how much control you have over the flow. It is also vital to how fast the valve can operate.

This ball valve type is a quarter-turn valve consisting of a hollow, rotating ball. This hollow, rotating ball controls the flow of liquid. When the hollow part of the ball is in line with the flow, the valve is open, and the fluid can flow through. The valve closes when the solid part of the ball is in line with the flow. Now, the ball rotates to 90-degree. Fully opening and fully completing the valve is also possible to position. It allows for regulating more precise flow. There are two ports of ball valves in general. One is for an inlet, and the other is for an outlet. You can find three ports & four ports ball valves, and four ports ball valves are rare. Everything depends on valve assembling & installation. It can determine how the 90-degree rotation of the ball directs the liquid flow.

motorized brass ball valve
motorized brass ball valve

Introduction

A bi-directional motor drives a motorized ball valve. It supplies the necessary torque using a motor. This valve will open in 4 to 5 seconds. The motorized Ball Valve consists of a Brass valve and an actuator. The actuator generally needs 24-volt AC or DC power to operate. It has both clockwise & counterclockwise control inputs.

Motorized ball valves have greater use in HVAC. These can also be helpful for air conditioning systems and heating and cooling lines. The feedback signal of these valves is very vital. It happens when the valve is fully open. This feature can operate different devices based on opening the valve.

The motorized ball valve is convenient for remote flow control applications. The internal fluid control system of motorized valves is generally identical. Motorized ball valves play an essential role in fluid flow. Its usage ranges from a garden hose to hydroelectric power generation systems. An automated system’s input can remotely open or close this type of valve.

The operational principle of an electric ball valve is like an angled stroke. It has double-sided sealing so that there is less possibility of leaking. We must remember that motorized ball valves move slower than solenoid valves. They can’t work instantaneously, though they operate very fast. The anti-water hammer effect of motorized ball valves greatly benefits some systems. The liquid or gas does not abruptly and suddenly stop in this type of valve. You should consider the wear & tear issues inside the ball valve. The valve may get stuck because of unwanted particle flow. The valve was an engineering wonder–an invention that completely turned the tables for controlling fluids in industrial automation. These electric actuator-driven valves have accurate, effective, and reliable performance and have been applied in many fields.

Our motorized valves, also known as the actuated valves, come with automated valve control, making them unique in the market. Operating on electric motor power, they seamlessly respond to control signals, leaving the need for manual intervention. The integration of perfect electric actuators with quality ball valves results in the creation of automatic valves, thus ensuring efficiency.

Applications

Designed for numerous applications, our motorized valves would function perfectly with any processes demanding automated valve control. From industrial settings to commercial facilities, these valves would serve you right.

1. Industrial Automation

Motorized ball valves possess the ability to regulate the flow of liquefied matter very precisely, so automation is more advanced in industrial environments. This means smooth and error-free operation, increasing efficiency throughout.

2. HVAC Systems

Motorized ball valves are particularly useful to HVAC systems. With responsive control, energy consumption is adjusted according to system performance as well as requirements.

3. Water Treatment

Motorized ball valves are used in water treatment plants. These valves allow for an exactly controlled flow of water and chemical dosages, improving efficiency and accuracy.

More Aplications Of Motorized Ball Valves?

  • Residential water pipe network for cold and warm water
  • Vacuum & high-pressure applications
  • Process control systems & applications
  • Swimming pool water pipe network
  • Industrial compressors
  • Agriculture and horticulture pipe network
  • Utilization of rainwater systems
  • Irrigation System
  • Gaseous, liquid, gelatinous, or viscous media
  • Compressed air plant pipe network
  • The solar plant’s pipe plant’s
  • Ink & paint dispensing
  • Transport of liquid foods

Top-rated Items of the manufacturing valves.

Among our top-notch offerings, the electric actuators come with versatility, available in 12V to 240V AC or DC. Our torque spectrum ranges from 17Nm to 600Nm. These work for various operational requirements, making them a top-rated choice across various industries.

Our motorized valves stand out in the industry due to their simple but effective construction, reliable performance, great quality, and adherence to industry standards. Putting our customers in mind, we ensure seamless integration, functionality, and durability.

Understanding the diverse needs of our customers, we offer customized OEM valve solutions, tailoring our motorized valves to specific requirements. This flexibility makes our valves easily integrate into a wide array of systems. Take advantage of our ongoing promotion to experience the efficiency and reliability of our products.

What Sets Motorized Ball Valves Apart?

Motorized ball valves differ from ordinary valves via a spherical closure unit. Their design also makes them ideally suited to applications where fast response and pinpoint control of fluid flow are required. These valves are an important part of the system. The electronic actuator automates them, reducing human intervention.

Advantages of Motorized Ball Valves

1. Precision and Accuracy

Motored ball valves have a closure design that is round in cross-section. Compared with those others, this electric drive operation allows for the most precise and accurate fluid control. This is particularly important in applications in which even the smallest variation can have grave results.

2. Remote Operation

Electric actuators provide remote control, allowing operators the freedom to run valves from a central control room. It increases safety and simplifies the monitoring and management of the fluid systems.

3. Durability and Longevity

With robust materials and construction, motorized ball valves are engineered for durability. This longevity reduces maintenance and keeps performance the same over a long life.

Choosing the proper motorized ball valve

Factors to Consider

1. Valve Size and Type

The valve must be of the right size and type and compatible with the application’s demands. The nature of the fluid, the pressure, and the flow rate are all sorts of things to consider.

2. Actuator Power

The performance of the valve depends on the power of the actuator. To select the appropriate electric actuator, first determine the torque requirements of the application.

3. Material Compatibility

Examine physical matchups between valve components and fluids in service. This helps protect the valve from corrosion in all kinds of operating environments and makes for a long life.

4. Find A Reliable Valve Supplier

Sourcing from Google and search ” Motorized Electric Ball Valve supplier and manufacturer” from China,  or source it from Made in China;  otherwise, we can go to professional Industry Exhibitions and trade shows and then visit the valve factory,  and there are many valves factories in Taizhou, Zhejiang, China.

Different Types of Motorized Ball Valves

Quarter-turn motorized ball valve: This valve has a 90° turn to open and close a port. Opening and closing the ports to make precise fluid moves is more important. The actuators depend on ball valves, plugs, and chokes.

A multi-turn motorized ball valve uses balls, gates, or other tools. It is helpful to open and close valves for special needs.

Linear-motorized ball valve: It works with control valves for fluid flow.
