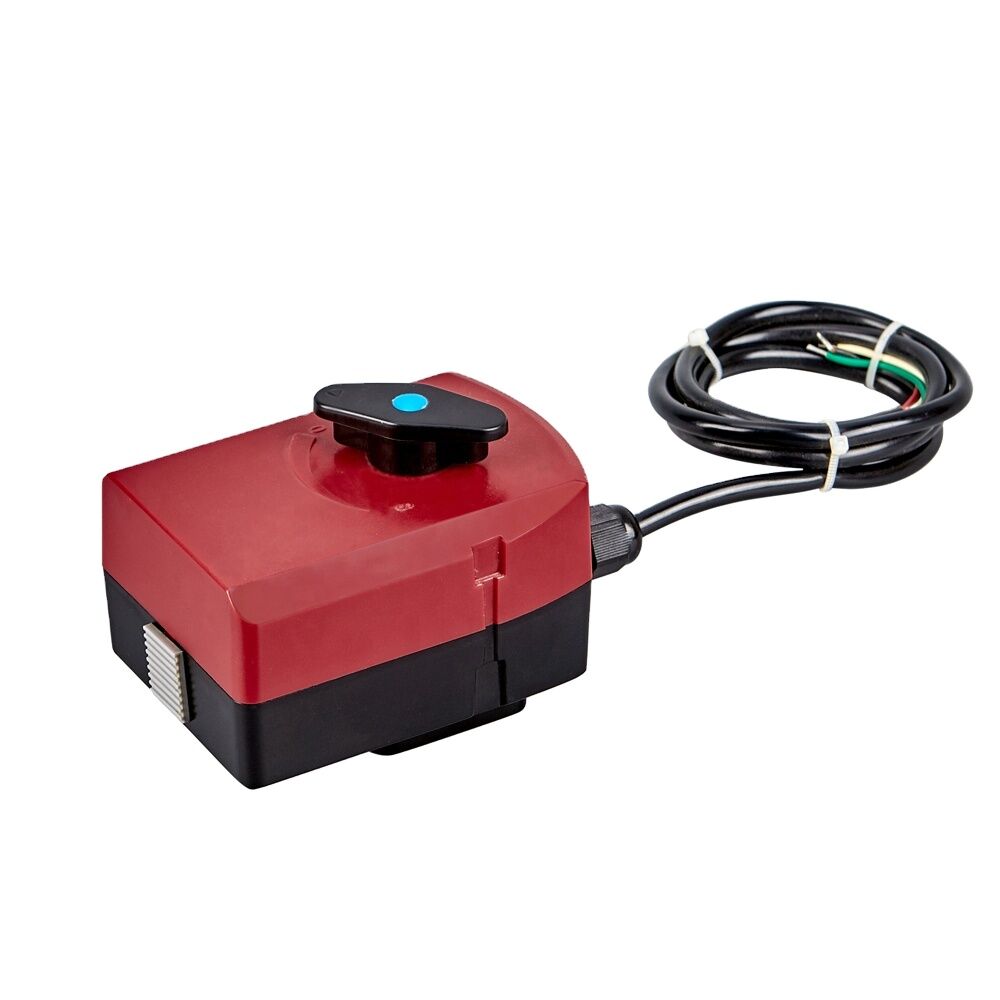

Motor Actuator 230v 24v AC

Parameters of Motor Actuator 230v 24v AC

It is suitable for HVAC and status control of the water system. The valve body is adopting the ISO228 standard platform, the actuator’s using a synchronous machine that drives the gears steady.

Additional information


CW617N, H58-3


Sand blasted, Sand blasted and Nickel plated


1", 1/2", 3/4"

Thread connection



100pcs, 200pcs

Action time


Drive Power

220VAC, 24VAC

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days


12 months, 24 months

Details about Motor Actuator 230v 24v AC

Water Motorized Control Electric Motor Actuator


  • Type: DN15, DN20, DN25 (optional)
  • Voltage: 24v,220V,230v, 50/60Hz
  • Power: 60W
  • Cable Length: 300mm / 11.8in
  • Working Time: 25-30 seconds
  • Torque Force: 3.5 N.m
  • Torque:12 Nm
  • Medium: Water, Air, etc.
  • Medium Temperature: 15 – 95℃
  • Closing Differential Pressure: ≤0.6Mpa
  • Nominal Pressure: PN16-PN20

Unleashing the Power of Motorized Ball Valve for Seamless Flow Control

Are you looking for constant and automatic flow control? Look no further because our motorized ball valve is here!

Yes, with guaranteed strength, our automatic ball valve is also reasonable and cheap. Of course, under your hand at ease. The electric ball valves become a time favorite. They are easy to use in homes as well as in industries.

Working and Execution of motorized ball valve

Motorized ball valve became famed due to its self-control property. It can start with a tiny signal of induced electricity. It can open and close the flow through valves within no time.

The ball valve works in a controlled and mechanical manner with an electric signal. That is why it is also called a motorized ball valve.

Automatic Powered Levered Ball Valve from EcoNet Controls

Automatic Ball Valve Product Details

The making of the automated ball valve of – a ball valve and -an electric actuator. So, the motorized ball valve’s quality depends on the material of its parts.

The core material in the composition of the ball valve is stainless steel. The lead-free ball valve makes it safer for the flow of drinking water.

The motorized ball valve uses gas or liquid as the primary flow media. The flip interval of the switch is 3 to 5 seconds. This factor makes flow easy without breaking through our ball valve.

The rotations for the electrical ball valve are bi-directional. The capacity ranges between 80,000 to 100,000 cycles per ball valve. This quality makes your buy of this high-quality tool worthwhile.

The automated ball valve has a significant effect due to its manufacturing properties. Our ball valve is reliable for domestic as well as commercial use.

The rate of body cases is IP65, which means that it is leaf-proof in the case of water. The risk of electric shock due to the water flow is safe and protected. We assure you of your safety with our product’s longer life span. So the choice of our electric ball valve will never disappoint you.

Leading Products

We always put our clients’ happiness first. That is the reason our products are easy to install and run with pace.

ABC model valve is one of our leading products. It is simple to use and fair in price. Our other most demanding product is water valve. This product works at the lowest pressure and power. This quality makes it a favorite for home automation systems.

OEM and Buying Advice

Our company provides motorized ball valves of different sizes and shapes. These are according to your needs and requirements.

We also provide the facility of OEM. The custom-made options in our automatic ball valves make it fit for every situation.

Why Choose an Electric Motor Actuator? Unmatched Excellence

One of the primary reasons that you should choose our products is the excellent cheap rates. We provide the best results of our products. This is because we have done several tests on our product before delivering it.

Our ball valve’s wide range of power options makes it more affordable and unique in terms of working. So we provide what you need on one platform for sure.

Moreover, choose our lead-free ball valves for water or food line applications.

motorized ball valve drawing
motorized ball valve drawing

Types of Motor Actuators

Motor actuators are a type of machine part used to convert energy into motion to control and adjust the movement of objects. Motor actuator 230v 24v AC is an electromechanical device that combines electric motors with mechanical components for faster, more precise motion control.

This type of motor actuator can be found in many applications, such as agricultural machinery, robotics, and industrial production lines. It consists of an electric motor connected to a gearbox, which increases torque and reduces speed to provide powerful output for application-specific tasks. The 230V-24V AC power supply allows it to operate efficiently while providing reliable operation over extended periods.

Several types of motor actuators are available today, including linear motors, rotary motors, stepper motors, and servo motors.

Advantages of 230V 24V AC Actuator

The 230V 24V AC Actuator Motor is ideal for businesses and organizations looking to increase efficiency. This motor can be used in various applications, from HVAC systems to automated machinery. It offers advantages over other motors, such as increased reliability, safety, and cost-effectiveness.

The 230V 24V AC Actuator Motor controls the electrical current sent to the motor. This allows it to respond accurately to changes in speed without wasting power or creating additional strain on the system. Its high torque output also means it can easily move heavier loads than many of its counterparts. Its design also prevents electrical arcing, which adds to its durability and reliability.

DC24,DC12V Actuator

DC24 and DC12V Actuators are motor actuators designed for high-power applications. They can provide precise control over the speed and torque of a motor, allowing for accurate manipulation of its direction and position. These actuators can work on both 24-volt DC and 12-volt DC power supplies and thus can be used in various industrial settings.

The design features an integrated controller with onboard feedback circuitry that allows for accurate device performance. It also has adjustable current regulation, allowing users to adjust the amount of current going into a motor to suit their needs—making it great for specific applications with demanding requirements. Additionally, these actuators have excellent shock resistance capabilities due to their increased durability, meaning they can withstand impacts without compromising their performance or reliability.

Applications of Motor Actuators

Motor actuators are devices used to convert electrical energy into mechanical energy, enabling the automation of various processes. The Motor Actuator 230v 24v AC is a versatile device in many applications. This motor actuator uses AC voltage and is equipped with overload protection, thermal protection, and IP65-level water resistance for durable performance.

The Motor Actuator 230v 24v AC can be employed in numerous industrial applications, including control valves, pumps, conveyors, and fans. It can also be used for automated assembly lines and other machines requiring precise motion control. Furthermore, this motor actuator is compatible with systems such as PLCs (Programmable Logic Controllers) or PID (Proportional Integral Derivative) controllers for better results.

electric valves
electric valves

A motorized ball valve exists as a valve that converts electric energy to kinetic energy using a single liner or rotary motion found within the valve. The electric actuator is the main motorized valve that aids in opening and closing the ball valves, which respond to commands from the remote control systems. In most cases, the motorized ball valves work with mediums such as steam, water, gas, air, and oil.


A motorized ball valve is a valve that aids in regulating the flow of fluids or gases with a rotating ball attached to an actuator.

Social Features and Specifications

Valve: -4 to 266°F (-20 to 130°C)

Actuator: -4 to 158 °F (-20 to 70°C)

Valve body: 600 psi (41.36 bar) non-shock cold working pressure.

motorized ball valve with 3 way functions
Motorized ball valve with 3-way functions

The ball valve is a device to control the flow of liquids or gas. The device operates similarly to the manual ball valve. It has a ball set in the valve’s body and a hole in the center to control the flow. The open ball valve has a borehole that is in line with the water flow. When the ball is turned perpendicular, it closes the valve, stopping the flow. With the motorized ball valve, the external leakage is entirely blocked. It also makes it easy to control internal leakage. A hydraulic actuator rotates our automatic control valve.
