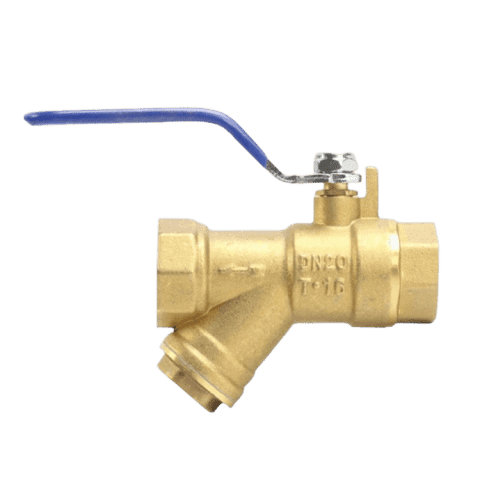

Strainer Filter Ball Valve

Parameters of Strainer Filter Ball Valve

The Y filter strainer a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore

Additional information

Finising:

Sand blasted, Sand blasted and Nickel plated

Handle:

Iron with sleeve, Stainless steel with sleeve

Life time:

150000 times On-Off

Materials:

C37700, CW602N, CW617N, H58-3

Size:

1-1/2", 1-1/4', 1", 1/2", 2", 3/4"

Temperature:

-10˚C-120˚C

Thread connection

BSP, NPT

Working pressure

16 bar

Warranty:

12 months

Details about Strainer Filter Ball Valve

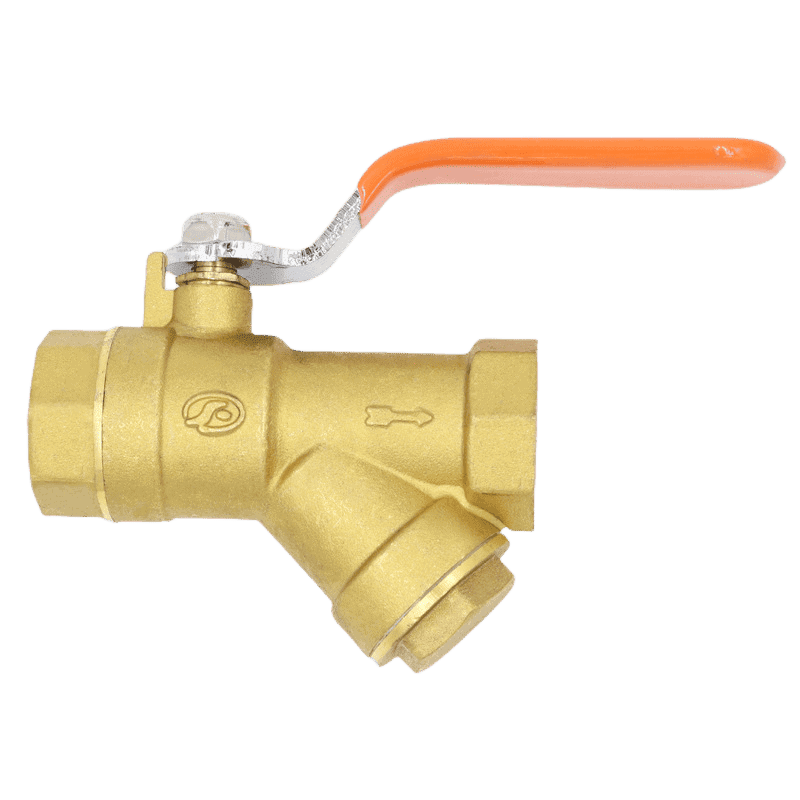

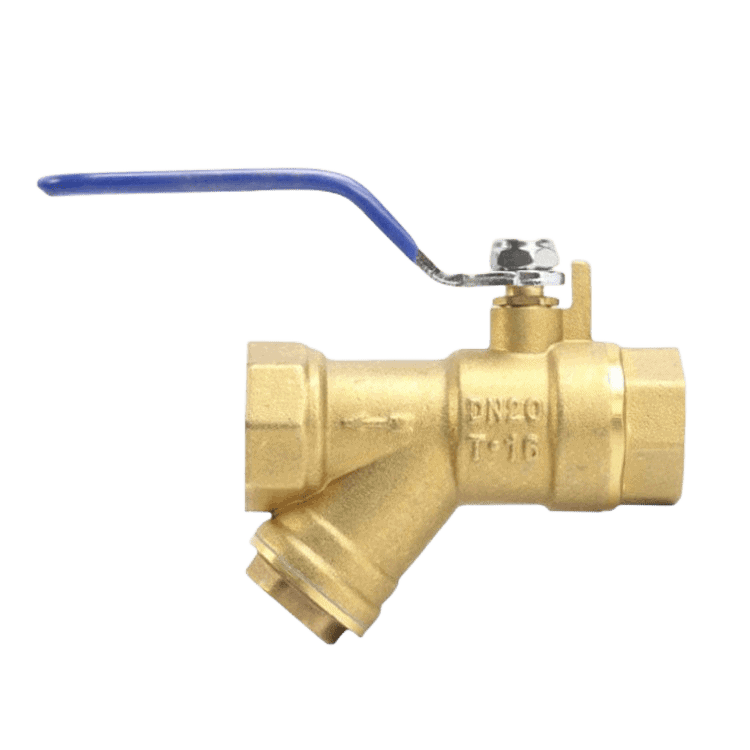

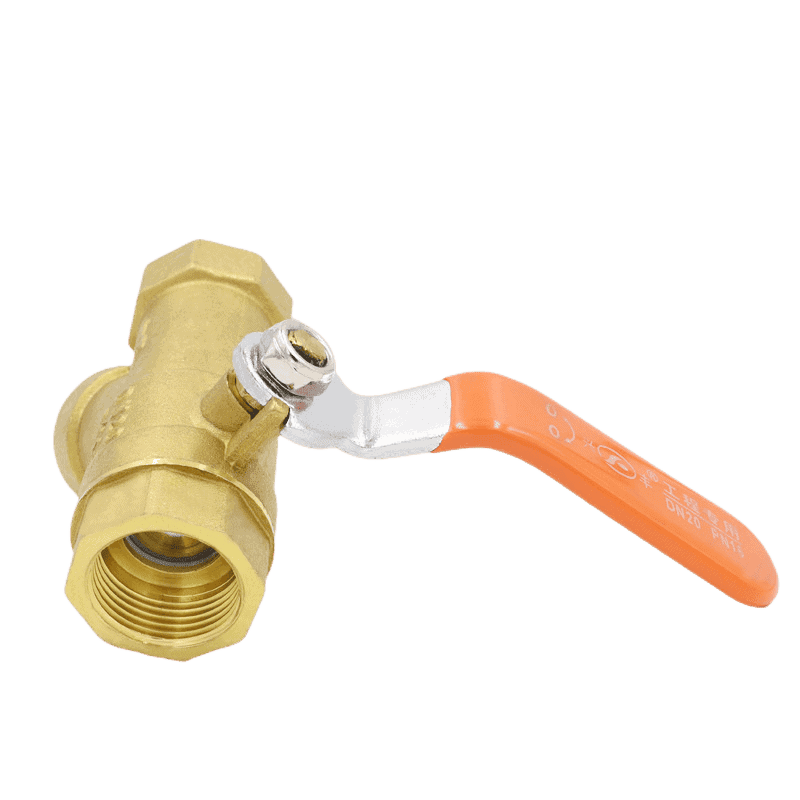

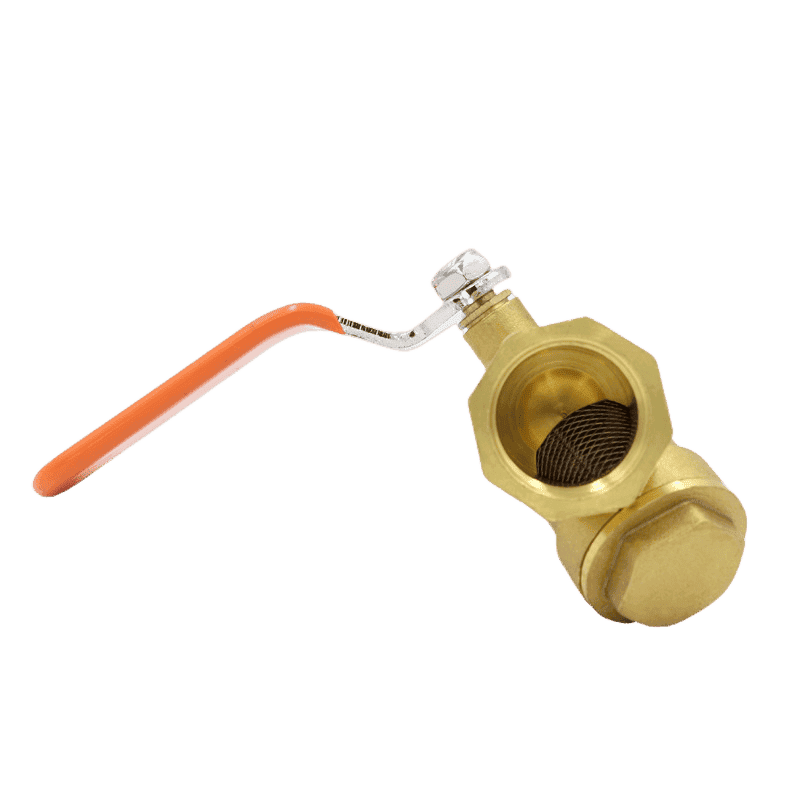

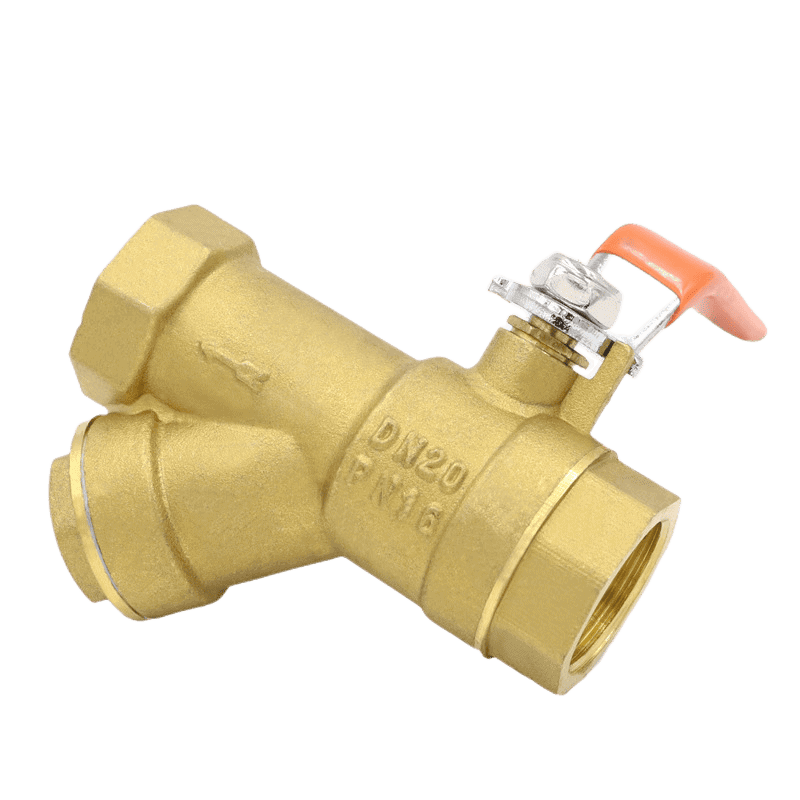

Brass Y Strainer Filter Ball Valve

JX-0426

  • Brass Y Strainer Filter Ball Valve
  • Product Features: Nickel-Plated Brass body and cover
  • Chrome-plated Brass ball
  • PTFE Sealing Ring
  • Easy to install and operate
  • Long service life
  • Resistant to low temperature, humidity, and mechanical impacts
  • Applications:cold-hot water installations, oil, and flammable gasses
  • Temperature: Min. -10℃ / Max. +110℃
  • Suitable for water supply systems, civil construction piping systems
  • 90-degree valve closing range, the handle can close the valve by rotating it to either side of the valve body
  • Full flow 1/2″ – 2″ Female BSP brass ball valves (brass ball & stem) fitted with an Iron lever handle and Y-Strainer are used for a variety of applications, including oil & petroleum, and water. They are steam-rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 approval; Work usually from -20°C to 120°C under 25 bar or 362.5 psi; Ball & stem nickel-then-chrome plated for smooth operation.

    Brass Y-strainer valve

    Strainer Size

    1/2″-2″

    Strainer pressure

    PN16

    Strainer Materials

    CW617N, Normal brass, DZR

    Strainer Standards

    BS2779,EN331,ISO228,DIN 259

    Working Temperature:

    From -5 ℃ To +95 ℃

    Seat sealing Material:

    PTFE

    Handle Material:

    Iron with rubber sleever

    Thread connection:

    ISO228,BS2779,DIN 259,

    Quality/valve Certifications

    CE, ISO9001

    Finish;

    Sandblasted

    Cartridge

    Brass cartridge

    Y filter operator

    Handwheel

    Nickname

    Three-way valve

    O ring

    NBR

    Salt spray test

    Acetic acid/ASS 24 hours
  • Brass Y Strainer Filter Ball Valve



Brass Y Strainer Filter Ball Valves are essential to any industrial piping system. Constructed from a solid brass body, these valves provide superior strength and dependability in even the most demanding environment. They also feature a built-in strainer screen that helps to protect equipment, pipes, and other components from being damaged by dirt or sediment buildup. The strainer filter ball valve is designed to provide maximum flow rates while increasing efficiency and effectiveness in your piping system.

These valves are available in manual and automated configurations, making them perfect for controlling the flow of liquids or gases in industrial settings. The manual version features easy-to-grip handles that enable simple operation, while the automated version features solenoid actuators that can be programmed for the fully automated process.

Applications: Fluid Control Solutions

  • Fluid control solutions provide precise control and metering of liquids and gases through valves, regulators, and other related components. The brass y strainer filter ball valve is used in many industries to safely and efficiently manage fluids. This valve allows easy installation in residential and commercial applications while providing superior filtration performance. It is designed with an in-line configuration that ensures minimal pressure drop during operation, making it ideal for water systems, chemical processing plants, irrigation systems, cooling towers, and more.

    The brass y-strainer filter ball valve provides reliable flow regulation by tapping into the power of a stainless steel mesh filter basket which effectively traps any sediment or particulates from entering the system.

    Benefits: Easy Maintenance, Durability

  • For an individual or business looking to install a new filter ball valve, the brass Y strainer filter ball valve has become an increasingly popular choice. Boasting some benefits that make it ideal for installation in many different applications, this type of valve is known for its superior durability and easy maintenance.

    The brass Y filters are constructed with heavy-duty stainless steel and brass components, providing robust protection from rust, corrosion, and other elements. This makes the filter highly durable and able to withstand extreme temperature conditions without compromising performance. Additionally, the internal design ensures that any dirt or debris is prevented from passing through the pipeline, making them suitable for use in residential and commercial settings.

    The ease at which these valves can be maintained is another attractive attribute, as they require minimal cleaning compared to other types.

    Variety: Types & Sizes

  • Brass Y strainers are a type of filter ball valve that can protect pipes from debris, scale, and other particles. When choosing the right brass Y filter for your needs, it is essential to understand the various types and sizes available.

    Brass Y strainers come in two main types, threaded and flanged. Threaded strainers feature a threaded connection on both ends of the valve, allowing easy installation onto existing plumbing systems. Flanged strainers have a flange connection at each end and are usually installed with welding or soldering. Both brass Y strainers provide excellent sealing capability and durability due to their reliable construction materials.

    When selecting the size of brass Y filter you need, consider the diameter of your piping system as well as its overall flow requirements.

    Installation: Step-by-Step Guide

  • Installing a brass Y strainer filter ball valve can significantly protect your plumbing system from damage. This easy installation guide will help you safely and efficiently set up your new filter ball valve.

    The first step is to identify the right size of fitting for the job and any necessary connectors or adapters for connecting your pipe to the filter ball valve. Next, prepare the pipe by cleaning it thoroughly with a brush before attaching it to the filter ball valve. Once everything is aligned correctly and tightened, check if any obstructions might block flow in either direction.

    Finally, test out the operation of the brass Y strainer filter ball valve by opening and closing it several times. Make sure that it’s working correctly and that there are no leaks or other issues before you use it in your plumbing system.

    Conclusion: High-Quality Valve Choice

  • The brass Y strainer filter ball valve is a high-quality and reliable choice for individuals and businesses looking for effective plumbing solutions. The brass material of the valves provides long-term durability, making them an excellent investment for any home or company. The Y strainer filters also prevent clogs, ensuring that all water runs smoothly through the system.

    In addition to being reliable, the brass Y strainers are also cost-effective. They require minimal maintenance and can last a lifetime with proper care. This makes them an ideal choice for any budget-savvy consumer looking for quality materials at an affordable price. Furthermore, installation is relatively easy, making them suitable even for those without plumbing experience.

    The brass Y strainer filter ball valve provides quality performance with minimal effort and upkeep.

A brass Y-strainer valve is a plumbing fitting that helps regulate and maintain water flow. It will help prevent sediment from entering the piping system while avoiding contamination in the water. The valves are made of brass, a relatively corrosion-resistant material that can last many years without rusting or degrading. This article will discuss how this type of valve works and why it is worth installing one on your home’s plumbing system.

The brass Y-strainer valve is a fitting that helps regulate and maintain water flow. It has two inlets and one outlet, which allows it to direct the water in a specific direction. The valve’s primary purpose is to prevent sediment from entering the piping system. This is important because if the sediment builds up, it can cause blockages and disrupt water flow. In addition, the valve also prevents contamination in the water by keeping out foreign objects like dirt or debris.

One of the benefits of using a brass Y-strainer valve is that it is made of corrosion-resistant material. Brass doesn’t rust or degrade over time, so it will last many years without any issues. The valve is easy to install and requires no special tools or equipment. This makes it an excellent option for homeowners who want to improve the functionality of their plumbing system.

If you’re looking for a reliable way to regulate water flow and prevent sediment buildup, consider installing a brass Y-strainer valve on your home’s plumbing system.

Brass Y-Strainer Valve – A brass Y-strainer valve is a plumbing fitting that helps regulate and maintain water flow. It will help prevent sediment from entering the piping system while avoiding contamination in the water. The valves are made of brass, a relatively corrosion-resistant material that can last many years without rusting or degrading. This article will discuss how this type of valve works and why it is worth installing one on your home’s plumbing system.

The brass Y-strainer valve is a fitting that helps regulate and maintain water flow. It has two inlets and one outlet, which allows it to direct the water in a specific direction. The primary purpose of the valve is to prevent sediment from entering the piping system. This is important because if the sediment builds up, it can cause blockages and disrupt water flow.
