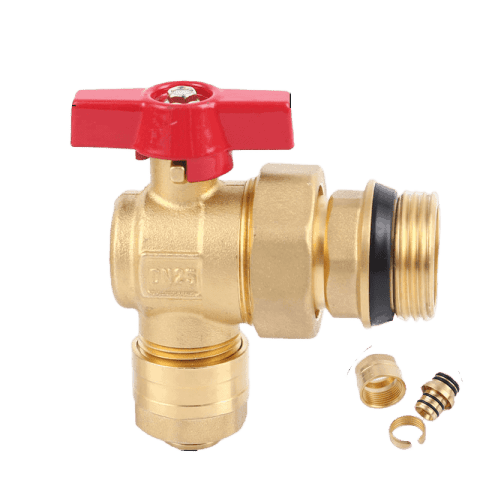

Right Angle Brass Ball Valve

Parameters of Right Angle Brass Ball Valve

A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore

Additional information

Finising:

Sand blasted, Sand blasted and Nickel plated

Handle:

Aluminum alloy, Zinc alloy

Life time:

150000 times On-Off

Materials:

C37700, CW602N, CW617N, H58-3, Lead-free brass

Size:

1", 3/4"

Temperature:

-10˚C-120˚C

Thread connection

BSP, NPT

Working pressure

400WOG

Warranty:

24 months

Details about Right Angle Brass Ball Valve

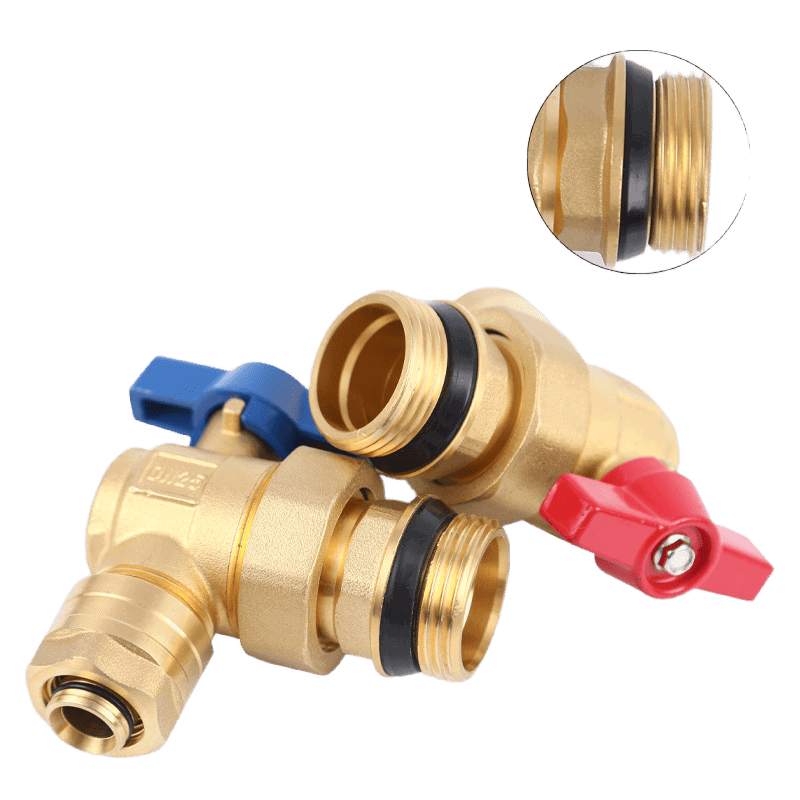

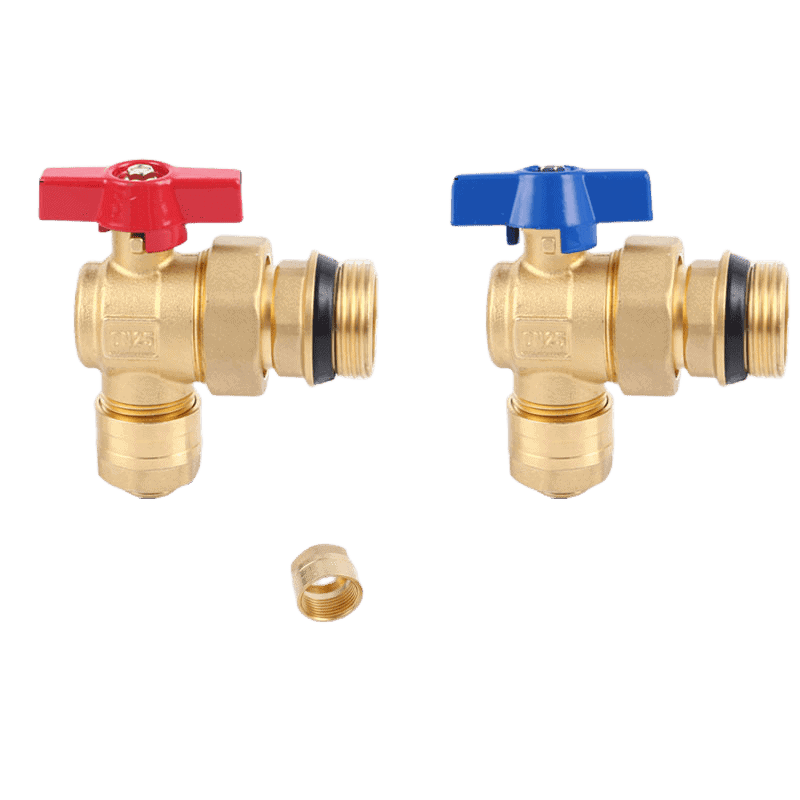

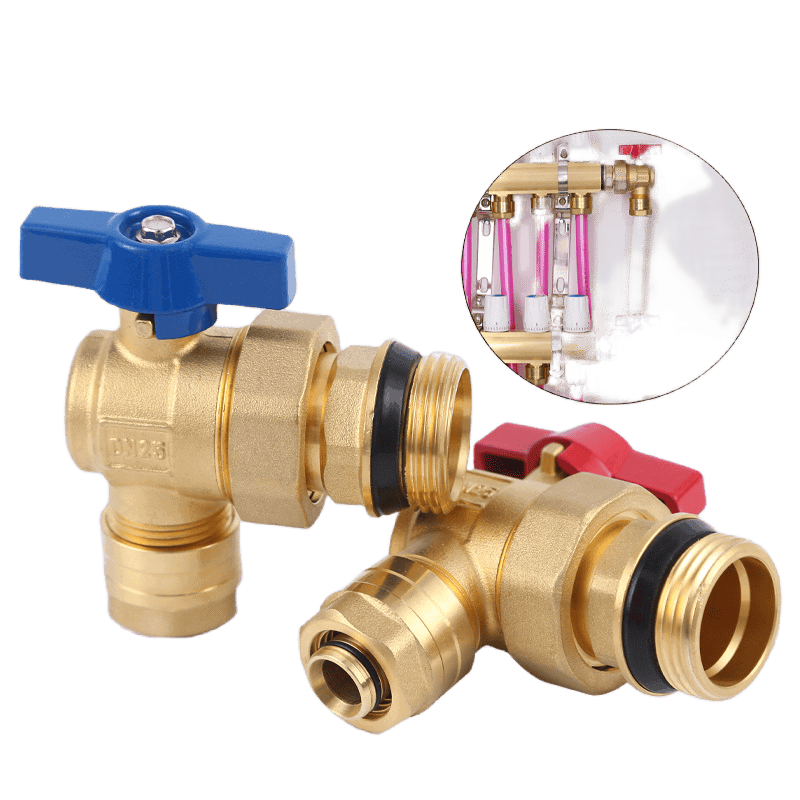

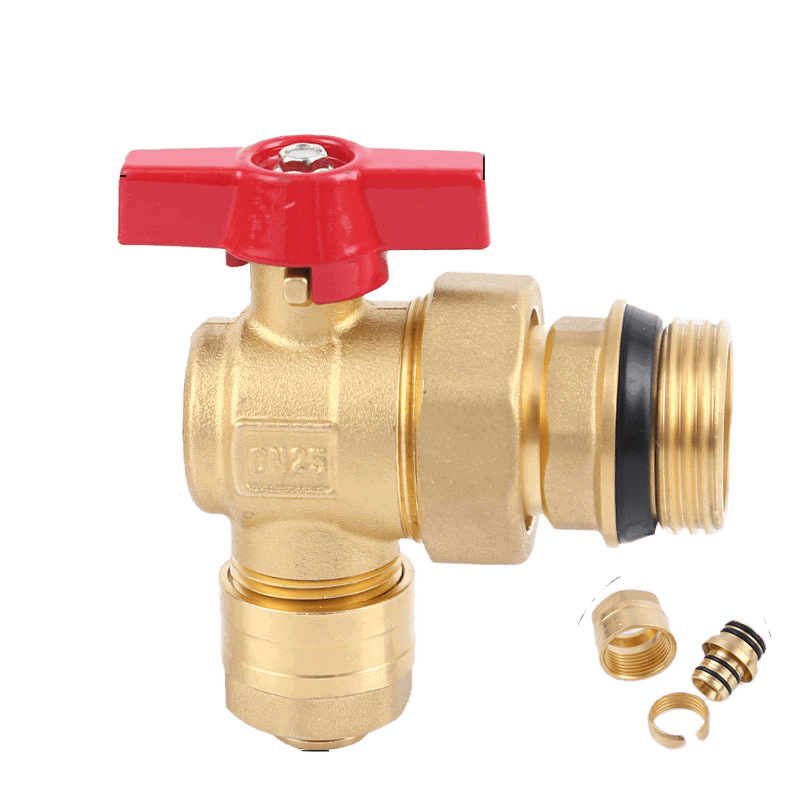

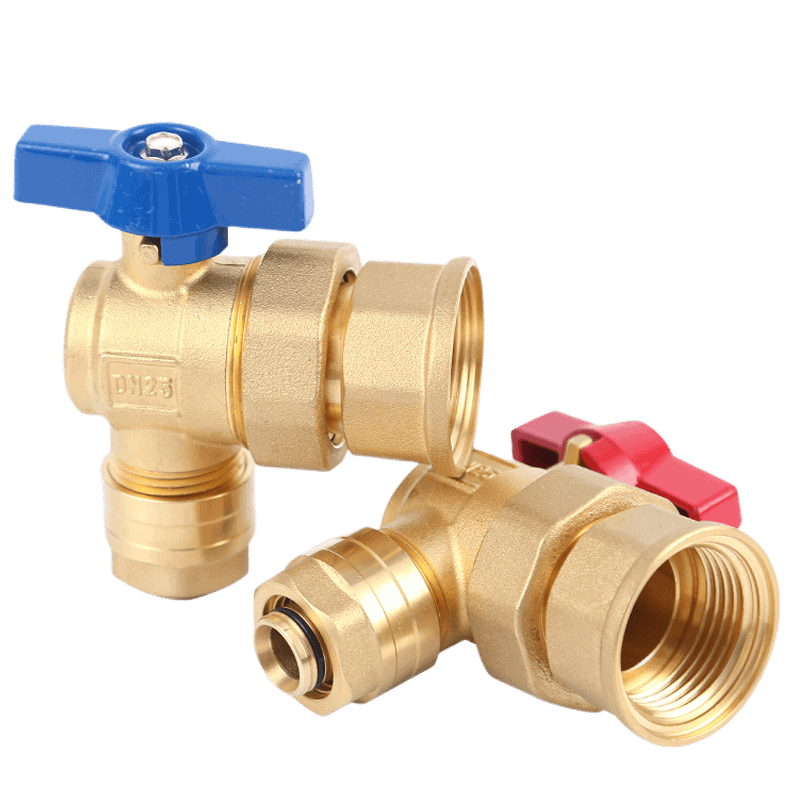

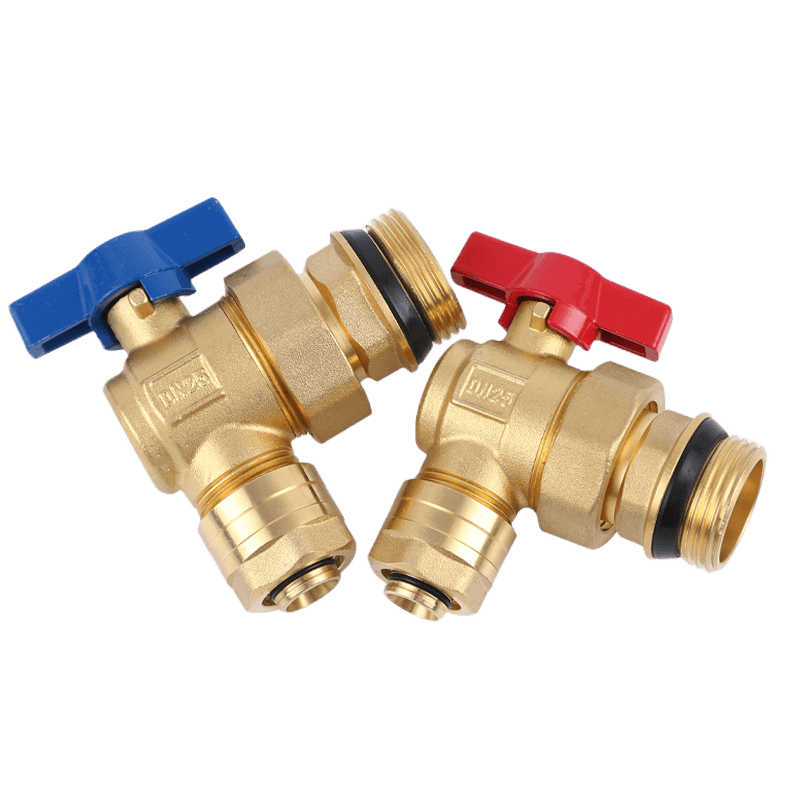

Right Angle Brass Ball Valve

JX-0425

  • Brass Pex-Al-Pex Ball Valve
  • Product Features: Nickel-Plated Brass body and cover
  • Chrome-plated Brass ball
  • PTFE Sealing Ring
  • Easy to install and operate
  • Long service life
  • Resistant to low temperature, humidity, and mechanical impacts
  • Applications:cold-hot water installations, oil, and flammable gasses
  • Temperature: Min. -10℃ / Max. +110℃
  • Suitable for water supply systems, civil construction piping systems
  • 90-degree valve closing range, the handle can close the valve by rotating it to either side of the valve body

    Pex pipe ball valve

    Valve Size

    20×1″,25×1″

    Valve pressure

    PN40

    Valve Materials

    DR brass, CW617N

    Valve Standards

    BS2779,EN331,ISO228,DIN 259

    Working Temperature:

    From -5 ℃ To +120 ℃

    Seat sealing Material:

    PTFE

    Handle Material:

    Zinc Alloy

    Thread connection:

    ISO228,BS2779,DIN 259

forged brass ball valve
forged brass ball valve
  • Basic types of 3-way valves:

    T-pattern flow balls are also defined as 180-degree balls. It combines the two intake flows into a single exit port. Depending on the system requirements, the inverse is also workable. T-pattern flow valves are applicable for more than separating and dividing flow. They may also work as L-pattern flow valves. It diverts flow from one outlet port to the other port;

    and it includes diversion, split, and straight-through flow. It is based on the permissible range of handle motion.



    The L-Type patterned ball valve, also known as a 90-degree ball valve. These are often used to allow flow from a single standard intake port to two separate ports. Diverter valves are usually referred to as L-Type pattern flow three-way ball valves.



    Forge 3-way ball valves are the applications of forging. Forging is a process that involves shaping metals and alloys while they are still solid. Because of their robustness, forged valves are ideal for high-pressure and high-temperature applications. The metal’s grain structure is fine-tuned throughout the forging process. As a result, the weapon’s power and effect increased. Its resistance to fractures, shrinkage, and porosity is also improved by forging.



    The casting of the 3-way ball valve:



    Casting involves the use of liquid metal to manufacture 3-way ball valves. These metals are then melted and poured into various shaped and sized molds. It is not broken out of or withdrawn from the mold until the liquid has cooled and hardened. Casting allows the fabrication of valves with complex forms, patterns, and sizes. Molds provide more versatility when it comes to making various types of valves.



    Operation of 3-way ball valve through the handle:



    A handle only operates 3-way ball valves, and they stopped and started using a lever. It prohibits the valve from turning more than 90 degrees. It is significant due to the existing number of openings on the ball disc. It is within the three-way valve. There is more control over the amount of media regarding its redirection or integration. This control is possible by restricting the handle’s motion.
