Self Closing Faucet

Parameters of Self Closing Faucet

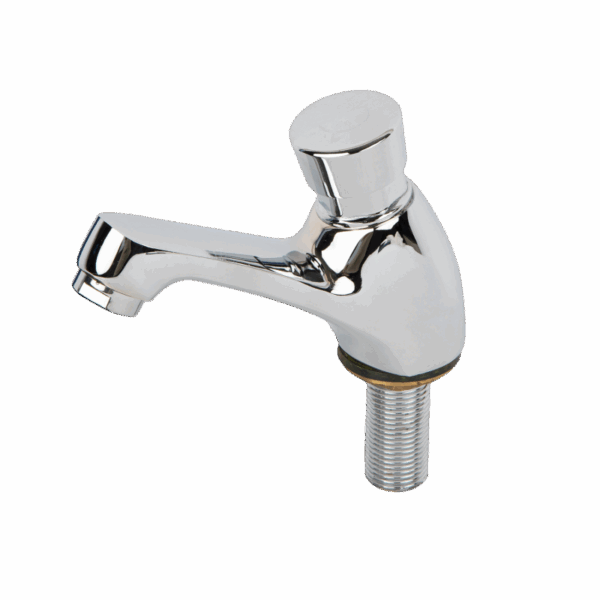

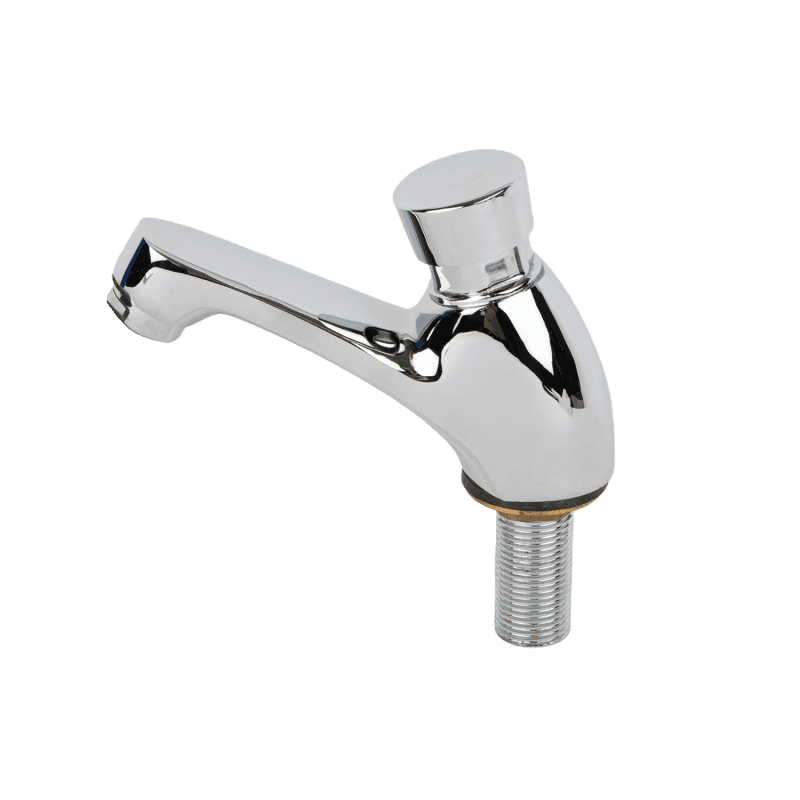

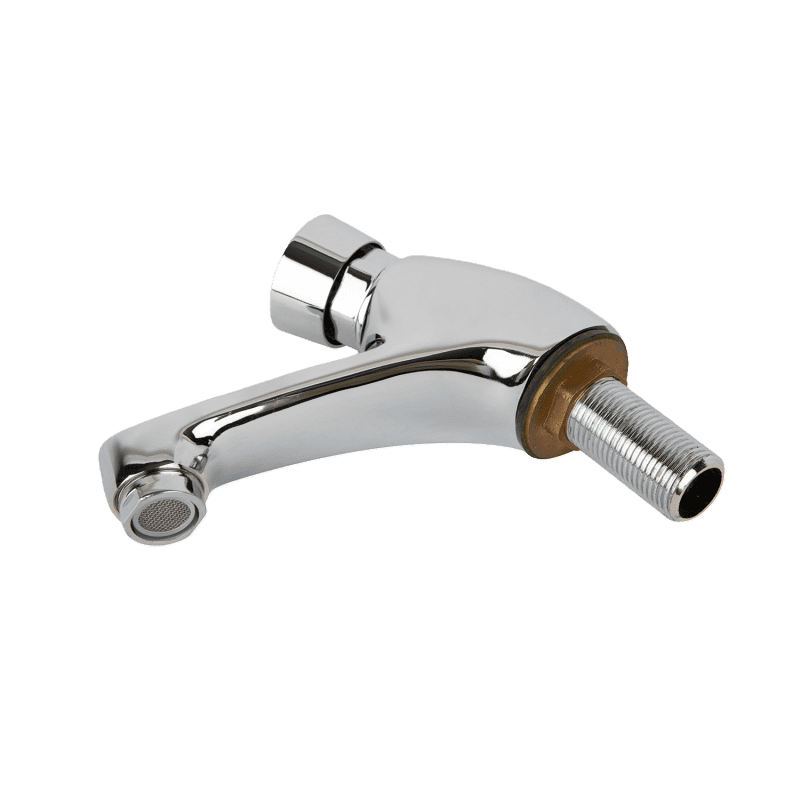

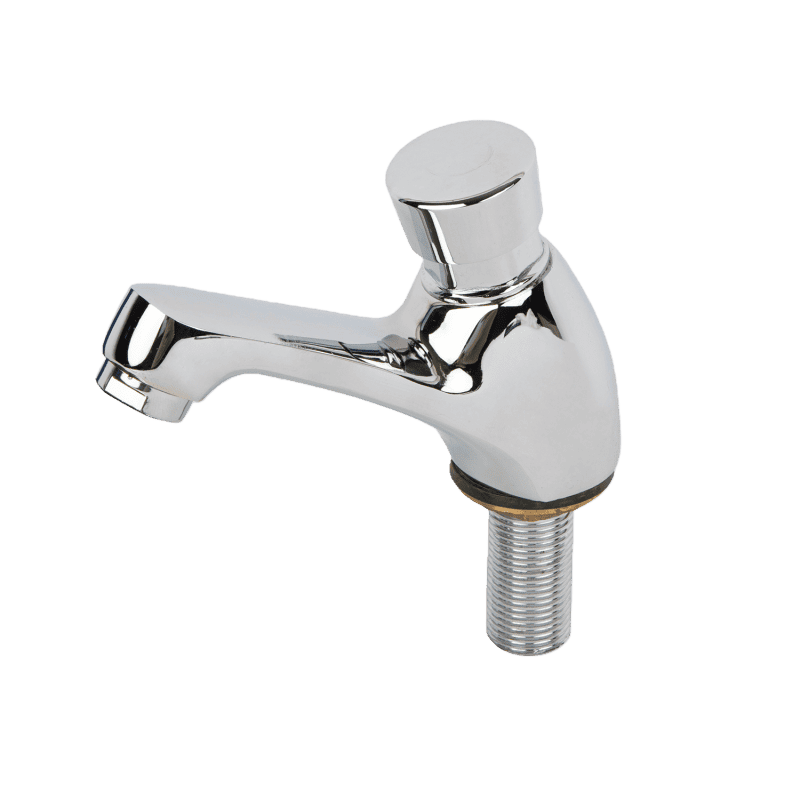

Brass Push Button Self-Closing Basin Tap

This brass basin faucet is a water-saving valve with a push-type shutoff design. It is used in hotels, offices, malls, hospitals, and homes. The faucet is installed on washbasins and vanity units. Compatible with clean water supplies such as tap water, the faucet delivers water flow with a simple press on the top button. Once the button is released, it springs back automatically to cut off the water flow—eliminating the need for handle operation entirely.

  • Model No.: JX-10075
  • Material: Brass
  • G1/2 thread
  • Finishing: Polished and Chrome-plated
  • Designed with a push-type mechanism
  • Equipped with a time-delay function
  • Installation method: Single Hole
  • Sensor Type: Touch
  • Water Flow: 0.15L/S
  • High-pressure water test: 1.5MPa / 218PSI
  • Low-pressure water test: 0.05MPa / 7PSI
  • With a 3-year warranty
  • OEM/ODM service available
  • Free inspection report
  • Free raw materials analysis testing report.

Additional information

Description

bibcock tap 0960a DZR Brass Tap

This DZR brass tap features a forged brass body, dual-threaded ports, and a T-shaped brass handle. It is engineered with a precision flow control angle structure, making it ideal for small-diameter fluid pipelines. The tap is widely deployed in branch water supply applications for sanitary fixtures and compact equipment.

  • Model No.: JX-0960
  • Size: 1/2″, 3/4″
  • Material: DZR,CW510L,Lead free brass
  • Finish: Sand blasted
  • Medium: Water
  • ACS, ISO9001, and NF certificated
  • Working temperature: 0-80℃
  • Pressure rating: PN16
  • BSP/ISO228, NPT
  • With a 3-year warranty


1/2 water faucet tap

1/2″ Brass Water Faucet Tap

This brass faucet is a basic water control accessory for residential kitchens, balconies, and small commercial spaces. It’s widely used in kitchen sinks, bathroom vanities, balconies, laundry rooms, and other areas with sinks. It works well with clean water supplies, such as tap water and room-temperature hot water. You just turn the handle to easily control the water flow and switch it on or off.

  • Model No.: JX-0892
  • Size: 1/2″, 3/4″
  • Material: CW617N, CW511L, CW602N, Lead-free brass
  • Finishing: Sand-blasted
  • Forged brass
  • Connection: BSP/NPT
  • Handle: Brass cross handle
  • Field of Application: Water
  • Working Pressure: 16bar
  • With a 2-year warranty
  • Working Temperature: 0-90ºC
  • Installation Type: Wall Mount


Sanitary Ware Water bibcock tap

Toilet Bibcock Tap

This toilet bibcock tap is made with a brass body and is designed for toilet water supply lines. One end uses a male thread and connects to a wall-embedded water pipe. The other end features a push-fit nozzle with anti-slip grooves, connecting directly to the toilet inlet hose. This design makes the connection quick and simple. The hose can be installed without tools.
  • Model No.: JX-0502
  • Size: 1/2″,3/4″
  • Material: CW511L, CW602N
  • Working temperature: -20-120℃
  • Handle: Iron handle with plastic cover
  • Working pressure: 10Bar
  • Seal: PTFE, NBR
  • Stem: Brass stem
  • Connection: BSP/ISO228
  • Standard: ACS, NF, CE
  • Finish: Polished and nickel-plated
  • 90-degree turn for on/off
angle valve tap Angle Valve Tap

This angle valve tap with a chrome-plated finish. It uses a single handle and an angled two-port design. The valve is used in bathroom plumbing systems. It connects to wall-embedded water supply pipes. The side outlet uses a male thread and connects directly to inlet hoses for basin faucets or toilet tanks. A curved handle is mounted on the top. Turning the handle controls the water flow in a smooth and easy way. This valve is commonly used for branch flow control in bathroom basins and toilet water supply lines.

  • Model No.: JX-0218
  • Size: 1/2″x1/2″, 1/2″ X 3/8″
  • Material: CW602N, C37700
  • Brass Body With Chrome Plated
  • Finishing: Polishing and chrome-plated
  • Connection: BSP, BSPT, NPT
  • Working temperature: -10-110℃
  • Max working pressure: 10 bar
  • Seal Material: PTFE
  • With NBR O-ring and Gasket
  • Handle: Zinc alloy handle for on/off
  • Brass cartridge


Sanitary Ware Faucet Water bibcock tap

Garden Bib Water Tap

This wall-mounted outdoor garden faucet is a dedicated water supply accessory for exterior use. It is primarily connected to outdoor water supply pipelines and designed for tap water applications. Its core function is to provide a convenient water source for outdoor tasks such as watering plants, irrigating vegetable gardens, and cleaning vehicles. The faucet can be directly connected to a garden hose and requires no repeated threading during use for hassle-free operation.

  • Model No.: JX-0503
  • Size: 1/2″, 3/4″
  • Material: CW617N, CW511L
  • Finishing: Polishing
  • Installation Type: Wall Mounted
  • Handle: Brass T handle
  • Max working temperature: 90℃
  • Max working pressure: 10bar
  • Gasket type: NBR
  • Connection: Male thread
  • With a 2-year warranty
water bibcock mixer tap



Lockable Brass Barrel Tap

This lockable brass barrel tap features a forged brass body and a locking handle. It is used to control fluid discharge in outdoor and public areas. The metal handle is mounted on the top and includes a lock hole. When the tap is closed, it can be locked with a padlock to stop unauthorized use. The tap is commonly used in temporary water supply systems, public water storage units, and small industrial containers.

  • Model No.: JX-0505
  • Size: 1/2″
  • Material: CW617N, CW602N
  • Finishing: Sand-blasted
  • Full brass, including handle
  • Medium: Water
  • Working Pressure: 16bar
  • Working temperature: -10-90ºC
  • Wall Mount Installation Type
  • Type: Bib Tap, Handle Controlled
  • Connection: BSP/NPT
  • With a 2-year warranty

FAQs of Self Closing Faucet

1. What is the working principle of a self-closing faucet?

The Plumberstar self-closing faucet core combines a spring-return spool with a hydraulic-assisted seal. When the faucet is pressed or touched, the valve opens. Once it is released, the spring pushes the spool back. The water shuts off automatically. As a bathroom hardware brand with over 15 years of experience, Plumberstar has refined its mechanical structure over time. Unlike standard faucets that require manual shut-off, this design prevents water waste caused by forgetting to close the tap. Water saving can increase by over 30%. No electric drive is needed.

From RUBINETTO PRODUCTS

2. Can a sample be provided before the self-closing faucet mass production?

Plumberstar self-closing faucets let you confirm samples before mass production. We offer a full sample service, including standard sample delivery and custom sampling.
If you have custom orders that need logo engraving, appearance tweaks, or function adjustments, we can make exclusive samples for you. Just provide us with your drawings and technical parameters. The sampling time is clear and easy to track:
  • Basic custom models (logo, appearance changes, etc.): ready in 7–10 working days;
  • In-depth custom models (structural or functional upgrades): ready in 15–20 working days.
Once the samples are completed, we’ll provide the corresponding test reports at the same time. We only start mass production after you confirm that all key performance indicators meet your needs.
You can run full performance tests on the samples. This includes water pressure tightness, self-closing sensitivity, service life, and material composition. Our factory will help by providing relevant technical parameters and test method guidance. This makes sure your test results are useful and reliable.
For long-term cooperative customers or large-volume mass-production orders, Plumberstar offers a sample fee reduction policy. After you sign the subsequent mass production order, we’ll deduct the sample fee directly from your payment. This helps you cut down on the cost of preliminary testing and verification.

3. What is the MOQ of the Self-Closing Faucet?

Plumberstar maintains flexible MOQ settings, allowing different customers to initiate their projects in various ways. Whether it’s a small trial order or a long-term customized project, the rules are clear and practical.

Customized models
For standard customization, such as adjusting the water shut-off time, changing surface color, or adding a logo, the minimum order quantity is 2000 pieces.
For deeper customization, things like a new internal structure, special functions, or exclusive appearance molds, the MOQ is 2000 pieces. Thanks to Plumberstar’s flexible production lines, this MOQ is about 40% lower than what many similar brands require. Lead time is kept within 25 days, which works well for small and medium foreign trade projects.

Small batch trial orders
Trial orders are supported. The minimum quantity is 1000 pieces, limited to standard models. The trial price is typically 10%–15% higher than the standard batch price, and delivery can be completed within 15 days.

If the trial order customer later places a batch order of 300 pieces or more, the price difference from the trial order can be fully returned. This allows customers to test the market first and then scale up with lower risk.

4. What are the core advantages of self-closing faucets?

Compared to sensor faucets, the advantages of the Plumberstar self-closing faucet are primarily evident

  • No dependence on power or environment: The failure rate of the pure mechanical structure is ≤0.1%. Sensor faucets rely on electronic components, resulting in a significantly higher failure rate of around 3%–5%. Plumberstar has an IPX5 waterproof rating. It works well in wet environments, such as public toilets and outdoor washrooms.
    It also does not need electricity.
  • Water saving without the common sensor problems: The water-saving rate is at least 30%, comparable to sensor faucets. At the same time, it avoids the everyday problems of sensor faucets: No response delay. Sensor faucets usually have a 0.3–0.5 second delay, while Plumberstar responds instantly. No false triggering. In environments with glass or stainless steel basins, sensor faucets can have a false trigger rate of 15%–20%. The mechanical trigger of Plumberstar remains unaffected. No low-battery weak flow. Water pressure stays stable, which is better for hand washing and cleaning.

5. How cost-effective is the Plumberstar self-closing faucet?

Better pricing, same core performance.
The purchase cost is 50%–70% lower than imported brands. Even so, key performance stays at the same level. The water-saving rate is ≥30%, meeting WaterSense and WELS standards. Press life reaches ≥50,000 cycles, fully comparable to imported products.

More flexible customization.
Most imported brands require a minimum of 1,000 pieces for customization, with a lead time of 45–60 days. Plumberstar supports customization from 300 pieces, and delivery can be completed within 25 days. This is much more suitable for small and medium foreign trade orders.

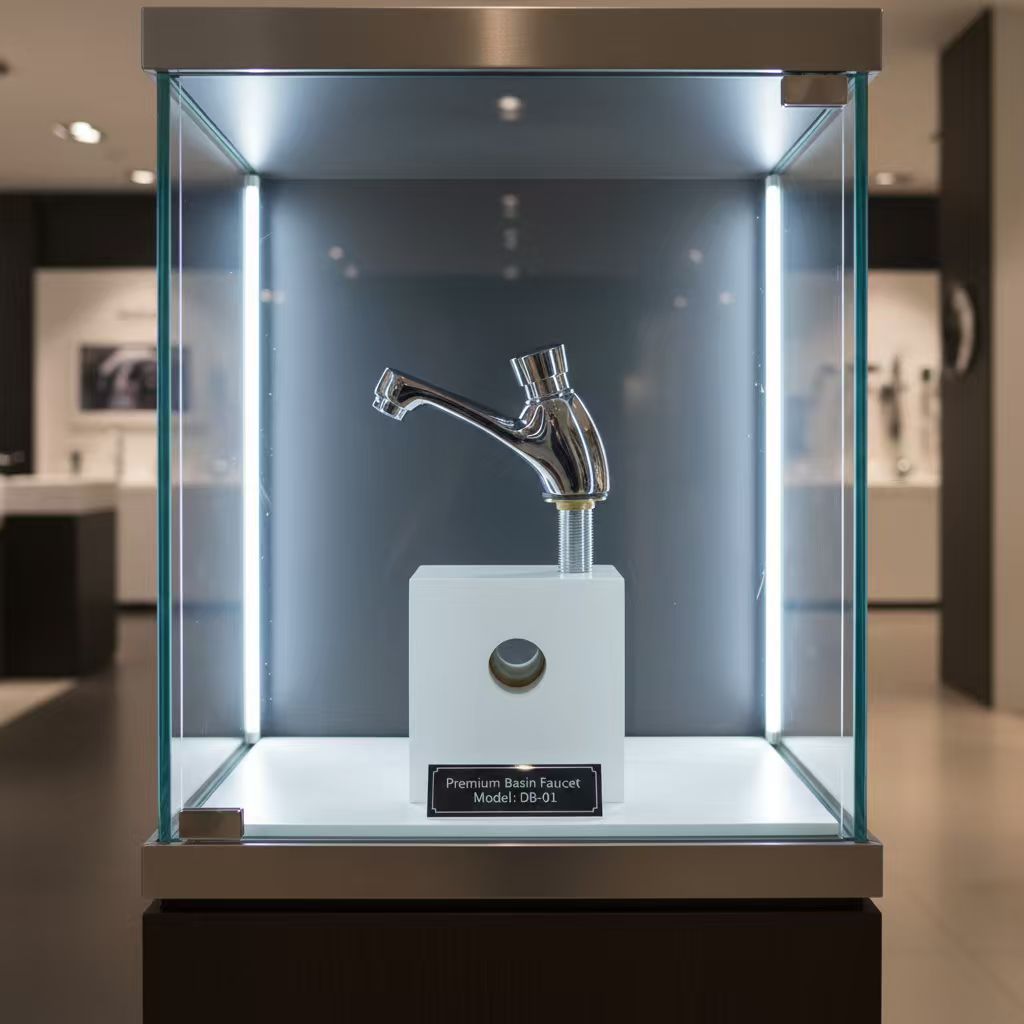

self closing faucet show

6. How is the self-closing Faucet quality traceability system?

Each batch of Plumberstar self-closing faucets is assigned its own unique batch number. The number is laser-engraved on the bottom of the valve body and links to the raw material heat number, production equipment, and test records.

Customers can check material test reports, press-life test results, and salt spray test reports through the Plumberstar website or by contacting the foreign trade specialist. If any quality issue arises, the technical team can identify the cause and provide a solution within 24 hours.

7. How do you protect customer designs and IP of the self-closing faucet?

When we start working together, Plumberstar will sign a formal Non-Disclosure Agreement (NDA) and an Intellectual Property Ownership Agreement with you. This makes sure both parties’ rights and interests are clear and protected. The key clauses of the agreements are as follows:

  • All your intellectual property belongs entirely to you. Any materials you provide—like drawings, technical data, structural plans, and appearance designs—are your exclusive intellectual property. Plumberstar will only use these materials for the project we agree on. We won’t use them for any other orders. We also won’t share or pass them to any third parties.
  • We clearly define who owns the results of any optimizations or improvements. When we work together, if both sides make structural optimizations or performance improvements to your products—such as making the valve core more sensitive or upgrading water-saving structures—the intellectual property for these improvements will usually belong to you. Or we can agree in writing that both sides own them together.
  • The liability for breaking the agreement and the compensation rules is clear. If Plumberstar causes your intellectual property to be leaked, misused, or used improperly because of our own mistakes, we will compensate you according to the agreement. The compensation amount can be several times the order value. We will also cover all costs related to protecting your rights.

8. How does Plumberstar factory ensure long-term supply stability for self-closing faucets?

Plumberstar operates standardized workshops with several automated production lines. These lines encompass key steps, including precision casting, CNC machining, and final assembly and testing. For core products, including self-closing faucets, stainless steel valves, and floor drains, our annual production exceeds one million units. This capacity allows us to handle large and stable orders with ease.

To deal with peak seasons or sudden order increases, the factory maintains approximately 15%–20% spare capacity. This buffer enables us to maintain stable delivery times, with most orders being completed within 30 days.
