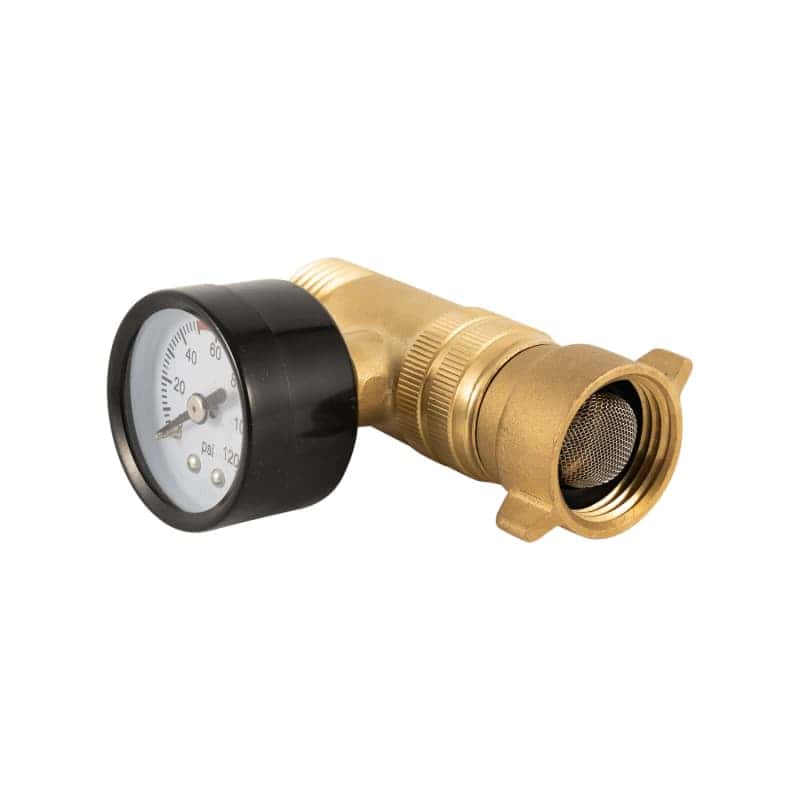

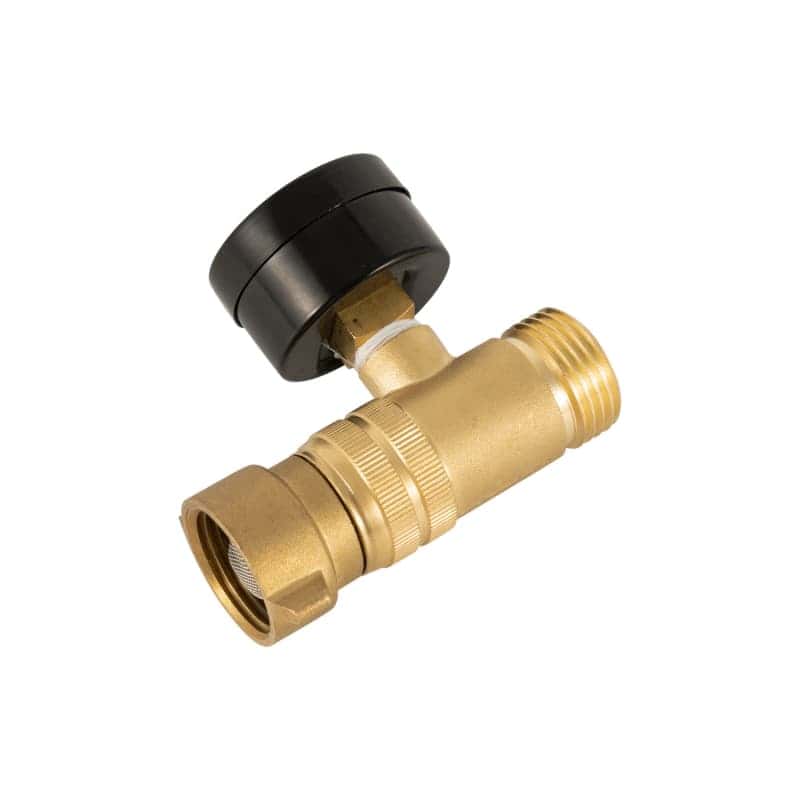

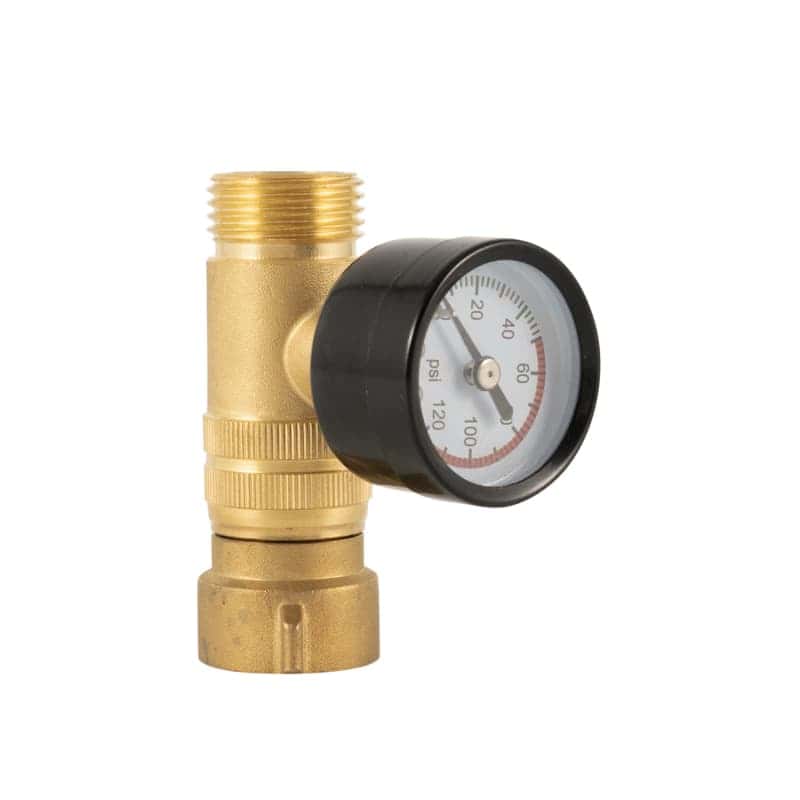

Lead-Free Brass Pressure Regulator with Pressure Gauge
This pressure regulator is used to control pressure in fluid systems. The pressure gauge shows the current pressure clearly. An inlet strainer is built inside to catch dirt and small particles, helping prevent blockages in the pipeline. With a compact design and simple function, it is well-suited for small systems such as home water supply lines and small pneumatic equipment.
Model No.: JX-0988
Material: Lead-free brass
Size: 3/4″ NH thread
Standard: CSA
Working pressure: 40-50PSI
Max working temperature: 140°F
Includes stainless steel filter
Solid brass hose gripper
Connection: ISO228, ISO7/1
Shielded inlet filter to remove water particles or debris that may cause fouling
This pressure-reducing valve is used to control and lower pressure in pipeline systems. When fluid passes through the valve, the internal structure reduces high inlet pressure and keeps the outlet pressure stable at a set level. This helps protect downstream pipes and equipment from pressure damage. With multiple connection ports, it fits different pipeline layouts. It is commonly used in water supply systems, gas lines, and industrial fluid pipelines.
Model No.: JX-0316
Size: 1/2″, 3/4″
Finish: Sand blasted and nickel plated
Max working temperature: 80℃
Max inlet pressure: 25 bar
Outlet pressure adjust: 0.5-6 bar
Material: CW617N, CW511L, C46500
Inlet connection size: 0.5 inch
Medium: water
Connection: ISO228-1, NPT
Color: Silver
Water Pressure Regulator Valve
The water pressure regulator valve is made of brass and installed in the plumbing system where the main water supply line enters a building or an RV. Its core function is to stabilize the water pressure in the house. The side pressure gauge displays the current pressure in real-time and allows for visual monitoring of the water pressure status. The pressure can be adjusted by turning the brass screw located at the top of the valve.
Model No.: JX-0908
Size: 1/2″, 3/4″
Material: Lead-free brass
Finish: Sand blasted
Medium: Water
Connection: NPT
Includes stainless steel filter
With a 160 PSI gauge
Adjustable water pressure range: 0-160psi
Color: Brass
Reducing Balance Adjustable Water Pressure Regulator Valve with Gauge
A pressure-reducing valve with an attached pressure gauge is a self-operating valve. It is installed in water supply systems. The pressure gauge displays the current pressure in real-time. It reduces the high inlet pressure from municipal water supply networks or boosted systems. Maintains a lower outlet pressure, making it easier to control. This prevents equipment from being damaged by excessive pressure. It works for both domestic and industrial plumbing systems.
Model No.: JX-0907
Size: 1/2″, 3/4″
Material: Lead-free brass
Finish: Nickel-plated finishing
Connection: NPT
Type: Cartridge
Medium: Water
With an optional pressure gauge
Pressure rating: 6bar
Working Temperature: 0-65℃
Standard: EN331
With a black plastic head
A dual-layer inlet screened filter to prevent debris from entering and protect the valve
Brass Water Pressure Regulator DN15 G1/2
This brass water pressure regulator is an all-in-one pressure control device engineered for water supply systems. It comes with a top-mounted green knob for manual adjustment of outlet pressure. A built-in pressure gauge shows the current water pressure clearly. At the bottom, a transparent filter helps catch dirt and small particles in the water. It streamlines waterway configuration and serves as a highly practical choice for residential plumbing installations.
Material: Brass, Stainless Steel
With a stainless steel screen filter
Working temperature: -5-60℃
Medium: Water
Interface: DN15
Pressure rating: 40-60psi
Standard: ACS, ISO, NF
Finishing: Natural brass
Bronze Y strainer 1 inch
This bronze Y-strainer is a specialized impurity-filtering fitting engineered for fluid pipeline systems. It features a main channel with internally threaded ports for pipeline connection, and a detachable end cap on the Y-shaped branch. An integrated filter element inside traps sediment and other impurities as fluid flows through, effectively preventing clogs in downstream valves and equipment. As a widely used pre-filter component, it is ideal for a broad range of fluid pipeline applications.
Model No.: JX-0670
Size: 1/4-4″
Material: Lead-free brass, C83600, bronze
Working temperature: -10-110℃
Max working pressure: 20bar
Inline filter with compression fittings
Connection: NPT
Color: Brass Yellow, Plating
Standard: DIN, ANSI, ISO
Medium: Water
Differential Pressure Valve
This differential pressure valve controls and stabilizes the pressure difference in fluid systems. It has an adjustment part on top. Use this part to set the required pressure difference. Once set, the valve works automatically. It keeps a stable pressure difference between the inlet and outlet. It helps avoid pressure imbalance from flow changes. This valve is often used in heating systems, air conditioning systems, and other HVAC applications.
360 ° visual scale with bar and mH2O double measurement function
Temperature Range: 0-110 °C
FAQs of Pressure Regulator With Gauge
1. What is the core function of the pressure regulator?
The core function is to stably adjust the input high-pressure fluid (gas or liquid) to a needed low-pressure value. Its pressure gauge displays adjusted output pressure in real-time. Downstream pipelines or equipment operate at safe and stable pressure. This avoids equipment damage. It avoids other abnormal operating conditions. These issues come from fluctuating pressures.
From CleverBill DIY
2. What pressure data can the pressure gauge display?
Conventional models display output pressure. Some dual models can show input pressure at the same time, too. Pressure gauge accuracy is mostly ±1.6% (industrial grade) or ±0.5% (precision grade). The range can match the pressure relief valve’s rated pressure. Like 0–1MPa, 0–10MPa, and so on. We also support custom special ranges.
The normal adjustment range is 0.02MPa-30MPa. The low-pressure version can operate as low as 0.005MPa (suitable for pneumatic control and laboratory scenarios); the high-pressure version can reach as high as 100MPa, making it applicable to hydraulic systems and oil extraction. The adjustment range can be customized according to customer-specific conditions.
4. What should be noted when using a pressure regulator in extreme temperature environments?
High temperature environment (such as more than 80℃) need to choose high temperature resistant materials (such as 316 stainless steel body, fluororubber seals), to avoid aging seals; low temperature environment (such as less than-20 ℃) need to choose low temperature resistant seals (such as EPDM rubber, PTFE), to prevent material brittle crack, at the same time need to confirm the pressure gauge filling type (such as low temperature silicone oil filling table, to avoid freezing of liquid in the table).
5. Are pressure regulators suitable for export markets?
Plumberstar pressure regulators are fully compatible with major export markets worldwide. They not only meet the access standards of different countries in terms of product performance but also provide comprehensive export supporting services.
Product Performance & Structure Optimization: Adapt to Multiple Overseas Working Conditions
Wide-Range Regulation + Stable Output: The pressure regulation range covers 0.02–1.6MPa. It fits the pipe network pressure standards of different countries precisely. Adopt a diaphragm/piston double structure design. Pressure stabilization accuracy is ≤±5%. When the pipe network pressure fluctuates, the output pressure stays stable. It meets the needs of residential, industrial, and commercial scenarios.
Material & Process Guarantee: Valve bodies are made of 304/316L stainless steel or lead-free brass. Sealing parts use aging-resistant EPDM rubber. They have excellent corrosion resistance and fatigue resistance. Every product passes a 1.5 times rated pressure holding test and an air-tightness test before leaving the factory. Zero leakage guaranteed. It adapts to various water qualities and gas media worldwide.
Safety Protection Design: Built-in overpressure protection, overcurrent cut-off, and anti-recoil structure. It deals with sudden pipe network failures effectively.
Customized Packaging & Identification Use multi-layer protective packaging (PE film + thickened corrugated box + pallet). It meets the pressure and moisture resistance requirements of sea and land transportation. Export packaging is printed with bilingual marks and certification logos like CE, CSA, and Watermark. It complies with local customs clearance requirements.
Full-Process Document Support Provide complete documents, including certificate of origin, customs declaration form, inspection report, certification, and installation manual. It helps customers finish customs clearance quickly. For overseas bidding projects, we can customize technical documents and business information.
Localized After-Sales & Technical Support Equipped with a multilingual technical team. We offer remote installation guidance and troubleshooting. Establish cooperation with overseas dealers. Provide local warehousing and fast after-sales response. Products come with a 2-year warranty. Overseas return service is supported.
6. What is the lead time for the pressure regulator?
Standard model delivery cycle is 7-15 working days, customized model is 15-30 working days (need to adjust according to the customization complexity); support expedited production, expedited orders need to pay an additional expedited fee (10%-30% of the regular cost), expedited cycle can be shortened to 3-7 working days, the specific need to confirm the production schedule reply.
7. What is the package of the pressure regulator?
Export standard packaging: The single product is first wrapped in bubble film, then placed into a corrugated box with built-in buffer foam. Multiple products are packed into plywood wooden boxes that meet the ISPM 15 international fumigation standards and can be exported directly. There is an anti-collision and moisture-proof logo on the outside of the wooden case. For big orders, tray packaging can also be customized, which can be loaded/unloaded conveniently. If the product is damaged due to packaging issues during transportation, we will replace it at no additional cost.

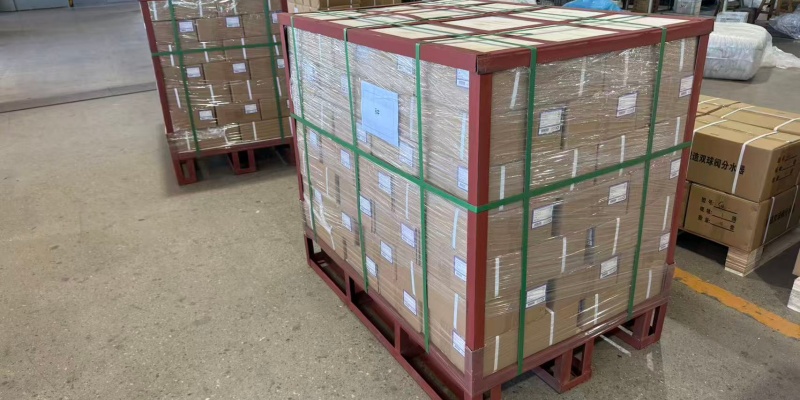

packing with pallets
8. How to verify if the pressure regulator material meets the promise?
It can be verified in two ways: ① We provide material certification documents (MTC), including material composition analysis reports, which can be traced back to raw material suppliers;② Customers can use spectrometers to detect material composition on site, or randomly send samples to third-party testing organizations (such as SGS and BV) for testing. If the test results do not conform to the promises, we will bear the test costs and replace the products free of charge.
9. Can compliance documents of the pressure regulator be provided with shipments?
Plumberstar can fully provide a complete package of compliance documents along with the goods. Every batch of pressure regulators ships with these core documents by default. They go in the same box or pallet as the goods:
Product certificate
Marked with product model, batch number, test date, and qualified status. It has a unique traceability code. Scan the code to check production and test data.
Batch test report
Includes key data like 1.5 times rated pressure holding test, air tightness test, and stable pressure accuracy test. It proves product performance meets standards.
Material certificate/spectrum analysis report
Confirms the purity and compliance of valve bodies (304/316L stainless steel, lead-free brass) and seals (EPDM rubber).
