Parameters of Flexible Stainless Steel Braided Hose

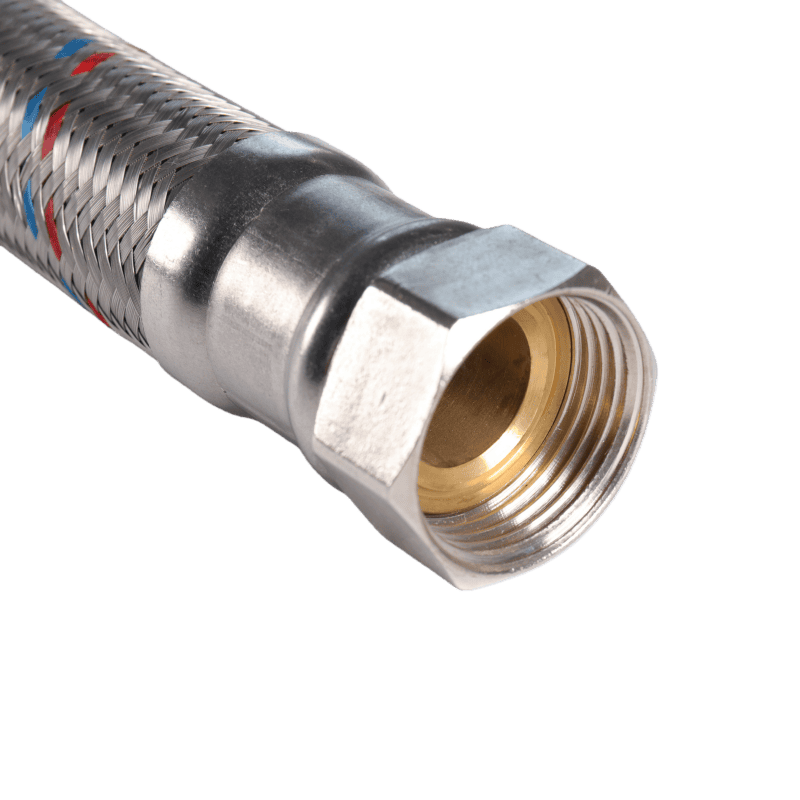

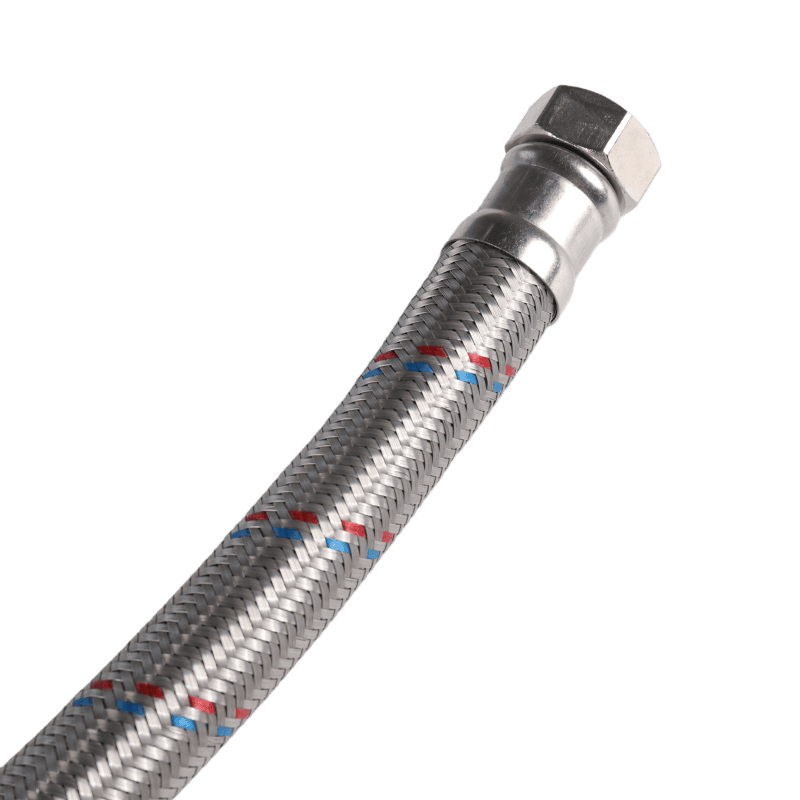

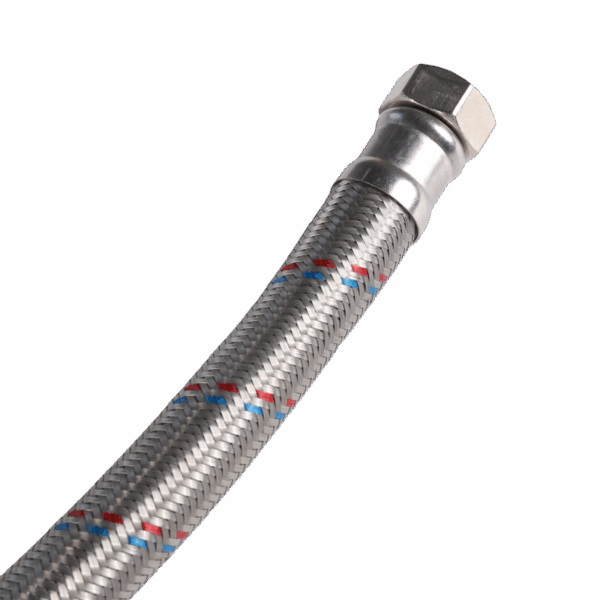

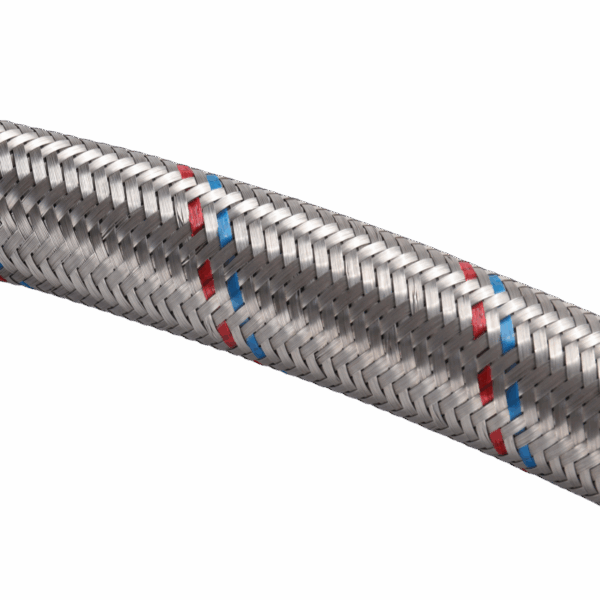

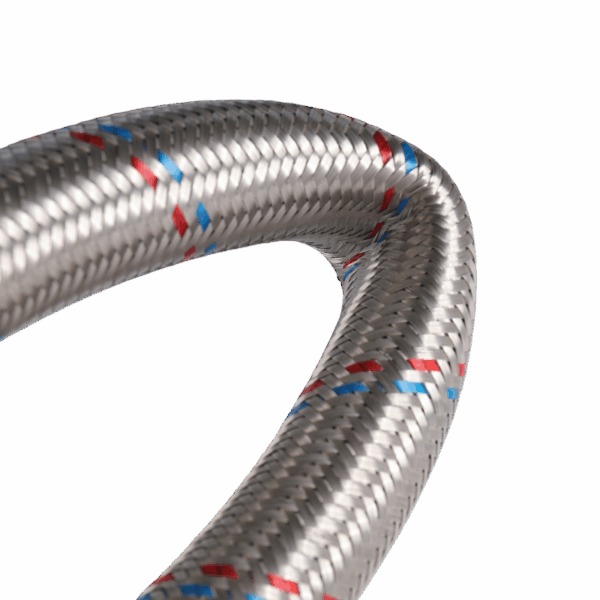

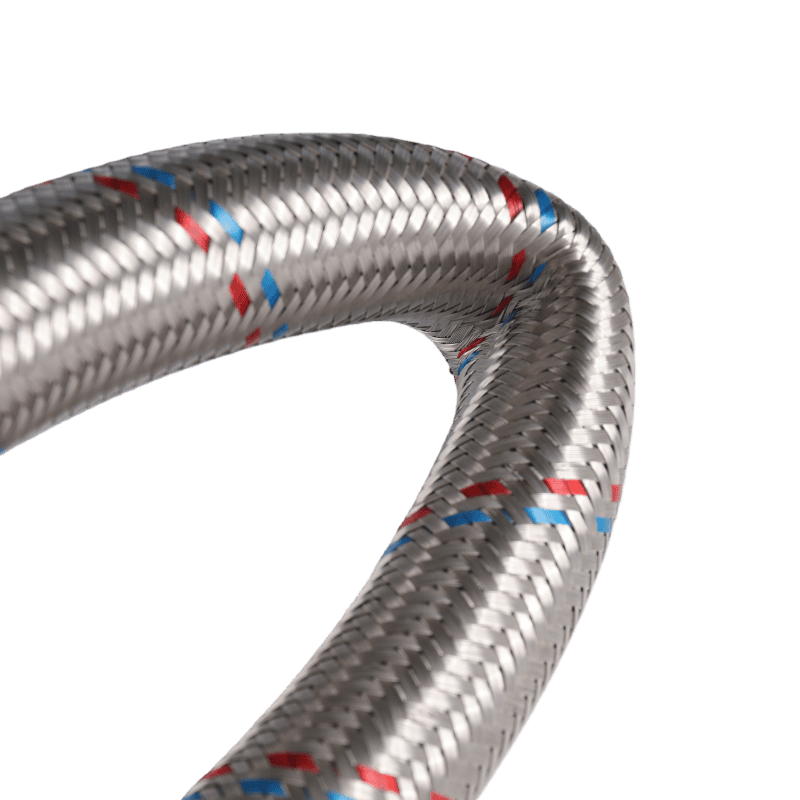

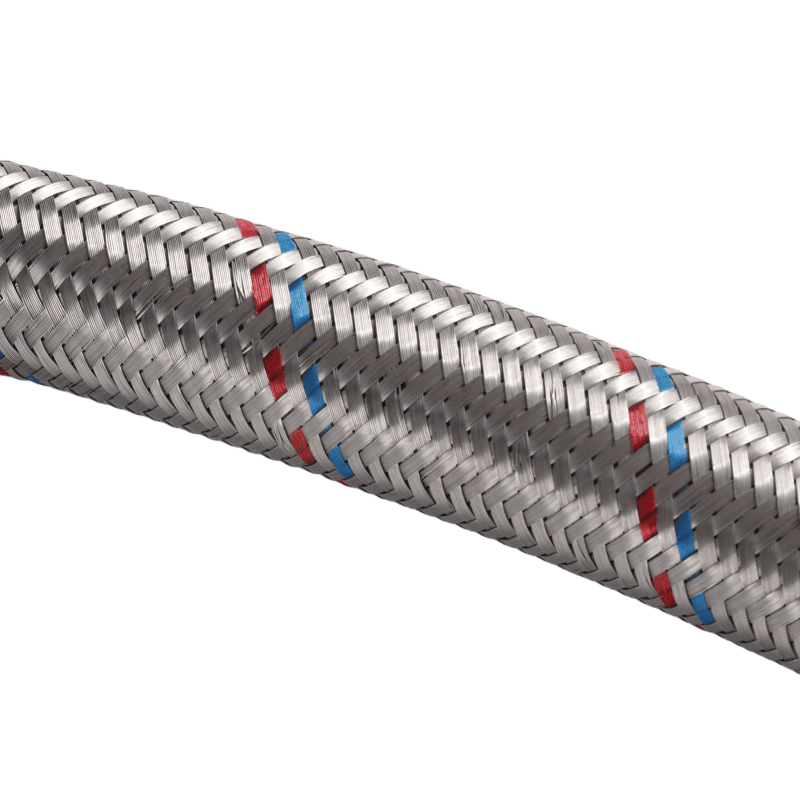

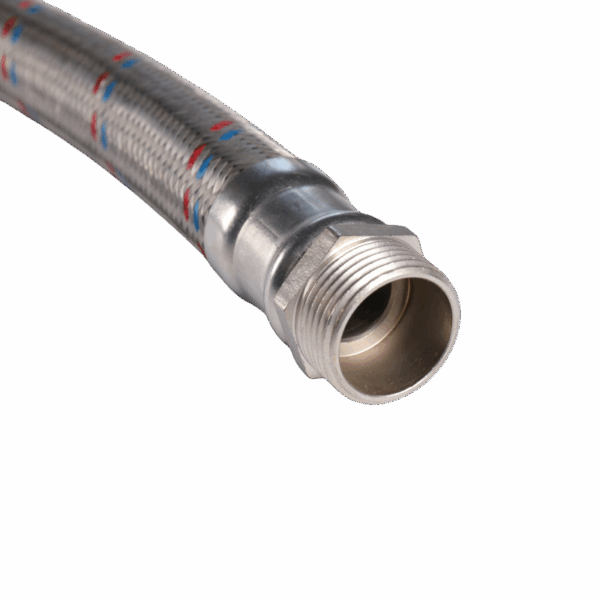

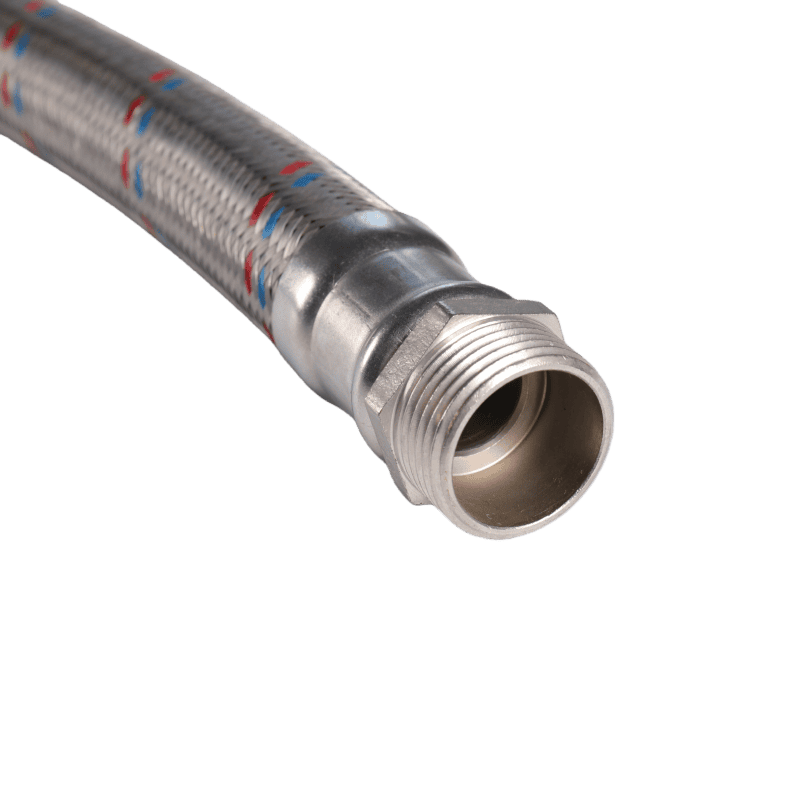

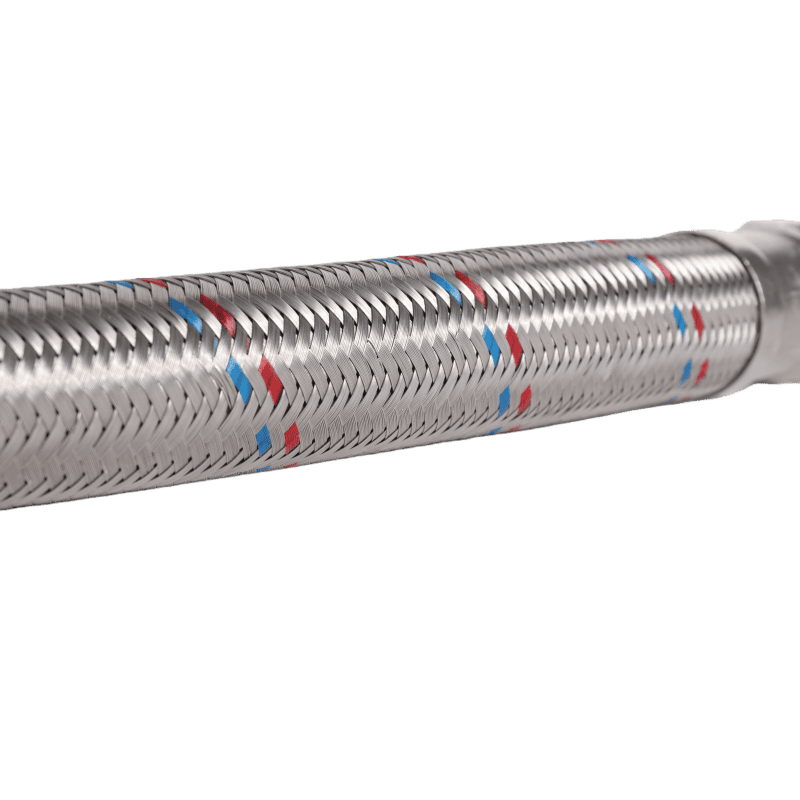

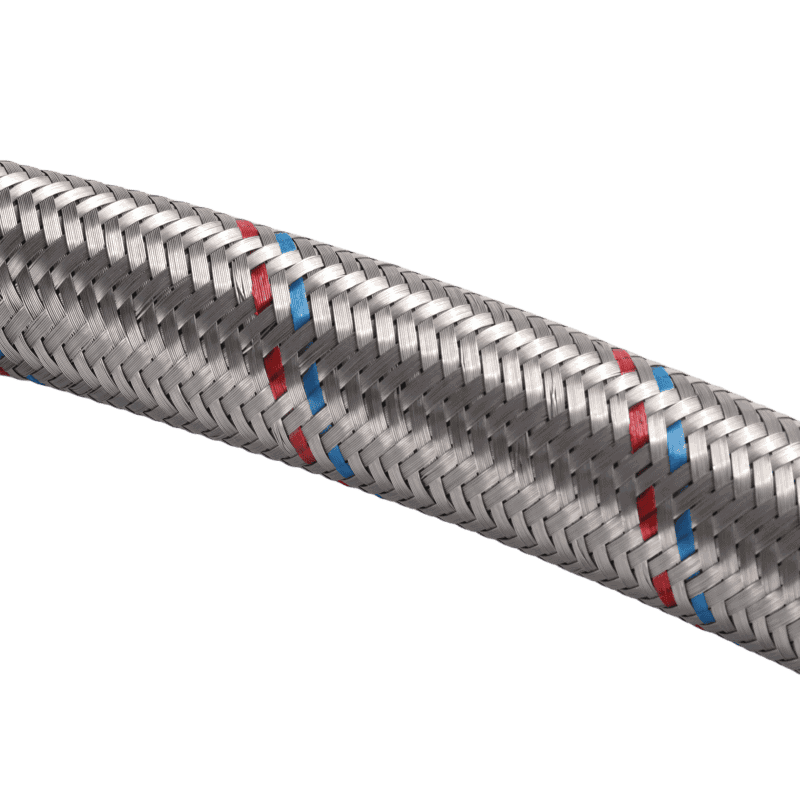

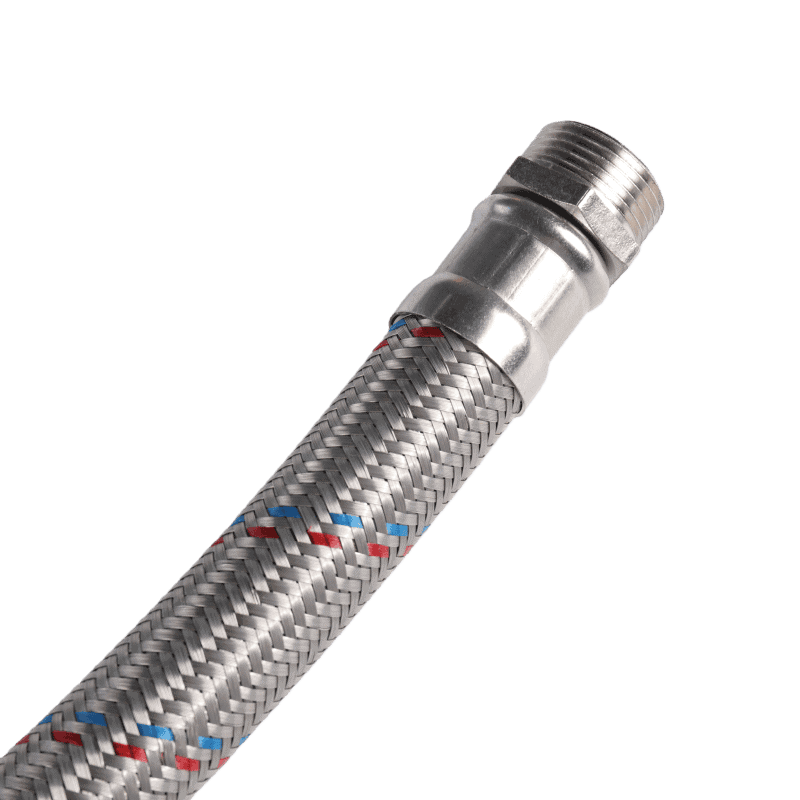

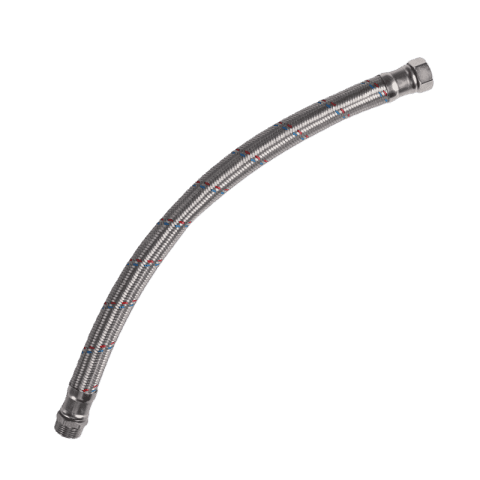

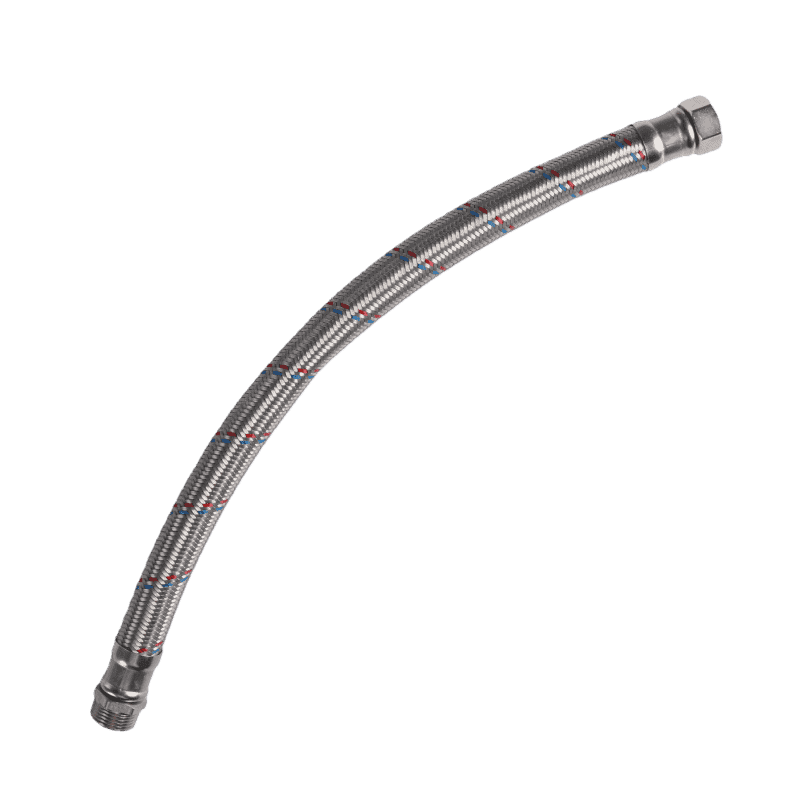

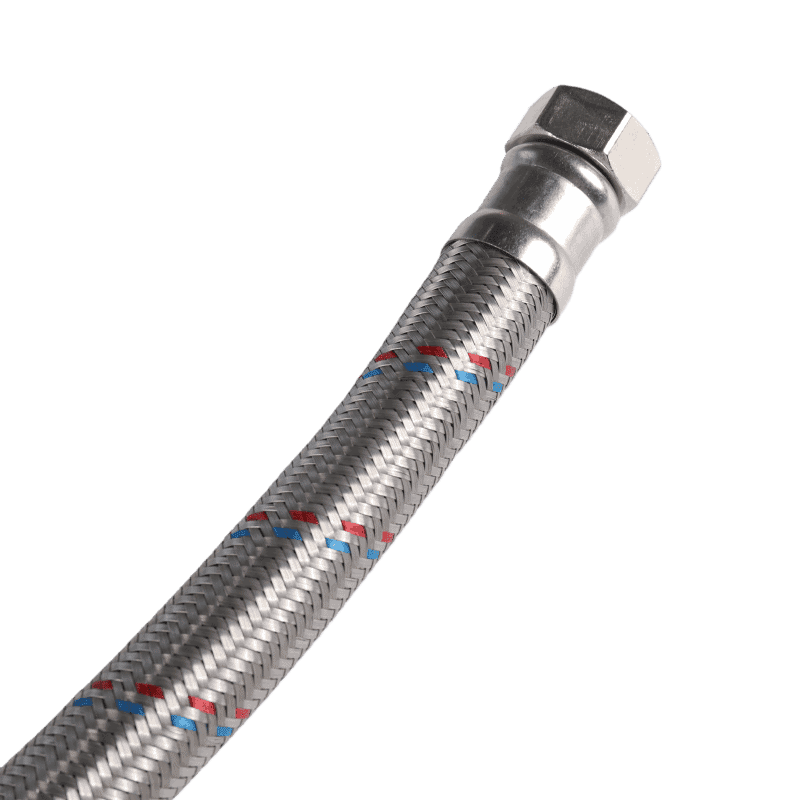

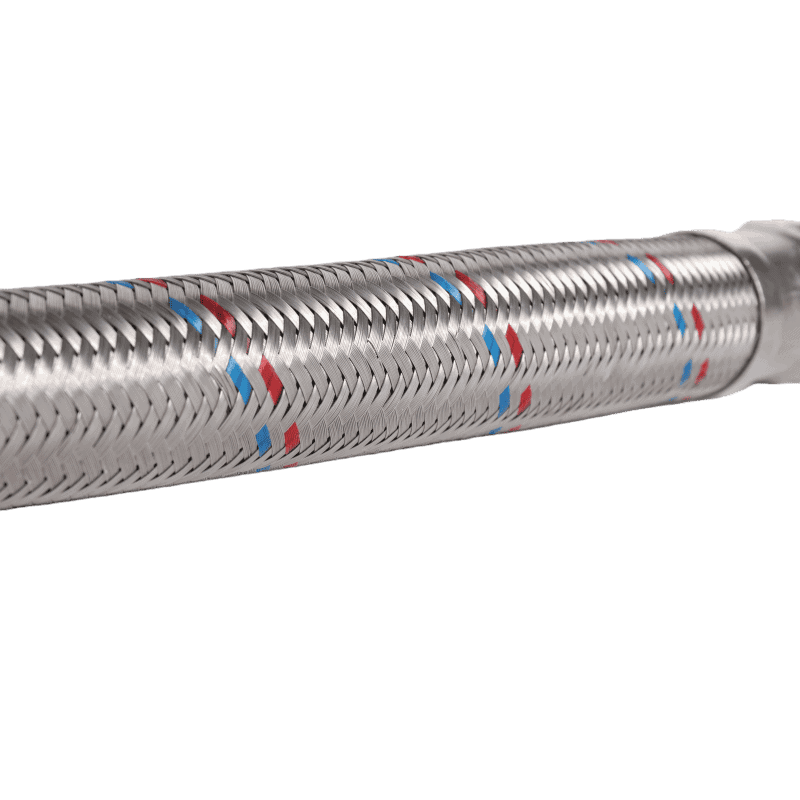

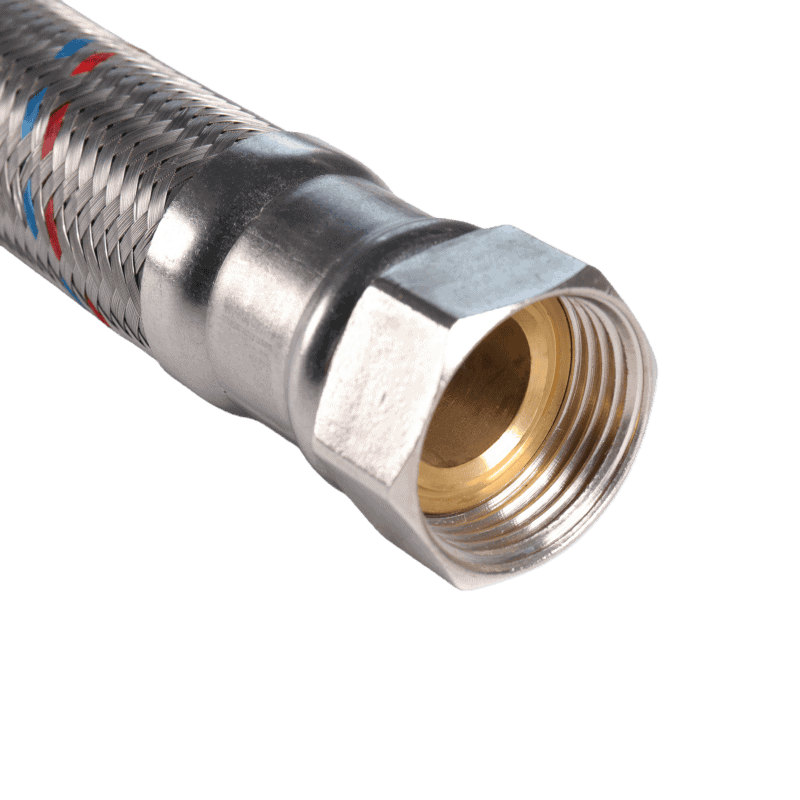

Flexible stainless steel wired hose
A flexible connecting pipe with stainless steel wire braiding as the main body is widely used in residential bathrooms. Its core use is to realize the flexible connection between equipment and pipeline. Adapt to the angle deviation, vibration compensation, and position adjustment requirements in pipeline installation. It can effectively replace traditional rigid pipelines, avoiding breakage or leakage at the joint. It is a key accessory to improve the flexibility and safety of pipeline connections.
Model No.: JX-10051
Material: 304 stainless steel
Spool material: Brass
Size: F1″XM1″
OD32mm
Length: 40cm,50cm,60cm,70cm,80cm
Types: Straight, Elbow
Rubber: EPDM
Working pressure: 10bar
Finishing: Polished
Type: Flexible Hose
Medium: Gas, Water
Max working temperature: 100℃
Inner tube Material: EPDM

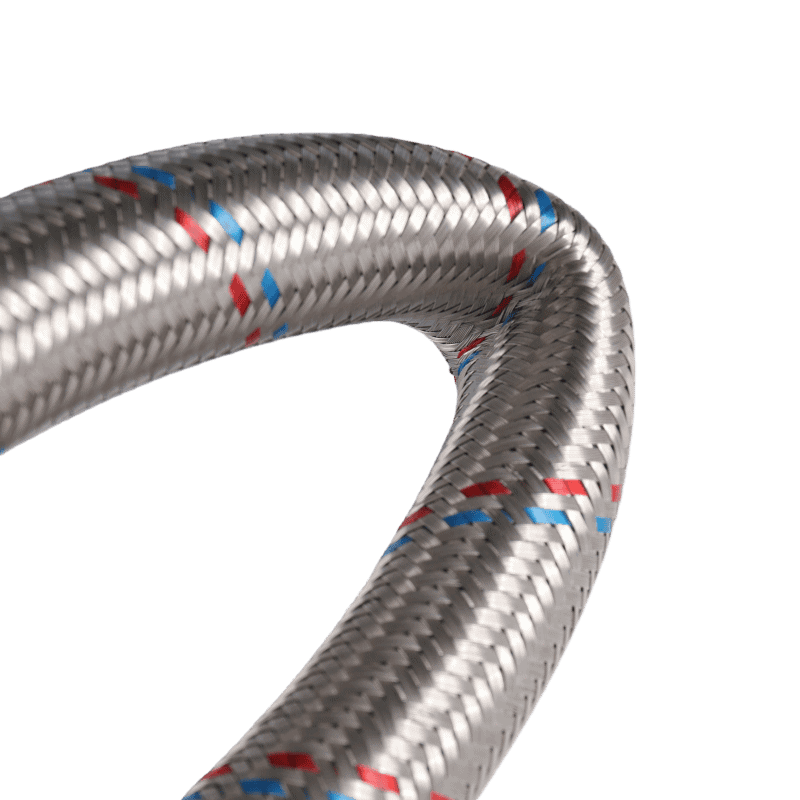

Avoid sharp bends and kinks to prevent hose damage
This brass outdoor garden tap is a dedicated water intake fixture engineered for outdoor gardening and cleaning tasks. Crafted with a full-brass body and a cross-shaped knob handle, it features a male-threaded port on one end for connection to outdoor water supply lines. The outlet end comes with a threaded connector that directly attaches to a hose or water gun. This tap is a reliable, practical solution for outdoor water access needs.
Model No.: JX-0505
Size: 1/2″X3/4″
Material: CW617N
Metal hose fitting with removable push-in connector
Style: Full-turn 360 degree (slow open)
Finish: Original brass
Connection: BSP
Max working temperature: 90℃
Max working pressure: 10bar
Quarter-turn control over water flow
T-shaped handle for easy operation
Compatible with most standard garden hoses and piping systems.

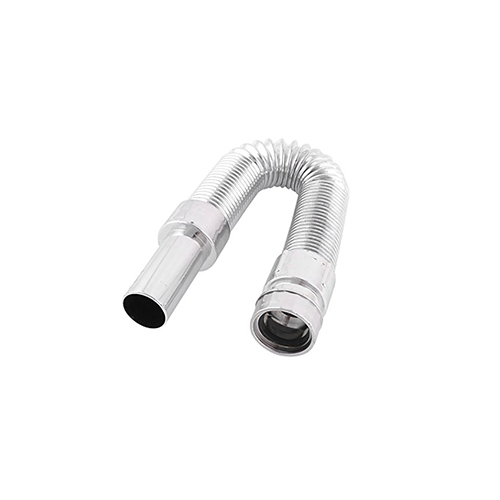

Plastic Flexible Retractable Sink Basin Water Drain Pipe
The Plastic Flexible Retractable Sink Basin Water Drain Pipe is made of plastic, featuring a retractable and curved basin drain pipe. That serves as the core drainage accessory for sanitary ware, meeting daily sewage discharge needs. Its core use is to quickly drain the sewage in the basin and guide it into the main drainage pipeline. It has strong flexibility and can be flexibly flexed according to the installation space. Adapt to the installation distance between different basins and drainage outlets.
Model No.: JX-0061
Size: 1-1/4″
Material: Plastic
Design: Retractable
OD: 22mm
Thickness: 3mm
Type: Welded
Working pressure: Low pressure
Max working temperature: 90℃
Inlet Inner Diameter: 30mm
Outer Diameter: 30mm
Application: Structure Pipe
Standard: AB-1953
Y Splitter Ball Valve Hose
This brass Y-splitter ball valve is a specialized fitting for diverting and controlling flow in water hoses and pipelines. Boasting a Y-shaped structure, it features a main inlet port at the bottom for connection to a primary water line. The two branch outlets are each fitted with a yellow butterfly-handle ball valve that allows independent on-off control of each flow path. Each branch port comes with a quick-connect hose adapter equipped with a red sealing ring to ensure leak-free performance. This splitter is a practical accessory that greatly enhances hose usability and convenience.
Model No.: JX-0429
Material: Brass, CW614N, CW617N
Size: 1/2″
Barb Outer Diameter:11mm
Barb Length: 20mm
With two Aluminum handles
Easy for 90° rotation
Working pressure rating: 400 psi
Finishing: Sand-blasted
Seal material: PTFE
Max work temperature: -10-110℃
Medium: Gas
Suitable for PEX, Copper, and HDPE hose
1/2″ Hose bibcock
This hose bib is made of nickel-plated brass and features a turquoise lever handle and a protective cover. One end connects to the water supply pipe, while the other end is fitted with a quick-connect hose adapter for easy attachment of a hose. The turquoise lever handle allows quick on and off control. And the integrated cover shields the valve core from dirt and debris. With its simple ball valve design and quick-connect outlet, this bibcock makes outdoor water use easier. It is commonly used for garden hoses, yard watering, and other outdoor water supply applications.
Model No.: JX-0515
Size: 1/2″X3/4″
Material: Standard brass, CW617N
Finishing: Sand blasted and nickel-plated
Handle: Aluminum alloy
Installation type: Wall Mount
Type: 45-degree fast open
Application: Water System
Seal material: PTFE
Working temperature: -10-100˚C
Working pressure: 16bar
Standard: ASME
1/2″F X 1/2″F Faucet Supply Line Connector
This faucet supply line connector is a flexible stainless steel hose fitting engineered to link water supply lines to faucets. It consists of a stainless steel braided hose paired with metal end ports. The braided hose allows for flexible length adjustment to fit a wide range of installation spaces, while a yellow retaining clip on the hose body prevents unwanted movement or shaking. Compared with rigid pipes, this connector handles expansion and contraction better and lowers the risk of leaks. It is a practical choice for improving flexibility and safety in water supply connections.
Model No.: JX-0926
Size: 1/2″X1/2″, 3/4″X3/4″
Suit for Bathroom, Kitchen sink Faucet
Material: Stainless Steel SS304
Working Pressure: 1.0Mpa
Two hex-nut: nickel-plated
Lengths: 30cm, 45cm, 60cm, 75cm,90cm, and custom
With rubber washers connected
Connection: BSP and BSPT
Double head nut diameter: 1/2 PT
Braided Supply Hose
Color: Silver

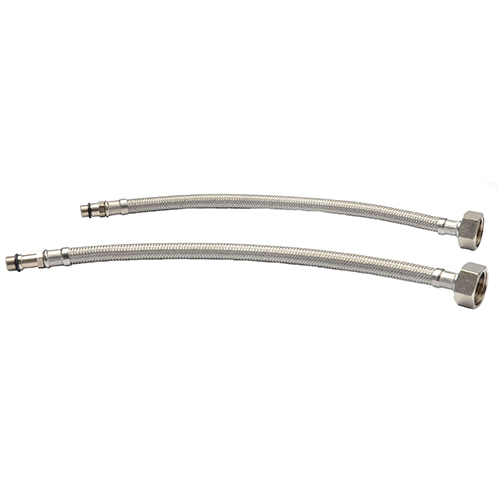

Stainless Steel Faucet Supply Line
This stainless steel faucet supply line is a flexible hose fitting designed specifically to connect water supply lines to faucets. Suitable for bathroom, kitchen, and similar settings. This supply line easily accommodates angle adjustments for various installation spaces. Meeting the water supply connection needs of different faucets.
Model No.: JX-0927
Material: SS304 stainless steel
Size: 1/2 ” Comp x 1/2 ” FIP
30cm,45cm,60cm,90cm,120cm
OD14mm
EPDM inside rubber
Hex Nut;SW23mm
Made of braided stainless steel
Match 1/2 ” IPS female connector
Max working pressure: 125psi
Working temperature: 40-180°F
Fits the kitchen, Laundry, and bathroom
With a Double-ring gasket
Color: Silver/CP/NP
FAQs of Flexible Stainless Steel Braided Hose
1. What inner materials are available for stainless steel braided hoses?
Plumberstar’s flexible stainless steel braided hoses come in three material options:
Food-grade PTFE:
Temperature resistance ranges from -20 °C to 200 °C. It resists strong acids and alkalis (pH 1–14). Tensile strength is ≥25MPa. Perfect for drinking water and chemical reagent transportation.
EPDM:
Temperature resistance spans -40 °C to 120 °C. Elongation at break is ≥400%. Elastic recovery rate hits 95%. Ideal for hot water pipes and bathroom equipment connections.
NBR:
It passes the IRM 903 oil resistance standard. The volume expansion rate is ≤10% after 72 hours of soaking in mineral oil. Suited for industrial oil transportation. You need to confirm suitability based on the specific medium type.
2. What are the braided hose joint’s material, connection method, and processing details?
Joint materials are brass or 304/316 stainless steel. Connection methods include BSP/NPT 1/2″–1″ threads, quick joints, and flange connections.
Joints are made by CNC precision turning. Thread accuracy reaches class 6H. Tooth profile error is ≤0.02mm. Brass joints get a chrome coating (0.1–0.15mm thick). Stainless steel joints go through passivation treatment.
After crimping with the hose, we perform a 0.8 MPa air pressure test. Leakage is ≤0.01cm³/min. This ensures a completely leak-proof seal.
3. What is the aging test data of the stainless steel braided hose?
Plumberstar hoses have passed the accelerated aging test. The test conditions: 120℃ high temperature, 85% humidity, continuous 720 hours.
Inner tube tensile strength retention rate ≥85%.
Braiding corrosion area ≤1%.
Sealing performance stays unchanged.
In normal use scenarios (room temperature, normal pressure), the flow attenuation is ≤8% within 5 years. The hose shows no obvious aging or cracking within 10 years. This far exceeds the industry’s average aging cycle of 3–5 years. It’s also one of the core quality advantages of Plumberstar products.
4. What key parameters are required for a custom braided hose with customer drawings?
Key Parameters Required for Flexible Hose Customization:
Diameter and Length Nominal diameter of the flexible hose Total length, including end fittings/joints
Inner Tube Specification Material of the inner tube Wall thickness
Braided Layer Material of the braid Number of braiding layers/strands
End Connections Joint type at both ends (threaded/flanged/quick connector) Detailed specifications (standard, size, sealing form)
Operating Conditions Working pressure Operating temperature range Medium type
Drawing & Technical Documentation Requirements Supported drawing formats: CAD (.dwg), SolidWorks (.sldprt), PDF (vector format) Drawings must clearly indicate: All critical dimensions Recommended dimensional tolerance: ±0.1 mm Surface treatment requirements
Confirmation & Production Process Plumberstar will issue confirmation drawings within 3 working days after receiving complete technical information. Mass production will begin only after the customer signs and confirms the drawings, ensuring full alignment with application and performance requirements.
flexible hose structure
5. What is the coating material and wear resistance test data of the color braided hose?
Coated with Plumberstar specified eco-friendly polyester powder (RoHS compliant), adjusted according to Pantone color number (such as Pantone 200C red, 300C blue), coating thickness 60-80μm; wear resistance test (500g weight + steel wool, reciprocating friction 500 times): coating no peeling, no exposure; salt spray test ≥480 hours, suitable for commercial scene medium differentiation requirements, MOQ 150 pieces, customization cycle 12-15 working days, Plumberstar can provide color cards for customer confirmation.
6. What details are included in the packing for braided hose?
Plumberstar Standard Packing List
Our standard packing list includes the following details: product model, specification (diameter, length, connection method), quantity, single weight, total weight, production batch, and test report number.
We can add extra info based on your needs. Items such as the customer’s PO number, product barcode, customs code (HS Code: 83071000), and English product description.
The list is bilingual. It comes with the goods and an electronic version too. This makes customs clearance and inventory management easier for you.
Plumberstar can also adjust the list format to fit your local market requirements.
7. What are the specific environmental indicators of the stainless steel braided hose?
Plumberstar’s Flexible Stainless Steel Braided Hose fully complies with RoHS 2.0 (EU), REACH (EU), California Prop 65 (USA) environmental standards; specific indicators: lead ≤0.01%, mercury ≤0.1%, cadmium ≤0.001%, hexavalent chromium ≤0.1%, polybrominated biphenyls (PBB) ≤0.1%. Every batch comes with a third-party environmental testing report. Plumberstar promises all export products meet the environmental compliance requirements of the target market.
8. Are palletized shipments supported for the braided hose?
Fully supports palletized shipping of stainless steel braided hoses.
Standardized Pallet Loading for Different Shipping Needs
We use solid wood or plywood pallets that meet international logistics standards. We plan the loading plan based on the specs and packaging of the stainless steel braided hoses.
For small-diameter rolled hoses: Each roll is wrapped independently with PE film first. Then, put them into custom cartons. Stack the cartons on the pallet according to their size. Put anti-slip dividers between each layer to stop cartons from sliding.
For large-diameter bulk hoses: Fix them on the pallet with special brackets. Wrap the outer layer with waterproof and tensile film. Install plastic protective caps on both ends of the joints to prevent thread scratches or collision deformation.
We strictly control the loading weight of each pallet within logistics standards. This avoids damage caused by overloading.
Multi-Layer Reinforced Protection to Avoid Shipping Losses
Stainless steel braided hoses are easy to wear, and their joints are prone to damage. So we add multiple reinforcements when shipping on pallets.
Use moisture-proof cardboard as the bottom layer. It isolates moisture during transportation and prevents hose joints from rusting.
Wrap the entire cargo with at least 3 layers of high-strength tensile film. Add corner protectors to enhance impact resistance.
For foreign trade export orders, the pallets will be additionally fumigated. We also stamp the IPPC mark on them. This meets the quarantine requirements for international sea and land transportation.
9. How does the stable quality of the braided hose support long-term contracts?
Plumberstar stainless steel braided hoses follow a standardized production process from raw materials to finished products. We use high-purity 304/316L stainless steel for the braided layer and aging-resistant EPDM rubber for the lining. Core process standards — like braiding density and pressure test parameters — are locked in during production.
Every batch of products undergoes 100% water pressure testing and air-tightness testing. The water pressure test uses 1.5 times the working pressure, holding for 30 minutes. This ensures stable pressure resistance, explosion resistance, and leak tightness.
This stable quality control standard guarantees consistency across all batches. For long-term contracts, every delivery will have the same size accuracy, pressure rating, and service life. No installation issues or system failures caused by batch differences. This avoids construction delays and return/exchange disputes from quality fluctuations, keeping long-term contracts on track.
