Brass Tap

Parameters of Brass Tap

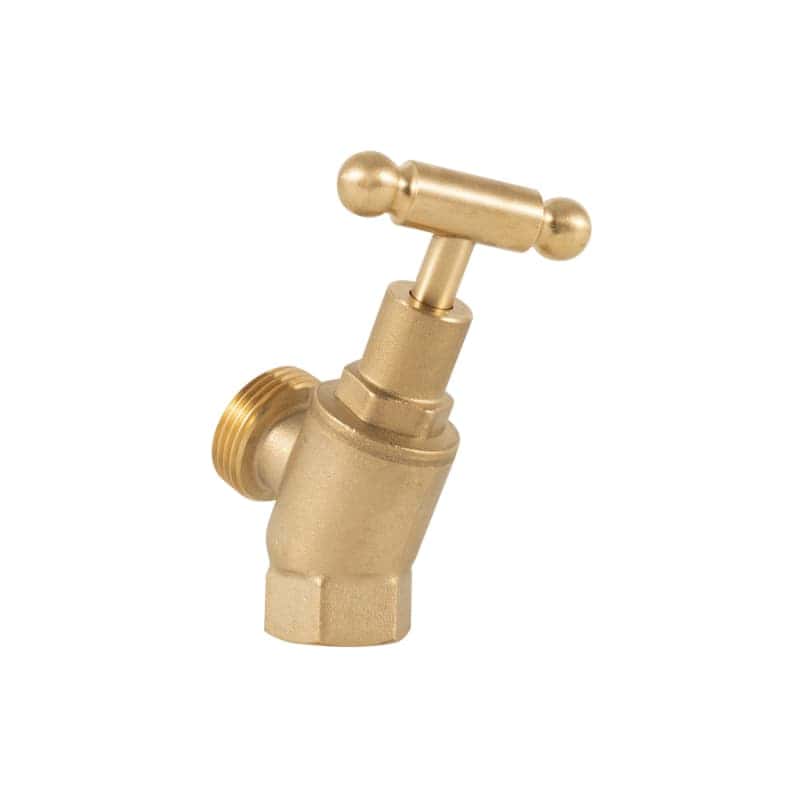

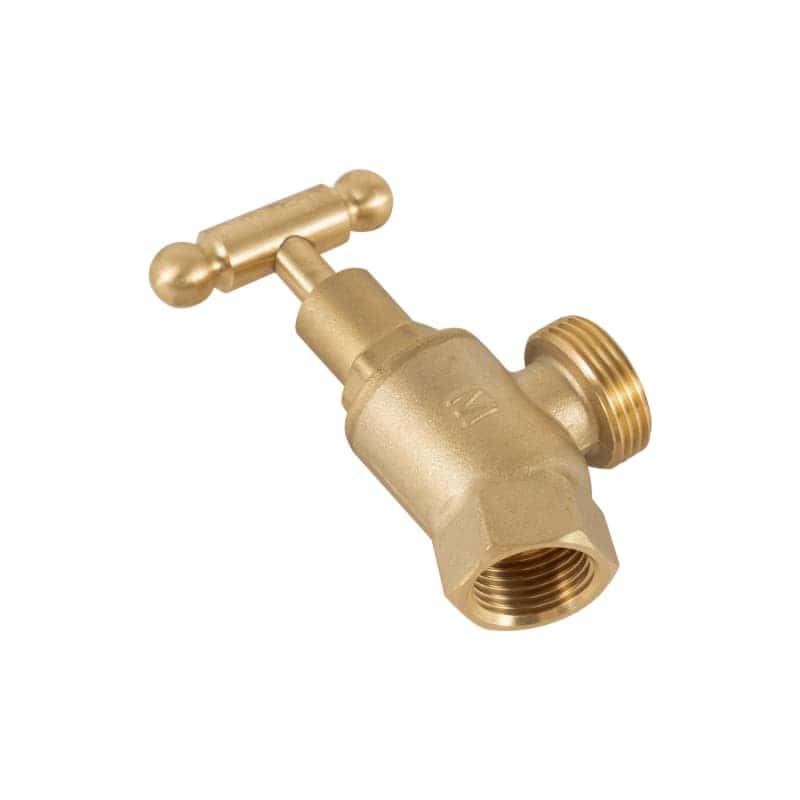

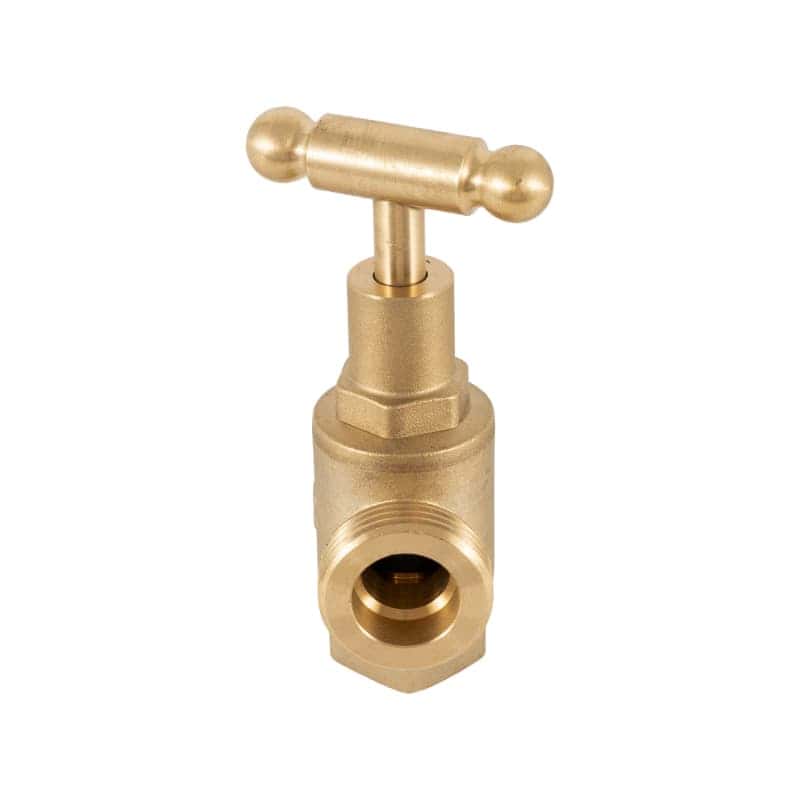

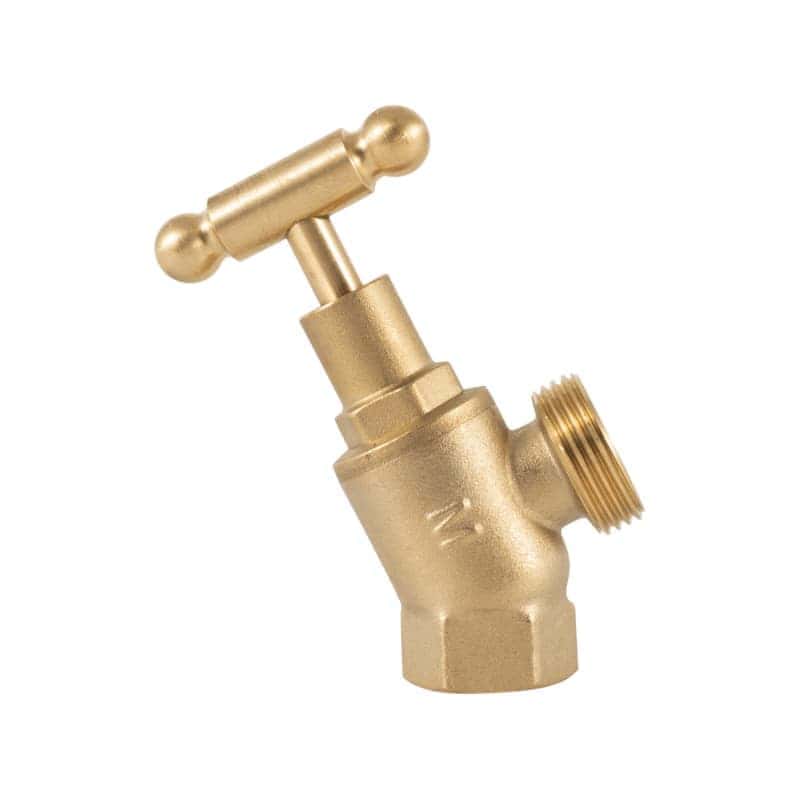

OEM DZR Brass Tap

The brass hose faucet is a valve used to connect garden hoses to water sources. Fitted with a T-handle, it enables straightforward and hassle-free operation, allowing for a swift start or stop of the water flow. The water outlet provides a firm connection with standard-sized garden hoses, ensuring a reliable connection. It can be installed on outdoor faucets to connect garden hoses, and is compatible with sprinklers, lawn sprinkler systems, and irrigation systems as a valve or connector. It is also applied in various sanitary ware and water supply/drainage projects.

  • Model No.: JX-0960
  • Size: 1/2′, 3/4″
  • Reliable material with a 3-year warranty
  • Material: DZR,CW511L,Lead free brass
  • Finish: Sand blasted
  • Medium: Water
  • Free inspection report provided is the same as the one offered by the third party.
  • Free sample within 7 days.
  • ACS, ISO9001, and NF certificated
  • Working temperature: 0-80℃
  • Pressure rating: PN16
  • BSP/ISO228, NPT
  • The delivery time for bulk orders is 30 days

Additional information

Description

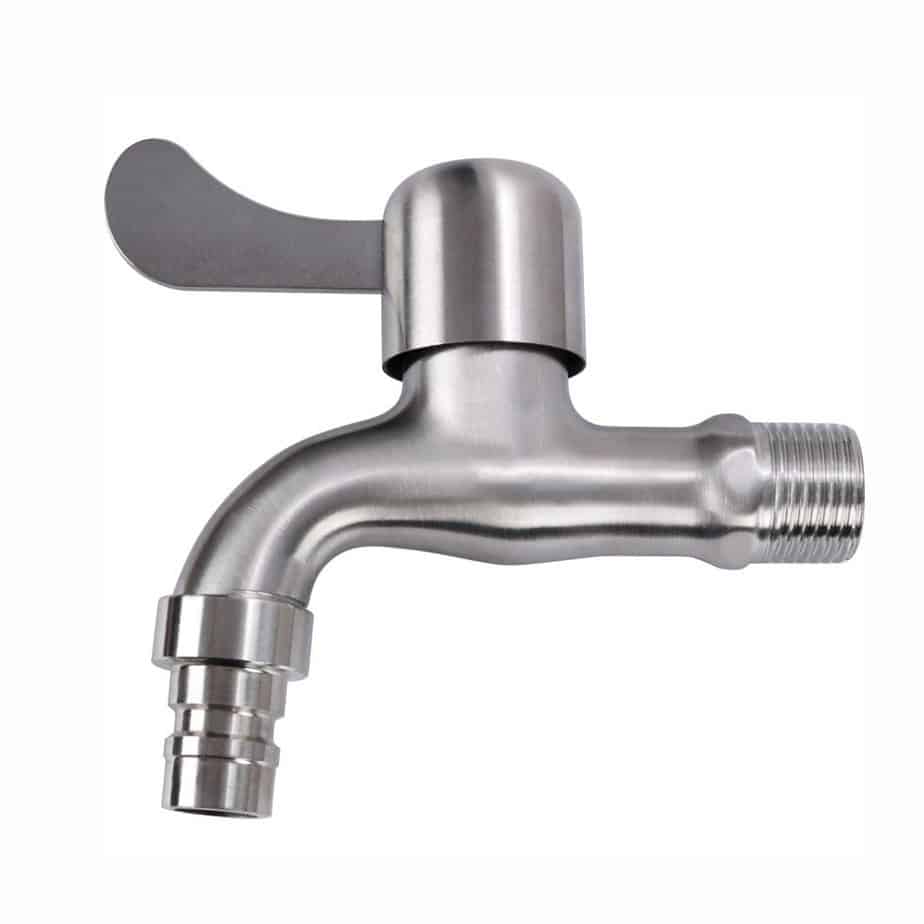

ss304 bibcock tap Stainless Steel 304 Bibcock tap

304 stainless steel faucets are frequently utilized as water supply taps for washing machines. Designed specifically for connecting to washing machine inlet hoses, their non-slip grooved water outlets ensure a secure connection. They can also be matched with mop sinks to fulfill water supply requirements, including cleaning tool washing and floor cleaning. This faucet boasts excellent corrosion resistance and strong weather resistance, making it a reliable choice for outdoor areas such as terraces, courtyards, and garages, and suitable for various scenarios, including vehicle washing and plant watering.

  • Model No.: JX-0960
  • Size: G1/2
  • Finish: Nickel brushed
  • Having a durable brass cartridge
  • It is very easy to install and remove
  • Installation type: Wall-mounted
  • Material: Stainless steel 304L
  • Used for washing machines, kitchens, and gardens, water will soon be able to get out
  • OEM and ODM are  welcome
  • Connection: BSP/ISO228, NPT
  • Handle: Level handle with SS304L.


garden tap spout valve

Garden tap spout valve

The 1/2-inch threaded ball valve (ball-type faucet) is a pipeline valve for water flow control. When the spherical through-hole aligns with the water flow direction, the valve opens; rotating the handle 90 degrees shuts it off, enabling easy operation. Boasting durability and leak-proof performance in design, ball valves are widely used in water supply and drainage pipeline systems as mainstream water flow control fittings. Suitable for both residential and industrial scenarios—such as garden faucet matching, water treatment plant pipelines, and water flow regulation in various water supply systems—they feature a 90-degree quarter-turn handle that drives the perforated ball inside the valve body to rotate, achieving efficient and convenient on-off control of water flow.

  • Model No.: JX-0508
  • Size:1/2″, 3/4″
  • Handle: Aluminum alloy, Zinc alloy
  • Finish: Nickel plated
  • Medium: Water
  • Pressure rating: PN20, PN25
  • Working temperature: -10-100℃
  • From opening to closing turn is a quarter
  • OEM and ODM are both welcome
  • Connection: BS/ISO228
  • Application: Water System
  • Function: Control Flow Water
  • Type: Quick Open Cartridge
  • The bibcock is used anywhere an outdoor water supply is required, such as external mounting on buildings, hoses, other attachments, and outdoor sinks.


Brass Cut-off Spout Faucet Tap 0516d

Garden Hose Union Bib Tap

Brass garden faucets are common accessories for outdoor water intake. Equipped with a T-shaped handle for easy operation, they enable quick on-off control of water flow. Specifically designed to connect to water supply pipelines, they are usually installed with wall plate fittings for stable and reliable fixation. Supporting both hot and cold water use to meet different water temperature needs, they are widely practical for scenarios like outdoor areas, gardens, and laundry rooms.

  • Model No.: JX-0516
  • Size: 1/2″, 3/4″
  • Body Material: CW602N,CW617N,CW511L,C46500 LF
  • Handle material: brass
  • Medium: Water
  • Pressure rating: 10 bar
  • Working Temperature:  0-90℃
  • Certification: ACS, NF
  • Installation type: Wall Mount
  • Connection: ISO228/BSP
  • Finish: sand blasted and polished
  • Suitable for outdoor, garden, laundry, industry, and other environments.
  • Large flow of water
sanitary ware brass bibcock Sanitary Ware Brass Bibcock

The wall-mounted faucet features a specialized handle, allowing for precise control over water flow activation, deactivation, and volume regulation. It features a threaded interface to securely connect with water pipes, meeting extended needs such as irrigation and cleaning. Designed for cold water use, it is particularly suitable for outdoor tasks like garden watering, fulfilling daily water fetching, and irrigation requirements.

  • Model No.: JX-0503
  • Size: G1/2″,G 3/4″
  • Finish: Precision plated
  • Material: CW617N, CW602N
  • Max temperature: 0-90℃
  • Medium: Water
  • Pressure rating: 12bar
  • Certification: ACS, ISO,CE
  • Standard; DIN,EU
  • The threaded hose connection and its grommet also enable connection to a water hose
  • Installation type: Wall Mount
  • Water flow rate can be regulated using the top handle
  • The test consists of putting the system in water and alternating every 3 minutes between hot water at 60℃ and cold water at 10℃. Test time is 10thermal shocks.
  • Single-handle design allows for convenient control over both water flow and temperature


toilet bibcock valve

1/2″ Garden Tap Bibcock Valve

Ball valve faucets are a common type of valve for outdoor water sources, suitable for scenarios such as gardens and water tanks. Usually made of brass, some have a nickel-plated surface. Equipped with a red lever handle, they control the internal ball valve to fully open or close the water flow with a 90-degree rotation . Featuring a threaded water inlet for connecting to water supply pipelines, the water outlet is also threaded and typically comes with a hose adapter for secure connection to garden hoses. With a wide range of applications, they are suitable for everything from home gardens to professional landscape greening; in factories or large facilities, they can be used to control access to various liquids.

  • Model No.: JX-0502
  • Size: 1/2″,3/4″
  • Material: CW511L, CW602N
  • Working temperature: -20-120℃
  • Handle: Iron handle with red plastic cover
  • Working pressure: 10Bar
  • Stem: high-quality brass stem
  • Connection: BSP/ISO228
  • Certification: ACS, NF, CE
  • Finish: Polished and nickel-plated
  • It’s suitable for all water butts, which should be equipped with a ball outlet valve
Bibcock Tap 1/2 inch For South America 0512



Forged Brass Bibcock

The core function of the brass straight-spout valve is to control the on/off of water flow. Its water outlet is usually equipped with a threaded design for secure connection to garden hoses, meeting outdoor water fetching needs. Widely used in kitchens, bathrooms, gardens, as well as water supply and drainage pipeline systems, it controls the water flow to water-consuming appliances such as faucets and shower heads.

  • Model No.: JX-0512
  • Temperature adjustment: 30-65℃
  • Size;1/2″, 3/4″, 1″
  • Material: CW617N,CW511L, CW602N
  • Spool material: Rubber
  • Material of valve core: Total copper
  • Handle: Cast iron handle with red painting
  • 30,000 times open-off  working is guaranteed
  • Media: Water
  • Connection: BSP, NPT, ISO228
  • Working Pressure: 10bar
  • Our product has a 5-year warranty
  • OEM and ODM are both ok

FAQs of Bibcock Tap

What is DZR Brass and how does it work?

DZR brass is a specially engineered copper alloy that effectively resists dezincification corrosion. It is suitable for water supply and drainage applications and other scenarios where standard brass tends to fail. Particularly adapted for water supply and drainage systems and environments with long-term water contact, it is especially ideal for highly corrosive water conditions such as soft water and chlorinated water. Additionally, it meets the high durability requirements for materials in commercial, industrial, and engineering scenarios.

What type of thread connection do you use?

The external thread adopts a G-type design and complies with the ISO 228/1 international standard, featuring high thread precision and strong sealing performance to ensure a stable connection with universally used pipe fittings worldwide. The compression fittings (CPF) fully meet the requirements of the EN 1254-2 European industrial standard and ESBE VTA 310 technical specification. This design is fully compatible with mainstream global installation systems, enabling quick assembly and long-lasting sealing while effectively reducing installation compatibility risks and long-term maintenance costs.

Where can the DZR brass bibcock be used?

DZR brass straight bibcocks are widely used in drinking water systems, commercial and industrial hot and cold water systems, central heating systems, and other fluid transfer systems due to their durability and corrosion resistance.

What is the MOQ for OEM and ODM DZR brass tap?

The Plumberstar-manufacturing MOQ for our DZR brass straight bibcocks is 500 units. For newly established OEM/ODM partners or projects requiring market testing and small-batch pilot runs, we support small orders of 200–300 units. Both OEM and ODM models enable you to quickly validate market feedback without compromising product quality or delivery lead times.

 Is a warranty provided for the bibcock tap?

Yes, we offer a 3-year warranty. The warranty covers failures caused by material defects and manufacturing issues (excluding human damage and improper installation).

Can you package the tap in custom boxes?

Yes, we can customize foam liners, cardboard dividers, or moisture-proof PE bags based on transportation requirements and product protection needs, thereby avoiding scratches and thread damage to the valves during transit.

Do you provide order tracking for DZR Brass bibcock tap shipments?

Once your order is dispatched, we will immediately share the official logistics tracking number via email (our cooperative logistics providers are all trusted brands, or your designated logistics partner). You can use this tracking number to check the real-time logistics status directly through the logistics provider’s official website or platform.
