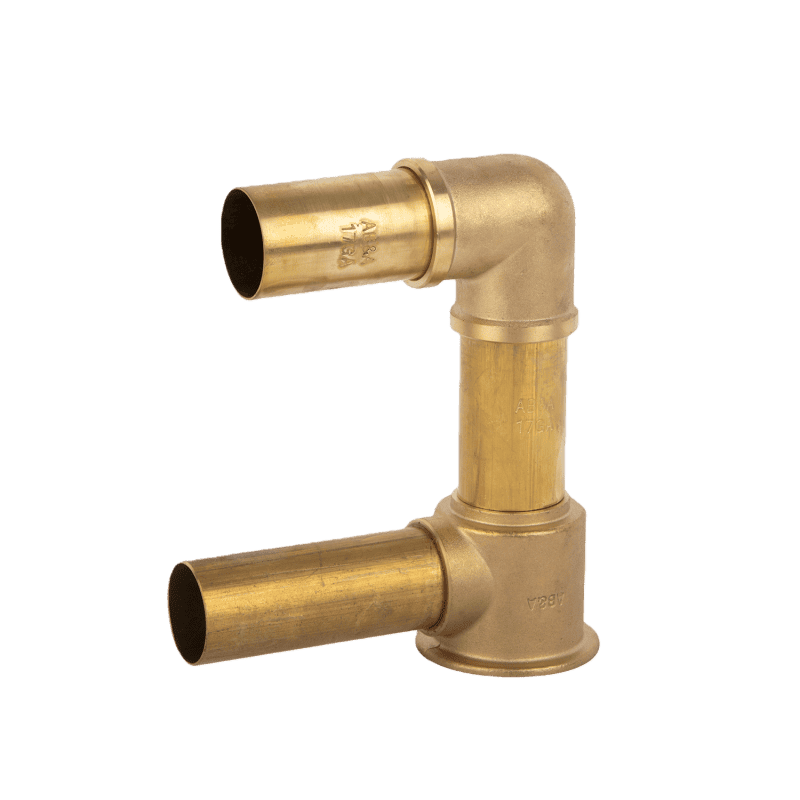

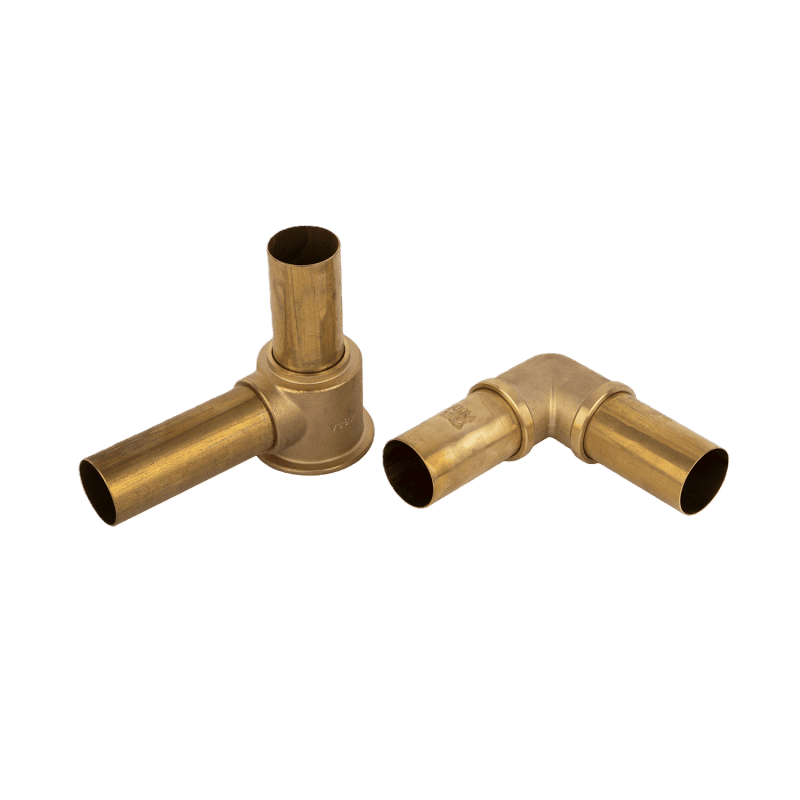

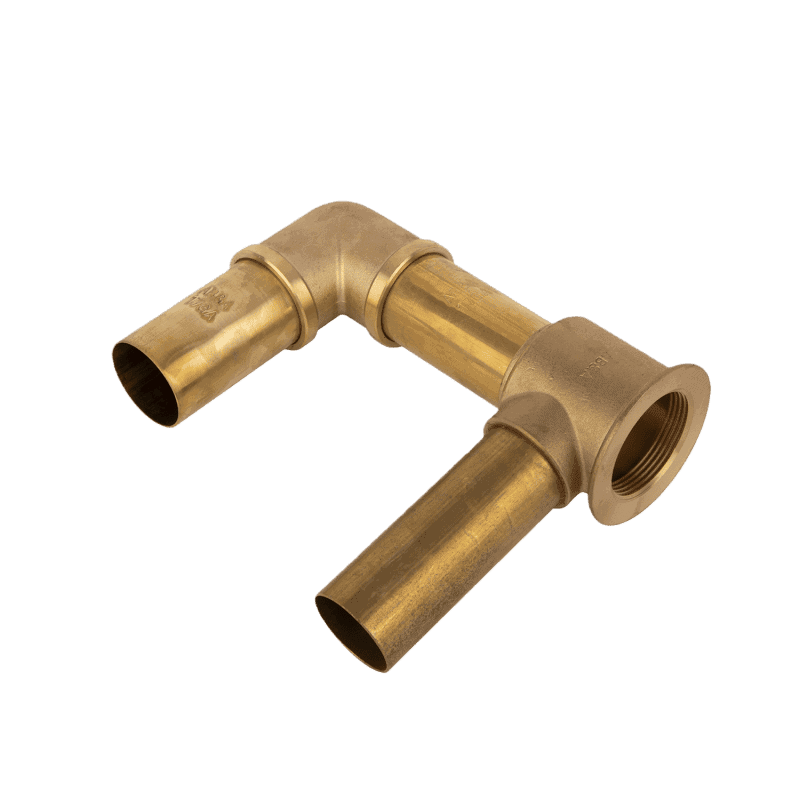

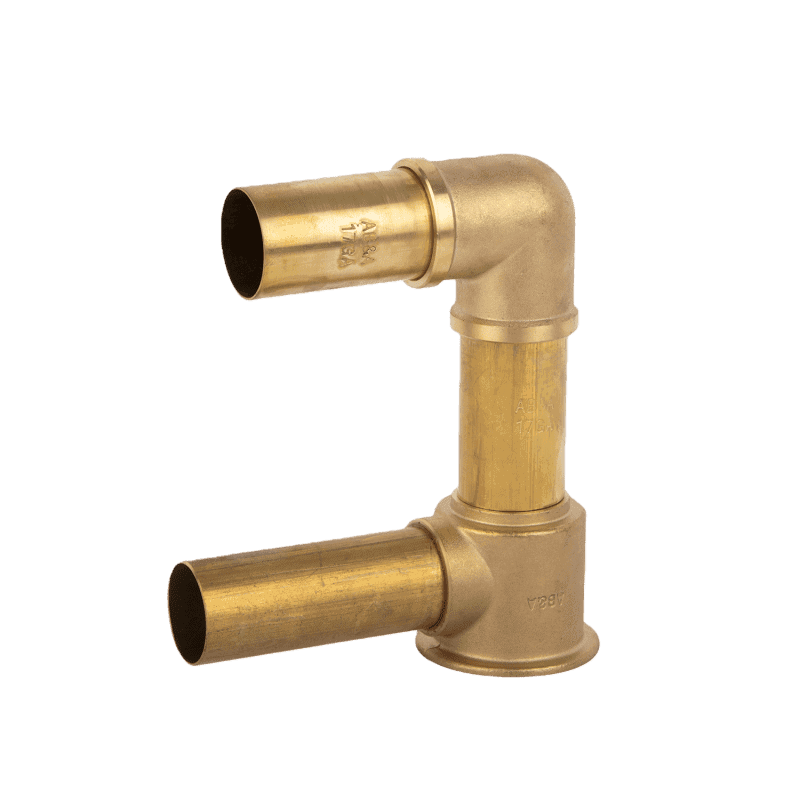

Bathtub Drain Fitting Kit

Bathtub Drain Fitting Kit
Bathtub Drain Fitting Kit - Image 2

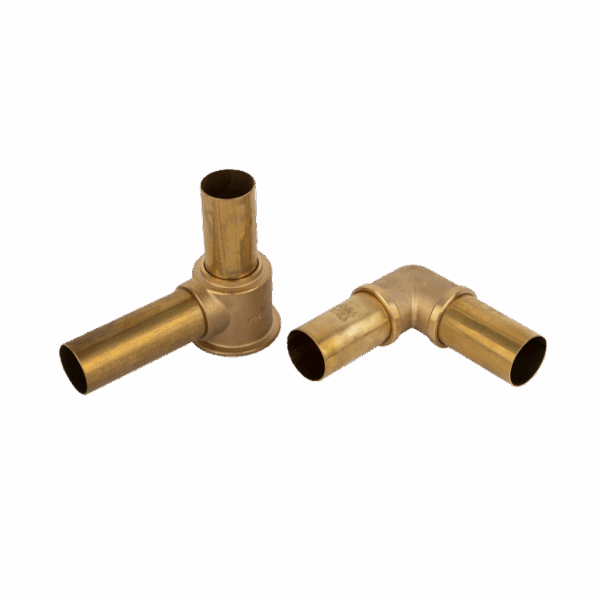

Bathtub Drain Fitting Kit - Image 3

Parameters of Bathtub Drain Fitting Kit

A bathtub drain fitting kit is a set of components designed for installing a bathtub drain fitting. It is mainly used to provide suitable drainage system installation accessories for new bathtubs. It can also be used to replace old, damaged, or leaking bathtub drainage parts, solving problems such as poor drainage and water seepage. Its uniform specification accessories design can ensure the compatibility and tightness of installation.

  • Model No: JX-10065
  • Spare parts, with Overflow Faceplate, and Drain Shoe
  • Main body; Waste Tee: A “T” shaped connector that joins the overflow pipe and the drain shoe into one pipe that exits to the sewer without a stopper.
  • Match types: Lift & Turn: Simple and durable. Lift the stopper and twist it to lock it open. Toe-Touch (Tip-Toe) and Push-Pull that do not include Cable Drive
  • Finish Options: Brass original as usual. And it’s able to match bathroom faucets
  • size: 3/4″, 1″
  • Working pressure up to max: 25 Bar (350Psi)
  • Standard; ASME A112.18.2 / CSA B125.2
  • Designed and manufactured according to ASTM F409
  • Angle: 90 ° Degrees( 1/4″ Bends)
  • Copper thickness: 0.8mm and 1mm
  • Operating Temperature: 0°C-110°C
  • Suitable Plumbing System: Suitable for Water Systems
  • Suitable Water Hardness: Suitable for Hard & Soft Water Areas
  • ODM/OEM support
  • Free samples

Additional information

Quote Now
Free Sample

Description

P Type Hydrophobic Copper Pipe Joint

A P-type hydrophobic copper pipe joint is used to connect copper pipes in air conditioners, refrigerators, and plumbing systems. It helps pipes turn or bend to fit the space. The joint can remove moisture, like water that collects inside the pipes, and keep the connection tight, strong, and safe for long-term use.

  • Model No.: JX-0891
  • Material: Brass, Copper
  • Finishing: Original, Sand blasted
  • Size: 1-1/2″
  • Style: Strainer
  • Application: Bathroom/Hotel/Kitchen/Floor/Building Drainageuilding
  • Made to applicable ASME standards B16.23, B16.29
  • Thread Type: NPT
  • Wrot fittings meet NSF 61GWrot
  • C x C x C (Copper Sweat Sockets)


stainless steel 3 way 10068a

 Stainless Steel T-type Pipe Tee

A stainless steel T-type pipe tee is a basic fitting used to split or merge pipelines. The three T-shaped openings allow one pipe to be divided into two directions or two pipes to be joined into one. The openings use standard threads or welding. It is often used in home kitchen and bathroom renovations, water supply, and drainage projects in buildings. It is a useful part for adjusting pipeline directions and making the system work more efficiently.

  • Model No.: JX-10068
  • Material: Stainless steel 304
  • Size: G1
  • Gasket: NR (Natural Rubber)
  • This right-angle tee fitting is used for hydraulic applications
  • The maximum operating pressure is 190 bar (2669.5 psi)
  • Connection end: BSPT Male/Female Thread
  • Maximum working pressure: 150 pounds per square inch
  • Max. working temperature: 120 °C
  • Fluid Operating pressure: 2.0MpaI(150BL)
  • Specification met: CE

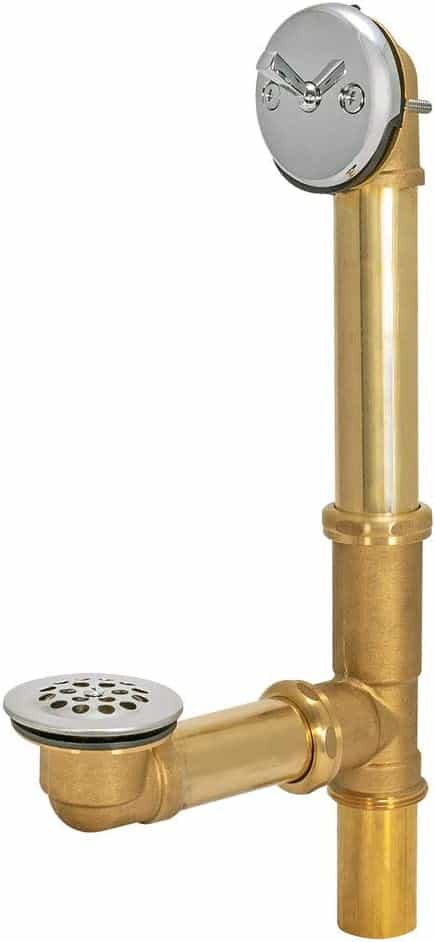

bath drain pipe 3 way





Lift-N-Lock Two-Hole Brass Tub Drain Kit

Lift-N-Lock Two-Hole Brass Tub Drain Kit is mainly used for bathtub drainage system installation or replacement of old parts. The double-hole design is suitable for bathtubs with overflow. The drain can be opened and locked by lifting the lever. It has convenient operation and leakproof sealing. It is suitable for daily use in scenes such as a home bathroom.

  • Model No.: JX-0804
  • Material: 20-gauge brass tubular
  • Chrome-plated finish resists flaking
  • Size: 1-1/2 inch drain
  • Features a lift and lock stopper to prevent unwanted items from clogging the drain
  • Compliant to CSA B125-93
  • Drain Location: Drain in Tee
  • Patented adjustable self-fixing rubber head gasket
  • Cast brass drain plug
  • Heavy-duty cast red brass head, tee, and drain components
brass chrome bathroom angle valve Brass Multi-turn Angle Globe Valve

A brass multi-turn angle globe valve is mainly used in water supply and drainage, HVAC, gas, industrial fluid, and other pipeline systems. Its main function is to accurately adjust the flow of the medium or completely cut off the medium transmission. The angle shape helps fit pipelines in different spaces, and the multi-turn design allows precise flow adjustment and prevents backflow. It is suitable for situations that need careful control of fluid flow.

  • Model No.: JX-0202
  • Material: Lead-free brass
  • Size: 1/2″ CPVC inlet x 3/8″ O.D. compression outlet
  • Color: Chrome-plated
  • They are designed under USA standards
  • Multi-Turn Zinc handwheel
  • Working pressure: 125psi
  • Working temperature of 40-145 degrees F
  • Standards: 110 CWP
  • Frequently used for ice makers
  • Compatible with copper or PEX (PEX installations require a stainless steel tube insert)


 Double Cross Handle Faucet Wall Mounted

The Double Cross Handle Faucet Wall Mounted is suitable for long-term use in humid bathroom environments. It is equipped with two independent cross-shaped handles, which precisely control the on/off and flow rate of cold water and hot water. The wall-mounted installation design can free up countertop space. At the same time, the angle of the water outlet can be flexibly adjusted to meet different water usage needs. When in use, it can be directly connected to the pre-embedded water pipes in the wall. It is applied in scenarios such as family bathroom sinks, beside bathtubs, and hotel bathrooms.

  • Model No.: JX-2002
  • Material: Brass
  • Less than 2% lead
  • Color: Brushed Nickel
  • Size: 1/2″
  • Meets UPC standards
  • Can be turned on 500,000 times, with a service life of at least ten years
  • Save 30% water
  • The spray range of the faucet is 180 mm
  • Special Feature: 360 Swivel
  • Mounting Type: Wall Mount
  • The Maximum Water Flow is 60 Psi (ASME standards, which is 1.5Gpm/5.5 LPM.

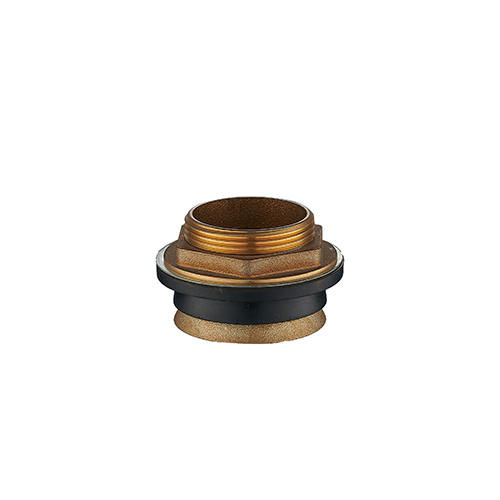

 Toilet Spud nipple-Brass Spud Complete

Toilet Spud nipple-Brass Spud Complete is a complete set of hardware accessories specially designed for connecting the toilet’s drain outlet to the drainage pipe. It includes core components such as brass connectors, sealing rubber rings, and lock nuts. It can be adapted to the specifications of the drain outlets of different models of toilets. When in use, it is directly inserted into the toilet’s drain outlet and locked in place. Its interface has a standard thread size, so no additional adapters are needed. It is often used in scenarios such as home toilet installation and renovation of old bathroom pipelines.

  • Model No.: JX-0805
  • Material: Brass and Rubber
  • Dowels consist of brass lock nuts, rubber washers, and metal washers
  • For use with urinals with a 1-1/4 in. Inlets
  • Size; 1-1/4″X1-1/4″,1-1/2″X1-1/2″,2″X2″,1″x3/4″,1-1/4″X3/4″
  • 1-1/2″X1-1/4″,2″X1-1/4″,2″X1-1/2″,1-1/2″X3/4″
  • Standards: IAPMO, ASSE, and CSA
  • The spud fits 3/4 inch to 2-inch round openings
  • Connector Type: Male Thread
  • Thread Type: NPT
  • Manufacturer’s Warranty Length: 3 Years
  • Designed with a 42mm circular shape
  • Free sample with full sizes
  • cUPC and CSA standards

FAQs of Bathtub Drain Fitting Kit

1. What are the size specifications of the Bathtub Drain Fitting Kit?

The size specifications of the bathtub drain fitting set need to be compatible with mainstream bathtub drain outlet designs. Regular sets are suitable for two mainstream inner diameter drain outlets: 40mm and 50mm. The diameter of the main body of the core component, the drainer, is mostly 60-70mm. The diameter of the installation flange is about 100-120mm, which can effectively cover the reserved installation holes to avoid gap leakage. At the same time, the set is also equipped with fastening nuts suitable for cylinder bodies of different thicknesses, adapting to cylinder body thicknesses of 20-50mm, meeting the installation needs of various bathtubs such as embedded and wall-mounted types.

2. How does Battub Drain Fitting Kit perform?

Our products are anti-clogging and anti-odor. A detachable filter screen is arranged at the drain plug, and the drain channel is designed with a large diameter, which increases the water flow speed by 30% and reduces the accumulation of sundries. A water seal structure is adopted to keep a fixed water level in the drainage main body to form a seal and prevent reverse overflow of sewer odor.

3. What are the surface treatment processes?

For plumbing and bathroom products like valves, pipe fittings, faucets, and floor drains, there are several common ways to treat the surface. Electroplating, such as chrome or nickel plating, adds a thin metal layer to protect the product and make it look bright. Electrophoresis coating uses electricity to cover the surface evenly with paint. Powder coating sprays dry paint and heats it to form a strong outer layer. Passivation helps stainless steel resist rust. Polishing makes the surface smooth, while antique plating gives a classic, old-style look for decoration.

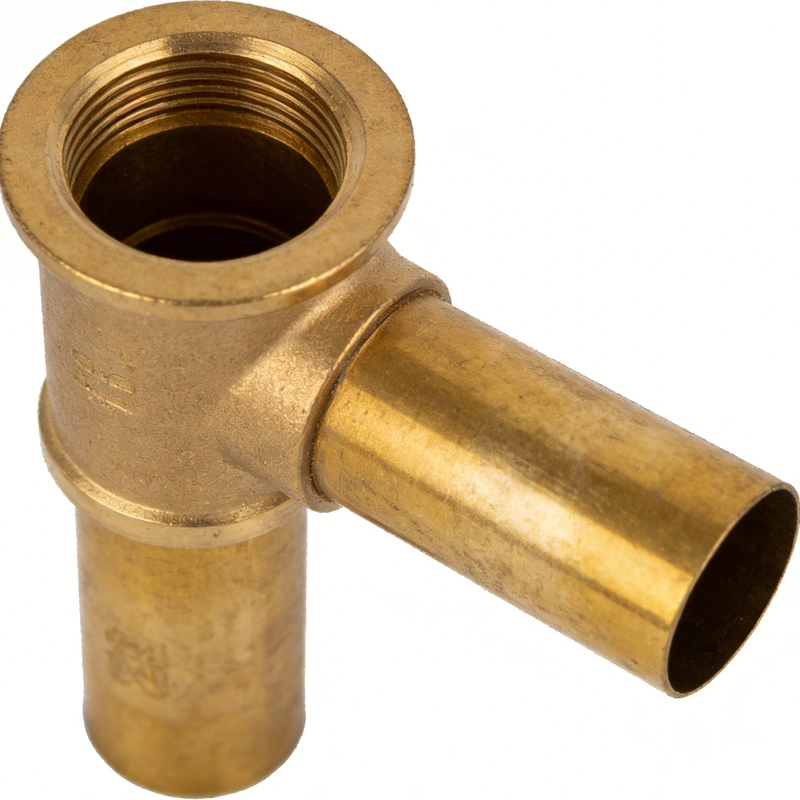

bathtub drain fitting kit

4. Is there certification for export target markets?

Our Bathtub Drain Fitting Kit has passed CE, CSA, and other mainstream market certifications, and some high-end series can also provide Watermark, WARS, and other regional certifications according to customer needs. All certification documents are official, valid versions and can be verified prior to order confirmation.

5. What customized services support the product?

Support full-dimensional customization. You can customize the material, appearance, packaging, and also customize the function, such as pop-up, pull-out, and other drainage structures. The customization cycle is usually 30-45 days, of which 3-5 days are required for design confirmation and 20-40 days for production and testing, which can be adjusted according to the complexity of the order.

6. What are the main materials of the Bathtub Drain Fitting Kit?

Mainly brass, stainless steel, and other materials. Brass has corrosion resistance, high strength, and a chrome-plated surface that is more beautiful and durable, suitable for high-end hotels and hardcover residential projects. Stainless steel has excellent rust prevention performance and higher cost performance than brass. It is suitable for ordinary residential and rental houses. When purchasing in bulk, the higher the quality of the material, the greater the unit price discount will be.

7. What is the customs code of the product?

The metal material customs code of Bathtub Drain Fitting Kit is 8302420000, which can be fine-tuned according to the material and structure of the product. The current export tax rebate rate is 13%. We will provide corresponding cost optimization schemes for customers according to the actual tax rebate rate when the order is settled, such as adjusting the quotation structure.

8. Is there a price discount for bulk purchases?

Batch discounts are supported, and the specific strength is set according to the order quantity ladder:

1) 500-1999 sets: enjoy a 95% discount based on the standard quotation;

2) 2000 sets and above: enjoy a 5% discount. For long-term cooperation customers, the discount can also be adjusted according to the cooperation years. After one year of cooperation, the discount can be reduced by 2% based on a ladder discount, and after three years, the discount can be reduced by an additional 3%.

9. Can I change the specifications or quantity of the bathtub drain kit after the order is confirmed?

1. Before production start-up: the product specification and order quantity can be changed freely without extra cost.

2. During production, the price of the produced part and the mold opening fee for the new specification must be paid to change the product specification. The corresponding fee shall be paid according to the actual adjustment proportion for increasing or decreasing the order quantity.

3.After production is completed, the product specification cannot be changed. All changes must be confirmed in writing to avoid subsequent disputes.

Recommend to Read

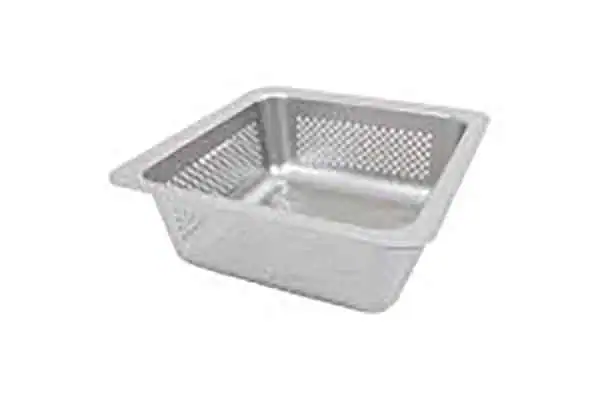

Top 10 Floor Sink Basket Strainer Suppliers Worldwide

Do you seek the finest suppliers of Floor Sink Basket Strainer in the global market to fulfill your drainage demands? Since commercial and residential works progressively require fast and effective drainage systems, a dependable manufacturer is now a necessity. This is because the world market has a few firms that are ahead of their game […]

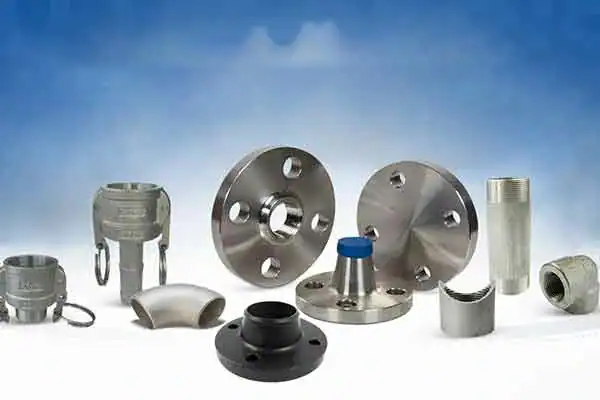

Top 8 Korean Pipe Fittings Manufacturers
