Flow Meter For Manifold

Parameters of Flow Meter For Manifold

The regulate of the flow meter help to balance of flow rate to different rooms.

Additional information

Materials:

CW617N, H58-3

Size:

1/2"

Thread connection

BSP, NPT

Working pressure

10 bar

MOQ:

3000pcs

Lead time:

45 days

Warranty:

12 months

Details about Flow Meter For Manifold

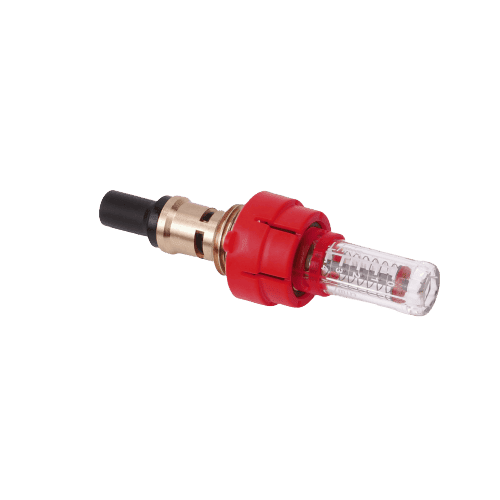

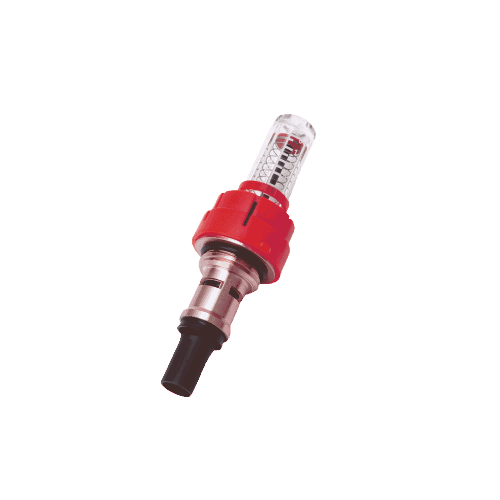

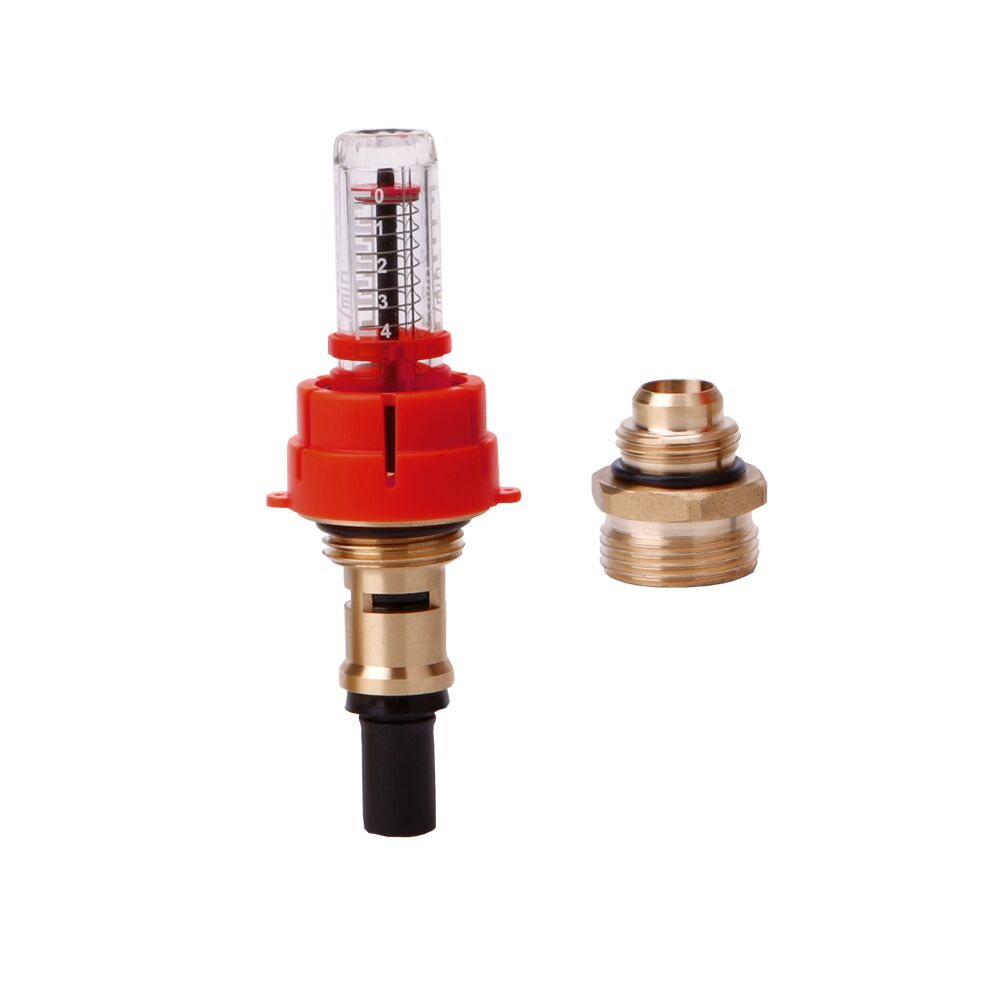

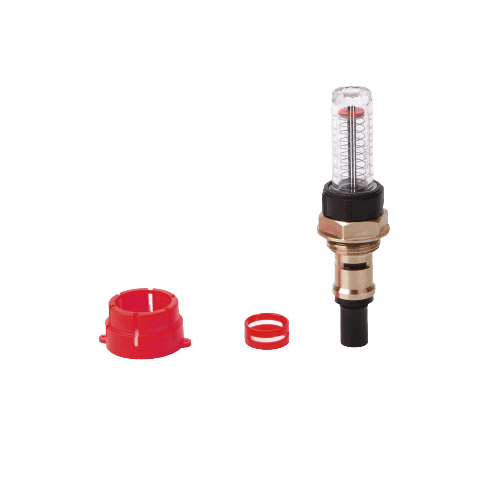

Manifold Flow Meter

JX-0921

  • Material: Brass
  • Admissible static pressure: 1. 0MPa
  • Range: 5-0.5 L/min
  • G 1/2″
  • Nipple: Brass
  • Media: Water

Product Application

It was installed on the manifold to control the flow rate for different rooms. The flow meter regulation helps balance the flow rate to other rooms.

  • By rotating the black stem, the opening cross-section of the valve will be changed, which adjusts the flow passing through
  • By complete rotation, the flow will be cut off;
  • The extrusion principle of impact plate, impact plate with back spring, will lead to copper pipe.

Through a push lever chich tightly connects the impact plate and display project, the specific location will be displayed in the scale of the transparent part.

A flow meter is a device that measures the volume of water or other fluid flowing through it. Flow meters are commonly used to measure the water in heating systems, but they can also be utilized in many industries.

Steps: What is a flow meter for heating systems? A flow meter tells you how much water your system uses, which helps ensure that it can heat all the rooms in your home. Without one, you would have no way of knowing whether or not enough hot water was available at any given time. The most basic types are simple gauges on top of the tank or attached directly to pipes leading into the unit. They only need electricity because they use an electromagnetic valve with a magnetic keeper. It opens when running water passes over it so pressure sensors can measure how much has gone through the circuit and tell you what’s below.

Some have the gauge located remotely from the tank and must be attached by pipes or wires so they can transmit their readings back home: you don’t want your water meter in a place that’s hard for it gets at during installation because if anything goes wrong with them later down the line, then you might have to replace all those things as well! If one does need access, though, then make sure it has an easy way inside where no one will knock into it accidentally – remember that most people aren’t going to think about putting some protection around an electrical unit just because it’s hidden away!

Then there are the ultrasonic meters, which emit sound waves and measure how long they take to return. This is an excellent option if you want to measure water flow in hard-to-reach places or through materials that would stop electromagnetic waves, like metal piping. And finally, we have thermal mass flow meters, which use the principle of heat transfer to calculate how much liquid has gone through them.

Flow Meter In Manifold is a flow meter used in process industries. It is mainly used for measuring the flow rate of gas, liquid, and steam in the industry. The flowmeter can be divided into two kinds: positive displacement type and variable area type. Positive displacement flowmeters are usually used to measure high-viscosity liquids, slurries, and gases with low compressibility. Flowmeters with variable area sensing elements commonly measure low-viscosity liquids such as water, oil, air, etc.

The Flow Meter heating manifold system provides an efficient and reliable way to heat your home or office. The various system features a durable design built to last and comes with a comprehensive warranty for peace of mind. Additionally, the manifold system is designed for easy installation and can be up to 50% more energy efficient than traditional heating systems.

The Flow Meter heating manifold system provides an efficient and reliable way to heat your home or office. With various features, this product is perfect for an easy-to-use heating solution.

The Flow Meter features a built-in thermostat that allows you to control your space’s temperature easily. Additionally, the system comes with a self-diagnostic function that helps you troubleshoot any potential problems. The Flow Meter is also designed for easy installation, so you can start using it immediately.
