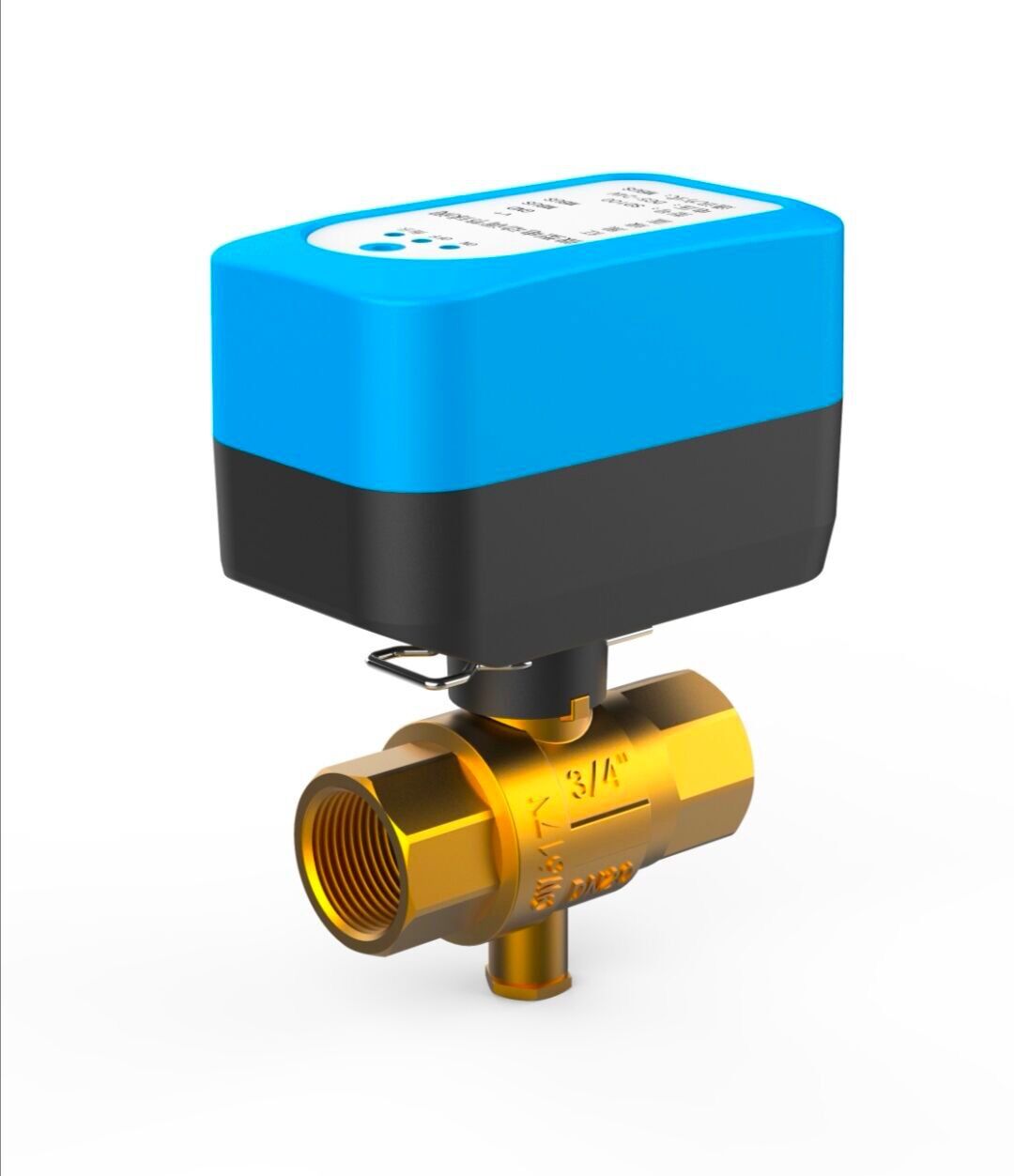

Actuator Brass Ball Valve

Parameters of Actuator Brass Ball Valve

It is suitable for HVAC and status control of the water system. The valve body is adopting the ISO228 standard platform, the actuator’s using a synchronous machine that drives the gears steady.

Additional information


CW617N, H58-3


Sand blasted, Sand blasted and Nickel plated


1", 1/2", 3/4"

Thread connection



100pcs, 200pcs

Action time


Drive Power

220VAC, 24VAC

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days


12 months, 24 months

Details about Actuator Brass Ball Valve

Electric Ball Valve


  • Type: DN15, DN20, DN25 (optional)
  • Voltage: 24v,220V,230v, 12v, AC/DC ,50/60Hz
  • Power: 60W
  • Cable Length: 300mm / 11.8in
  • Working Time: 25-30 seconds
  • Torque Force: 3.5 N.m
  • Medium: Water, Air, etc.
  • Medium Temperature: 15 – 95℃
  • Closing Differential Pressure: ≤0.6Mpa
  • Nominal Pressure: PN16-PN20

DC 24V
With an electric auxiliary switching valve function
Power consumption; 6W, running time; 5-15 seconds
Maximum differential pressure; 1.0Mpa
Low noise, operation noise less than 40DB;
The ball valve and the actuator are threaded, by the way, quick disassembly
Suitable for water or ethylene glycol with a concentration of less than 60%
Fluid temperature 2-94 °C degrees, storage temperature -20-65 °C.
Working pressure PN 1.6Mpa
The valve body is brass
Three lines, two control
High temperature resistant

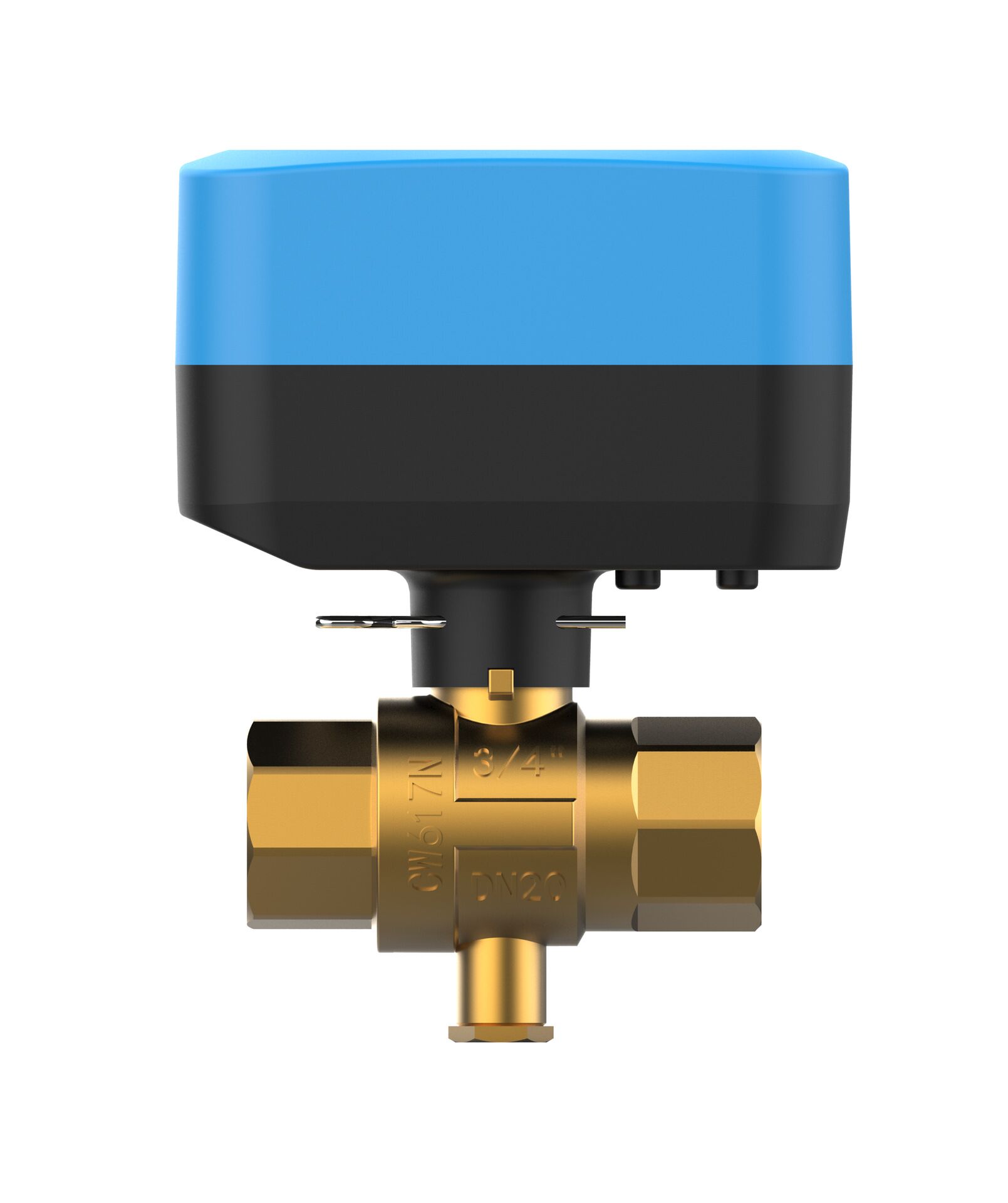

electrical ball valve
electrical ball valve

Components: Solenoids, Seats, Balls

The electric ball valve with DC 24V is a versatile and efficient device with many industrial automation uses. It offers multiple components that allow for increased control over the flow of liquids and gases. Solenoids, seats, and balls are all integral parts of an electric ball valve, each playing a significant role in the device’s operation.

Solenoids are actuators used to control the opening and closing of the valve. They act as a switch, operating on electricity to move either up or down into place when activated. Seats provide a seal between the flange faces to prevent leaks from occurring at high-pressure ranges. Balls come in different sizes and materials depending on which fluid needs to be controlled; they can range from hard stainless steel balls to softer plastic ones.

Advantages: Automation, Efficiency

The electric ball valve with DC 24V has numerous advantages that make it an ideal solution for various applications. Automation is one of the most significant benefits, as it dramatically increases efficiency in several ways. Automation ensures accurate and consistent operation, which can help save time and money. It also allows for more precise control over the flow rate, pressure, temperature, and other parameters, ensuring that all processes run smoothly. Additionally, automation helps reduce labor costs by eliminating the need for manual intervention.

Efficiency is another significant benefit of using an electric ball valve with DC 24V. This type of valve requires minimal energy and offers superior performance compared to traditional valves. It also provides reliable operation even at extreme temperatures or high-pressure environments, allowing it to work reliably in various applications.

DC 24V Characteristics: Power Supply, Control

DC 24V electric ball valves are commonly used in various industrial settings. They provide a reliable and efficient power source to operate the equipment and control different functions. This type of valve has several key characteristics that make it advantageous in certain situations.

The first characteristic is that DC 24V electric ball valves offer a powerful yet highly-controlled power supply source. When powered, the voltage provides enough energy for efficient operation, and its current limit avoids overloads or short circuits. In addition, the valve has an adjustable speed setting so that users can adjust the flow rate according to their needs. Finally, this type of valve provides precise control, allowing for specific adjustments with minimal effort when fine-tuning operation parameters.

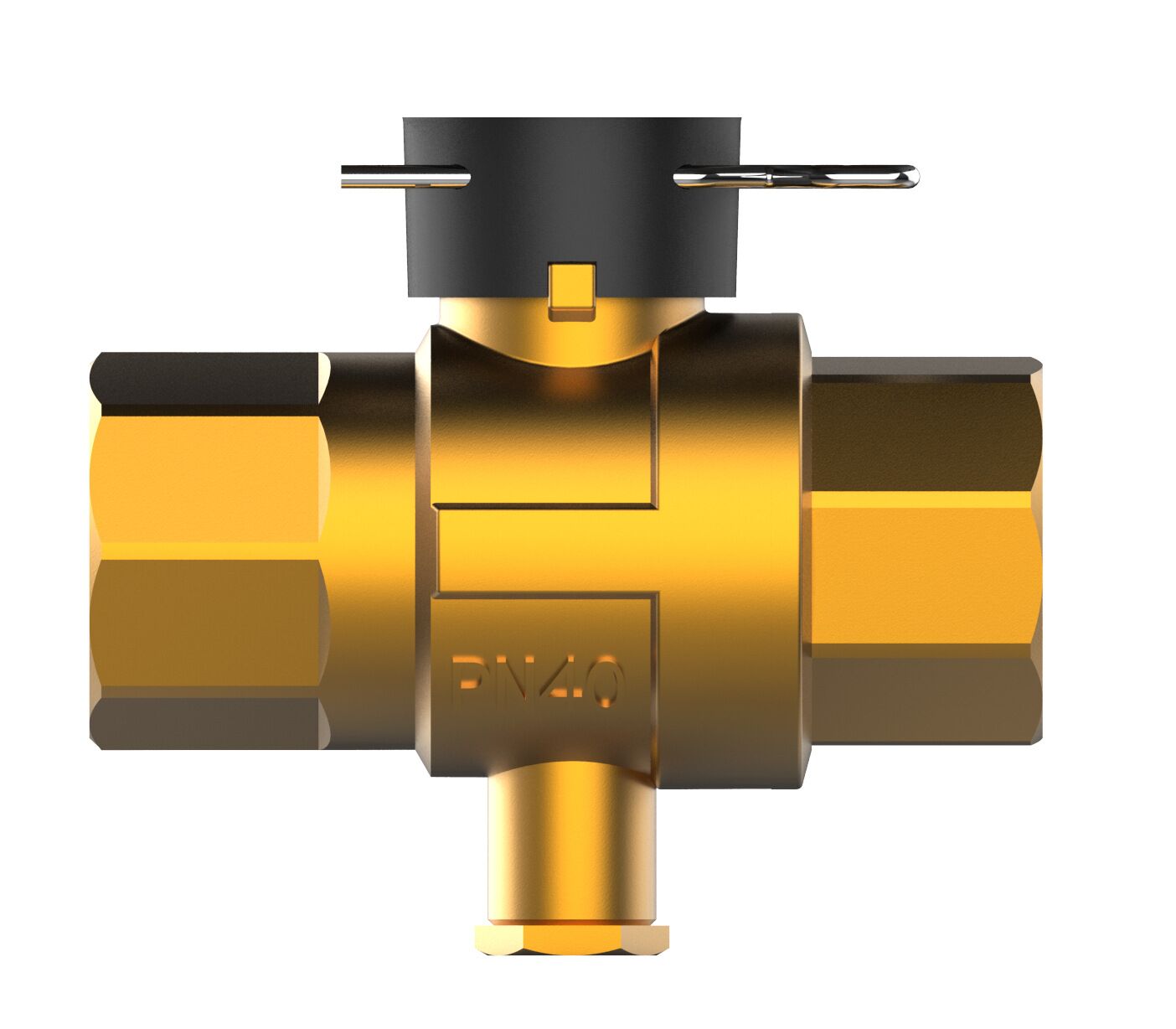

new electric body
new electric body

Types of Valves: 2-way, 3-way

Valves are essential components in various industrial processes, including water and air systems. Among these valves, electric ball valves are one of the most reliable and efficient solutions for controlling fluid flow. These valves come in different configurations, including two-way and three-way designs. This article provides an overview of two-way and three-way electric ball valve design with a DC 24V power supply.

The two-way electric ball valve is designed to be either on or off, allowing complete or no flow. It features a single port that can be used to control the direction of fluid flow by opening or closing the valve.

Applications: Water Systems, Air Conditioning

The electric ball valve with DC 24V is essential for many water systems and air conditioning applications. It provides a reliable and robust way of controlling the flow of liquids or gases through pipes. This type of valve can be used in applications ranging from residential plumbing to commercial cooling systems. Its ability to stop, start, and regulate the flow makes it an excellent choice for many facilities.

This particular electric ball valve features a durable construction that allows it to maintain its performance even when exposed to extreme temperatures or pressure levels. Its corrosion-resistant materials make it suitable for use in areas with frequent contact with moisture or corrosive agents. The unit also has an impressive operating life span, ensuring longevity for every application installed.

Conclusion: Benefits of DC 24V Electric Ball Valves

The conclusion of our article on Electric Ball Valves with DC 24V has come, and it is clear that they offer many benefits to users. One of the main advantages of using this type of valve is that they are highly reliable, providing accurate and efficient control over the flow of liquids or gases. They can also be used in various applications, such as water distribution systems, oil-flow management, or steam heating systems. Furthermore, these valves are cost-effective and easy to install due to their simple design.

Thanks to their tight seals and durable construction, DC 24V electric ball valves provide superior shut-off capabilities compared to manual valves. This ensures complete isolation between two media points, allowing for safe operation within any system. Additionally, these valves require very little maintenance throughout their lifespan, making them even more economical in the long run.

Electric ball valves with DC 24V are an excellent choice for controlling the flow of fluids in various applications. They offer low power consumption, long working life, and good sealing performance. This makes them suitable for automotive, industrial, agriculture, and home use applications.

Motor valves have become increasingly popular due to their cost-effectiveness, reliability, and durability. They can be used in various industries for various purposes thanks to their robust construction and reliable performance in extreme conditions. As such, these valves can assure users that their system will remain operational even under challenging circumstances.

This ball valve is suitable for HVAC and water system state control, 0-10V Modbus proportional adjustment of linear flow with temperature measurement. The product is a set of thermal metering and heating-independent energy-saving control of temperature control equipment. The product can make the user control the valve on and off independently according to the control command of the indoor thermostat. It can also shut off the valve or open it by remote transmission. Meanwhile, the on/off valve has a waterproof and dustproof housing package design, which can typically work in a harsh environment. 24V DC power supply is convenient for on-site installation.

The most popular option for automated ball valves is a motorized ball known as an electric ball valve, the most commonly used. The ball valve in this product is operated by an electric motor, which controls media flow.

 When is a Motorized Ball Valve Necessary?

 The use of an electric actuator is recommended when a pneumatically actuated ball valve cannot be operated due to a lack of available air supply. Electric valves can help prevent water hammers by providing a slower index time for high-velocity or high-pressure applications.

actuator parts
actuator parts

A motorized ball valve has the following advantages:

  • The earth’s pressure and temperature ranges allow for complete sealing;
  • Both sides of the working medium are securely sealed;
  • It can withstand the pressure exerted by the pipeline wells.
  • A door that opens and closes quickly;
  • It is possible to position the ball closing automatically.


Step one: Turn on the electric ball valve.

As a first step, turn on the electric ball valves and ensure that the system receives the right amount of current. When the electric actuator motor is turned on, it will generate torque communicated by a shaft attached to the valve stem.


You’ll notice that the shaft and electric motor are causing the ball valve to rotate. The power required to operate the electric ball valve will depend on how much control you give it.


Direct current at voltages of 12 volts, 24 volts, and 48 volts may be required to operate the electric ball valve. You can regulate the valve with 24V, 48V, 120V, 130V, or 240V alternating current.


Step two: Manage the torque

The motor’s amount of force to rotate the ball valve can be adjusted as power flows. It uses a variety of gears to control the shaft, resulting in varying degrees of pressure.


You can choose the gear that will produce the most force to control the electric ball valve. The torque of the electric ball valve affects the speed at which the electric ball valve operates.
