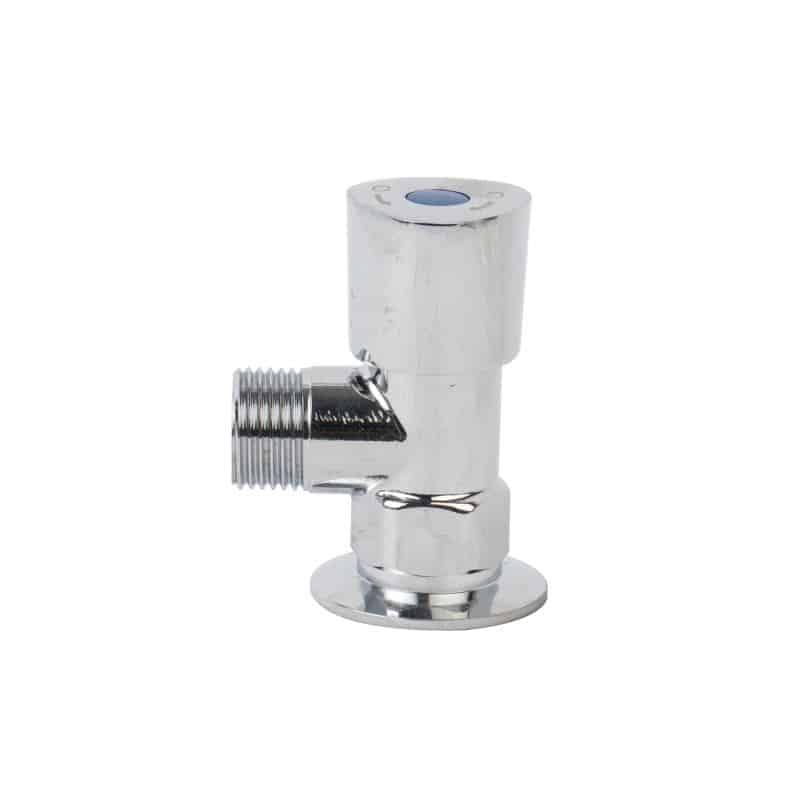

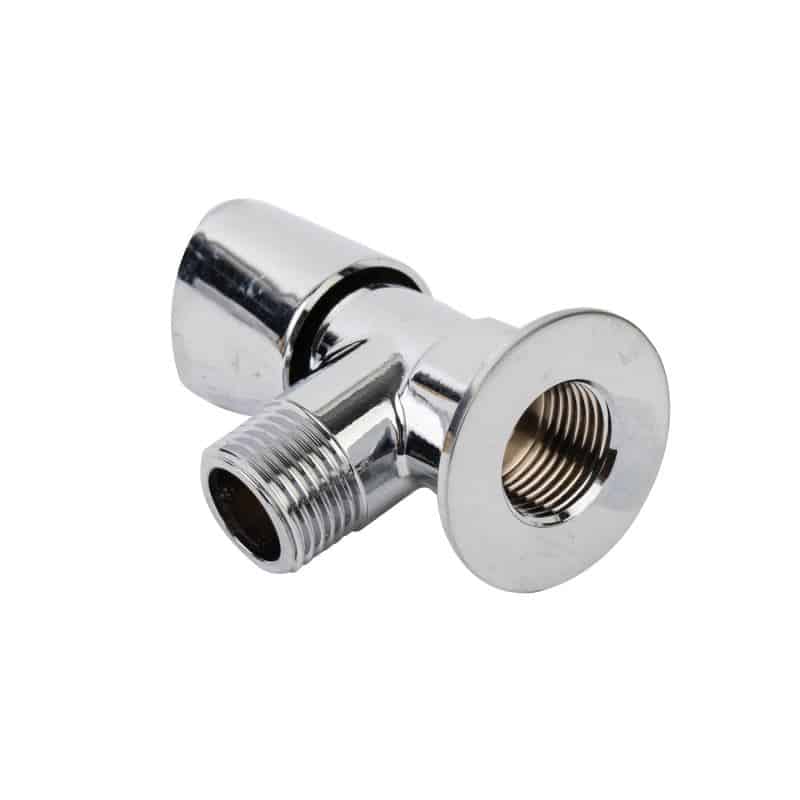

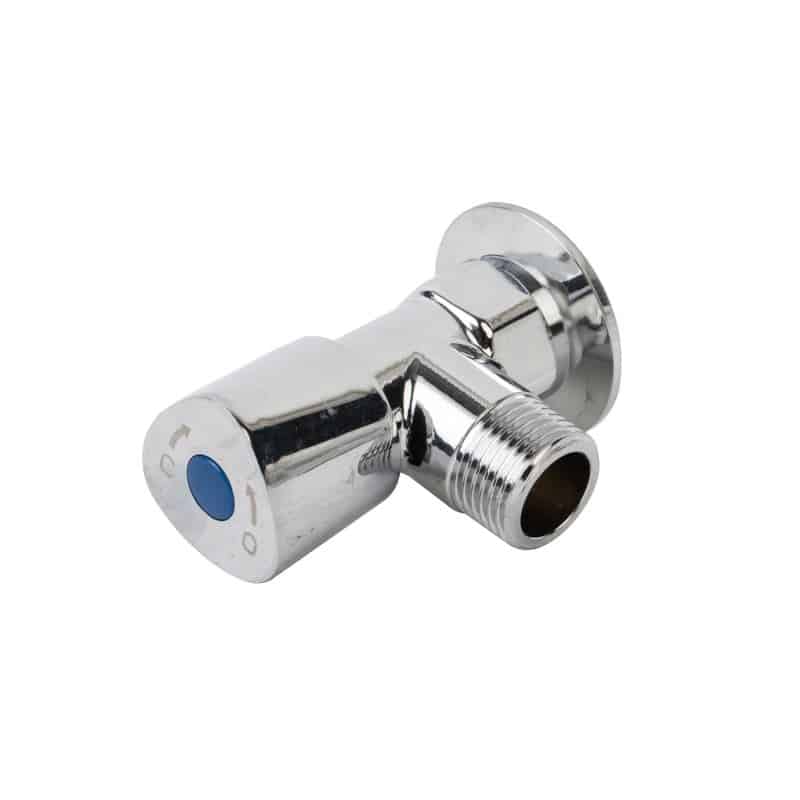

1/4 Turn Ceramic Valve

Parameters of 1/4 Turn Ceramic Valve

When a quarter turn angle tap is used as a shut-off valve for residential plumbing fixtures, it is called an angle cistern water tap, or simply an angle stop.

Additional information


Polishing and Chrome plated


CW602N, H58-3





Thread connection


Working pressure

150 PSI, 16 bar


Zinc alloy



Life time:

300000 times On-Off

Details about 1/4 Turn Ceramic Valve

90° degree Turn Ceramic Valve


  • Shutoff angle stop valve
  • Size: 1/2″ X 1/2″
  • Name:  Cistern tap
  • Body Material: Brass

Quarter-turn angle valves are an alternative name for 1/4-turn ceramic disc valves. Conventional taps and valves are known as multi-turn valves, which rotate 360 degrees to open or close. However, 1/4-turn or quarter-turn valves are an advanced variety.

Rotating at a 90° angle means 1/4 turn angle valves can be opened or closed entirely. Consequently, they traverse considerably less rotatory motion than conventional ones. Ceramic disc valves with a 1/4 turn are more effective, fast, and efficient. They serve the purpose of either controlling or obstructing the flow of liquid. This valve variety consists of two apertures. The other is designed to be installed in a shower or fixture, while the former is connected to the main supply.

Liquids pass through a 90° angle between the inlet and outlet and penetrate the valve through an aperture. The disc, sometimes present in the valve, functions as a fluid regulator and, at times, as a seal, such as in butterfly valves.

Why You Ceramic Discs?

1/4 turn ceramic valve
1/4 turn ceramic valve

Ceramic discs are renowned for their remarkable longevity and corrosion resistance, both critical attributes for any water system valve. Their capacity to create a secure seal prevents leakage, conserving water and diminishing the likelihood of damage.

In the long run, Ceramic Disc Technology is a cost-effective option because it not only withstands extreme temperatures and severe water conditions but also assures a seamless operation.

What Is the Significance of the Angle Design?

The angle valve’s design enables a 90-degree change in the direction of water flow. This is essential in locations where a directional change in the piping lines is required. Additionally, the design facilitates straightforward access to the valve for maintenance or operation, an essential attribute in confined or inaccessible areas.

Moreover, angle valves are ideal for securing fixtures in isolation, allowing for replacement or repair without disrupting the water supply to other areas.

Often, an angle valve is installed at the point where a water conduit exits a wall to supply a fixture. A quarter-rotation of the valve handle activates water flow by aligning the ceramic discs; an additional quarter-rotation in the opposite direction blocks the flow path and deactivates the water supply. This valve type is highly regarded for its dependable sealing, swift and effortless operation, and extended lifespan.

Types Of 1/4 Turn Ceramic Disc Angle Valve

We shall now examine the various varieties of product material. Let’s explore multiple varieties of ceramic disc angle valves with a 1/4-turn.

1/4 turn ceramic valve
1/4 turn ceramic valve

1/4 Turn Copper Ceramic Disc Angle Valve:

Copper is this quarter-turn valve’s parent material and finish, making it ideal for restrooms. It is resilient, versatile, and highly resistant to heat.

Changes in relative pressure can affect copper. The material in question is the user’s preferred choice for commercial use. Copper quarter-turn valves are gaining in popularity daily. They contribute to an aesthetically pleasing ambiance when installed in restrooms. An old compression valve may be suitably replaced with a 1/4-turn copper ceramic disk angle valve.

The item under consideration is a faucet valve. We incorporate touches that rotate it by 90° rather than 360°. It is highly effective and, if damaged, is simple to replace.

1/4 Turn Ceramic Brass Angle Valve:

This quarter-turn valve is made of brass, as its name implies. Bathrooms and kitchens are suitable locations for this compact fixture. The 1/4 turn valve, constructed entirely of brass, is ideal for water management. It remains durable for years without deteriorating. They resemble angle valves in the form of threads.

Turn Brass 1/4 Ceramic disc angle valves are capable of withstanding tremendous pressure. Their efficacy remains unaffected even when exposed to elevated temperatures. This angle valve can be installed in kitchens and restrooms to regulate liquid passage. They may be operated with ease. We can rapidly turn it on or off in an emergency due to the design of the quarter-turn valve.

Stainless Steel 1/4 Turn Ceramic Disc Angle Valve:

Plumbing products are rendered brilliant and lustrous by stainless steel. Stainless steel is the most frequently used material in kitchens and restrooms. This is attributed to its enduring characteristics. It required less maintenance.

A sealant, regulator, and quarter-turn stainless steel valve are multifunctional. Less time is required to operate. The corrosion resistance of this valve is exceptional. Therefore, water management is the most suitable option. It is leakproof and shows no signs of quality deterioration shortly. Let’s examine the specifications of it.

Advantages of 1/4 Turn Ceramic Disc Angle Valve:


The quarter-turn ceramic disc angle valve is economical. It is comprised of ceramic discs, providing a vast selection. Constantly replacing valves with products that feature these discs is a thing of the past. However, it offers long-lasting service for your residence without incurring excessive costs.

Less Leaks:

Standard shutoff valves typically have one disadvantage: the absence of invisible leaks. Their body develops imperceptible breaches that are not visible to the naked eye. These breaches continue to damage the valve until it ceases to function entirely. The flexible construction of 1/4-Turn Ceramic Disc Angle valves conceals leaks. If leaks occur, they become visible and can be treated without delay.

Ease Of Use:

The quarter-turn feature is highly user-friendly. It completes the task in seconds. Furthermore, it prevents any atypical twisting or rotating. It rotates a mere 1/4 time. Fluid discharge can be easily regulated or turned off. The efficiency and popularity of these quarter-turn valves are primarily attributable to the ceramic disc that supports them.

Lifetime Service:

Quarter-turn valves utilize minimal surface area in operation. It indicates that user contact takes up less space. Because of this characteristic, 1/4-turn ceramic disc valves have an extended service life. They are frequently described as “service-providing valves for a lifetime.

Reduced Error Duration:

Very few typical defects have been reported with 1/4 turn ceramic disc angle valves, in contrast to other valve types. Without turbulence, they frequently maintain a high level of performance. Quarter-turn valves require only minimal upkeep due to their robust construction.

1/4 Turn Ceramic Disc Angle Valves represent an ideal revolution for manufacturing. It has an aesthetically pleasing design, a highly efficient valve, and numerous other attributes. It provides a wide variety of materials from which to choose. In the current era, turn valves are a prudent selection owing to their numerous advantages.

They apply a brand-new finish to your kitchens and bathrooms. 1/4-turn ceramic disc angle valves find utility in various settings, including kitchens, bathrooms, showers, lavatories, and laundry machines. Their heavy-duty models are suitable for industrial applications.


Determining the proper valve is critical for guaranteeing the proper operation of a plumbing system. The 1/4-turn ceramic disc angle valve simplifies water flow control and guarantees a dependable, long-lasting solution. Ceramic disc technology and an angled design, among other attributes, render it a valuable investment for individuals seeking to improve the efficacy and reliability of their piping systems. Consider replacing your outdated plumbing fixtures with 1/4-turn ceramic disc angle valves. Feel free to contact Plumberstar for product details and orders.
