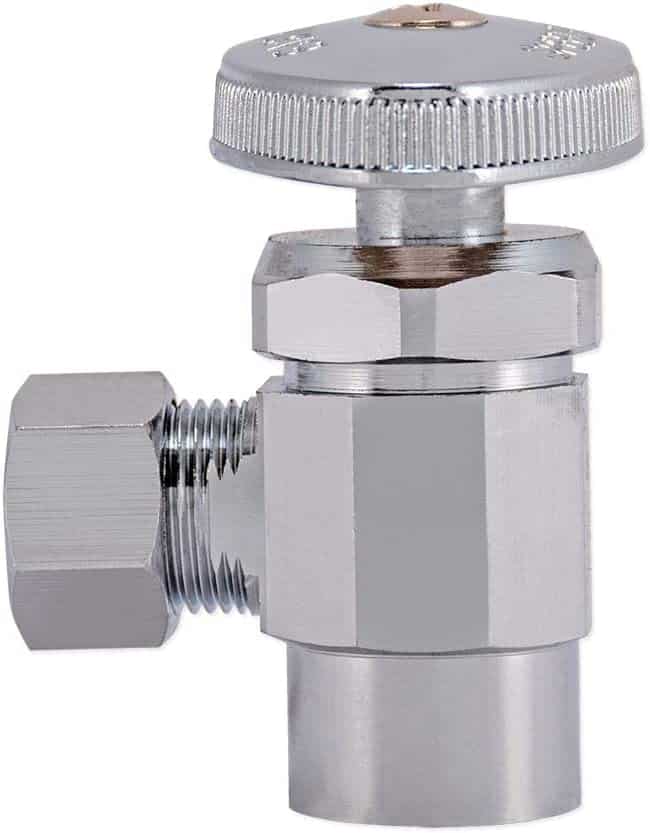

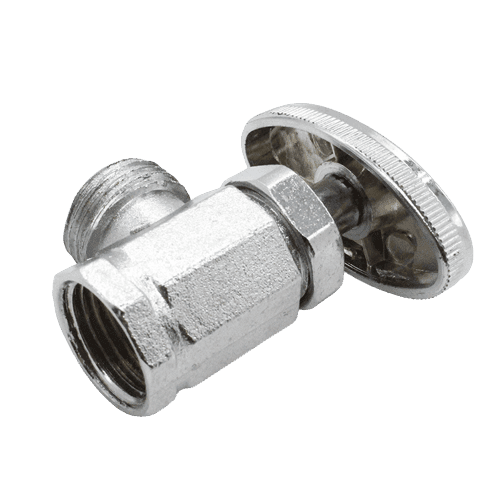

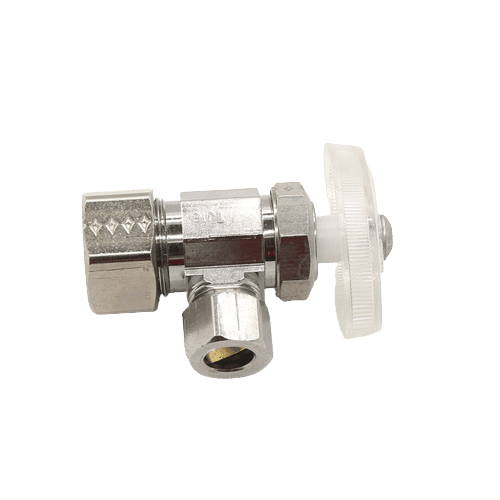

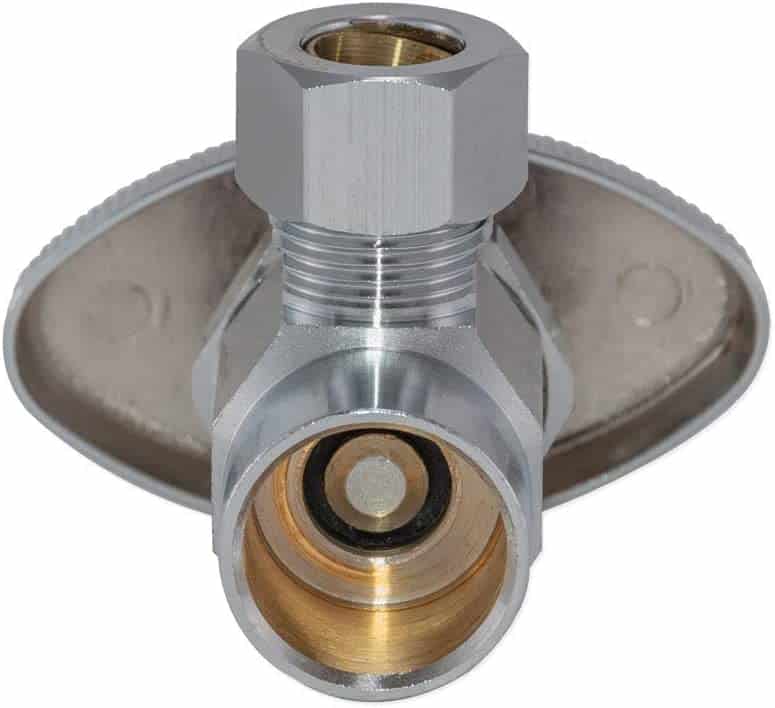

1/4 Quarter Turn Angle Shut Off Valve

Parameters of 1/4 Quarter Turn Angle Shut Off Valve

When an angle valve is used as a shut-off valve for residential plumbing fixtures, it is called an angle stop valve, or simply an angle stop.

Additional information

Finising:

Polishing and Chrome plated

Materials:

C37700, CW602N, H58-3

Size:

1/2", 3/8"

Temperature:

-10˚C-100˚C

Thread connection

BSP, NPT

Working pressure

125 PSI

Handle:

Plastic, Zinc alloy

Cartridge:

Brass

Life time:

300000 times On-Off

Details about 1/4 Quarter Turn Angle Shut Off Valve

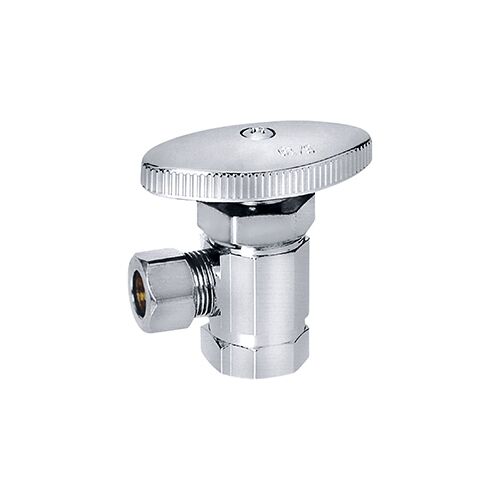

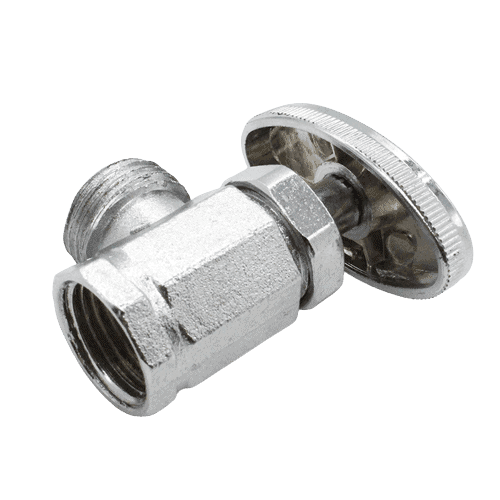

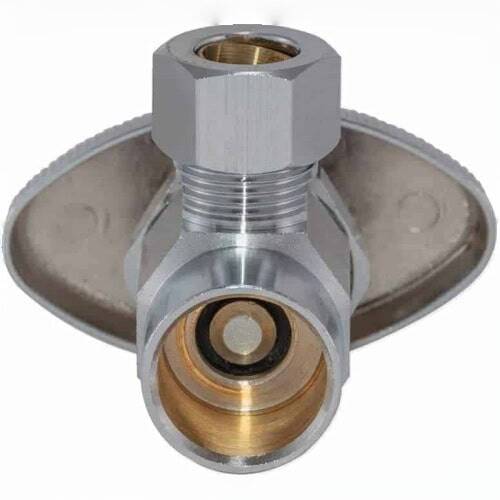

Quarter Turn Angle Shut Off Valve

JX-0211

  • Angle Valve
  • Size 1/2″FIP×3/8″OD
  • Zinc alloy handle
  • 125 PSI cold working pressure
  • C37700 materials
  • It’s in a plastic bag packed with each
  • Three million times open-off  working is guaranteed

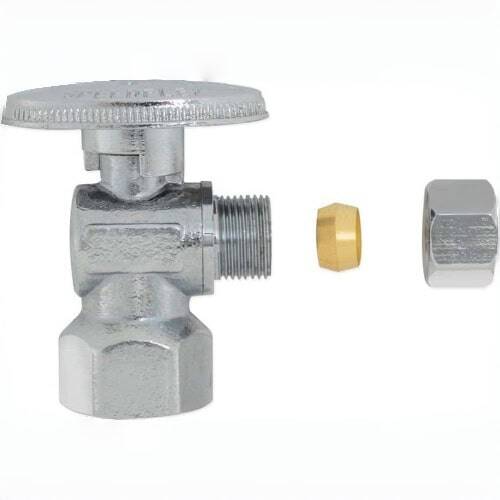

  • 1/2″ FIP X 3/8″ O.D 1/4 TURN ANGLE STOP VALVE, UPC, LEAD-FREE
  • Angle Stop Valve
  • Shut-Off Brass Angle Stop Valve for Faucets and Toilets
  • Shut-off Valve; 1-Piece Body Construction; 1/4-Turn ON/OFF
  • 1/4-turn valve operation means only a quarter-turn of the handle
  • 100% pieces leaking tight test before shipment
  • Easy clean and replace filter design
  • Contemporary brush finish angle stop valve puts a premium touch on those old ugly pipe fittings for the sink, bathroom, and toilet kitchen shower.
  • Suitable for water supply systems, civil construction piping systems
  • It can be used as a shut-off valve or water saver valve and installed between the shower arm and the shower head to control the flow of water
  • Function: Kitchen, Home, Garden, and General

Water supply water angle valve introduction.

Style: Handle-controlled water supply stop valves are an essential part of any plumbing system, and the quarter-turn wheel stop valve is a common type of valve used in many homes and businesses. These valves are designed to allow water to flow in one direction only and are often used to control water flow to a particular fixture or appliance. Quarter-turn wheel stop valves are easy to operate and can be turned on or off with a simple quarter-turn. These valves are available in various sizes and materials, so selecting the right size and material for your particular application is essential.





Instructions to Replace Angle Valves:

  • Materials of  Water Supply Valve Parts from Plumberstar

    No. Part Materials
    1 Body Brass
    2 Cartridge Brass
    3 Stem Brass
    4 Seal EPDM/cartridge
    5 Seal Gasket NBR
    6 O ring NBR
    7 Thread NPT, 1/2″x3/8″
    8 Handle Wheel Zinc Alloy, ABS
    9 Finish Chrome plated

Here are valuable instructions to help you replace your old angle valve with a new one.

  1. Repeat the first step from installation. Cut off the water supply to your home. Next, move to the valve you aim to replace.
  2. Take a wrench. Use it to loosen the nuts of the angle valve. It is best suitable for compression valves. Turn the compressions with a twist and hold the angle valve in place. As soon as the nuts are loosened, remove the valve with the help of your hand.
  3. Remove the valve’s stem to clean out the excess debris. Make sure to remove any rust or blocking particles. It will improve the flow through pipelines.
  4. If your supply line is worn out, this is a perfect time to replace it. Get a new and robust supply line for your valve and remove the old one.
  5. Now, take two wrenches to attach the new angle valve and supply line. Hold the angle valve with one wrench and use the other for tightening.
  6. Turn on the water supply of your house. Try to observe if there is any malfunctioning. Fix it out. By this time, you are successfully replacing the angle valve.



More information on angle valves:



Angle valves are necessary to install. Its applications are found almost everywhere. From homes to cruises, we use them in every place. However, many think installing or replacing an angle valve independently is challenging. Indeed, it doesn’t require as much effort as it seems to.

The angle valve can be installed in 10 minutes by following the above steps. There is no need to look for a plumber or technician. Replacing an angle valve is quite similar to installing one. Except for the first few steps, the procedure is identical.

Almost all the tools used in the process are usually available in our homes. However, you can get it without stress if you don’t have one.

Our purpose in writing this information is to guide you through the method. It covers all the necessary details to install and replace angle valves. Please read and understand it thoroughly and have happy plumbing.
