Washing Machine Shut-off Valve

Parameters of Washing Machine Shut-off Valve

A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore

Additional information

Finising:

Sand blasted and Chrome plated, Sand blasted and Nickel plated

Handle:

Zinc alloy

Life time:

150000 times On-Off

Materials:

CW602N, CW617N

Size:

1/2"

Temperature:

-10˚C-120˚C

Thread connection

BSP, NPT

Working pressure

125 PSI

Warranty:

24 months

Details about Washing Machine Shut-off Valve

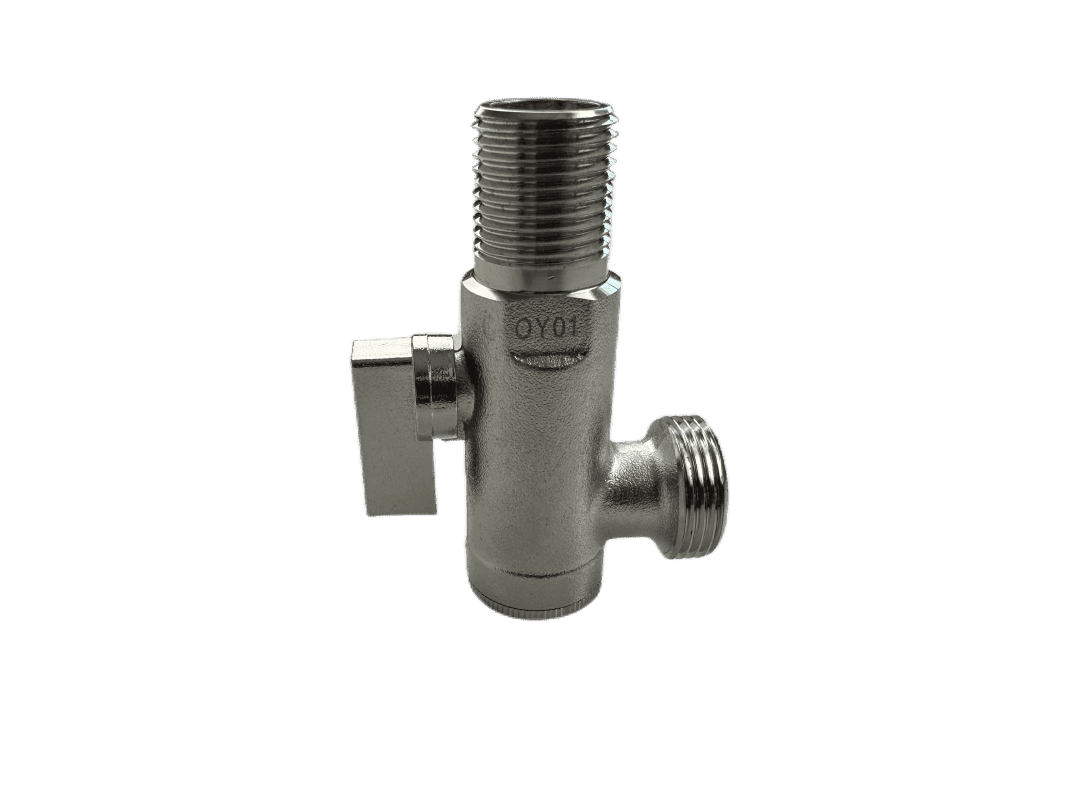

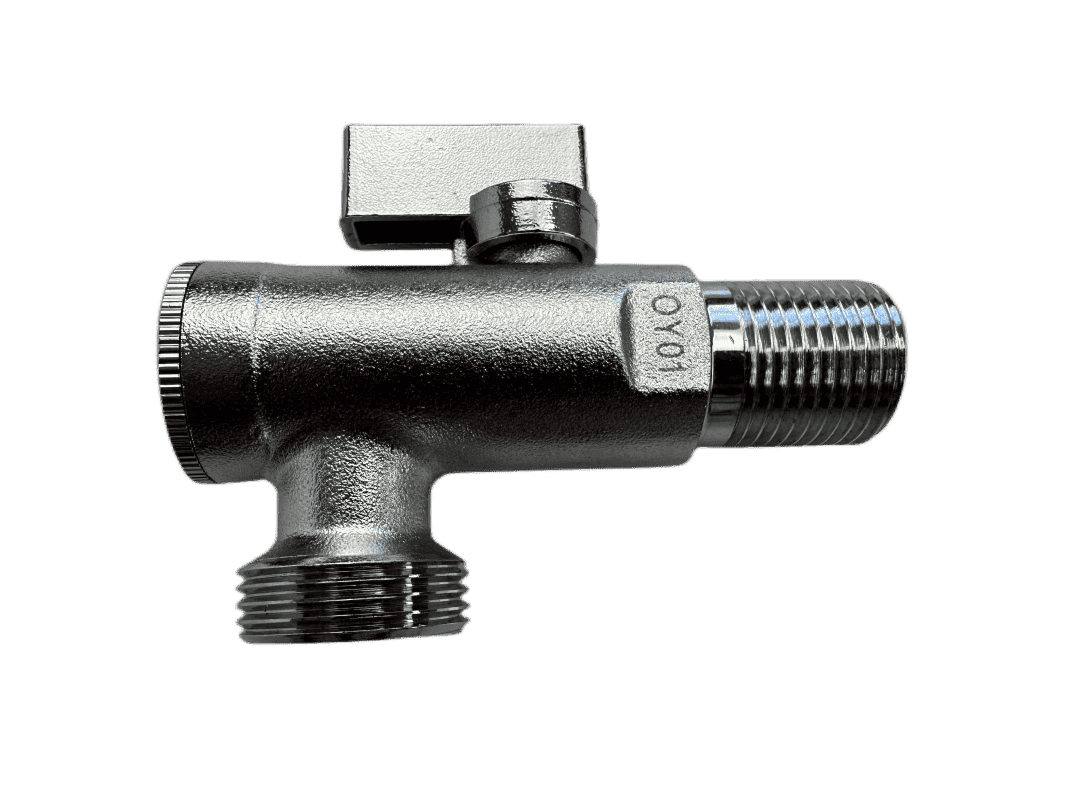

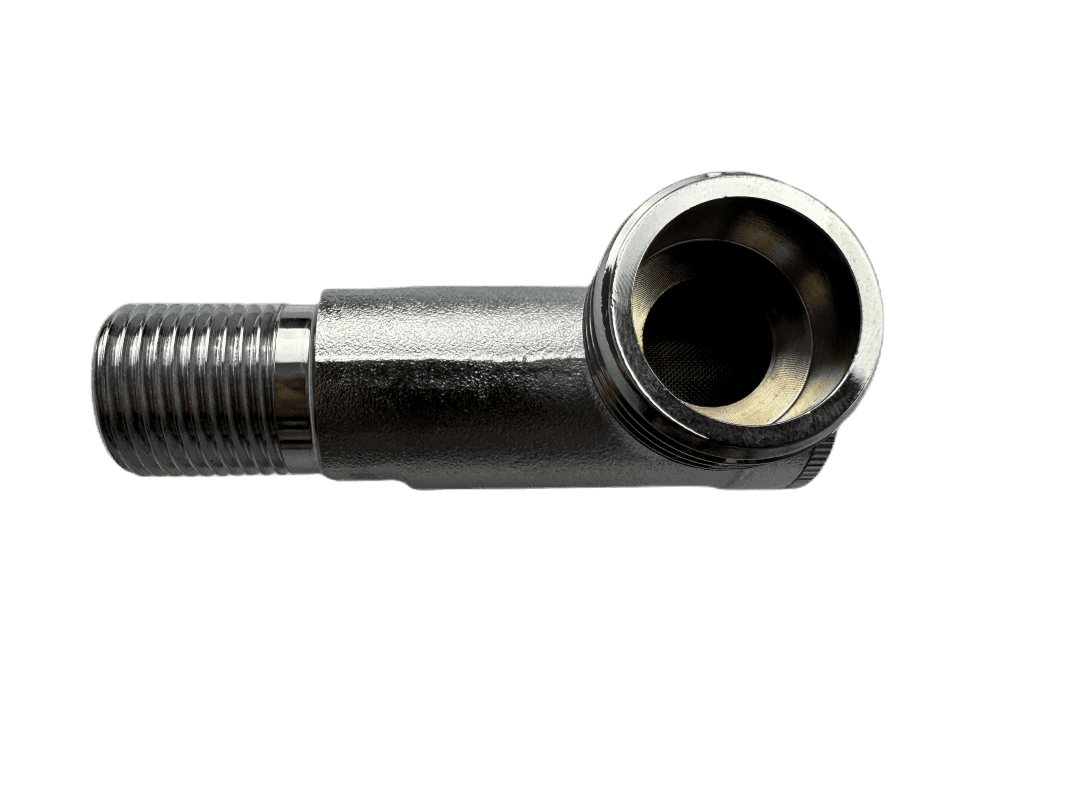

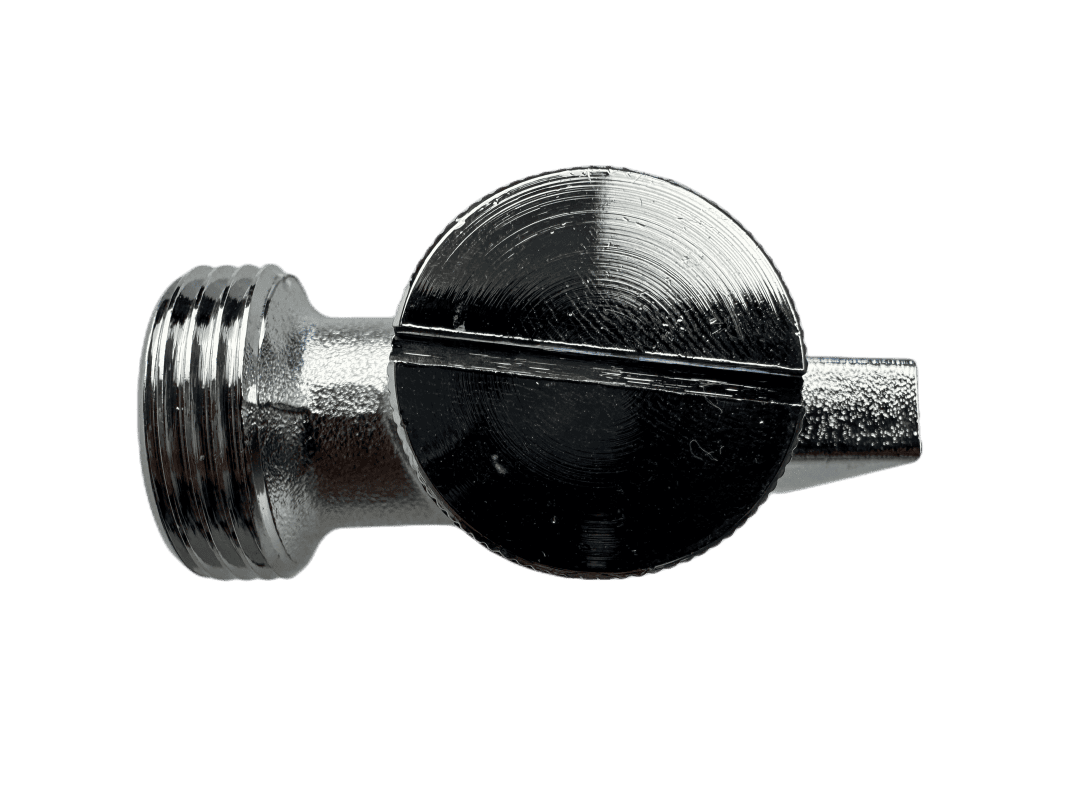

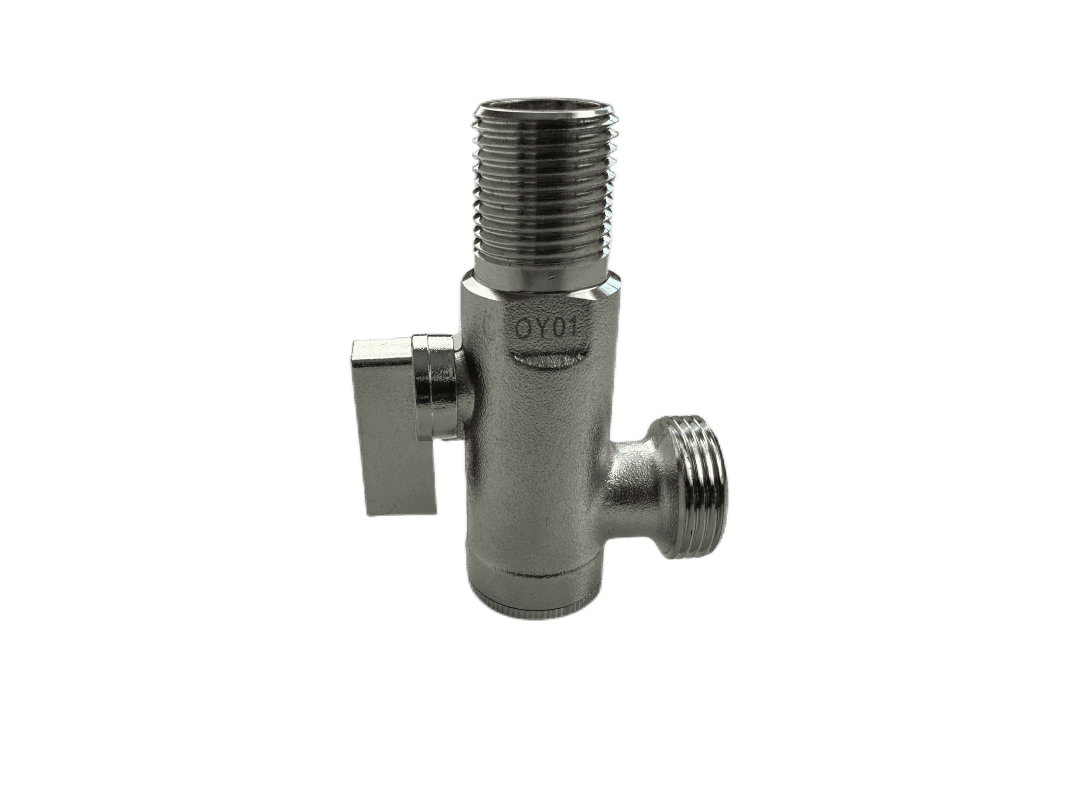

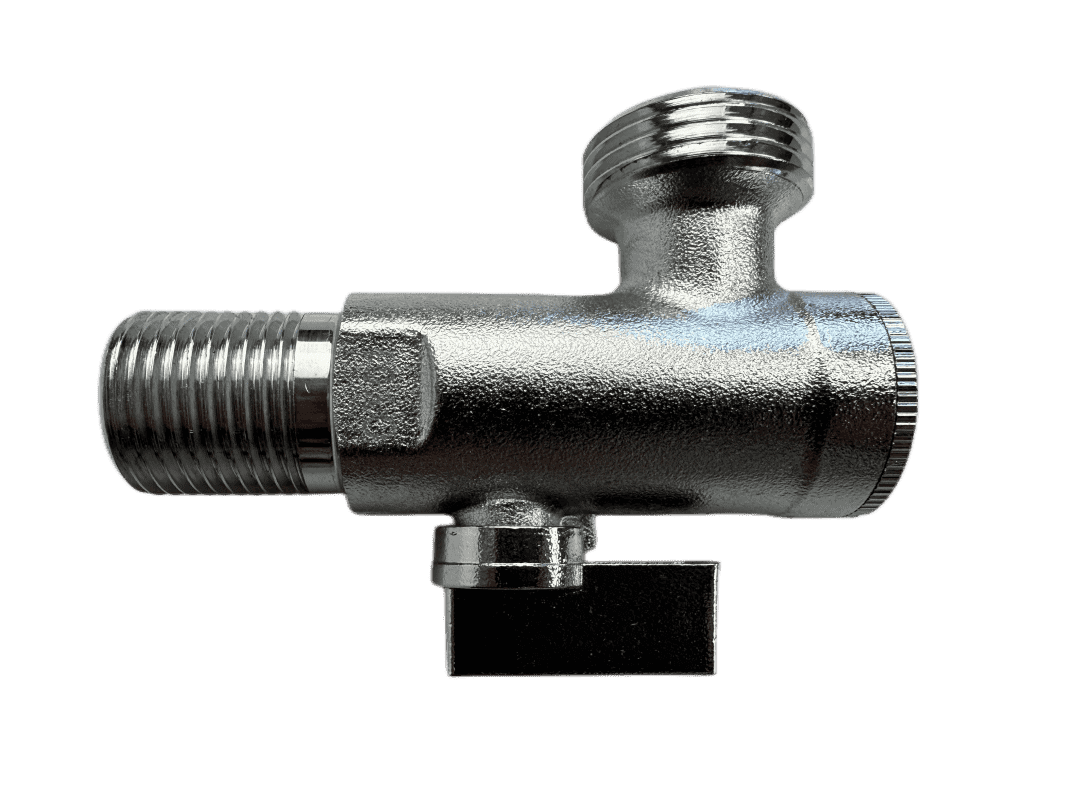

Washing Machine Shut-off Valve

JX-0451

  • Brass/CW617N/CW602N
  • Nickel-Plated Brass body
  • A chrome-plated option is available
  • PTFE Sealing Ring
  • M1/2″XM1/2″
  • Zinc alloy handle&Plastic handle
  • Resistant to low temperature, humidity, and mechanical impacts
  • Applications:cold-hot water installations, oil, and flammable gasses
  • Temperature: Min. -10℃ / Max. +110℃
  • Suitable for water supply systems, civil construction piping systems
  • 90-degree valve closing range, the handle can close the valve by rotating it to either side of the valve body

    Wash Machine Valve

    Valve Size

    1/2″

    Valve pressure

    125PSI

    Valve Materials

    DR, CW617N

    Valve Standards

    BS2779,EN331,ISO228,DIN 259

    Working Temperature

    From -5 ℃ To +120 ℃

    Seat sealing

    PTFE (Teflon)

    Handle Material

    Zinc Alloy

    Thread

    BSP, BSPT, NPT
right angle brass ball valve (copy)
Right-angle wash machine valve
  • Washing Machine Shut-off Valve

    The washing machine Shut-off Valve is an essential safety feature in any household where a washing machine is installed. This valve, usually located near the device, prevents potential flooding by automatically stopping the water supply if a malfunction occurs. Without this shut-off valve, hundreds of gallons of water could flood your home, causing extensive damage and expensive repairs. Although it may seem like a simple device, proper installation and maintenance are necessary to ensure that it works correctly and helps keep your family safe.

    Installing a washing machine shut-off valve is relatively easy; however, you should always check with your local building code or plumber before attempting to install one yourself. Depending on the type of shut-off valve used in your home, there can be different requirements for installation.

    Benefits of Installing a Shut-off Valve

    Installing a shut-off valve in the water line of your washing machine is an important precautionary measure to ensure the safety and efficiency of your appliance. Not only can a shut-off valve help prevent flooding or other types of water damage, but it can also save you time and money for maintenance and repairs.

    A good quality shut-off valve will provide a secure connection between your water supply line and the appliance’s inlet hose, ensuring that no water can escape if there should be any failure or malfunction with the machine. This means you won’t have to worry about unexpected floods or leaks that can cause costly damage to your home and belongings.

    Supplies Needed for Installation

    Installing a washing machine shut-off valve is important in protecting your home from water damage. To do this safely and correctly, you must ensure that you have all the necessary supplies. Gathering these materials before starting will help ensure that the installation process runs smoothly and quickly.

    To start, you will need a washing machine shut-off valve with the correct size for your water supply line. Most valves are 1/2 inch in diameter, but it’s always best to double-check before purchasing so that it fits perfectly with the existing plumbing. Also, pick up some Teflon tape or pipe joint compound and an adjustable wrench or pliers. You may also want to get two pipe straps or clamps for stability when attaching the valve and flexible hose bibs, if necessary, for extra flexibility during installation.

    Step-by-Step Instructions

    If you’re experiencing a leak or problem with your washing machine, it’s likely time to replace the shut-off valve. This guide provides step-by-step instructions to help you install a new washing machine shut-off valve quickly and safely. Whether you’re an experienced DIYer or a first-timer, this guide will provide the necessary information to complete the job.

    First, turn off the water supply that feeds into your washing machine by turning off the main water supply valve outside your home. Next, disconnect cold and hot hoses from either side of your existing shut-off valves and unscrew them from their respective pipe connections using an adjustable wrench. Once they’re removed, you can access the connecting pipes leading into and out of your wall.

    Potential Problems to Consider

    Installing a washing machine shut-off valve is important in protecting your home from flooding due to burst hoses, clogs, and other issues. While this installation is relatively straightforward, potential problems should be considered before beginning the process.

    First, ensuring you have the right tools for the job is important. You’ll need a pair of adjustable pliers or wrenches, a pipe wrench, and some basic plumbing supplies, such as copper tubing and fittings. It’s also essential to ensure the valves you purchase are compatible with your existing plumbing system. Different valves will work better with different types of pipes and supply lines.

    Tips for Future Maintenance

    Maintaining your appliances is an integral part of keeping them running smoothly. If you have a washing machine shut-off valve, it’s important to check and maintain it regularly to ensure its proper functioning. Here are some tips for future maintenance on the device:

    First, periodically inspect the valve’s body and handle for signs of damage or wear and tear. Ensure all connections are secure and there aren’t any signs of leaks or corrosion. If you spot any issues, replace the valve as soon as possible to avoid further problems.

    Secondly, try to clean the shut-off valves every few months. This will help keep sediment from building up, which could cause a clog or other malfunction over time. You can use warm water with soap or mild detergent and then rinse off with clear water after cleaning.

    Conclusion

    This critical piece of plumbing hardware can help to prevent significant flooding disasters in the home caused by malfunctioning or failing machines. It can also help reduce water consumption and save money on utility bills over time. The installation process may be challenging for some homeowners, but with the right tools and guidance, anyone can successfully install a shut-off valve without too much difficulty. By following correct procedures when installing and maintaining the device, homeowners can ensure that their washing machines have been running safely and efficiently for many years.
