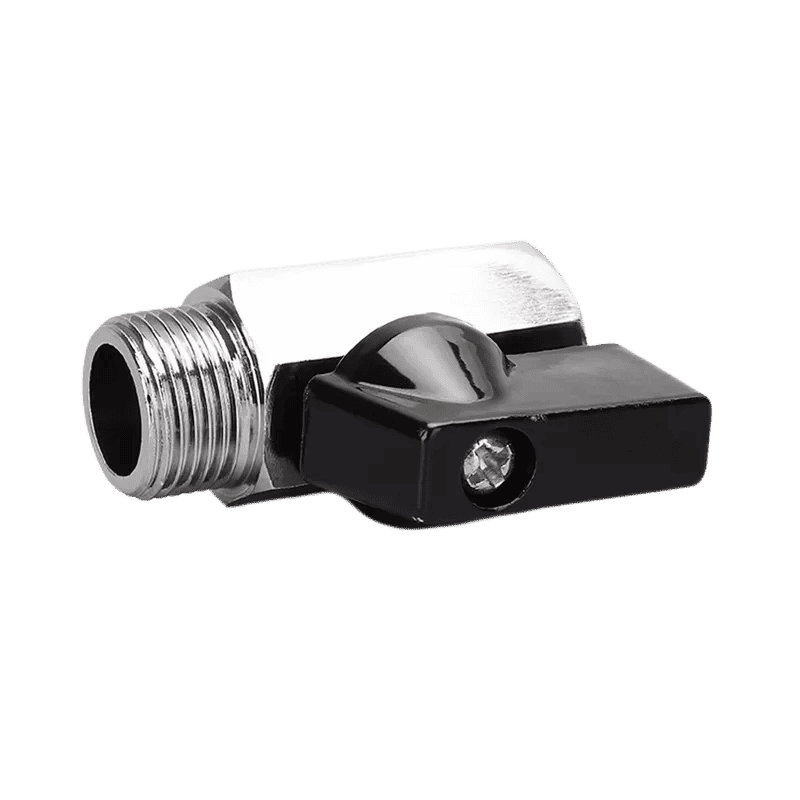

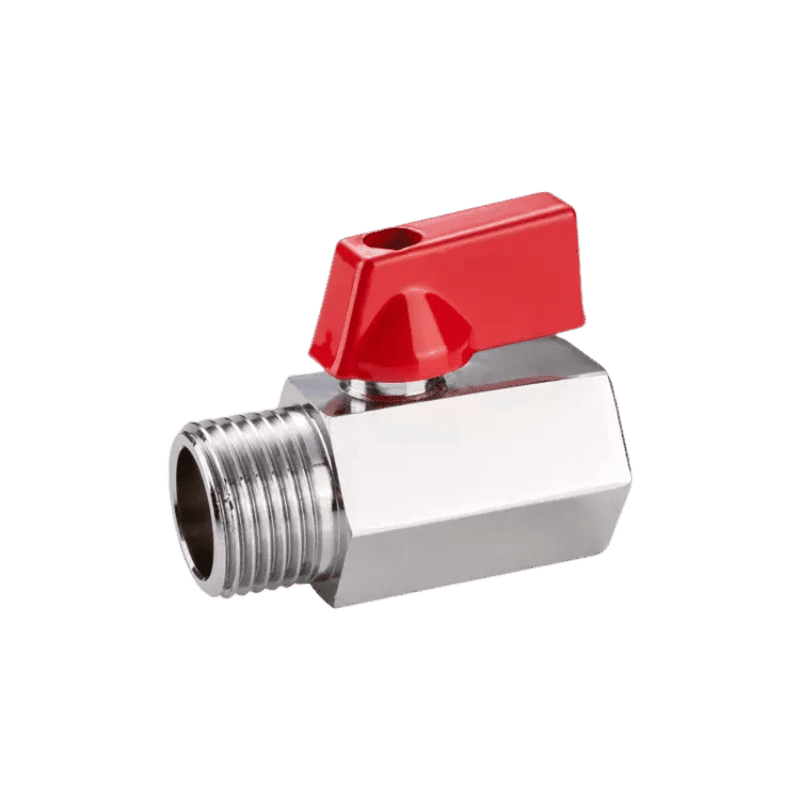

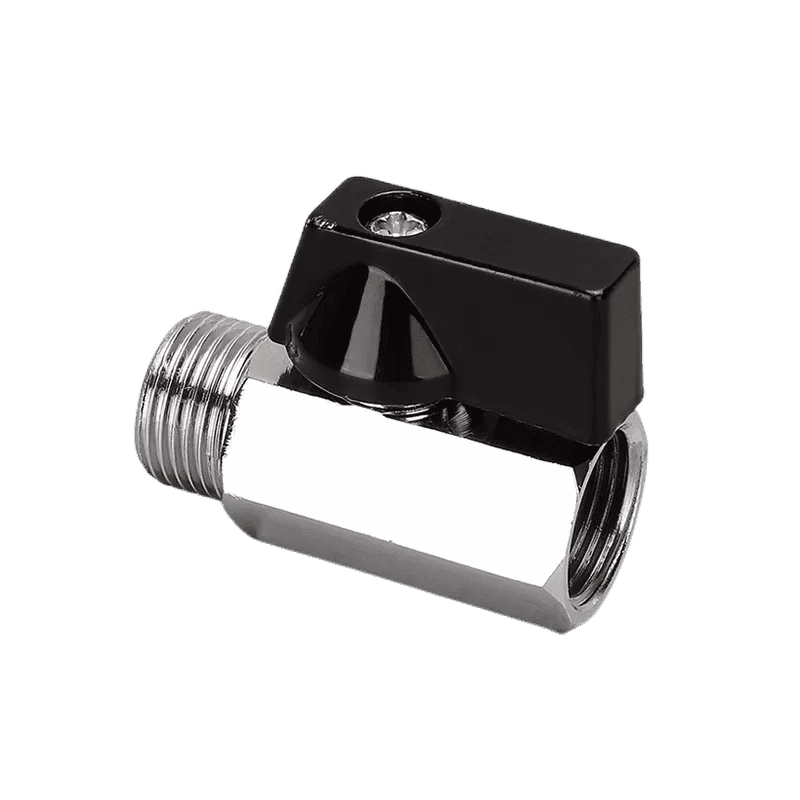

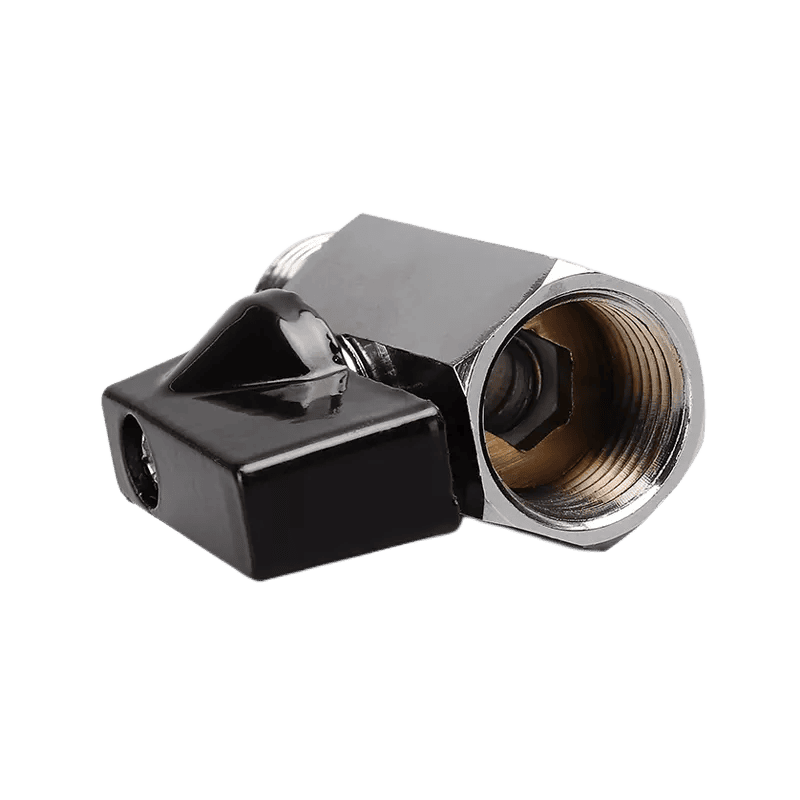

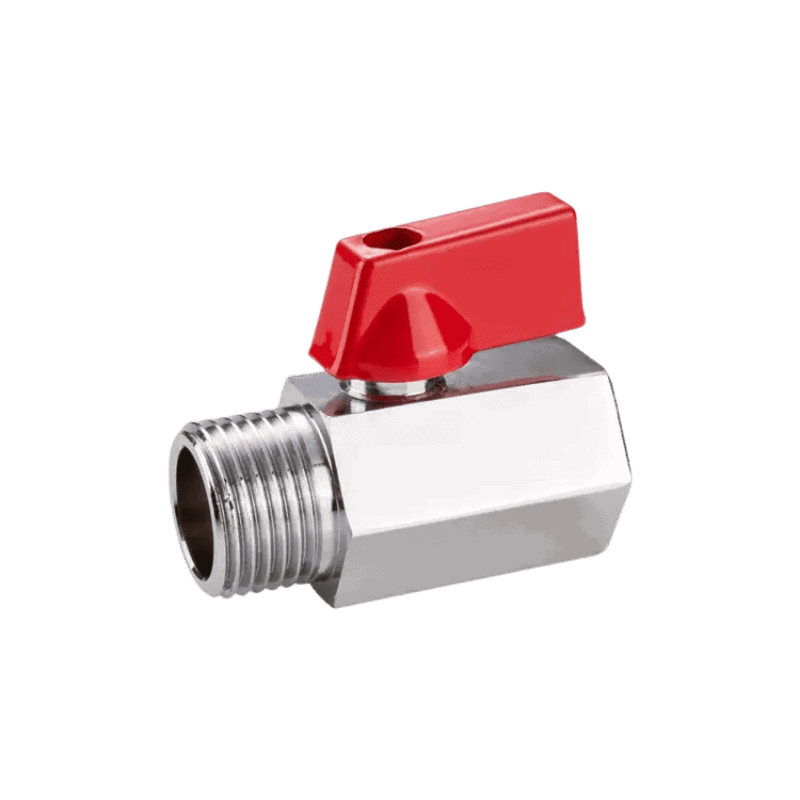

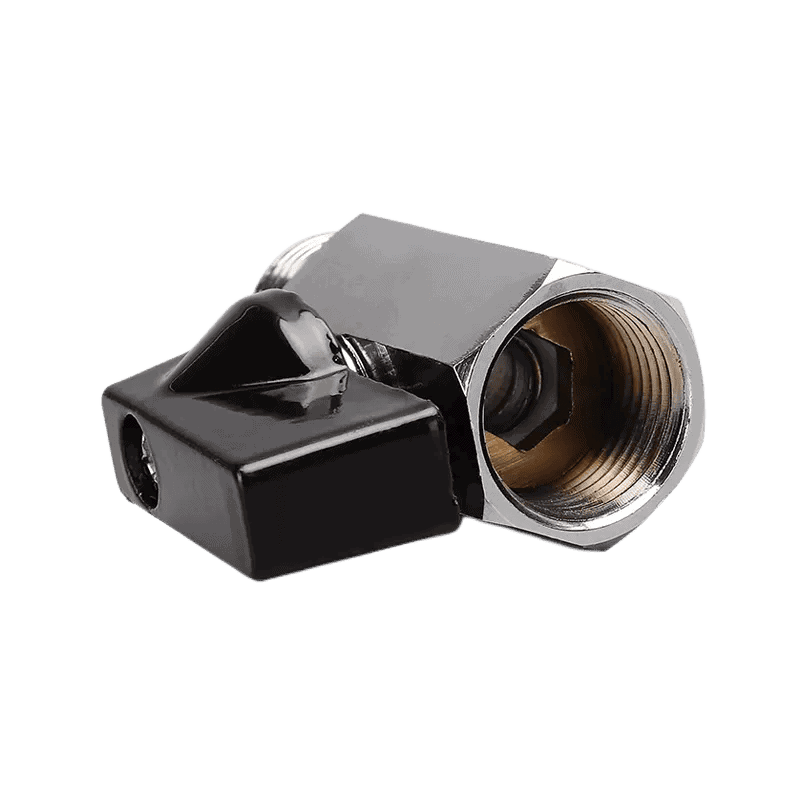

Chrome Mini Ball Valve

Parameters of Chrome Mini Ball Valve

The mini ball valve is a quarter-turn type ball valve that used for shut-off application in the pipework

Additional information


Polishing and Chrome plated


Aluminum alloy

Life time:

150000 times On-Off


C37700, CW602N, CW617N


1/2", 1/4", 3/8"



Thread connection


Working pressure

12 bar


12 months

Details about Chrome Mini Ball Valve

Chrome Mini Ball Valve


  • Brass Mini Ball Valve
  • 1/2″FXM,3/8″FXM,1/4″FXM
  • For extra strength and corrosion resistance, the working pressure of 200 psi is a Chrome-plated brass body.
  • Solid chrome-plated brass ball, Female x Male NPT
  • Double – seal system allows the flow to go in either direction, and heavy-duty Zinc Alloy handles
  • Working temperature of 2°F to 175°F, Fast 1/4 turn open or closed operation
  • Heavy Duty for Water, Oil, and Gas, each valve individually tested for maximum safety

The mini ball valve is a quarter-turn type ball valve used for shut-off application in the pipework. The handle can be rotated at 90 degrees to open or close the valve. It is a threaded end ball valve where one male thread and another female side thread.

Mini-ball valves are ideal for use in small, confined spaces where larger valves are unnecessary. They are suitable for residential and light commercial applications in domestic hot and cold water systems, natural or bottled gas, and compressed air systems.


Mini ball valves:


Mini ball valves are quarter-turn ball valves used to shut off flow in the pipework. Rotate the handle 90 degrees to open or close the valve. It’s a threaded end ball valve with male and female threads on one side. Mini ball valves are ideal for tight spaces where larger valves aren’t necessary. They’re suitable for homes and small businesses’ hot, cold water, and compressed air systems.


Remember that mini-ball valves are designed for open or closed positions. Throttling the mini-ball valve could cause early seal failure. The inability to turn the ball valve handle, depends on the application conditions. The mini-ball valve is open if the handle is parallel to the valve or pipe. When the lever is perpendicular, then it is closed.


Mini ball valves are not directional in the technical sense. You’ll notice that the guts of this unit are symmetrical if you look inside. In other words, because the ball valve is spherical, the flow direction isn’t an issue. If installing a small ball valve is required in a specific flow direction. Always make sure it has an arrow cast into the body. It depicts the flow’s path, making it simple to determine when necessary.


Uses of mini ball valves:


The primary function of a Mini ball valve is to control the flow of various substances such as air, water, and oil. This ball is commonly used to manage flow and pressure in gas distribution systems. It’s also used to reduce stress in gas storage. The primary ball valve’s job is to direct, guide, control, and adjust the flow of various media. As a result, you can use the device to calculate your project’s required flow rate or volume. It does so by obliterating some or all the passages.


Mini ball valves work in many industrial and home settings. It should play an important role in improving the efficiency of many applications. Some of the industries that are using these valves are below.


  • Petroleum refining industry


  • Marine industry


  • Irrigation sector


  • Gas distribution


  • Brewing sector


  • Industrial, commercial and residential plumbing


  • Water treatment industry


  • Transport industry


  • Chemical process industry

Materials: Varieties Available

Materials are an important consideration to take into account when selecting a mini-ball valve. There are many varieties of materials available, each with its unique characteristics and purposes.

The most common material used in manufacturing mini-ball valves is brass. Brass is known for its great strength, durability, and resistance to corrosion. It is also very cost-effective and widely used in various industrial, medical, automotive, and plumbing applications. This makes brass the perfect choice for a wide range of projects that require reliable performance from their mini ball valves.

In addition to brass, stainless steel and plastic are also popular materials used for these small valves. Stainless steel boasts superior strength and offers excellent corrosion resistance, while plastic provides lightweight construction with greater flexibility than other materials due to its low thermal expansion properties.

Maintenance: Care & Replacement

Mini ball valves are versatile and valuable tools for many modern industries. These devices can be essential components within industrial processes, whether it is used to control the flow of water, gas, or other materials. Therefore, proper maintenance and care are required to keep them running at optimal levels and prolong their life expectancy.

Routine inspections should be conducted regularly to identify any signs of wear or damage that could compromise the mini-ball valve’s performance. During these inspections, it is important to check all associated connections and the device itself for any visible signs of corrosion or other deterioration. If defects are found during the inspection process, prompt repairs should be made to ensure that the mini-ball valve remains operational.

Conclusion: Benefits of Mini Ball Valves

The conclusion of this article on Mini Ball Valves reveals some potential benefits for users. Mini ball valves are highly durable and reliable, able to withstand extreme temperatures and pressures. They are also easy to maintain, requiring relatively little effort in terms of cleaning and adjustment. Additionally, their lightweight design allows easy installation in hard-to-reach places where larger valves may not fit.

Mini-ball valves also offer a high degree of control over fluid flow, as they can be opened or closed quickly by simply turning the handle or knob. Furthermore, they are extremely versatile due to their ability to work with various liquids and gases across multiple industries. Finally, mini-ball valves are incredibly cost-effective compared to other valve types today. The combination of these qualities makes them an ideal choice for many different applications.
