Radiator Valve Insert

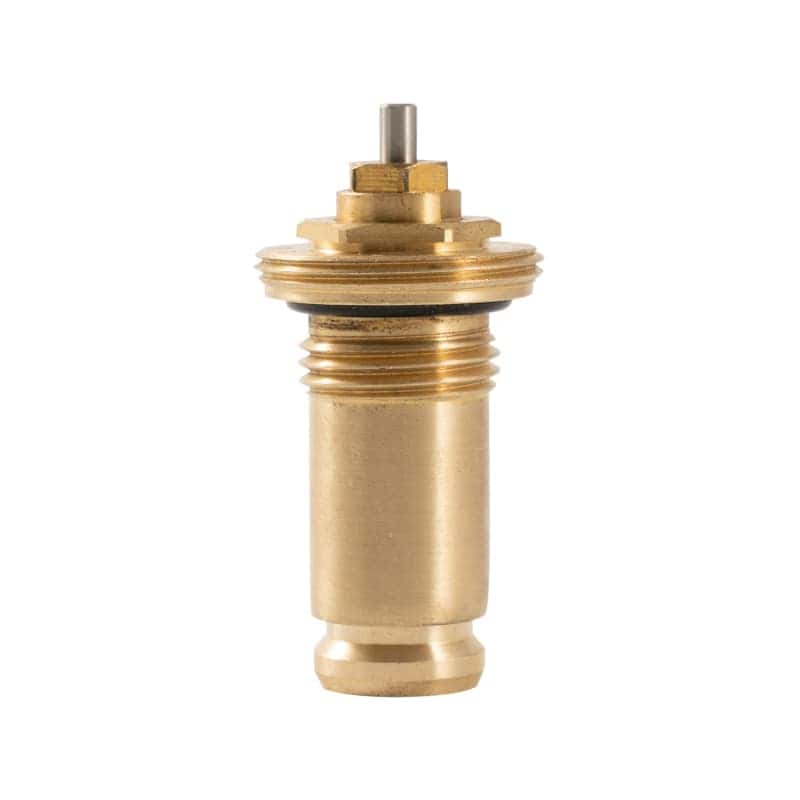

brass cartridge 0984a

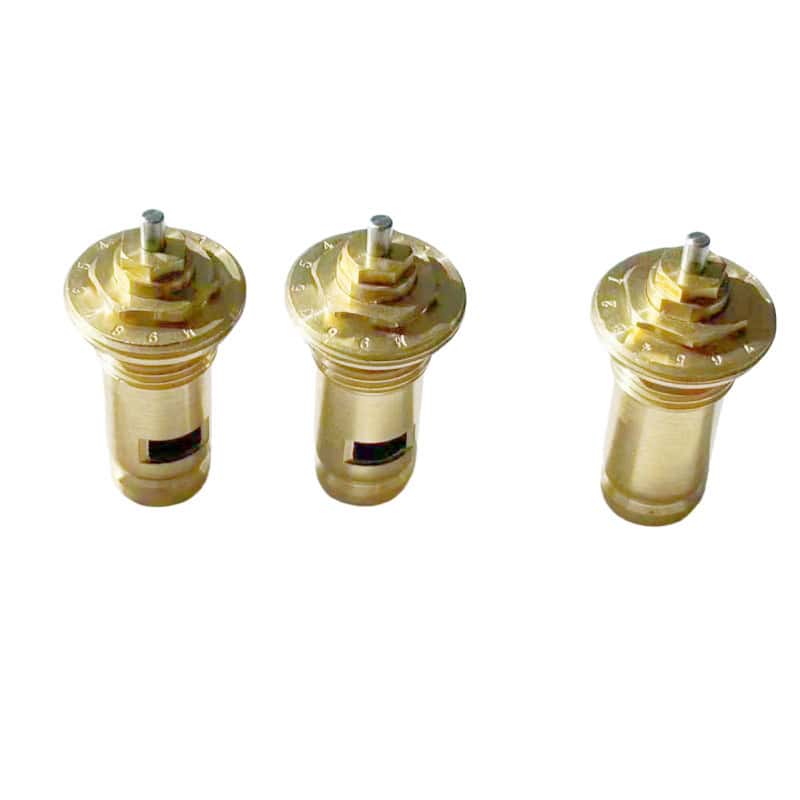

brass cartridge 0984d

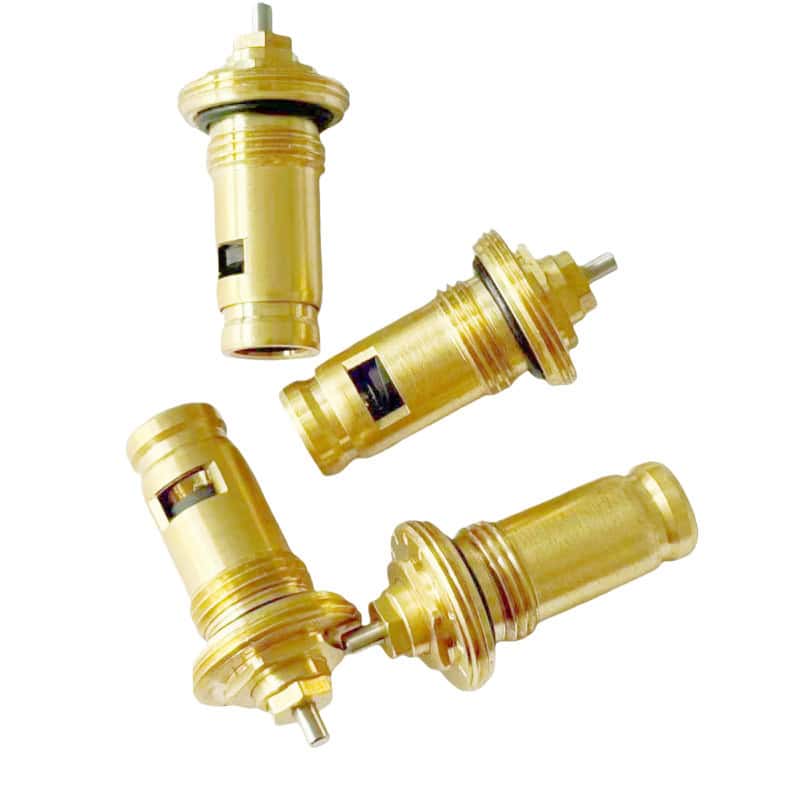

brass cartridge 0984c

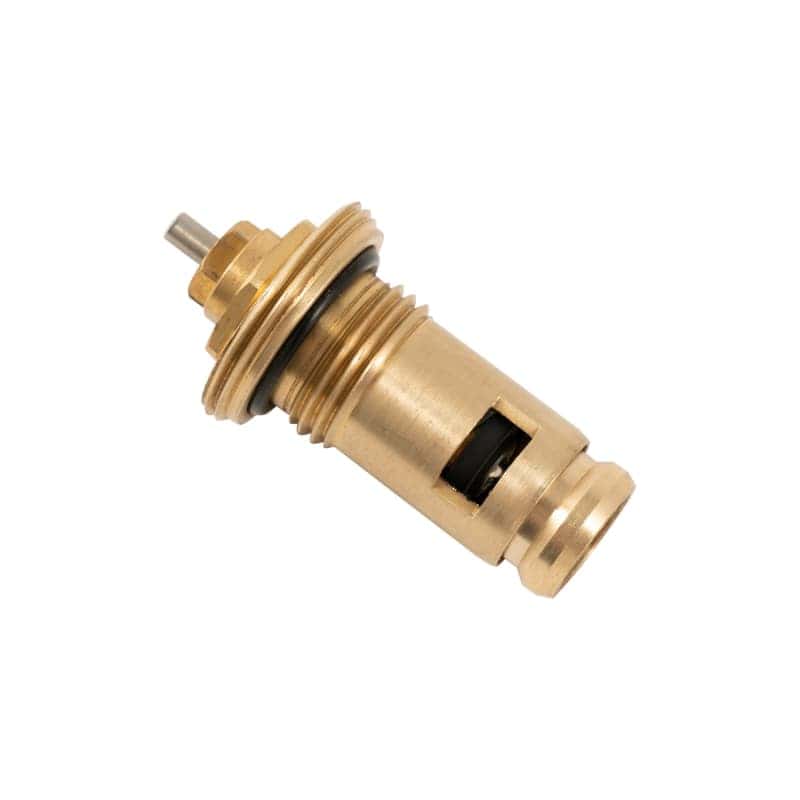

brass cartridge 0984b

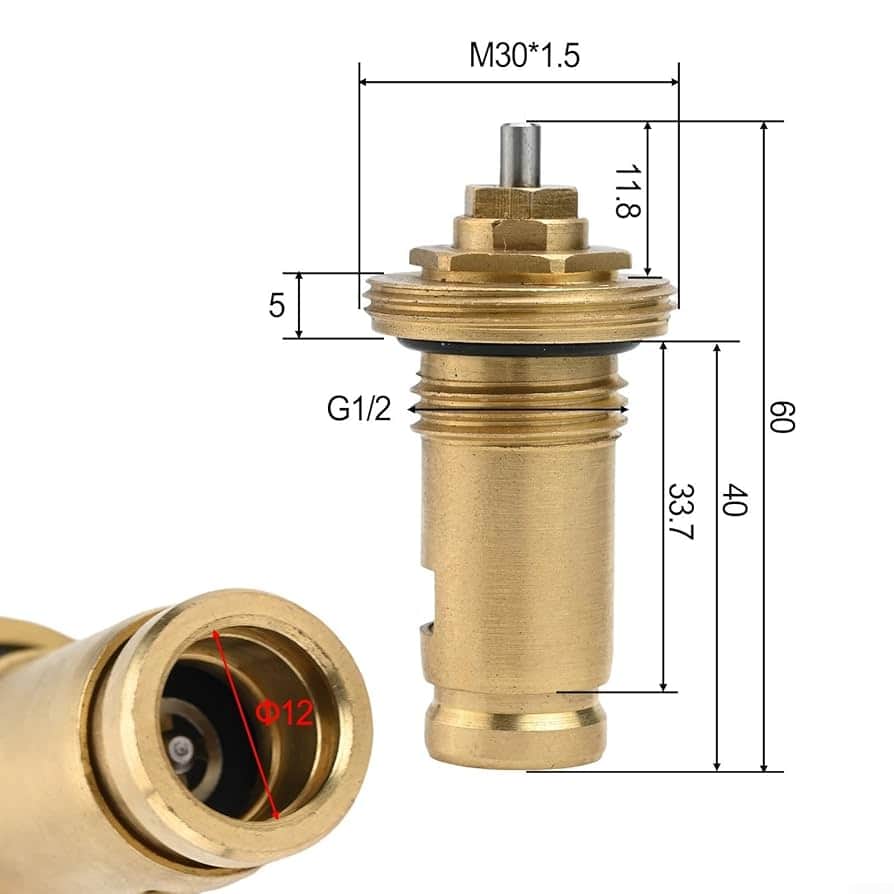

brass cartridge for trv

Parameters of Radiator Valve Insert

Radiator Valve

The radiator valve core is the core temperature control component of water-based heating systems. It works with a thermostatic head to regulate the hot water flow of the radiator, achieving room temperature control. When the room temperature rises, the thermostatic head pushes the needle-shaped mechanism inside the valve core downward, closing the valve to cut off the hot water flow; when the temperature drops, the needle mechanism resets and the valve opens, thereby dynamically regulating the room temperature. Specifically designed for the valve housing of radiator assemblies, it meets the assembly requirements of conventional radiators.

  • Model No.: JX-0984
  • Material: Brass
  • Finish: Natural brass
  • thread size of M30X1.5 to G1/2
  • Medium: Water
  • Designed specifically for radiator heating systems.
  • Number of heat settings: 9 settings
  • Item depth: 30mm
  • ACS, ISO9001,
  • BSP/ISO228,
  • It works for multi-loop systems like central heating. It can adjust the water flow of a single radiator alone. It keeps the whole heating system’s hydraulic conditions stable.
  • Free sample within 7 days and 30 days with a bulk order
  • Free Inspection report, same as the 3rd-party offered.
  • Free 48-hour salty spray testing report.
  • Free materials testing report.

Additional information

Quote Now
Free Sample

Description

ferrule stem and seating piece supplied connector cartridge 0878a Ferrnle Stem With Seating Piece Supplied

The ferrule stem with a sealing seat is used to connect user pipelines to municipal water supply networks and supports pressure installation. It controls water flow rate and temperature, can serve as the valve core for double-handle faucets, and is applied in multiple industrial fields, including oil refineries, chemical plants, power generation facilities, and manufacturing factories. Made of solid brass, it features durability, high strength, and high hardness.

  • Model No.: JX-0878
  • Size: 1/2″-4″
  • Pressure rating: 10bar
  • Finish: Sand blasted
  • Working temperature: -10-120℃
  • Material: bronze, lead-free brass
  • Medium: water
  • Technology; Casting
  • Connection: NPT, BSP/ISO228
  • With a 24-month warranty


brass cartridge

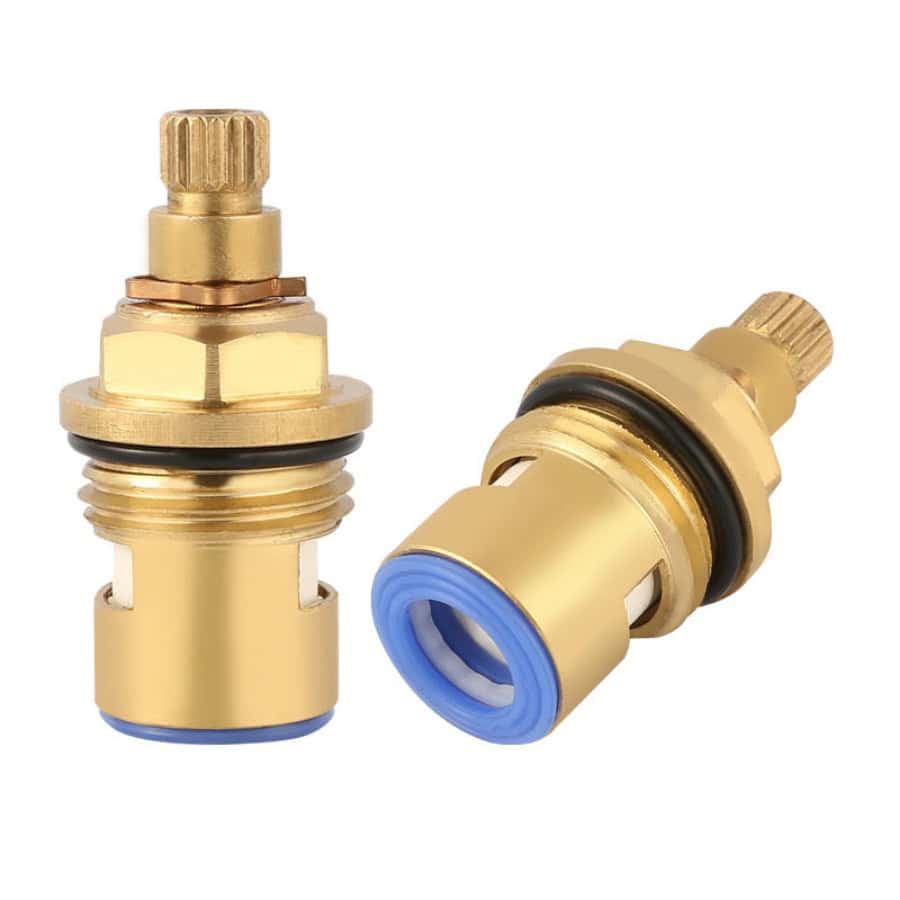

Brass ceramic Disc Cartridge

The ceramic disc valve core of a faucet controls the on/off, water flow rate, and temperature by rotating one ceramic disc to fit against the other. It features both leak-proof and water-saving functions, and is compatible with various faucet types, including kitchen faucets and bathroom basin faucets.

  • Size: 1/2″
  • Material: Hpb59-1 CW602N, CW511L
  • Finish: Brass finished
  • Medium: Water
  • Certification: ACS, ISO9001, CE
  • 2-year warranty for this product
  • Structure: Single hole
  • Working temperature: -10-100℃
  • Quickly open/ 90 degree turn the brass cartridge
  • Has a built-in silicone gasket, which is tightly sealed
  • Inside the valve, a ceramic seal is adopted for a 90° rotation


hvac cartridge

 HVAC-Cartridge

The flow control valve, operated by the blue knob, adjusts the water flow in the pipeline, thereby controlling the radiator’s temperature. Used to connect the control valve to the radiator, and the black rubber ring has a sealing function. This setup regulates the water flow to individual radiators, allowing for temperature control in different spaces. Such control valves are also paired with underfloor heating systems to meet the heating needs of various rooms.

  • Size: 1/4″
  • Body Material: Brass
  • Handle: Blue plastic handle
  • Connection: NPT, BSP, ISO228,
  • Medium: Water
  • Pressure rating: PN20
  • Working Temperature: 0-150℃
  • Finish: Original brass
  • Flow: 5L/min
  • Balancing valves allow for the adjustment of water flow for each branch independently
Chrome Plated disc cartridge Water Stop Angle Valve Chrome-plated disc cartridge Water Stop Angle Valve

An angle globe valve is a type of valve used in water supply and drainage systems to control the flow of water or other fluids. It is usually installed in the water supply pipeline of specific water-consuming equipment to independently cut off the water source of the equipment, such as under kitchen and bathroom sinks, behind toilets, and at the water supply points of washing machines and dishwashers. The surface is chrome-plated to prevent rust.

  • Model No.: JX-0216
  • Size: 1/2″x1/2″, 1/2″x3/8″
  • Material: H58-3
  • Connection: BSP, BSTP
  • Finish: Chrome-plated
  • Type: Push cock
  • Body material: Forged brass with chrome-plated
  • Working temperature: 0-120℃
  • Medium: Water
  • Pressure rating: 15bar, 20bar,
  • Certification: CE, ISO9001,


Handle Chrome Plated Angle Valve slow open cartridge

 Handle Chrome Plated Angle

Cock valves are used to control the flow of water to specific indoor water-consuming equipment, providing shut-off points for water supply pipelines and regulating fluid flow in various systems, including heating, ventilation, and air conditioning (HVAC) systems, as well as general industrial pipelines that transport non-corrosive fluids such as water and oil.

  • Model No.: JX-0205
  • Size: 1/2″X1/2″,1/2X3/8″
  • Material: Zinc alloy handle with brass body
  • Chrome-plated then machined thread.
  • Type: Full-turn open certridge
  • Working temperature: 0-100℃
  • Valve turn type: Multi-turn
  • Connection: BSP
  • Guaranteed 2 years
  • Handle: Chrome-plated
  • Pressure rating: 10bar
  • Mdia: Water
  • Certification: CE
Diverter Stem and cartridge for Tub Showers



Brass Diverter Stem and Cartridge

Replaceable shower valve stems control water flow rate and temperature, and are used to repair leaking shower faucets. They can be applied to either the hot water side or cold water side of the valve and are equipped with necessary installation accessories such as valve covers and valve seats.

  • Model No.: JX-0861
  • Temperature adjustment: 0-70℃
  • Size: Custom
  • Body material: Brass
  • Stem: Brass
  • Transport Package: Brown Cartons and Pallets
  • Media: Water
  • Connection: BSP/ NPT
  • Finishing: Original

FAQs of Radiator Valve

What are the common materials of radiator valve inserts? What are the characteristics of different materials?

Common materials are brass, stainless steel, and plastic. Brass can stand pressure and corrosion. It is used in many ways. Stainless steel is highly resistant to rust. It fits humid places. Plastic is light and cheap. It fits low-pressure and normal-temperature situations.

How do you check if a radiator valve insert will work with your own radiator valve when choosing one?

Carefully check and retain accurate technical data (model, 1/2 inch / 3/4 inch interface size, stem length, etc.)Check the medium type, too, hot water/steam. The three things must completely match.

What is a radiator valve insert, and what is its main function?

It is a core built-in part of the radiator valve. It ensures precise on-off and flow of hot water/steam. It regulates the heat dissipation efficiency of the radiator and helps to achieve precise control of indoor temperature.

Do your radiator valve inserts fit with most radiator valve brands?

Plumberstar, being a professional manufacturer in this regard, designs radiator valve inserts with normal specifications to suit mainstream valve models on the global market, such as M28x1.5 or R1/2. We just need the model or dimensions of the valve. We can also provide customization solutions to fit valves from specific brands.

What materials are used in the manufacturing of your radiator valve inserts?

Plumberstar valve core stem material specification includes CW617N. The sealing material is EPDM rubber. In regular applications, it will last 5-8 years or more.

What are the OEM/ODM services regarding radiator valve inserts?

OEM/ODM according to your request with specified materials, specifications, logos, and even packaging. The confirmation of samples is also provided to ensure that the final product will meet your requirements.

What are your manufacturer’s quality control measures regarding radiator valve inserts?

Each insert undergoes strict inspections: pressure testing for leakproofness, material composition analysis, and operation durability testing. We comply with ISO 9001 and CE standards, and provide quality certificates for bulk orders to guarantee product reliability.

What payment terms are accepted?

T/T, L/C, and Western Union are accepted for sample orders. For long-term cooperative customers, we can offer more favorable payment terms based on order volume and credit history.

What is the lead time for bulk orders?

10-15 days for the usual. For custom OEM/ODM orders, it is 15-30 working days, depending on the order quantity and customization requirements.

What packaging options do you provide for radiator valve inserts?

Anti-rust plastic bags and cartons with shockproof foam inside prevent transportation damage. Bulk orders get custom packaging with personalized logos and product information. We can adjust the packaging to your requirements.
