DR Toilet Stop Angle Valve

Parameters of DR Toilet Stop Angle Valve

When an angle valve is used as a shut-off valve for residential plumbing fixtures, it is called an angle stop valve, or simply an angle stop.

Additional information


Polishing and Chrome plated


CW602N, H58-3, Lead-free brass


1/2", 3/8"



Thread connection


Working pressure

12 bar


Zinc alloy



Life time:

300000 times On-Off

Details about DR Toilet Stop Angle Valve

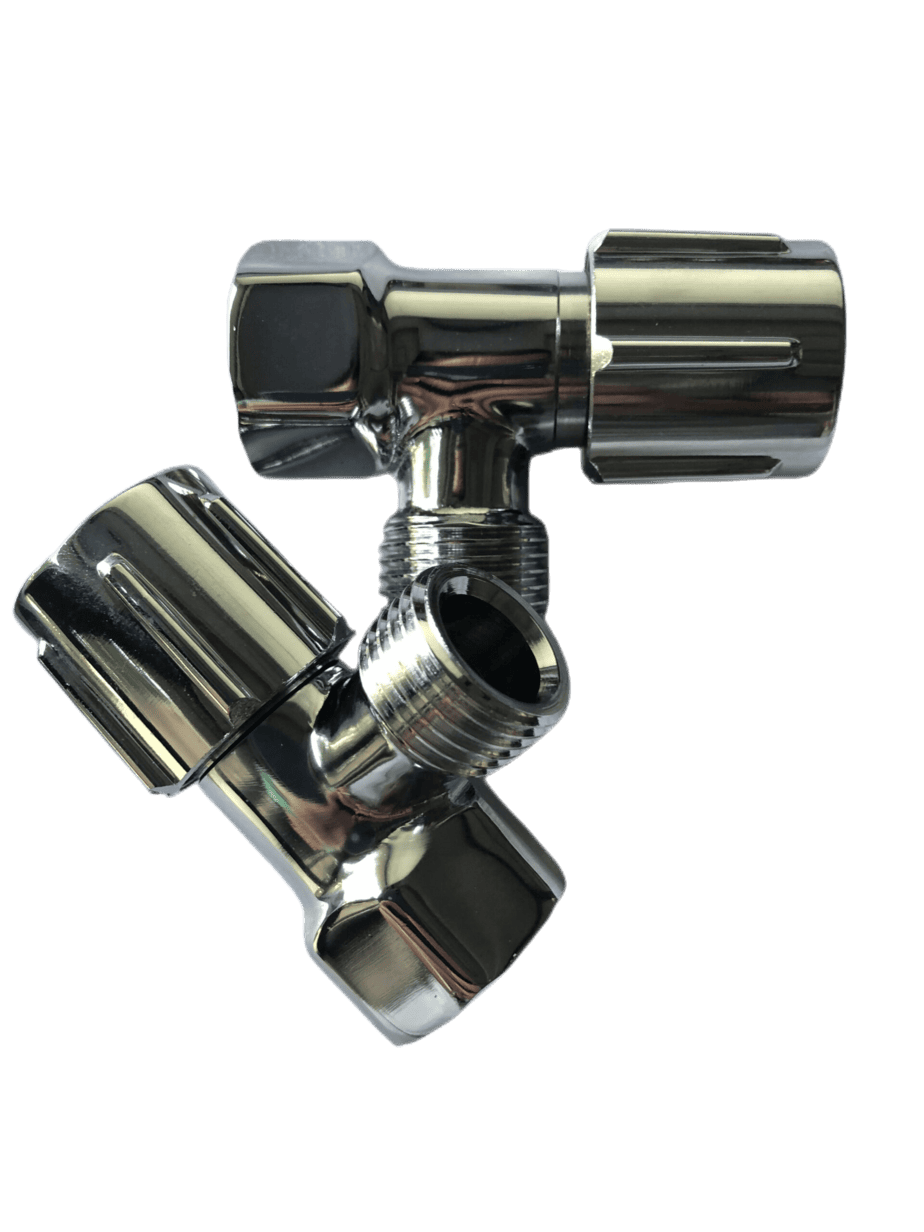

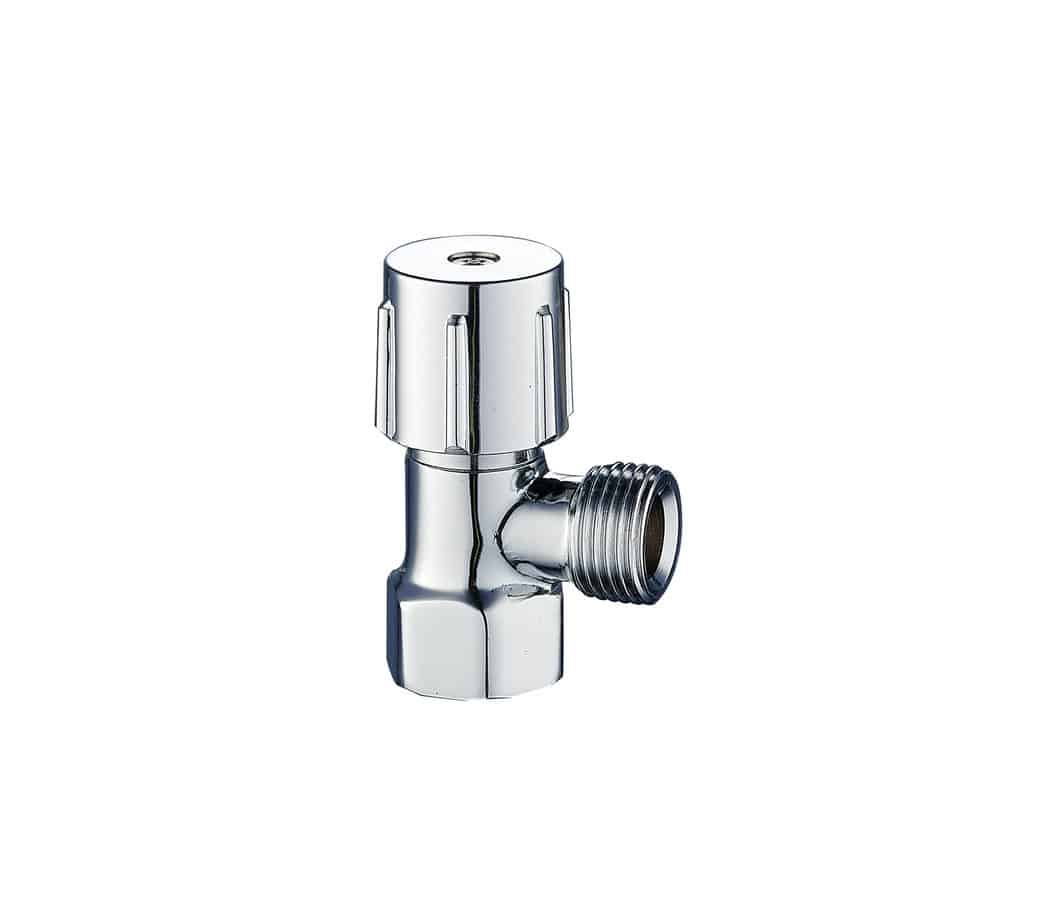

DR Toilet Stop Angle Valve


  • CW602N Angle Valve
  • Size;1/2″X1/2″
  • Body and cartridge material: DZR
  • Chrome-plated; ISO228/1 thread.
  • CW602N brass with high-standard chrome plated
  • 3 million times open-off  working is guaranteed
  • It’s approved by 48 hours of salt spray testing
  • Power: Manual
  • Media: Water
  • Connection End: Thread
  • Working Pressure: 12 bar
  • Working temperature: -5 ℃-+100 ℃
  • Function: Kitchen, Home, Garden, and General
  • Style: Handle-controlled
  • We are professional manufacturers. Would you please confirm the size of the water pipe by ourselves?
  • Our angle valve is only suitable for G1/2 thread

    1/4 Turn Sanitary Shut-off Angle Valve

    Angle Valve Size


    Valve pressure


    Valve Materials

    DR brass, Normal brass, Lead-free brass

    Valve Standards

    Watermark, EN331, ISO228

    Working Temperature:

    From 0℃ To +95 ℃

    Seat sealing Material:


    Handle Material:

    Zinc Alloy

    Thread connection:


    Quality/valve Certifications

    CE, ISO9001


    Polished and chrome plated

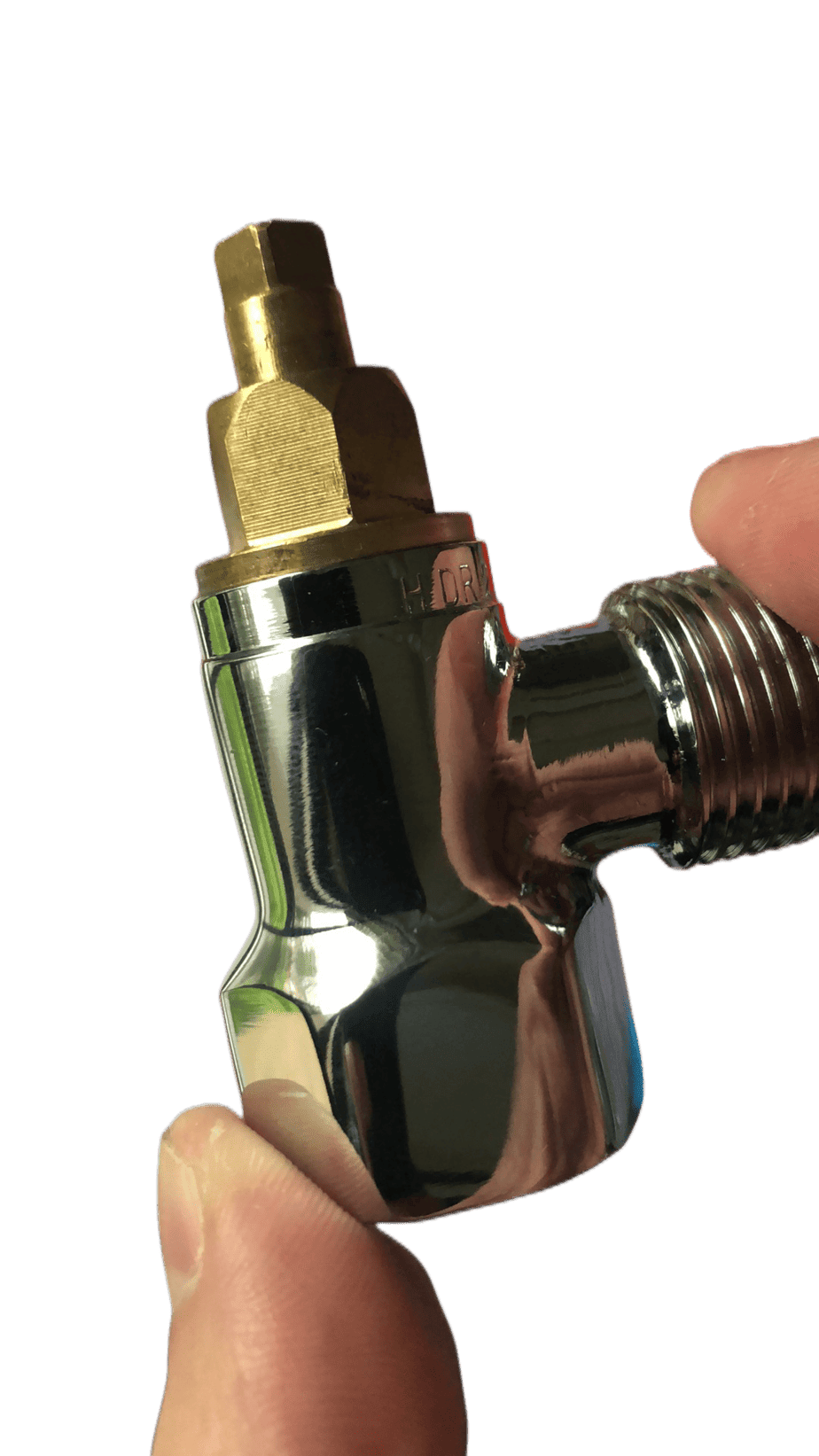

    Brass cartridge

    Valve operator



    Outlet water valve

    O ring


    Salt spray test

    Acetic acid/ASS 24 hours

Introduction: what is a DR toilet stop angle valve?

A DR toilet stop angle valve is a type of valve used in toilets. It is designed to allow water to flow into the toilet bowl at a specific angle, which helps to prevent clogs. The DR toilet stop angle valve is a great option for those looking for a way to keep their toilet from becoming clogged.

Angel valve Uses:

Because of their wide applications, angle valve uses can broadly be discussed. Their nature and maintenance make them a favorite to use. Also, there is an ever-increasing trend of these valves for domestic and custom uses. Below are some of the most popular angle valve uses.

  • We use angle valves in industries for steam distribution. A controlled amount of steam enters with the help of an angle valve. It helps reactions to carry out in a safe and calculated manner.
  • Angle valves are helpful in textile equipment.
  • Dye mixing uses angle valves. When the desired amount reaches, the valve returns to its original position. It marks an important use of an angle valve.
  • Angle valves are valuable in managing chemical processes. They stop the fluid path when required. It allows a smooth flow of reactions.
  • Angel valves have an excellent application for bathroom use. We install them where we want to control or block water flow. In toilets and sinks, they are beneficial.
  • Kitchen pipelines and water irrigation systems use angle valves. They play a significant role there. You can cut the Water supply for repairing purposes or in case of leakage.

Why use Angle valves in Homes?

Angel valves ensure the safety of household use. They can save one from many hustles in case of emergency leakage. When needed, you can block a specific area for water flow.

Bathrooms and kitchens must need angle valves due to their daily operational use. Bursts can take longer to treat if you have an angle valve at regular intervals.

They hold crucial applications for domestic purposes. A divided water supply is more effective than a single one. Thus, angle valves are a must for domestic use.

quality dzr angle valve
Stop angle valve

Read on Plumberstar.

3-Way Ball Angle Valve



Angel valves have such a variety of needs that we cannot deny. They are essential to use, from bathrooms to marine ships. We assembled this piece of information for you to teach you about the internal structure and work angle valves.

Angle water valve spare parts are the essential ingredients to replace when needed. They are different in structure and appearance.

The valve material differs for different products. They can be either metallic or nonmetallic. Based on their functions, they are all in high demand and use nowadays.


A DR toilet stop angle valve is a great way to save water in your home. Here are some tips on how to use one:

1. Make sure the valve is turned off before you start.

2. Slowly turn the valve open until water starts to flow from the faucet.

3. Adjust the water flow until it is at a comfortable level for you.

4. When you are finished, turn the valve off completely.
