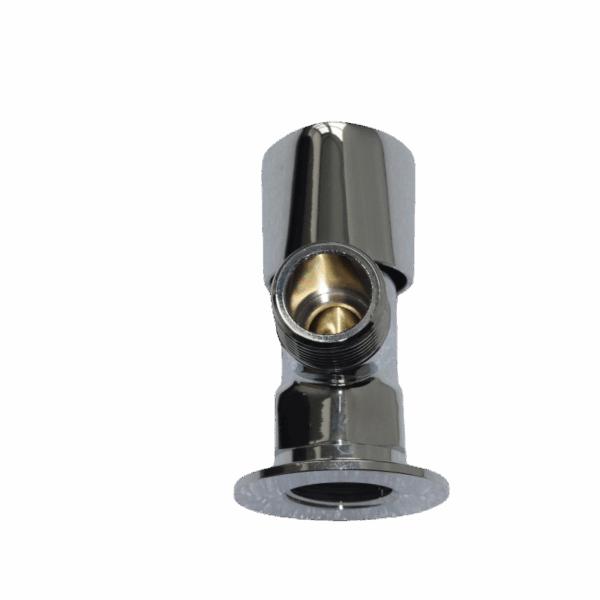

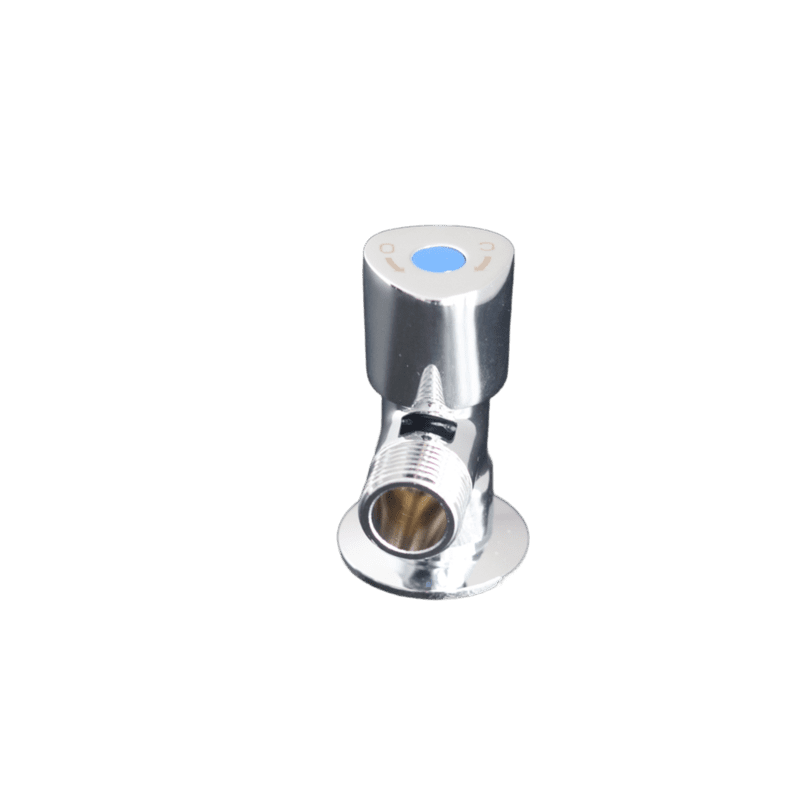

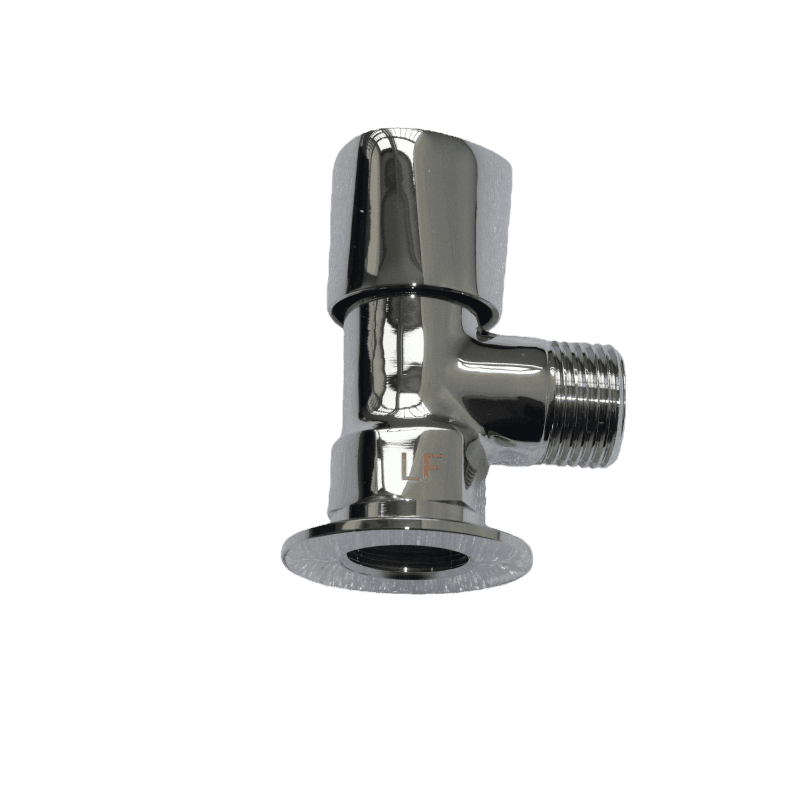

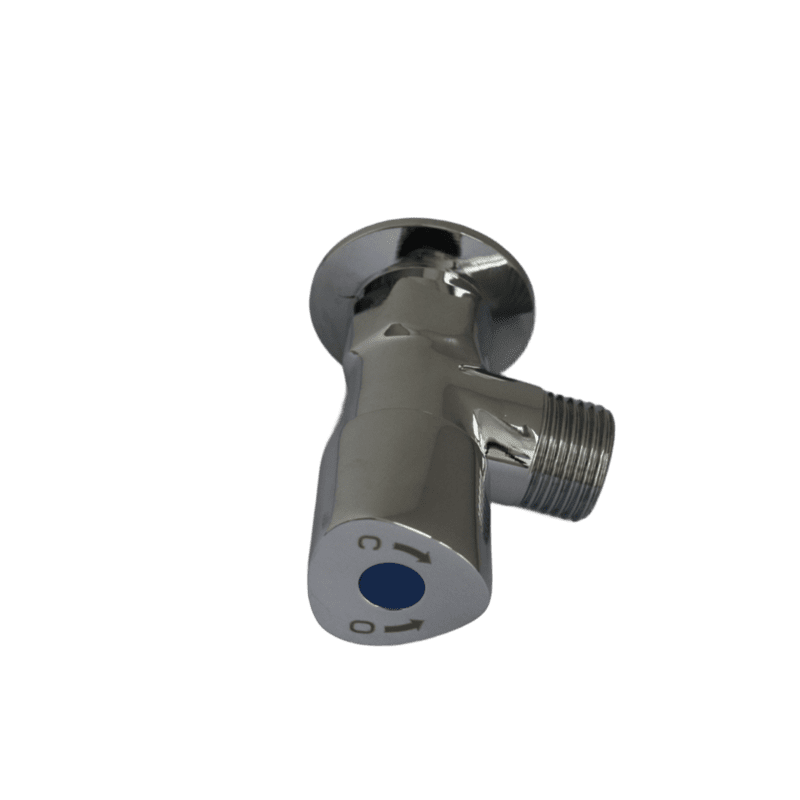

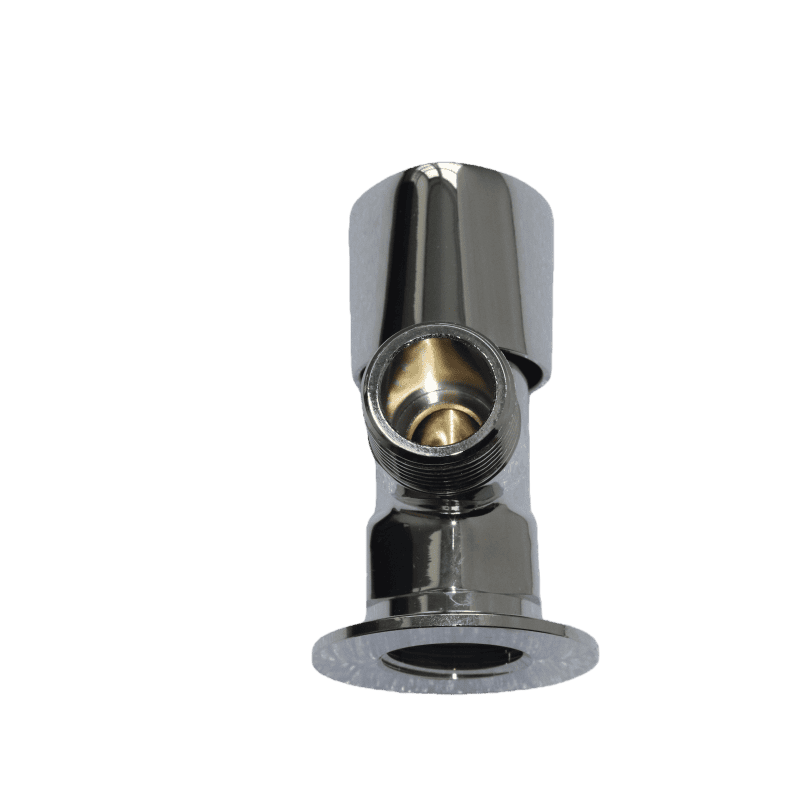

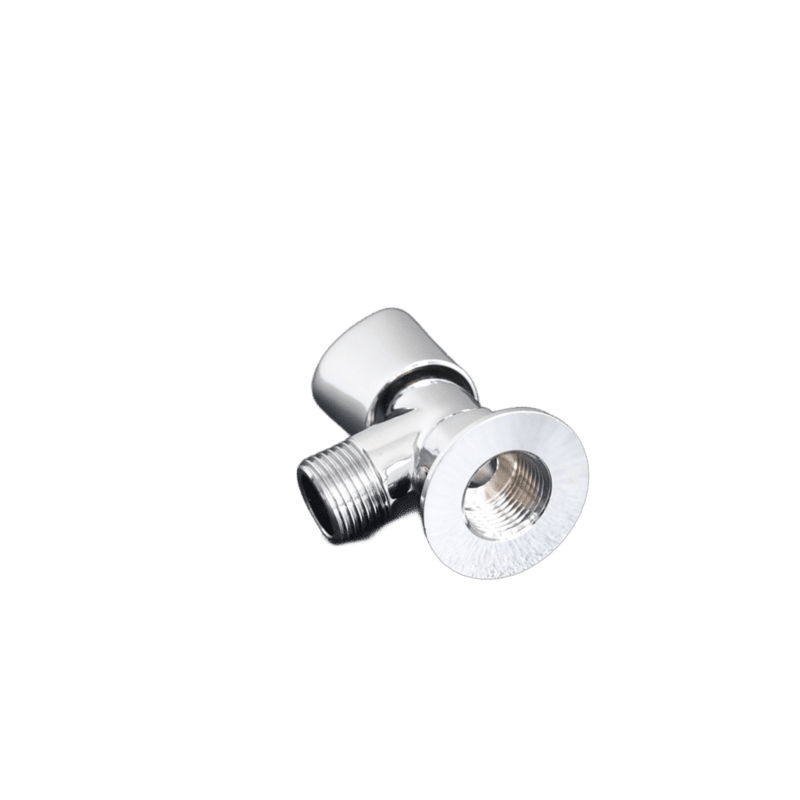

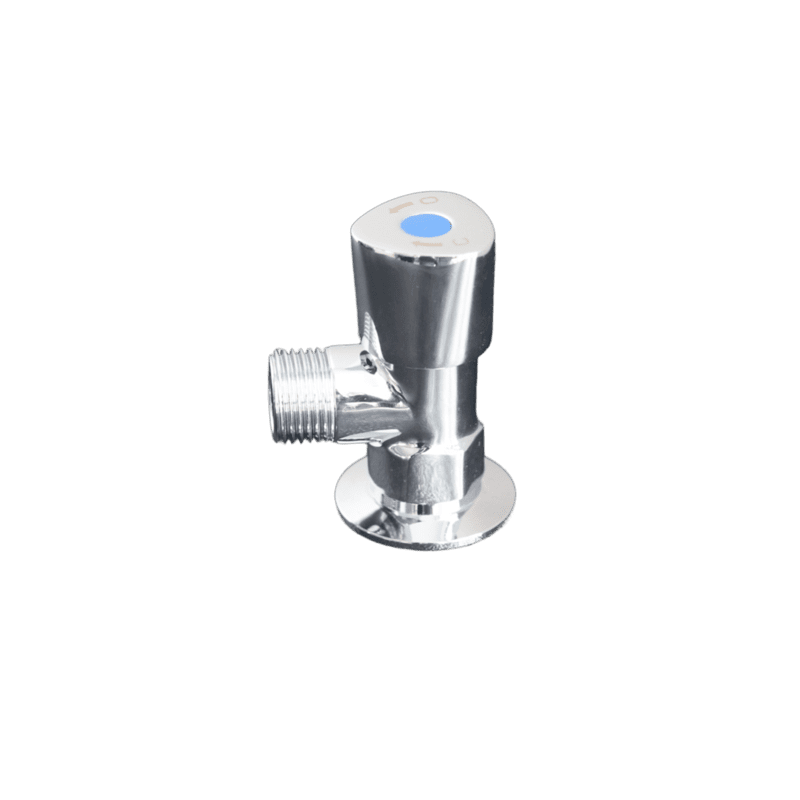

This ceramic disc angle valve has a built-in wear-resistant ceramic valve core and a 90° angled flow path. It works with both hot and cold water and can be installed in damp areas like bathrooms and kitchens. Equipped with a round flange at the bottom, it can be wall-mounted directly for a stable, secure installation. and it’s widely used with sinks, toilets, showers, and other bathroom and kitchen appliances.

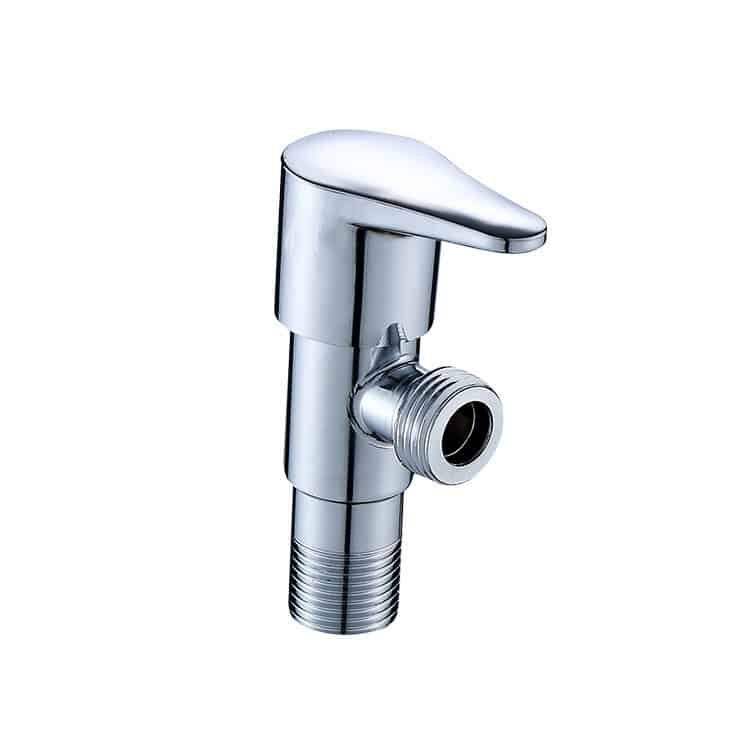

This brass angle valve is made from cast brass and finished with chrome plating. It has a curved handle that’s easy to hold. Just a 90° quick turn to open or shut off the water right away. It’s a key water control valve for the bathroom and kitchen end-point water supply. It’s widely used on toilets, showers, washing machines, and other household water appliances.
Model No.: JX-0216
Size: 1/2″x1/2″, 1/2″x3/8″
Material: Brass, CW617N
Body material: Forged brass with chrome-plated
Connection: BSP, BSTP
Core material: Brass
Finish: Chrome-plated
Pressure rating: 15bar, 20bar
Working temperature: 0-120℃
Medium: Water
Standard: CE, ISO9001
Heated Towel Rail Radiator Valve
This heated towel rail radiator valve is a specialized temperature-control component for bathroom heated towel rail systems. It has a 90° angled design, perfect for connecting heated towel rails to wall-mounted pipes in the bathroom. There’s a knob on top that moves the valve core. It can precisely control the towel rail’s temperature. The valve dries towels efficiently, stopping damp and mildew in the bathroom. It also adds extra heating to raise the bathroom air temperature.
Model No.: JX-0658
Size: 1/2″
Material: Brass, CW617N
Colour: Anthracite,ORB
Finishing: Chrome-plated
Connection Type: Compression
Working pressure: 10bar
Max working temperature: 120℃
Application: HVAC System
Medium: Cold/hot water
Standard: CE
Right Angle Ball Valve
This right-angle ball Valve enables flexible water flow diversion in tight spaces. Eliminating the need for additional elbow fittings. A top-mounted red butterfly handle allows for 90° quick on-off operation, and fine adjustment of the handle angle also enables initial flow rate regulation. Combining both on-off control and flow-diversion functions in a single compact unit. It is a practical accessory that enhances the flexibility of residential water supply pipelines.
Model No.: JX-0424
Size: 1/2″-1″
Material: CW602N, CW617N, Lead-free brass, CW510L
Handle: Aluminum butterfly handle
Temperature: -10˚C-120˚C
Thread connection: BSP, NPT
Working pressure: 400psi
Seal material: PTFE
Medium: Water
Standard: EN331, ASME
1/4 turn Stop Valve
This 1/4 Turn Stop Valve is a dedicated control valve for residential water supply endpoints. It works with both hot and cold water. It has a right-angle design, with a horizontal water inlet and a vertical water outlet. It’s an essential water control valve for homes. It’s widely used with toilets, showers, bidet spray guns, and other bathroom fixtures.
Model No.: JX-0209
Size: 1/2″X3/4″, 1/2″X1/2″
Finising: Polishing and Chrome-plated
Material: CW602N, Lead-free brass
Temperature: 0˚C-90˚C
Thread connection: BSP, NPT
Working pressure: 10 bar
Handle: Zinc alloy
Cartridge material: Brass
Connection: ISO228
Fast-open type
Brass 3-Way Diverter Valve
This brass 3-way diverter valve is a flexible flow control part for fluid pipe systems. It sends water flow to three separate outlets, letting you turn flows on or off and divert water easily as needed. It works reliably for switching water flow across multiple paths. It’s widely used in applications that require multi-channel water distribution – such as shower systems, garden irrigation systems, and industrial pipe networks.
Material: Brass
Size: 1/2″ M x 1/2″ M x 1/2″ M
Finishing: Rough Brass
Thread connection: NPT
Water heater bypass valves
Number of Ports: 3
Used in many plumbing applications
Connection: NPT, BSP
With a 2-year warranty
Multi-Turn Angle Stop Valve
This Multi-Turn Angle Stop Valve requires multiple rotations of the top knob to move from full closed to full open. Enabling linear fine-tuning of water flow for applications with precise flow rate requirements. Its 90° angled flow path design is ideal for the tight gaps between walls and equipment. Making it a dedicated control valve for end-point water supply scenarios that demand accurate flow control—such as water supply regulation for fish tanks, humidifiers, small water purifiers, and other precision water-use devices.
Model No.: JX-0202
Size: 1/2″ x 3/8″
Material: Lead-free brass, CW510L
Finishing: Chrome-plated
Inlet connection: CPVC
Outlet connection: OD compression
Multi-Turn Zinc handwheel
Working pressure: 125psi
Working temperature: 40-145 degrees F
Standards: 110 CWP
Frequently used for ice makers
FAQs of Ceramic Disc Angle Valve
1. Is the ceramic disc angle valve body forged or cast brass?
Plumberstar ceramic disc angle valve bodies are produced through an integral forging process.
Traditional casting means pouring molten brass into a mold to form the part. As it cools, hidden defects such as air holes and inclusions can easily form in the metal. These create hard-to-see sand holes. This can lead to cracking or leakage later on. Even a little extra force during installation can reveal these problems.
Forging is different. We heat a solid brass rod first, then stamp it into shape with a press. Under high pressure, the metal grains are fully compacted and rearranged. This makes the material denser and the structure tighter. It eliminates the risk of sand hole formation from the inside out and significantly enhances the valve body’s impact resistance, deformation resistance, and pressure-bearing stability.
It effectively reduces the risk of leakage, ensuring the product is reliable and safe for long-term use in real applications.
From KIMO365
2. Does the ceramic disc angle valve comply with European market standards?
Plumberstar’s Ceramic Disc Angle Valve fully meets relevant European standards.
The valve body is made of CW617N brass. All parts in direct contact with drinking water use low-lead brass that meets the 4MS Common Approach requirements. Materials like CW511L or DZR brass (CW602N) are used here. This ensures drinking water safety.
All our products comply with EU REACH regulations. They contain no harmful chemical substances. We can also provide the appropriate compliance declarations and certification documents for your target market. This supports your product access requirements in different countries and regions.
3. Can the ceramic disc angle valve’s handle be customized?
We support full customization of angle valve handles. It makes your products stand out in the market.
You just need to provide sketches, reference pictures, or 3D models. Our engineering team has 10 years of production experience. They can quickly turn your ideas into solutions ready for mass production. No matter if it’s a modern T-shaped handle or a retro knob style, we can open independent molds for customization. When designing the shape, we also consider grip and smooth operation. We make sure the handle is great in both appearance and user experience.
You can choose handle materials flexibly based on your product positioning:
Solid brass: Matches well with the forged valve body, bringing a more high-end overall texture. It’s perfect for high-quality, brand-focused products.
Zinc alloy: Made with mature die-casting and electroplating processes. It has an exquisite look, is suitable for the mid-to-high-end market, and is more cost-effective.
4. What’s the MOQ of the ceramic disc angle valve?
The MOQ for Plumberstar ceramic disc angle valves is 500 pieces. When your order hits 1000 pieces or more, we can further optimize the unit price based on specific configurations. This helps you get a more competitive cost.
For OEM/ODM orders, the MOQ can be adjusted flexibly. It all depends on your customized needs, like brand packaging and exclusive logos. For long-term cooperation or large-value orders, the MOQ can be as low as 100 pieces.
We also support small trial orders starting from 50 pieces, just for new customers. This reduces your market testing risk, making it easier for you to verify market feedback first.
5. Does the ceramic disc angle valve support third-party testing?
Plumberstar ceramic angle valves support third-party testing. We fully cooperate with domestic and foreign authoritative testing organizations designated by you to finish all testing and certification work.
You can decide the test items based on your target market and project needs. These include:
Material composition analysis: Test the copper and lead content of CW617N and DZR brass. Make sure they meet the drinking water standards of Europe and Australia.
Performance and durability testing: Do switch life, pressure resistance, burst pressure, and other tests. Evaluate the product’s limit performance.
Third-party testing can be done before batch production, and delivery is finished. Test samples are randomly picked from any boxes or bags of the bulk goods. This ensures the test results are authentic and traceable.
6. How to ensure on-time delivery for large ceramic disc angle valve orders?
Once large orders are confirmed, Plumberstar will assign a dedicated project manager to the project. We’ll make and submit a clear, workable production schedule as soon as possible. It defines key milestones—like raw material procurement, processing and production, quality inspection and packaging, logistics and shipping. We’ll sync on progress with you the whole time, ensuring delivery is manageable and transparent.
We have 150 experienced frontline workers and a mature, efficient production system. For high-volume orders, we’ll plan separate dedicated production lines. This avoids overlap with regular orders and ensures capacity priority for your order.
During production, quality inspectors control the process at all key nodes. They spot and remove unqualified semi-finished products right away. This reduces rework risks from the start and minimizes the impact on delivery dates.
Plumberstar factory has 120 automatic CNC machining machines. They maximize large-scale production efficiency while ensuring consistent, high-precision machining. This provides a solid hardware guarantee for on-time, stable delivery.
7. What makes Plumberstar a partner, not just a supplier?
plumberstar team
We always think from the customer’s side. We tie your business goals closely to our own development. Our cooperation isn’t just about product transactions. We provide practical support to you at every link—from product design, manufacturing, and cost control to market matching and after-sales support.
At the quotation stage, we’ll base it on actual production costs and order quantity. We’ll clearly tell you the most competitive unit price for different quantity ranges. This helps you control costs effectively and boost profit margins.
For first-time collaborations or market-test orders, we can also discuss small-batch orders to reduce trial-and-error costs. We’ll help you verify the market and turn a profit first—because your profitability is the foundation of our long-term cooperation.
Unlike regular suppliers who only process products per drawings, we’ll take the initiative to offer optimization suggestions for your design, based on our years of valve manufacturing experience. For example, adjust the angle of the valve handle to make installation easier. Or combine the usage habits of different countries and regions to customize products that better fit local market needs. This helps you build differentiated selling points.
We don’t just aim to finish a single order. We focus on your brand’s long-term growth. Seeing your brand logo on products successfully enter engineering projects and gain recognition in the end market—that’s the real measure of the value of our cooperation.
