Angle valves are frequently installed in confined spaces, including sinks and toilets. When the angle valve faucet is closed, it effectively obstructs the passage of water through the conduit. It permits water to pass through at a regulated rate upon being opened.
Model No: JX-0219
Reliable material with 5-year warranty
M1/2XM1/2XF1/2
3-way angle valve with polished and chrome-plated.
OEM and ODM are both welcome
Free sample within 7 days.
CE, ACS, ISO9001, and WaterMark certified
Zinc alloy handle and brass body, and brass cartridge

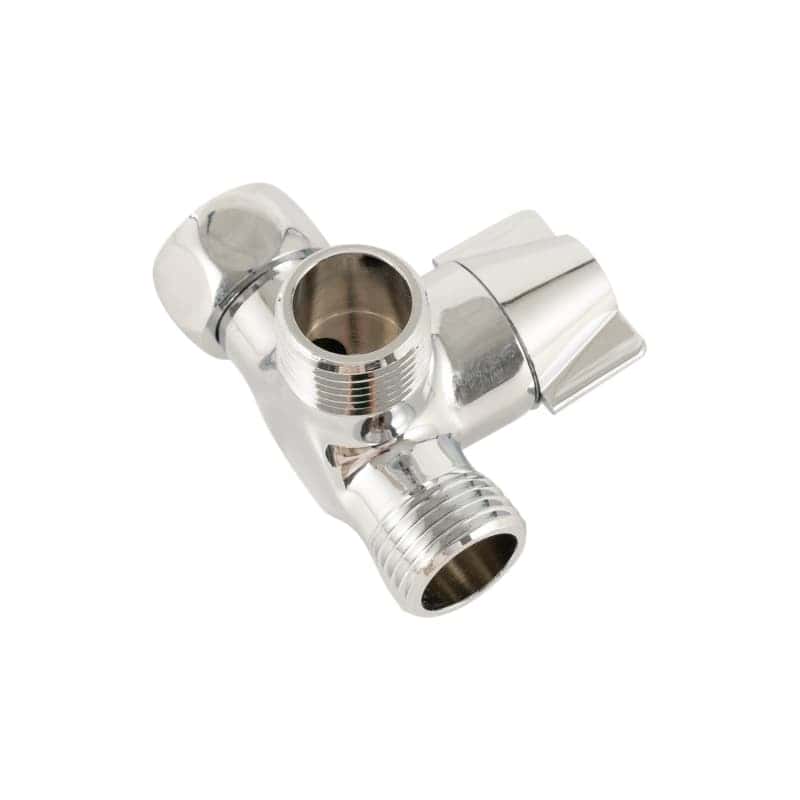

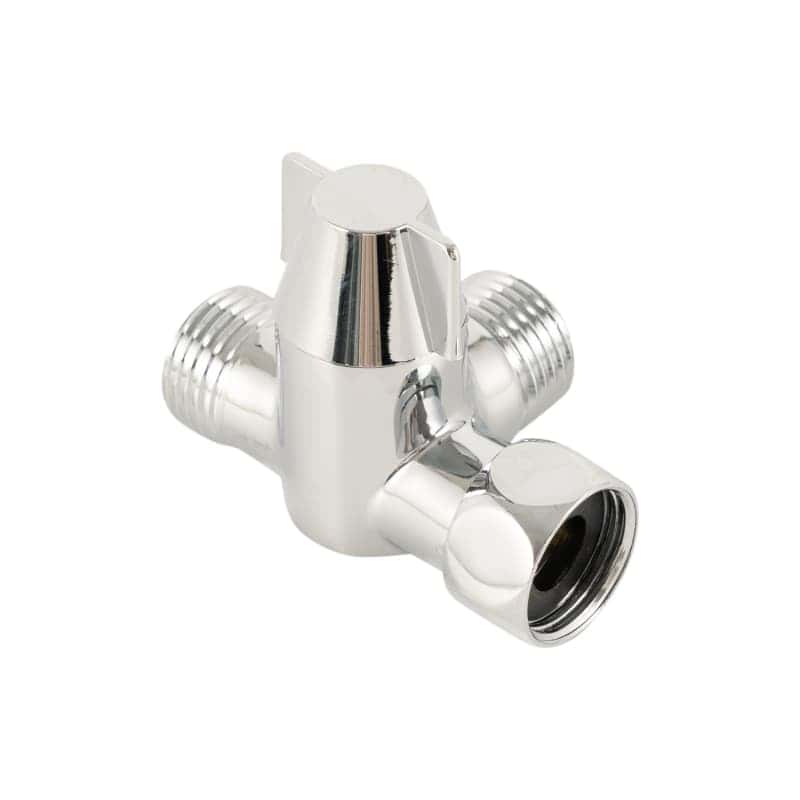

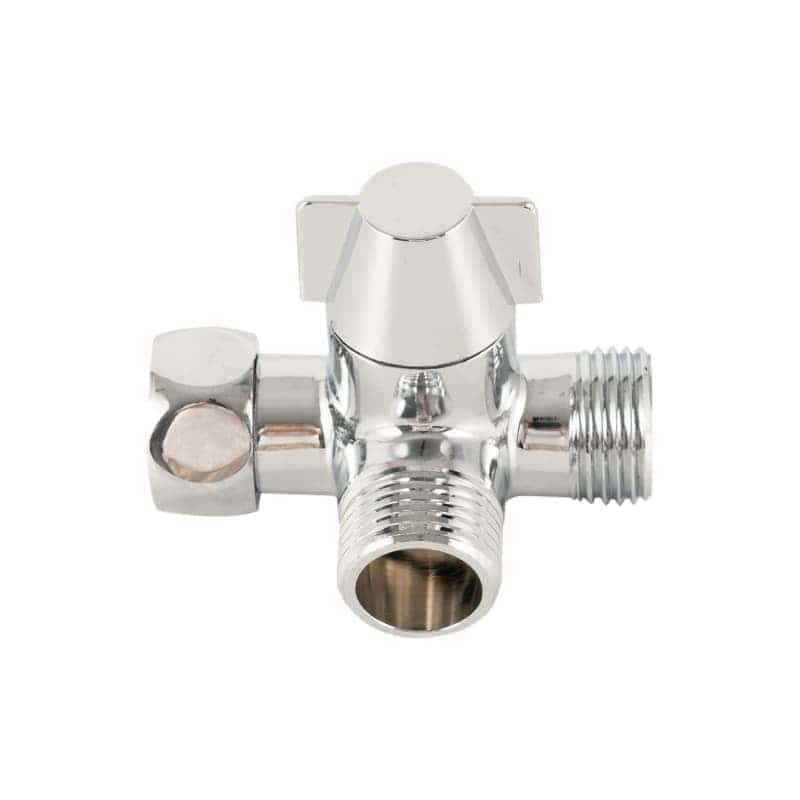

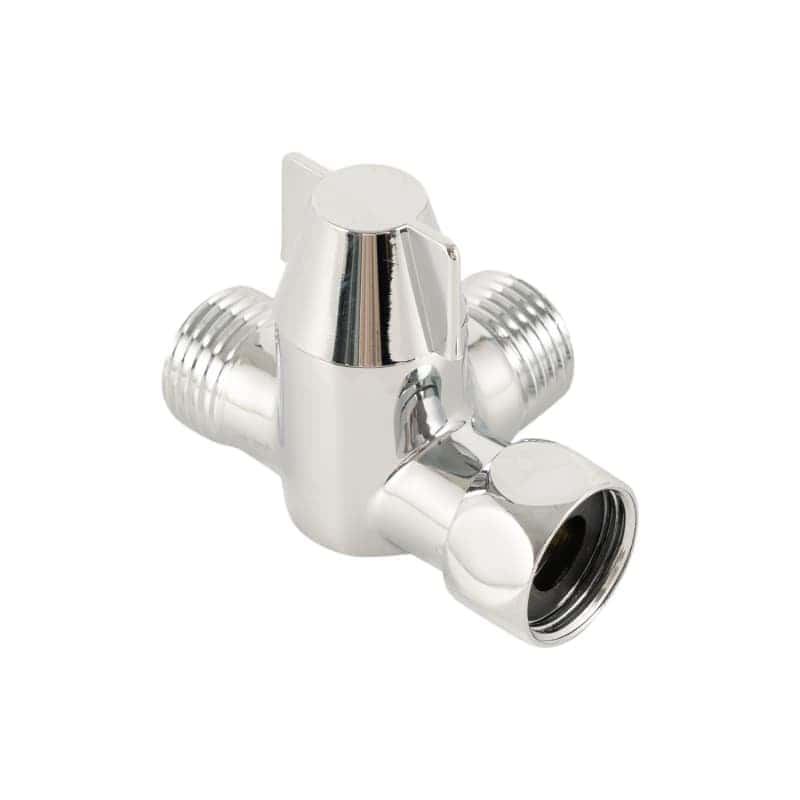

A 3-way valve has a steady flow rate that allows it to change the flow direction or mix different types of flow. Because it has three holes that can be joined to tubes to allow liquid or gas to flow, it is also known as a multiport valve. Three-way valves have four holes: two inlets, one outlet, and two outlets. This is up to the program that links to it.
Model No: JX-0220
Zinc alloy handle angle valve
Size: 3/4″ X1/2″,1/2″ X 1/2″
Body Material: Brass, CW511L
Brass Diverter Valve Faucet Adapter with Aerator for Dishwasher and Garden Hose

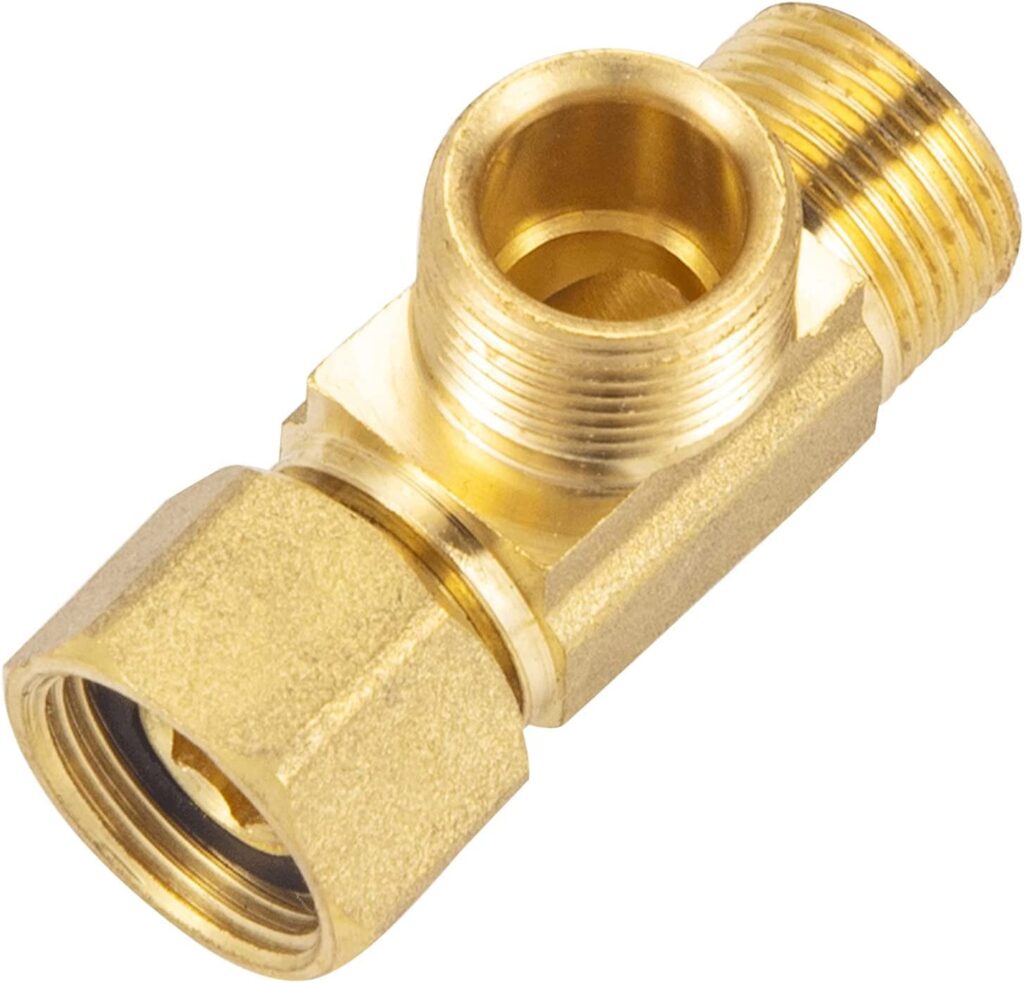

Water shut-off valves are a crucial component of any plumbing system. The water supply to your home fixture or appliance has been turned off. This is necessary when making repairs or replacements to that fixture or appliance. Shut-off valves, such as those used in the event of a burst pipe, are also employed in plumbing emergencies.
Model No.: JX-0219
Angle Shut-off Valve
Size M3/8″XM3/8″XF3/8″ Union
Zinc alloy handle
Brass Body With Chrome Plated
Brass cartridge with fast-open
It’s with 36 hours of salt spray testing
Brass body with high-standard CP
3 million times open-off working is guaranteed
Thread connection Std: (G, Rc, RP), NPT
Max work temperature: -10-110℃
The maximum working pressure is 12 bar
Brass Angle Valve For Toilet
An angle valve is a type of quarter-turn valve often used for toilets. It consists of a handle connected to a stem attached to a disk. The disk has a hole in it through which water can flow. When the handle is turned, the branch moves the disk, opening or closing the hole. This allows water to flow into or out of the toilet bowl.
Model No.: JX-0214
Size : 3/8″ X1/2″ ,1/2″ X 1/2″
Body Material: Brass
Connection: Female Thread
Power: Manual
Media: Water
Working Pressure: 12 bar
Working Temperature: -10-100℃
Style: Handle-controlled
Surface Treatment: Chrome Plated
Function: Kitchen, Home, and Garden
Solid Brass: The valve is made of quality solid brass and electroplated polished Chrome
Quarter Turn: A quarter-turn valve means a more effortless shut-off, open, and close, and only needs to turn 1/4 way
Brass Water Shut-off Angle Valve Compression Outlet
The shut-off angel valve compression outlet vessel applications include kitchens, Homes, Gardens, and General Use. The short switch design is not visible behind the small-sized showerhead. The black appearance has luxurious temperament elements, which are convenient for use and installation
Model No: JX-0213
Size 1/2″FIP X 3/8″OD;1/2″FIP X 1/2″OD
Zinc alloy handle with chrome-plated
125 PSI cold working pressure
C37700 materials; Lead-free
It is in a plastic bag packed with each
Three million times open-off working is guaranteed
Certified to 200psi (13.79bar ) and 200°F (93 °C)
Note: Push-fit items are available for use at higher temperatures and pressures.
Ease-of-use Push-fit connection, no soldering, clamps, or glue needed
It can be used on copper tubing, CTS, CPVC, and PEX
Hi-Flow tube stiffener included for PEX tubing
Strong, corrosion-resistant, durable body made of Lead-Free brass
Certified for use in hydronic heating systems and potable water applications.
Brass Angle Stop Shut-off Turn Valve
An angle stop shut-off turn valve, also known as an angle stop valve or a shut-off valve, is a plumbing valve used to control the water flow to a faucet, toilet, shower, or other fixture. Angle stop valves are typically installed under a sink or behind a bathroom. They are operated by turning a handle attached to the valve stem.
Model No.: JX-0212
Size 1/2″FIP×3/8″OD
Zinc alloy handle
125 PSI cold working pressure
C37700 materials
A plastic bag packed with each
Three million times open-off working is guaranteed
1/2″ FIP X 3/8″ O.D 1/4 Turn Angle Stop Valve
Shut-Off Brass Angle Stop Valve for Faucets and Toilets
Shut-off Valve; 1-Piece Body Construction; 1/4-Turn ON/OFF
1/4-turn valve operation means only a quarter-turn of the handle
Suitable for water supply systems, civil construction piping systems
It can be used as a shut-off valve or water saver valve and installed between the shower arm and the shower head
to control the flow of water
Function: Kitchen, Home, Garden, and General
Style: Handle-controlled
DR Toilet Stop Angle Valve
A DR toilet stop angle valve is a type of valve used in toilets. It is designed to allow water to flow into the toilet bowl at a specific angle, which helps to prevent clogs. The DR toilet stop angle valve is an excellent option for those looking to keep their toilet from becoming clogged.
Model No: JX-0206
CW602N Angle Valve
Size;1/2″X1/2″
Body and cartridge material: DZR
Chrome-plated; ISO228/1 thread.
CW602N brass with polished and chrome-plated
3 million times open-off working is guaranteed
Approved by 48 hours of salt spray testing
Power: Manual
Media: Water
Connection End: Thread BSP
WaterMark certified
Working Pressure: 12 bar
Working Temperature: -5 ℃-+100 ℃
Function: Kitchen, Home, Toilet, Garden, and General
Style: Handle-controlled
FAQs of Brass Angle Valve 3 Way
1. What’s the MOQ for the 3-way brass angle valve?
Our MOQ is 500 pieces are available, depending on the item. We can fabricate products according to your specified requirements.
2. Is private label packaging available for 3-way brass angle valve distributors?
Plumberstar offers exclusive private label packaging customization services for distributors only.
Single item packaging: custom PE film individual wrap + color box. You can print the customer LOGO, brand name, model, pressure/temperature parameters, installation instructions, and certification logos on the box. The color box material has options: 350g white card, matte film, or glossy film. It’s suitable for cross-border transportation and terminal retail.
Inner and outer box packaging: custom thickened five-layer corrugated boxes. Print customer brand marks, batch numbers, specification details, and fragile/moisture-proof labels on the box surface.
3. How to get a quote for the 3-way brass angle valve?
Please submit the form at the bottom of the page or send an email directly to “ info@plumberstar.com”. Our WhatsApp: +86 15968648802. Could you please provide us with your pressure requirements, size, packaging, and quantity, if available?
4. What is the purpose of a 3-way brass angle valve?
Its core purpose is to divert, converge, or switch the flow direction of the medium in the pipeline system. It also has the functions of shut-off and flow adjustment.
This angle valve has a 90° angle structure and a three-way design. It’s especially suitable for pipeline connections in narrow spaces. Like concealed wall installation and under-cabinet setups. It can reduce the use of elbows, lower pipeline resistance, and leakage risk. It also simplifies the installation process.
It works well in scenarios that need multi-channel fluid control. Such as water heating, gas supply, and industrial systems.
5. What precautions should be taken when installing a 3-way brass angle valve?
Before installation, make sure that pipeline pressure is consistent with the rated working pressure of a valve. Valve interface insertion depth shall be to the full depth of a pipeline, and PTFE tape or sealant should be applied to reinforce tightness. Installation must be in accordance with fluid flow marking on the valve body, with a torque wrench used for tightening. Over-tightening should be avoided to prevent thread damage. It is strictly prohibited to drill or modify any part of the valve body.
6. Can inlet and outlet threads be customized for the 3-way brass angle valve?
Plumberstar Manufacturing fully supports import and export thread customization services. We can customize threads according to global standards and your needs, including:
Inch threads: BSPP, BSPT
American threads: NPT, NPSM
Metric threads: G thread, Metric thread
Customization is flexible. We can do combined customization—one inlet thread plus two different outlet threads. For example, an inlet NPT 1/2″ with two outlets: BSPP 1/2″ and G 3/8″.
7. What quality standards does the 3-way brass angle valve meet?
Plumberstar 3-way brass angle valve strictly meets EN 1213 (industrial valves general standard). It meets EN 228-1 (pipe thread connections standard). It has an ISO 9001 quality management system certification. Its craftsmanship meets the stipulated specifications.
8. Does this Angle valve have a warranty?
Yes, this three-way brass angle valve comes with a full 3-year warranty.
This warranty covers functional failure or performance issues. The problems must be directly caused by inherent material defects—like substandard brass or flawed component structure. Or by irregularities in the manufacturing process, such as insufficient thread machining accuracy, assembly errors, or failure to follow production processes.
Note that the warranty doesn’t apply to damage from human error. For example, accidental impact, improper operation, or unauthorized valve modification. It also doesn’t cover problems caused by incorrect installation. Like mismatched pipe connections, or using improper torque during installation. Nor does it cover issues from misuse beyond the product’s intended use.
9. How to choose a reliable 3-way brass angle valve supplier?
Choose reliable brass three-way angle valve suppliers, the core is from the qualification compliance, product quality, customization and capacity, supply chain, and delivery, service system to establish screening criteria, and Plumberstar is able to meet these core requirements of quality partners
– Assess production and supply capability. Ensure the supplier can deliver the required order quantity. Ensure the supplier meets the delivery time for bulk or customized orders.
– Check product quality and customization. Request samples to inspect quality (material thickness, thread precision, sealing performance). Confirm support for customization (special size, pressure rating, packaging).
– Assess after-sales service. Warranty policies must be clearly explained. Quality issues must be handled efficiently. Replacements or repairs are available within the warranty period.
– Reference customer reviews. Learn about the supplier’s industry reputation. Learn about customer feedback. Learn about cooperation cases in your field.
