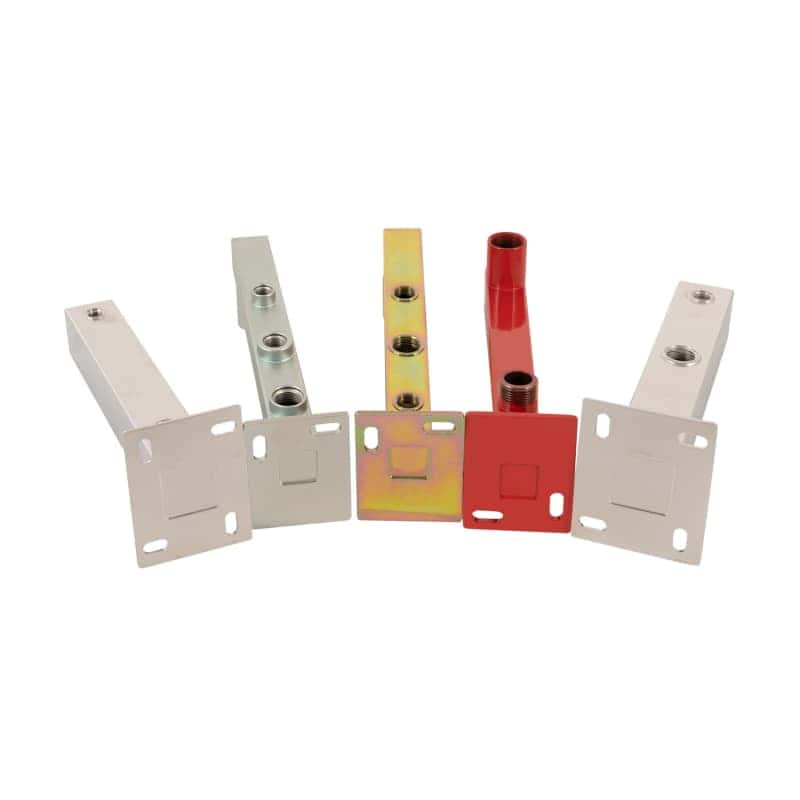

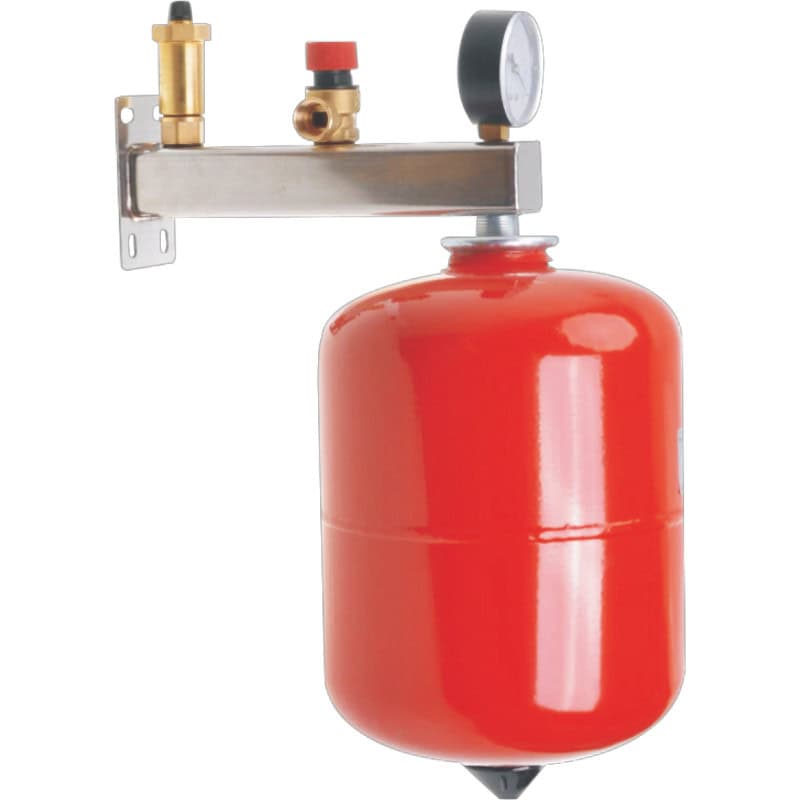

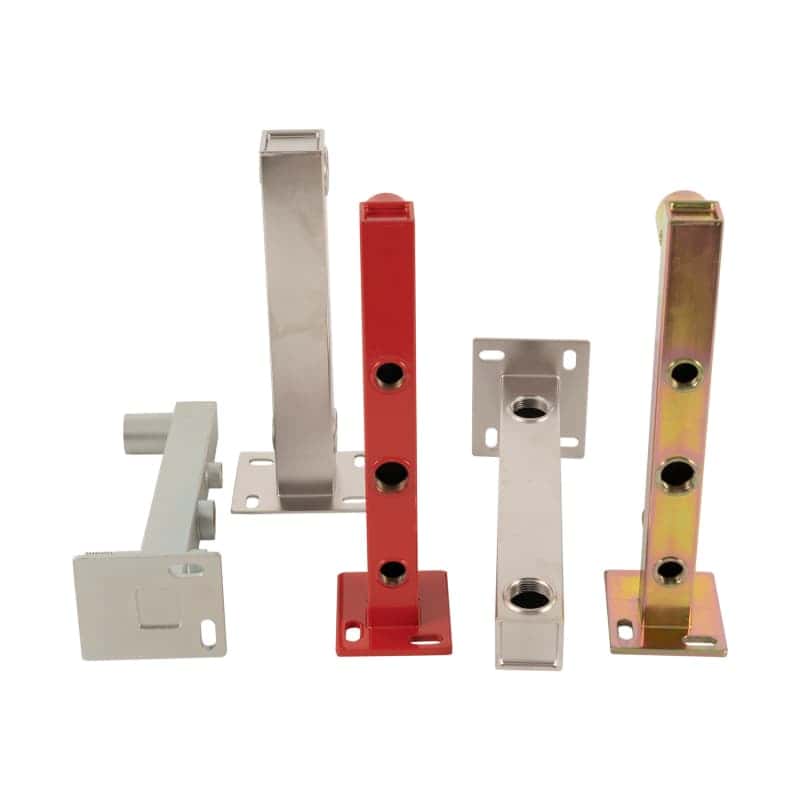

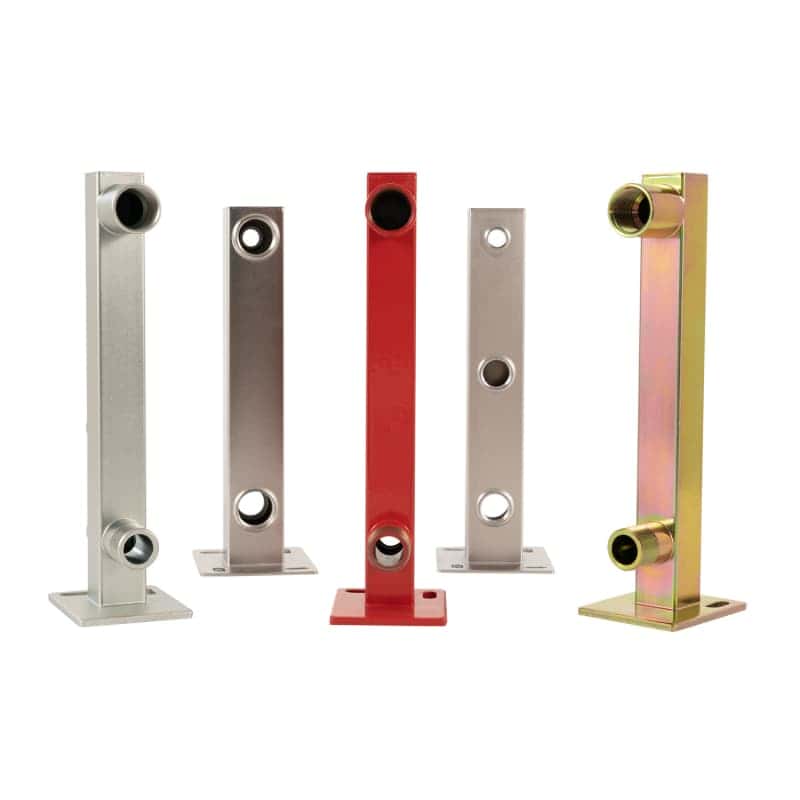

This Boiler Safety Connection Group is an integrated safety assembly designed for small boilers and heating systems. It combines an expansion tank, pressure gauge, safety valve, and air vent into a single compact unit, all mounted on a stainless steel bracket. This all-in-one design enables the simultaneous realization of four key safety functions. Real-time pressure monitoring, overpressure relief protection, automatic air venting, and pressure buffering. helping keep boiler and heating systems running safely and steadily.
Model No.: JX-10042
Size: 3/4″
Material: Stainless steel 304/Iron
Max working pressure: 8 bar
Max working temperature: 110 °C
With a 3/8″ female threaded interface
Rated power: 50kw
EPDM diaphragm
Used for heating and drinking water systems
Available in two finish options: natural (uncoated) or red epoxy paint

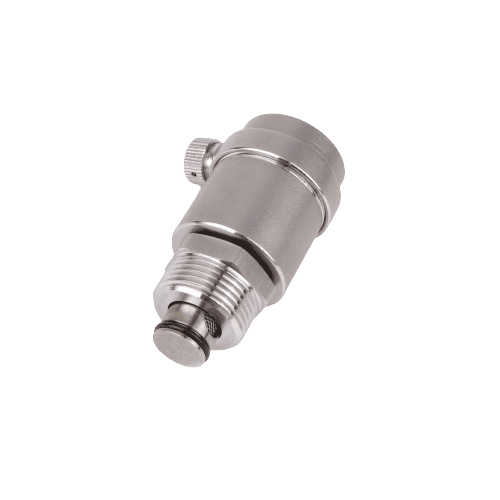

This 304 stainless steel air vent valve is an automatic air release component. It’s made for fluid piping systems. It works with a float-driven mechanism. When air builds up in the pipeline, the float drops. The air release port opens automatically to release the trapped gas. Once all the air is gone, the float rises. It seals the port tightly to stop water leakage. A built-in manual knob also allows manual opening of the air release port, enhancing system maintenance or manual venting flexibility.
Model No.: JX-0834
Size: 1/2″-1″
Material: Stainless steel 304
Finishing: Original
Applicable Pressure: Max 10kgf/cm2
Max temperature: 110°C
Suitable fluid: cold/hot water
Connection: BSP, NPT
Structure: Regulating
With a 1-year warranty
Air Admittance Valve
This air admittance valve is a pressure-balancing part for indoor drain systems. When draining, it automatically lets air into the pipe to balance the inner pressure. This prevents the water seal from being damaged and keeps foul sewer gas from flowing back into living areas. The valve has union connections on both ends and can connect directly to PVC drain pipes. It’s ideal for use in bathrooms and kitchens.
Material: PVCu
Size: 1-1/2 inch
With an integral multifit tee
Air flow capacity of 4.5 l/s
Used to introduce air when negative pressure occurs
Must be fitted horizontally
The vent is facing directly upwards
Application: shower, kitchen sink, and bath waste pipe
Colour: White

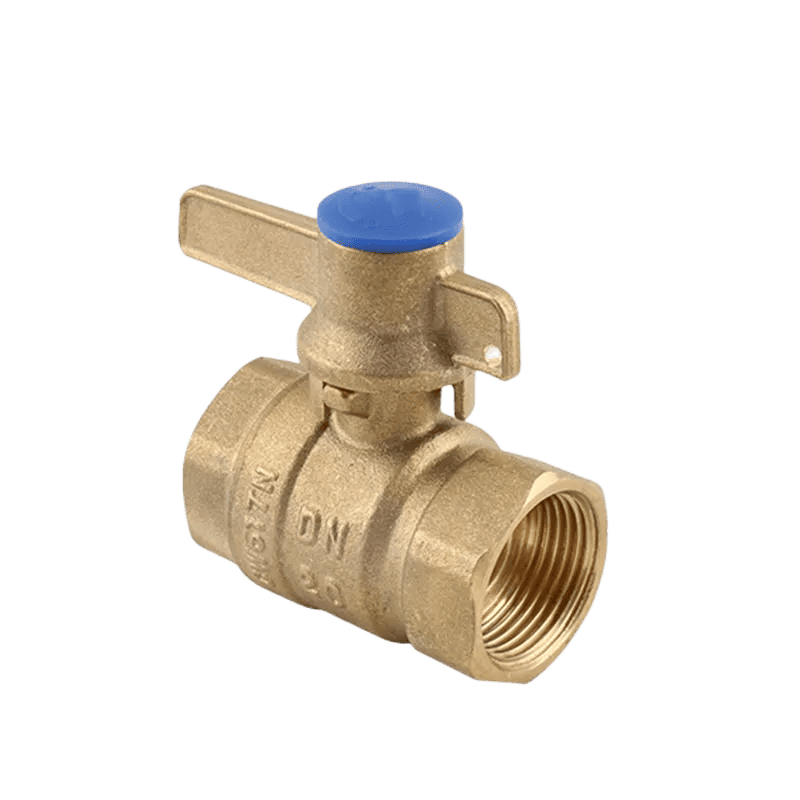

Lockable Water Meter Valve
This lockable water meter valve is made with one-piece cast construction. Its handle has a special lock hole that keeps the valve open or closed. The valve connects directly to water meters or piping systems. It’s easy to install and works with most standard water meter interfaces. It’s designed to fit on the upstream side of water meters. It’s a commonly used control valve for water supply systems in homes and commercial buildings.
Model No.: JX-0421
Material: CW617N, Lead free brass
Size: 1/2″-1″
Ball material: Brass
O-ring material: PTFE
Surface: Natural brass
Working pressure: 16bar
Connection: BSP, NPT
Accessory: Lock Key
Medium: Water
Standard: EN12165
Brass Swing Check Valve
This brass swing check valve features a straight-through, horizontal body. It’s a one-way part for fluid pipe systems, keeping flow going in just one direction. The swing valve core opens by itself when forward fluid pressure pushes it. It shuts right away if the flow reverses. This stops the media from flowing back and protects the pipe equipment to keep it running steadily. It’s a great fit for many uses: water pump discharge lines, water supply and drainage systems in high-rise buildings, and HVAC circulation systems.
Model No.: JX-0602
Size: 1/2″- 2”
Material: CW617N
Finishing: Samd-blasted
Standard: ISO 228/1
Both ends are BSP female threads
Maximum pressure: 16 bar
Operating temperature: -10 – 110°C
Applicable fluid: Water
Flow direction: Unidirectional
Garden Hose 2-Way Splitter
This garden hose 2-way splitter is a fitting for a garden water supply, used to control and split water flow. It has one inlet and two outlets. Each outlet comes with its own on-off valve. All connection ports have built-in gray non-slip washers. They boost sealing and stop water from leaking when connected to garden hoses. It’s a handy accessory for home gardening, lawn care, and all outdoor watering jobs.
Model No.: JX-0903
Size: 3/4-inch
Materials: Lead-free brass, Brass
Finishing: Sand blasted
Thread connection: NPT
Thickness: 3mm
Number of Ports: 2
O-ring gasket material: PTFE
Standard: ASME
With a 2-year warranty
3-Way Shower Arm Diverter Valve
This 3-Way Shower Arm Diverter Valve is a flow control fitting for bathroom shower systems. It’s great for upgrading your existing shower to get a multi-mode water flow. It has a knob on top that smoothly switches between overhead shower, hand shower, and dual spray. It fits all kinds of shower habits and needs perfectly. The valve installs directly between the shower arm and the wall supply port. No complicated modifications are needed. It’s an easy upgrade for standard bathroom shower setups.
Material: ABS plastic, brass
Size: G1/2″xG1/2″xG1/2″
Finishing: Chrome-plated
Works with a handheld shower head
Style: Modern
Series: Versatile
Type: Three-way shower trap
Multi-layer chrome plating
With a 2-year warranty
FAQs of Boiler Safety Connection Group
1. What material is the boiler safety connection group’s insulation shell?
We use EPP for the protective shell material. It costs a bit more than the common EPS white foam on the market, but it has clear advantages for actual use and transportation safety. The key differences are in four main aspects:
High toughness, strong resilience EPS is brittle. It easily cracks and crumbles under pressure or impact, leading to transport damage and customer complaints. EPP has great elasticity and resilience. Even with strong impact or extrusion, it quickly bounces back to its original shape with almost no damage.
Stable performance at high temperatures EPS softens and deforms when the temperature exceeds 70 ℃. It can also age and turn brittle after long use in the high-temperature environment of a boiler room. EPP maintains its structure and insulation performance over the temperature range from -40 ℃ to 110 ℃. It’s a perfect fit for high-temperature scenarios like boiler rooms.
Better appearance and texture EPS has a rough, grainy surface, looking cheap overall. EPP has a smooth surface and dense structure, with a cleaner look and a stronger sense of quality. It’s more in line with the positioning of mid- to high-end products.
Eco-friendly and recyclable EPP is an environmentally friendly material. It’s 100% recyclable. This is a significant advantage in markets with strict environmental regulations, such as Europe and Australia.
2. How to ensure thread precision and consistency in the boiler safety connection group?
Plumberstar uses CNC lathes for thread machining. For different thread standards and specifications, such as BSP and NPT, we’ve created standardized CNC machining programs. These programs have been tested and verified many times. Operators can call them up directly. This avoids deviations and errors from manual programming.
Before each formal production run, we make a first sample. We send it to the quality control lab right away. We perform 3D full-size inspections with CMMs and profile projectors. We check all key parameters comprehensively—like pitch, tooth angle, and tooth depth. We make sure everything fully meets the design drawing requirements. Only after the first sample is confirmed qualified, we’ll start mass production.
During mass production, QA personnel with over 10 years of experience monitor quality nonstop. They conduct random inspections at a fixed frequency: for every 100 products made, they use professional thread-go/no-go gauges to check. This ensures thread accuracy and consistency across the entire batch of products.

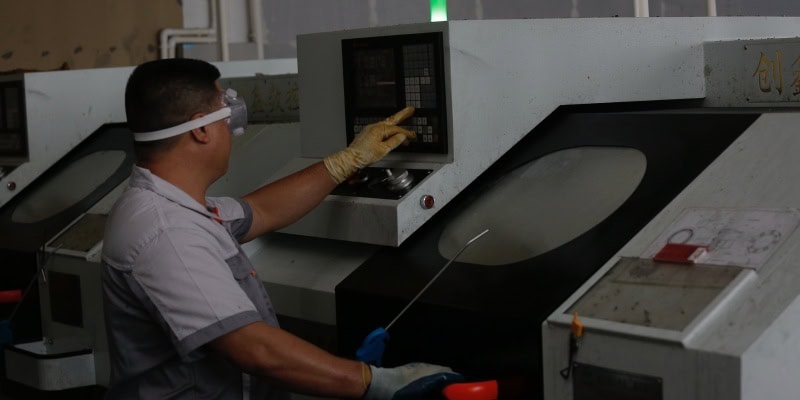

cnc operator
3. What’s your quality issue policy for the boiler safety connection group?
After receiving the goods, if the customer finds any quality problems caused by non-artificial installation or use, such as material non-conformity, size deviation, seal leakage, thread accuracy not up to standard, etc., you can feed back to us within 7 working days with the batch number of the product, corresponding quality inspection report and photos or videos of the defective product.
Our after-sales team will contact you within 24 hours to complete the initial verification.
Small-batch defective parts: After confirmation, free reissue of qualified products within 48 hours; related freight borne by us.
High-volume quality issues: The replacement process will be initiated immediately, with a team of engineers, either in person or remotely, within 72 hours to identify the cause and provide a clear, actionable solution.
4. Can the boiler safety connection group’s packaging be customized?
Of course, we support it.
We can print your brand logo, product model, batch number, and warning signs on the outer packaging and the inner protective parts as needed. Things like moisture-proof, anti-drop, this side up, and so on. You can also provide your own designed labels. They can include SKU codes, barcodes, product descriptions, and relevant certification marks.
We can also customize compliant shipping marks and product instruction labels. It’s based on the destination port’s customs clearance requirements and local regulations. We also support multilingual logo printing to meet the regulatory requirements of different export markets.
If you need it, we can put customized product manuals in the packaging. It makes terminal installation and use much easier.
5. How does the boiler safety connection group simplify wholesalers’ inventory management?
Traditional boiler safety systems usually need you to manage 3–4 separate SKUs. Things like safety valves, pressure gauges, automatic exhaust valves, and mounting brackets. This not only makes sales forecasting and warehouse planning more complicated. It also easily leads to stockouts of some accessories and overstock of others, thereby increasing overall inventory risk.
Plumberstar’s boiler safety connection group set integrates all key components into one complete, pre-assembled product. Customers only need to manage 1 SKU to offer a full set of boiler safety solutions. Compared to selling multiple accessories one by one, this way is easier to manage and better for sales. It also better reflects the value of systematic products, naturally boosting the average order value.
Besides, we can print your exclusive SKU codes and barcodes on the product packaging. After the goods are warehoused, you can scan the code to connect directly to your inventory management system, like SAP or Oracle. No extra secondary operations are needed.
6. Why should distributors choose Plumberstar’s boiler safety connection group?
All our boiler safety connection group sets undergo a 100% air-pressure test before leaving the factory. We screen out all potential defects at the factory first, ensuring no faulty products reach the market. Choose Plumberstar, and you can avoid after-sales costs and brand reputation loss caused by quality problems right from the source.
When it comes to inventory and capital management, we support modular combined stockpiling. We also handle small-batch and multi-batch shipments. This effectively cuts down inventory backlogs and speeds up capital turnover.
Every product has an inventory management barcode. You can connect it directly to your warehousing system for quick inventory counting and sorting, and lower manual management costs.
Plumberstar safety valve sets are compatible with all mainstream boiler models. We also support custom production as you need, to meet the demands of different terminal markets and projects. This helps dealers boost transaction rates and project success rates.
As a professional valve manufacturing factory, Plumberstar has 120 automated CNC machines and 6 mature production lines. We have a stable mass-delivery capacity to ensure a continuous, uninterrupted supply. Logistically, we support full container or LCL shipments. We can also provide DDP services, covering the whole process from factory delivery to your warehouse. You can save all the worry and time, and avoid terminal sales losses caused by stockouts.
7. Can we visit the boiler safety connection group production line?
Of course. Plumberstar sincerely welcomes distributors and partners to visit our production line for boiler safety connection components in person.
During the visit, you can watch the key production and testing processes up close. This includes all the full-process procedures: spectral composition testing of brass and stainless steel raw materials, precision CNC thread processing, tightness and pressure resistance testing, and batch quality inspection of finished products.
Our technical staff will also give on-site explanations. They’ll walk you through our process standards, quality control key points, and Plumberstar’s entire quality control system in detail. They’ll also answer all your questions professionally—whether it’s about product performance, quality stability, or production capacity. This helps you fully understand our manufacturing capabilities and quality assurance.
