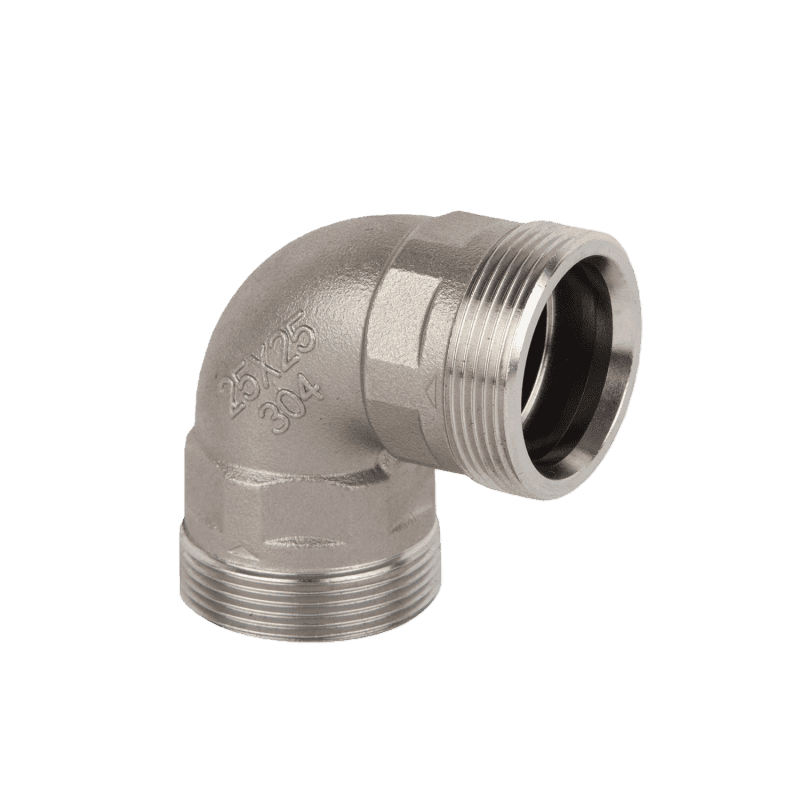

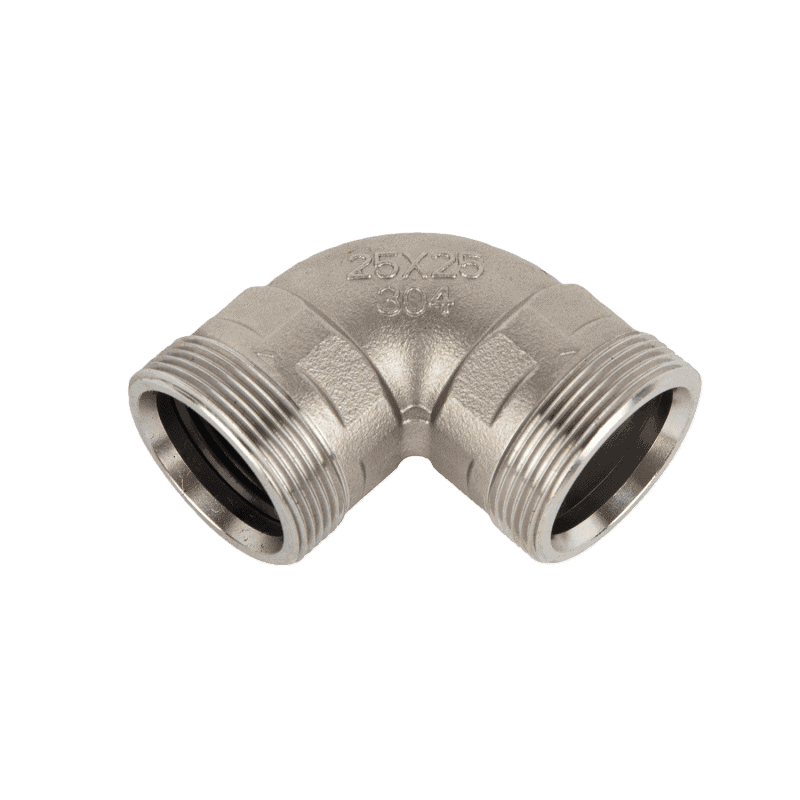

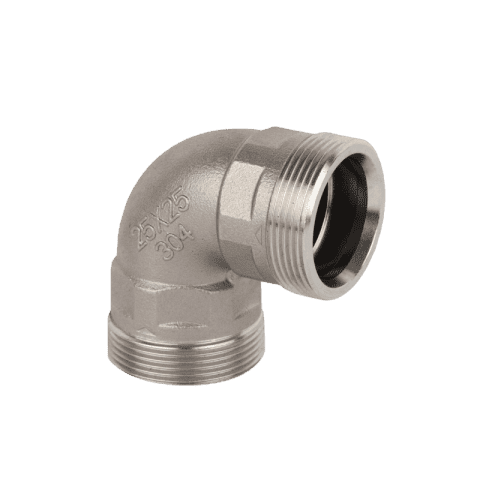

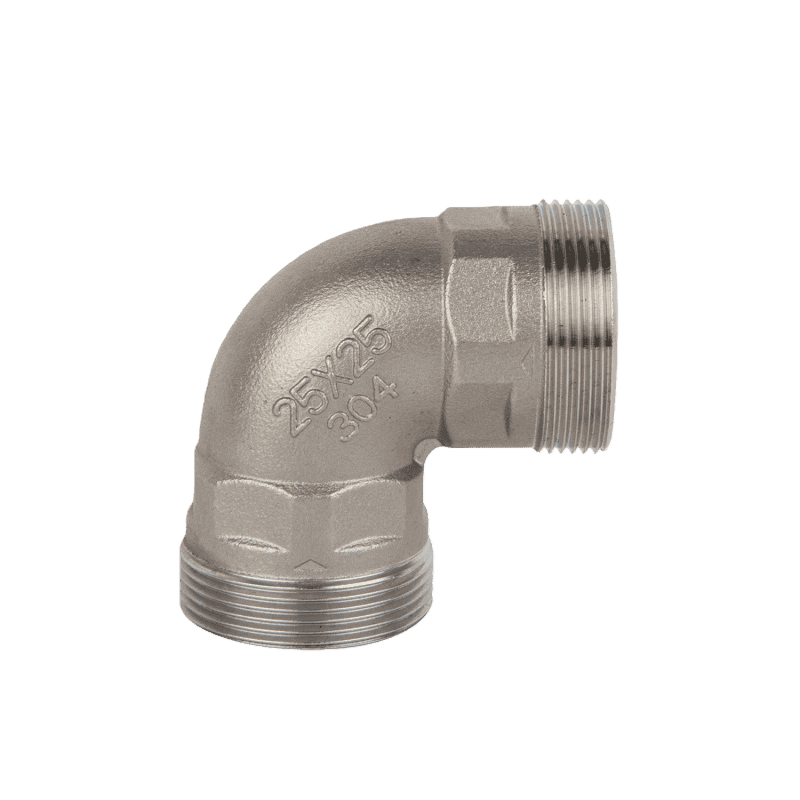

A stainless Steel Elbow is the core connection fitting used to change the direction of the pipeline in the pipeline system. Its core purpose is to accurately connect two sections of the same specification pipeline and realize a 90-degree turn. It meets the corner installation requirements in the pipeline layout. It employs welding, threading, or clamping connection methods to accommodate a range of pipe diameters. The connection is firm, and the sealing performance is excellent. Effectively prevent fluid leakage. Precision machining ensures accurate elbow angle and uniform wall thickness, which can reduce fluid resistance and ensure smooth medium transportation in the pipeline system.
Model No.: JX-10087
Size: M1/2″XM1/2″, M3/4″XM3/4″
Connector Type: Elbow
Material: Stainless steel 304
Working pressure range: 0-360psi
Working Temperature: -10-110 °C
Connection: NPT/BSP
Finishing: Sand blasted
90-degree street elbow
Use for changing the flow direction between two pipes
This 3-way shower diverter valve serves as the core accessory for switching water outlet modes in shower systems.
The bottom port connects to the main water supply. The two side ports connect to shower parts such as a hand shower and an overhead shower. A switch on the top lets the user change the water flow from one outlet to another quickly and easily. It is commonly used in home shower systems.
Model No.: JX-0980
Size: G1/2″
Material: Brass
Handle; Zinc
1/2MX1/2MX1/2 union
Ceramic spool
Used for the shower and toilet bidet
Three-way switches
Female thread for water flowing in, and male thread for water output
Surface process: Chrome Electroplating
With a T-shaped handle
1/4 turn handle turns valve, easy for on/off
Type of installation: thread
Washing Machine Shut-off Valve
This washing machine shut-off valve is made of brass and comes with a T-shaped handle. It simply controls the water supply for washing machines. The top end connects directly to household water supply pipelines. The side end is a male-threaded outlet port, which fits perfectly with washing machine inlet hoses. It is ideal for installing on the water inlet pipeline of household washing machines, and is specifically used to turn the washing machine’s water supply on and off. It is a practical accessory that helps ensure the water safety of your washing machine.
Model No.: JX-0451
Size: 1/2″
Material: CW602N, CW617N, CW511L
Handle: Zinc alloy handle
Connection: NPT/BSP
Finishing: Nickel-plated
Seal material: PTFE
Standard: BS2779，EN331
With a 1-year warranty
Working temperature: -10-120˚C
Working pressure: 125psi
90-degree for on/off
90 Degree Brass Angle Valve
This 90-degree brass angle valve has a chrome-plated body and a square shut-off handle. It is commonly used to control branch water lines in water supply and drainage systems. The bottom port connects to the main water pipe. The side port connects to fixtures such as toilets or kitchen equipment. The square handle on top turns easily to open or close the water flow. This valve is widely used in toilet and kitchen piping systems.
Model No.: JX-0215
Material: CW617, CW511L
Size: 1/2″X1/2″, 1/2″X3/8″
Handle: Zinc alloy materials
Finishing: Polished and Chrome-plated
Valve Plug: Ceramics
With a rubber “o” ring
Stem material: Brass
Seat material: NBR
Standard: CE/ISO
1/4 turn to water control
Application: Bathroom, Toilet, Kitchen
Brass Closet Spud Elbow for Bathtub Waste
It’s a special transition fitting that connects the bathtub drain outlet to the drain pipe in the bathroom’s pipeline system. It is widely used in residential bathrooms, hotel bathrooms, apartment bathrooms, and other scenes. The core purpose is to pass through a specific angle. To achieve accurate docking of the bathtub sewage outlet and wall or ground sewage pipe.
Model No.: JX-0801
Size: 1 1/2″ X 27 UNS , 1 5/8″ X 16 UN
Material: C37700, Lead-free brass
Elbow Angle: 90 degrees
Finishing: Nickel-plated, sand blasted
Working temperature: -10-120˚C
Standard: ASME
Application: Bathtub waste
Head Type: Round
Connection: NPT
Forged brass
Working pressure: 200psi
Right Angle Ball Valve
This right-angle ball valve features a brass body and a blue lever handle. Its right-angle structure is ideal for pipeline layouts requiring directional turns. With one end equipped with a male brass threaded port and the side end designed for branch pipeline connection. This ball valve is well-suited for water supply and drainage, HVAC, and other similar systems.
Model No.: JX-0424
Size: 1/2″, 3/4″, 1″
Material: CW617N, CW511L, CW602N
Finishing: Sand blasted with nickel-plated
Working temperature: -10-120˚C
Working pressure: 16bar
Connection: BSP/NPT
Handle: Steel handle with sleeve
With a PTFE seal ring
Ball/stem material: Brass
1/4 turn to on/off
Use for a hot or cold water supply
Brass Vertical Foot Check Valve
This brass vertical foot check valve features a brass body and a white plastic screen cap. It is typically installed at the bottom of pump suction pipes. The white screen cap on top features dense grilles that allow the fluid medium to pass through smoothly while filtering out impurities. Its internal check mechanism only permits one-way medium flow. When pipeline conveyance stops, the valve automatically blocks medium backflow, thus preventing equipment idling or pipeline backwater issues.
Model No.: JX-0606
Material: CW602N, CW511L, CW617N
Size: 1/2″, 3/4″
Working pressure: 1.6MPa
Medium: Water
Equipped with brass inline springs
With a plastic mesh filter
Working temperature: -15-115°C
Connection: BSP/NPT
Finishing: Sand blasted
Gasket material: NBR
FAQs of 90° Stainless Steel Elbow
1. How does the elbow deal with Water hammer impact?
From Armstrong International
To mitigate the impact of water hammer, Plumberstar employs a reinforced structural design, ensuring long-term reliability in demanding piping systems.
Plumberstar factory uses 316L stainless steel with a thickened wall, approximately 15% thicker than conventional designs, combined with a filleted inner flow channel (R ≥ 3 mm) to effectively disperse impact stress and reduce stress concentration.
Additionally, reinforcing ribs with a thickness of at least 5 mm are added at the valve body connection area, increasing the tensile strength to a minimum of 550 MPa.
The design has successfully passed 100,000 water hammer impact cycles, with pressure fluctuations ranging from 0.5 to 4.0 MPa, showing no cracks and no deformation.
It is well-suited for industrial and building piping systems with frequent pump start-stop operations.
A water hammer impact test report can be provided upon request.
2. Do you have a mini or detachable design for the elbow installation space?
We support two custom styles: compact type and split type.
Compact type size range: DN10 to DN25.It’s 20% smaller than regular elbows. Angle tolerance stays at 90°±0.5°. Wall thickness follows the SCH40 standard. Perfect for tight, narrow spaces.
Split type: The elbow is split into two separate parts. You can weld or bolt them together on site. Each part is no longer than 100mm after being taken apart. Easy to carry and install even in cramped areas.
3. How to improve the life expectancy of the elbow?
“Double Passivation” Treatment: First comes acid pickling passivation, which removes oxide scale from the surface. Then we do plasma passivation. This step forms a dense oxide film, approximately 5–8 μm thick. The result: Corrosion resistance goes up by 60%.
Valve Body Inner Wall “Self-Cleaning Flow Channel” Design. We use a bionic lotus leaf structure. The surface hydrophobic angle is greater than or equal to 110°. It won’t easily build up scale or stick to materials.
Narrow Gap Welding Technology. We use this tech for all welding work. Weld width is cut down by 30%. Stress concentration drops by 40%.Our products last 3–5 years longer than similar ones on the market.
4. How about the sea shipping and packing of the elbows?
Special Reinforced Packaging for Sea Shipping
Inner layer: Pearl cotton + anti-rust paper
Middle layer: High-strength corrugated box (5-ply, moisture-proof treated)
Outer layer: Plywood wooden box (meets ISPM 15 standard). Filled with buffer foam (density ≥30kg/m³)
Each box comes with a humidity indicator card and anti-collision strips. It can pass a 6-meter drop test without damage.
For bulk orders, we provide marine insurance. The transportation damage rate is ≤0.05% — way lower than the industry average of 1%.
5. Can a total solution for piping systems be provided for the elbow?
Yes, we support full solution delivery.
We provide a complete set of elbows, pipes, flanges, and seals. All based on your pipeline drawings. This way, no model mismatch issues will happen.
We give optimization tips for your pipeline layout. Like adjusting elbow angles or optimizing spacing. It helps cut down fluid resistance and installation costs.
We send engineers to the site. They guide on-site installation and pressure tests. This ensures the whole system runs efficiently.
The main body is made of 304/316/316L stainless steel, which strictly complies with ASTM A403/A403M and GB/T 12459 standards:
304: chromium 18.0%-20.0%, nickel 8.0%-12.0%, carbon ≤0.08%, suitable for ordinary drinking water, air transmission pipeline system
316: Add 2.0%-3.0% molybdenum based on 304, increase the seawater corrosion resistance by 50%, suitable for coastal buildings and ship drainage systems
316L: Carbon content reduced to ≤0.03%, no heat treatment after welding can resist intergranular corrosion, suitable for chemical pipeline, food equipment welding installation
Each batch comes with a material spectrum analysis report (MTC), which supports SGS/BV third-party component detection. Products with excessive component deviation will be returned unconditionally.
7. Can you customize 90° elbows with special angles?
Support special angle customization (adjustable within the range of 80°-100°), the process adopts CNC bending + hot pressing, and the angle accuracy is controlled to the customized value ±0.5°; the inner channel is smoothly designed according to the customized angle to avoid the increase of fluid resistance; the angle value, diameter, wall thickness and pressure grade shall be specified for customization; MOQ 1000 pieces, the production cycle is 12-15 working days, and the angle detection report can be provided to ensure that it is suitable for special installation scenarios.
8. Whether to support “customized wall thickness” for the 90° stainless steel elbow？
Support “precise wall thickness customization”: according to the actual working pressure of customers (e.g. 1.2MPa), calculate the minimum safe wall thickness (such as DN50 minimum wall thickness 3.5mm), do not need to purchase according to SCH40 (5.0mm) or SCH80 (6.5mm) fixed standard, can save raw material cost 15%-25%; wall thickness range 2.0mm-20mm (diameter DN10-DN500), tolerance ≤±0.1mm, provide wall thickness calculation book and pressure verification report, ensure safety compliance.
9. How do you support long-term distributors of the 90 ° stainless steel elbow?
Tiered Pricing & Rebate Program to Safeguard Dealer Profit Margins
We offer tiered annual pricing for long-term partners. The more you order, the lower your unit cost. Place a single order of 5,000 units or more. You’ll receive our factory base price.
We also have an annual sales rebate system. The rebate rate is determined by your total annual purchase volume. You can get a 2%–5% cash rebate. Or you can choose equivalent product rewards. What’s more, dealers who tap into new markets get extra benefits. Markets like Southeast Asia and the Middle East count. We’ll give you extra market development subsidies. It helps you boost profitability even more.
Dedicated Inventory & Flexible Supply to Ease Dealer Pressures
For our core long-term dealers, we set up dedicated safety stock. We use your historical sales data as a guide. We keep commonly used stainless steel 90° elbows in stock. That includes DN15, DN2.0, and DN25 models. Stock levels are enough to cover your 30-day sales needs. Once you place an order, we can ship it out within 72 hours. You don’t have to tie up big sums of capital in inventory.
We also support flexible restocking and LCL (less-than-container-load) shipping. Small-batch restocks have no minimum order quantity. You can also mix stainless steel 90° elbows with other plumbing parts. Things like tees, connectors, and valves all work. Combine them for LCL shipping. This cuts down your logistics costs. It also speeds up your restocking process.
