A Comprehensive Guide About Well Pump Check Valves – Installation and Uses

In this blog post, you’ll read:Check valves prevent backflow in plumbing and gas systems, essential for well pump frameworks. They allow water to flow in one direction and stop reverse flow, protecting the system. Installing multiple check valves in well pumps enhances efficiency and longevity, reducing risks like reverse spin, upthrust, and water hammer. Proper selection and placement ensure optimal performance and safeguard against damage.
Table of Contents

A check valve is a water valve that prevents discharge. They are self-impelling and are essential in safeguarding plumbing and gas frameworks. Check valves are utilized in different ventures, including oil and gas and assembling. These valves are readily available at every type of valve wholesaler. If you want to know more about check valves, click here!

In this article, we will take a little deeper tour of well pump check valves. We want to help our readers understand well pump check valves. You also learn to use them in a well’s pipes well work here.

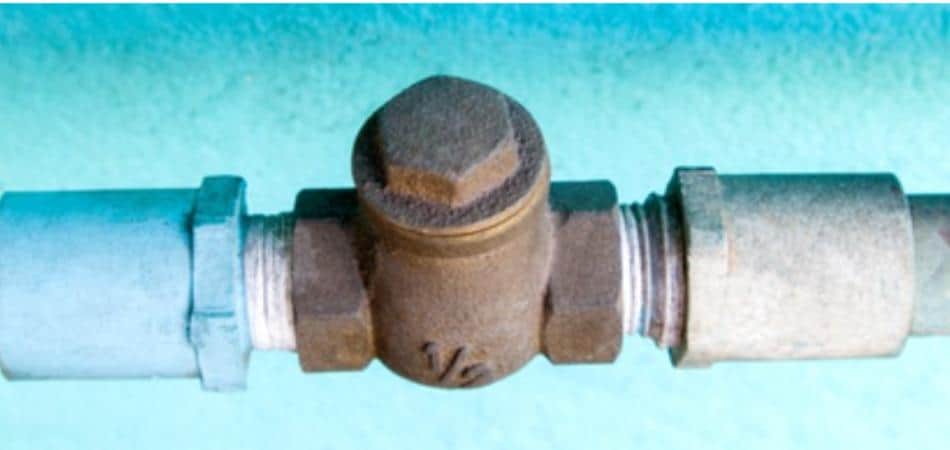

well pump check valve with brass
well pump check valve with brass

What are Well Pump Check Valves?

Check valves are a fundamental part of well pump plumbing frameworks. They prevent water from streaming once more into the well when the siphon switches off. This safeguards the framework from different issues.

The Well Pump Check valves are the least complex directional control valves. They can permit the flow to move in one bearing and keep the stream from moving the other way. A well pump check valve opens when media moves through it and closes when the media quits streaming or if the reverse happens. Whether a well’s pipe fwell’srk needs one or various check valves depends upon the profundity of the well.

What types of Check Valves are used in Well Plumbing Systems?

Spring-loaded, stem, or cage poppet-style check valves should be utilized with sub-pumps. These are intended to close rapidly as the water stream stops and starts to move in a converse bearing. Swing-type check valves should not be utilized. When the pump stops, there is an abrupt change in the speed of the water stream.

Spring-Loaded Check Valve as Well Pump Check Valve

The spring-loaded check valve is the most suitable valve for a well pump pipes framework. This valve has a spring connected to an obstructive component. Albeit the spring is feeble, it can hold the component with the valve seat.

For the streaming power, the obstructive component conflicts with the spring and presses it to move in reverse. Accordingly, the valve seats open and permit it to stream. After the power stops, the spring kicks the component more than once to seal the seats. In this manner, it prevents all that attempts to return.

At the point when the siphon works, the tension of the water streaming into the valve opens it. When the pump stops, the spring and reverse tension close the valve rapidly. This fast conclusion is fundamental for lessening the water hammer in the framework.

How to Install Well Pump Check Valves?

Numerous assets are involved in installing well pump check valves inside the water well industry. One inquiry that frequently starts banter is the installation of one check valve versus different check valves for a well pump.

Here’s one interstation of it. In a well plumbing siphon, check valves are essential components. They prevent water from streaming lower in the line and returning into the well when the siphon is switched off.

To lessen the drawn-out dangers and harm to a siphon, it is essential to introduce various check valves. Instead of only one check valve in submersible siphon systems, multiple valves work effectively.

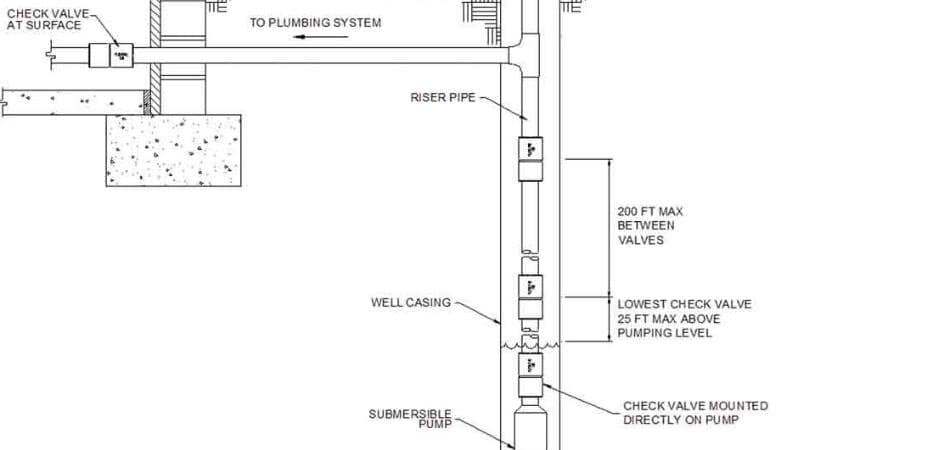

working constructure in well
working constructure in well

Proper Placement of Well Pump Check Valves for Effective Working

Most top-notch submersible siphons will have a check valve worked in from the producer at the release. This check valve will be the primary check valve introduced. Usually, any pipe fitting manufacturer uses this primary check valve in the well-pumping framework.

The second check valve should be set over the siphon and 25 feet over the water siphoning level in a well. That’s what that’ll guarantee, assuming the check valve at the siphon falls flat. And the second check valve in the framework will hold the vacuum underneath it.

Installation of Multiple Check Valves

Over this underlying valve, check valves should be set each 200 feet in the drop pipe as good profundity allows. Outside the opening, we need an unexpected check valve over the ground. This is usually situated close to the tension tank.

For instance, we should look at a 750-foot-profound well with the water level at 700 feet. The circumstance requires the introduction of a sum of five or six well pump check valves. The framework will have a check valve at the siphon release and one more at 675 feet down.

Three more check valves should be introduced during the installation of these valves. Each has a depth of 200 feet on the drop pipe underground, putting them at 475 feet, 275 feet, and 75 feet down. If essential, the 6th and last well pump check valve is situated at the surface.

The ideal suggested installation area for the primary check valve is one line length over the well pump. A valve in this position will depend upon the laminar stream. And so disengage from the extremely fierce circumstances close to the siphon release.

  • For the best life in most check valves, pipe flow velocity or stream speed shouldn’t sursshouldn’t sursshouldn’te the hydrodynamics of the whole framework. In addition to the well pump’s tensioppump’sntensiopump’sing out, which check valve should be introduced.
  • Guarantee that the check valve has no deformities and that its spring-loaded poppet can move unreservedly.
  • The bolt of the valve’s valve covers the planned stream course when the siphon works.

Another point must be noted! A typical issue in well siphon frameworks is the tension tank losing strain. While the siphon isn’t won’t, tension misfortune can cost a lot of additional cash. And the deficiency of tension makes the siphon cycle more habitual, which requests more influence. Thus, it means quite a bit to determine whether a flawed check valve explains this misfortune.


check valve applications
Check valve applications

Reasons for Using Many Well Pump Check Valves

There is a wide range of well pump check valves to consider regarding stream and most extraordinary framework pressures. Material, size, and development all have a considerable effect on execution. These are essential to consider for a prolonged, complex, situation-free activity.

All notable water valve manufacturers suggest the installation of many check valves in water well frameworks. So, recognizing the situation of checks at various stages along the drop pipe is the ideal way to safeguard their item. Installing many check valves also increases the life span of the well pump.

Significant Uses of Well Pump Check Valves

When a siphon framework differs from what is expected, there are many possible issues and concerns. Without a well pump check valve, the framework has a more limited life expectancy. And extraordinary expenses and support costs in the long haul.

Many well pump check valves likewise give a smooth application. The following are a couple of conditions that various sub-check valves help to keep up with and control.

Reverse Spin/ Back Flow of Water

Reverse spin or backflow happens when water streams reverse through the siphon. This causes the siphon impellors to turn in the Converse heading from the expected flow. If the siphon betrays while turning in reverse, it will put a considerable measure of force on the siphon assembly. The tension on the siphon might cause the shaft to break or cause serious harm to the engine push bearing.


Upthrust happens when the siphon turns on in a low head condition, which causes an elevating activity on the impeller shaft gathering. Rehashed up-push in a framework can bring about untimely wear and siphon disappointment.

Water hammer

Water pumped and coursing through a funneling framework has a specific measure of energy (weight x speed). Assuming the siphoning is halted, the water moves and its excess energy should be caught up somehow.

This ingestion of energy can sometimes cause unwanted clamor and extra harm. This is called a water hammer. Water mallets can annihilate channeling frameworks, valves, and related gear. The water hammer shifts in power contingent upon the speed with which the water is voyaging when the siphon closes down.

The installer needs to acknowledge the water hammer potential. They should consider this while measuring and concluding what material the valves should be produced using.

design of well foot valve
design of well foot valve

How to Choose the Right Well Pump Check Valve?

Many variables should be considered when picking a well pump check valve. For instance, a few enterprises need a valve that considers rough liquids’liquids’uprogliquids’same time; others need a valve that doesn’t doesn’toesn’t-Doesn’t-essentials to consider are:

  • Size of line
  • Pressure power
  • Least satisfactory spillage rate
  • The direction of the valve (for example, vertical or level)

Aside from these variables, it would be best if you calculated your CV. The check valves are determined by the valve flow coefficient (Cv). The higher the Cv, the higher the tension expected to open the valve entryways.

Thus, if a higher Cv valve is utilized for a low-pressure application, the valve entryways would open somewhat. Subsequently, there will be an expansion in liquid stream opposition and tension drop. A higher CV will likewise build the possibility of valve flutter. In this process, the expanding part wears and, in the end, fails the part.

A Conclusive Approach

A routinely worked-well pump needs to remain prepared. That implies that when it’s notit’sning, it should typically have the option to turn it on and be capable. Most well pumps need water inside the siphon and funneling to work. Without a check valve, water would stream out of the siphon and back into the well when it stop.

The well pump check valves are the simplest directional control valves. They can permit the flow to move in one bearing and keep the stream from moving the other way. A check valve opens when media moves through it and closes when the media quits streaming or if the reverse happens.

While working on submersible applications, recruiting and working with experienced workers in the business is basic. It is critical to look for data and investigate as needed. It would be best to ask the professionals about the well pump check valve arrangement.

General FAQs

Does a well siphon system require a check valve?

In any event, a well siphon needs a foot valve (an exceptional sort of check valve) that sits in the water inside the well. You can get this valve from a foot valve manufacturer. A check valve prevents water from streaming once more into the well, which keeps the siphon prepared and the tension tank compressed.

Why check valves are utilized in siphons?

Check valves are works in many places in the plumbing system. For instance, they are often put on the power source side of a siphon to shield the siphon from the reverse. Divergent siphons, the most widely recognized kind of water siphons, are not self-preparing, and in this way, check valves are fundamental for keeping water in the lines.

What is the essential capability of a well pump check valve?

A check valve, which functions to avoid water flow back, is likewise called a one-way valve, and is a gadget that permits the progression of liquids to move just in one heading. The essential role of a check valve is to forestall reverse in the framework. Check valves are modest, successful, and simple answers for an expected issue.

Does a check valve diminish the water hammer?

As the check valve opens, the additional liquid travels through the line, diminishing the tension beneath the breaking pressure. The most common way of shutting happens when the strain is underneath the breaking pressure, bringing about a valve closure.
