Inline Spring Loaded Check Valve

Parameters of Inline Spring Loaded Check Valve

Check valves are designed to permit water to flow in one direction and are a requirement on all submersible pump installations.

Additional information

Materials:

C37700, H58-3, Lead-free brass

Finising:

Sand blasted

Size:

1/2"-2"

Temperature:

-15˚C-115˚C

Thread connection

BSP, NPT

Working pressure

200PSI

Spring:

Stainless steel

Core stem

Brass insert, Plastic insert

MOQ:

2000pcs

Warranty:

24 months

Details about Inline Spring Loaded Check Valve

Inline Spring Loaded Check Valve

JX-0614

  • Inline Spring Loaded Check Valve with Backflow Prevention
  • FIP Connections
  • Size 1/2″-3″
  • Materials; H58-3 brass,C36000
  •  1-1/4″ Check Valves effectively maintain system pressure by preventing reverse flow.
  • Protect pumps and compressor equipment from damage caused by backflow / reverse flow.
  • Check valves are very effective in preventing water hammer.
  • With wide adaptability, this Check Valve works with ALL brands of pumps. Note the pipe size.
  • Both horizontally and vertically. Stainless Steel Spring and Fasteners.
  • Spring-loaded poppet and O-ring assures reliable operation. Max Pressure: 200 PSI. Max Temperature: 180 F (80 C).
    Abrasion-resistant O-Ring is precision fitted to the poppet for a positive seal into a tapered self-cleaning valve seat.
  • The spring check valve will help minimize the effects of the water hammer.
  • Heavy Duty Cast Brass Body And Disc; Dezincification Resistant; Corrosion Resistant; Lead-Free

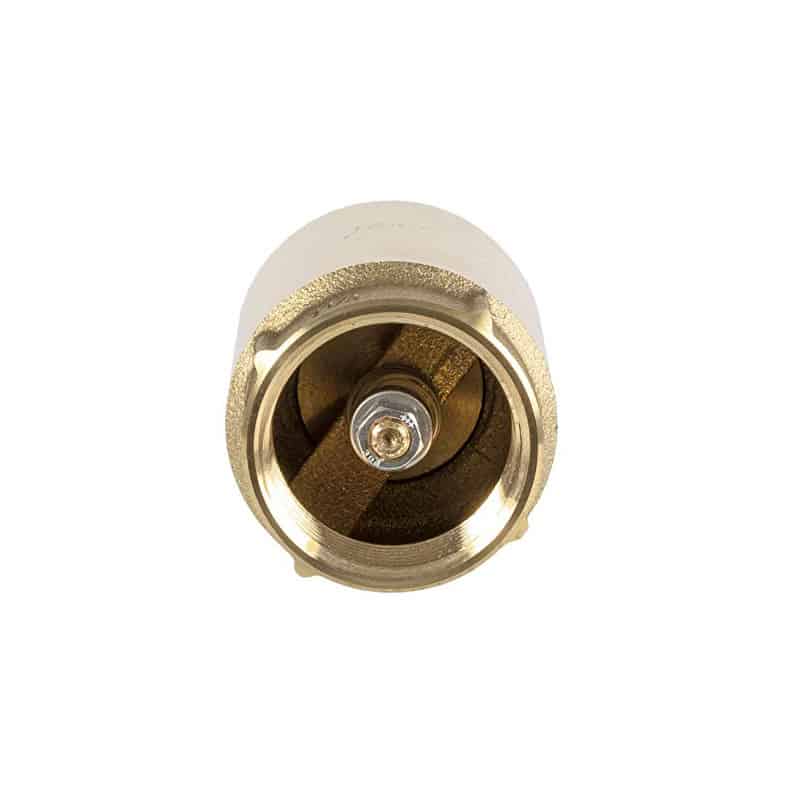

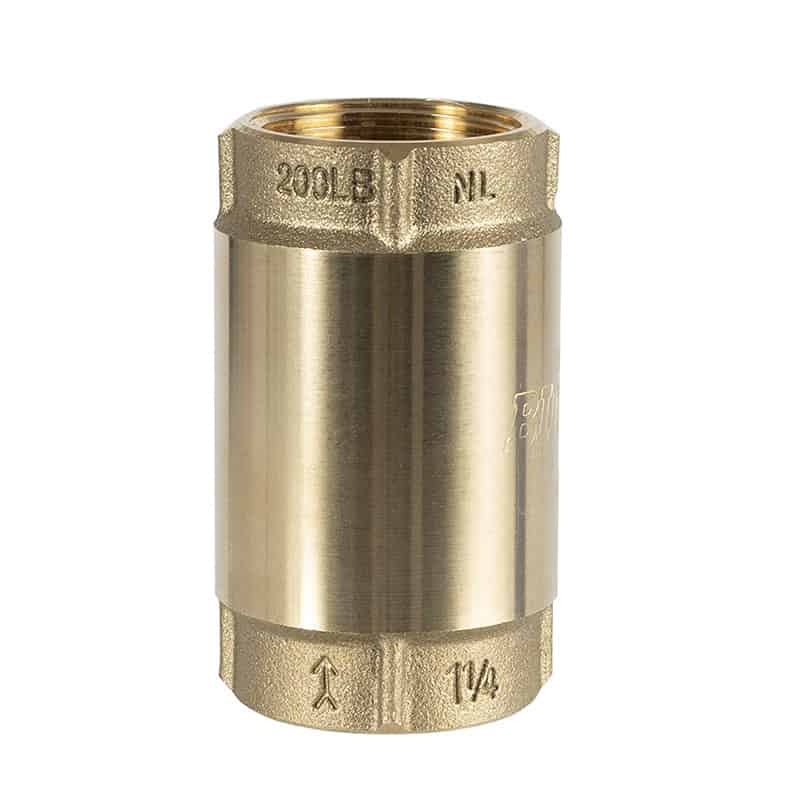

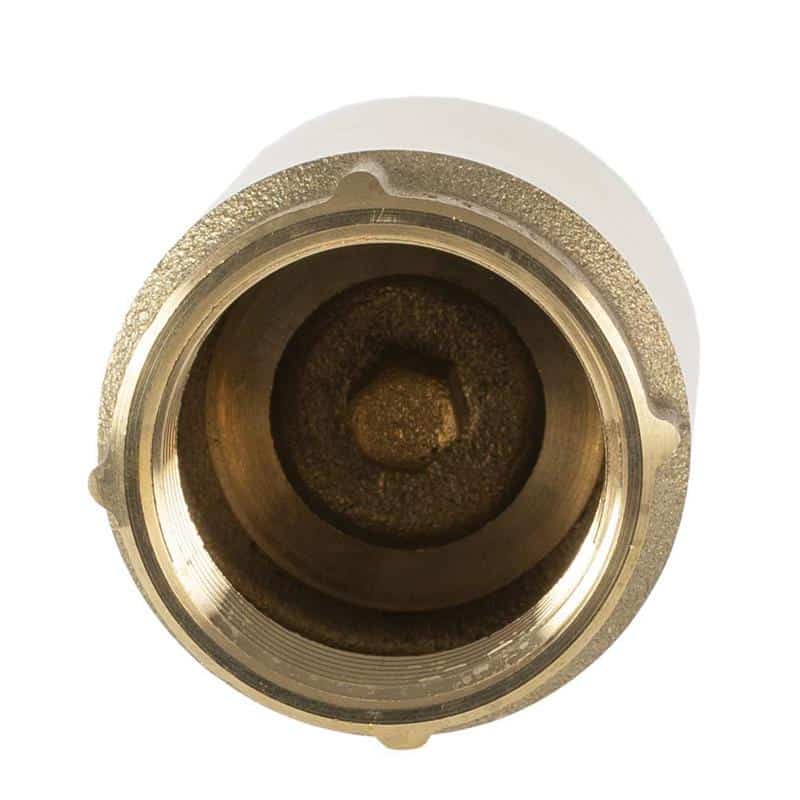

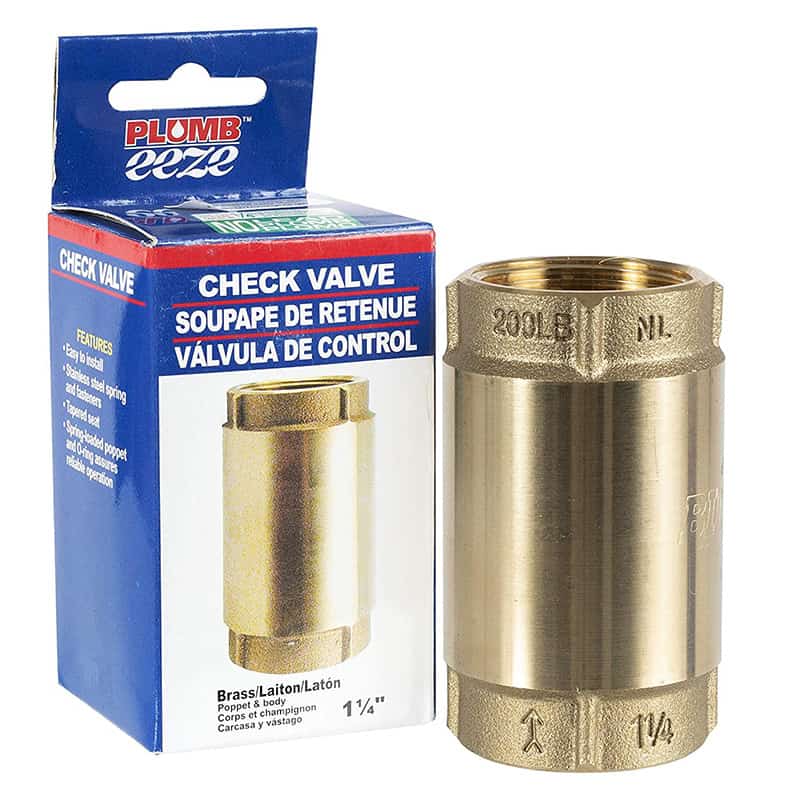

inline spring loaded check valve
inline spring loaded check valve
inline spring loaded check valve
inline spring loaded check valve

Inline Spring Loaded Check Valve with Backflow Prevention FIP Connections

This brass inline check valve is spring-loaded and prevents backflow. The valve has FIP connections and is designed for potable water systems. It is made of brass for corrosion resistance and has a maximum working pressure of 125 psi. The valve has a 3/4 inch female NPT connection and is ideal for irrigation systems, landscape lighting, and other applications that require backflow prevention.

Check the valve’s design:

A check valve allows fluid (gas or liquid) to flow in one direction but prevents it from flowing back in the opposite direction. Check valves are used to avoid the backflow of fluids into a system. There are many different check valves, but all share the same purpose: to allow fluid to flow in one direction and prevent it from flowing back in the opposite direction.

Spring check valve and swing check valve operation:

Spring and swing check valves are two different types of valves used to prevent the backflow of fluid in a piping system. The spring check valve is a type of valve that uses a spring to keep the valve closed until there is a pressure differential between the inlet and outlet of the valve. The swing check valve is a type of valve that uses a swinging arm to keep the valve closed until there is a pressure differential between the inlet and outlet of the valve.

Non-return check valve Applications:

A non-return check valve is designed to permit fluid flow in one direction and prevent fluid flow in the opposite direction. Its primary purpose is to prevent backflow, which could cause contamination or damage to the system. Non-return check valves are used in various applications, including water, HVAC, and fuel systems.

Specifications of brass check valve

A brass check valve is a type of valve that prevents the reverse flow of fluid in a piping system. The device has two ports, one in and one out, with a disc-shaped flap mounted in the center. When the fluid flows in the direction of the arrow on the valve, the flap is pushed aside, allowing it to flow through. If reversed, the pressure of the fluid against the flap will close it and prevent backflow. Brass check valves are available in both threaded and flanged end connections.

Brass check valve’s Conclusion

A brass check valve is a type of valve that allows fluid to flow in one direction and prevents it from flowing in the opposite direction. The valve is made from brass, making it strong and resistant to corrosion. It has a disk-type seat that closes off the flow of fluid when the pressure is released. This type of valve is often used in water, gas, and oil systems.
