What is a Differential Pressure Manometer? A Comprehensive Guide on Different Types of Manometers.

In this blog post, you’ll read:Manometers are devices that record pressure and its changes within a system. These devices are essential in industries that deal with the force of fluids. They provide users with a quantitative measure of pressure. It can be significant to control various reactions and processes going on. Differential pressure manometers are one such efficient type of manometers. Here are the different types of manometers and their differences.
Table of Contents

Manometers are devices that record pressure and its changes within a system. These devices are essential in industries that deal with the force of fluids. They provide users with a quantitative measure of pressure. It can be significant to control various reactions and processes going on. Differential pressure manometers are one such efficient type of manometers. Here are the different types of manometers and their differences.

Types of Manometers:

Here are the four different types of manometers and their working.

Differential Pressure Manometer:

differential pressure manometer
Differential pressure manometer

A differential pressure manometer finds the pressure at two points in a fluid system. It then records the difference between those two points and gives a final reading. These manometers often contain a tube filled with mercury or oil liquid. Differential pressure manometer price ranges vary as per manufacturer and application. They connect at such points to measure pressure. The readings by the meter can be helpful for operators to repair or check system performance.

Working Mechanism of Differential Pressure Manometer:

The working mechanism of the differential pressure manometer is effective and reliable. It contains two medium-sealed sections. A measuring element separates the two chambers. The pressure element can be a diaphragm, burden tube, or capsule. The two chambers detect the pressure for the two different points. The measuring element does not see changes if the pressure at both chambers is equal. In this case, the manometer will show no differences.

When there is a change in the pressure of chambers, the pressure on one element is higher than the other. At this point, you can observe the deflection on the differential pressure manometer.

Measuring the low differential pressure is convenient in case of significant static pressure. The diaphragm provides the enough ability to overload at a higher level. We can observe both chambers’ largest capacity for static stress and overload.

Single Pressure Manometer:

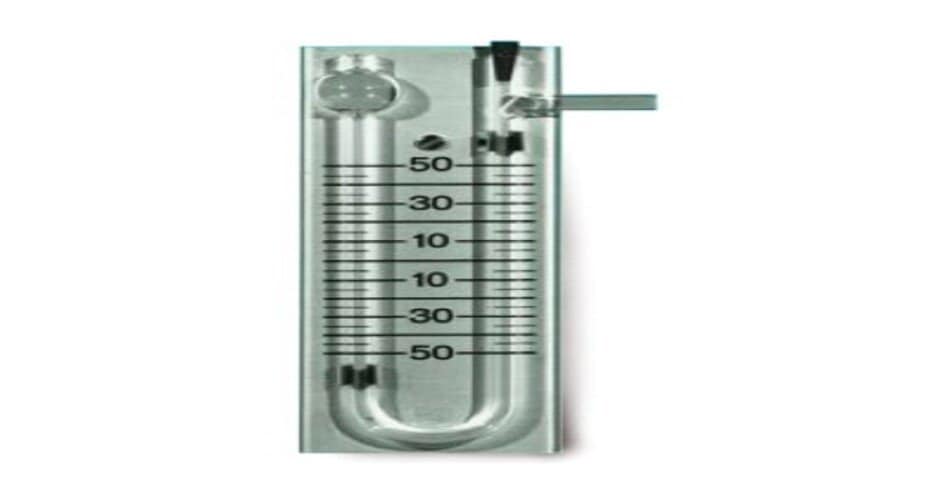

single pressure manometer
single pressure manometer

A single-pressure manometer is a device that records pressure from a single point. It then compares the recorded pressure with the atmospheric pressure. We call this comparison between atmospheric and single-point pressure a pressure gauge. A tube half-filled with a liquid connects with a point while the other end remains open to the atmosphere. The rise and fall of liquid or show pressure changes.

Working Mechanism of Single Pressure Manometer:

Here is the working principle of a single-pressure manometer. Connect the manometer with the point in the fluid system where you need to see pressure changes. In this condition, the other end of the manometer is open to the atmosphere. The tube is semi-filled with a liquid that changes its position per the pressure level at that point.

The liquid in the tube behaves like a barometer for that location. We can calculate the pressure on a particular point by the level of liquid and the readings on that scale. You can find pressure changes from the distance between a liquid level and a reference point.

Differential Pressure Manometer vs. Single Pressure Manometer:

Here are the differences between a differential and single-pressure manometer.

PropertyDifferential Pressure ManometerSingle Pressure Manometer
Pressure MeasurementIt measures the pressure difference between two points in a system.It measures pressure changes from a single point in a system.
ConnectionsIt connects with the system at both high and low-pressure points.It only attaches to the end from where we need the pressure readings.
Reading DisplayThis device shows readings of differential pressure in the differential format.It shows the absolute pressure from the measured point.
Liquid ColumnThese manometers may have a U-tube structure or differential sensor mechanism.It often has a U-tube structure or other designs.
CalibrationIt may need zero or span calibration, depending on the application.In open-end-gauge manometers, it may also need zero calibration.
Options for Pressure UnitsIt can show pressure differences in units like KPa, mmHg psi, etc.Depending on the type, it offers the units like bar, psi, and KPa.
AdvantagesGives an accurate measure of differential pressure. Reliable for troubleshooting and flow control.Provides precise and instant pressure measurement from a certain point of the system.
DisadvantagesIt connects two pressure points, thus unsuitable for single pressure measurement.It has limitations in measuring differential pressures, which can be crucial sometimes.
Applications:It is best suited for conditions where pressure difference is critical. Applicable in filter monitoring, flow measurements, and differential pressure controls.It is ideal for measuring single pressure in tanks, pressure vessels, and HVAC systems.
Differential and single-pressure manometer specifications

U-Tube Manometer:

u tube manometer
U tube manometer

A U-tube manometer contains a U-shaped limb half-filled with mercury, water, or oil. The scale represents units by inches of mercury or water on the tube. It marks zero when the liquid level is identical on both sides of the U-shaped meter. The fluid level tends to change when the pressure rises at one end of the tube. The liquid from that end starts lowering and grows on the other end. With the help of u-shaped manometers, we can even calculate negative pressures.

Working Mechanism of U-Tube Manometer:

The working mechanism of a U-tube manometer starts when we exert pressure on one end of the tube. It is one of the most common types of manometers. As soon as we apply force, the liquid in the tube starts moving on the other side. The scale on the tube helps get a measurement of liquid dislocation.

working mechanism of u tube manometer
Working mechanism of the tube manometer

Water, mercury, and oil are the most widespread liquids used in manometers. The liquid pressure can become constant if we stop exerting more pressure. In this case, the liquid fluid moves when the pressure on one end equals that at the other.

Digital Manometer:

It is an advanced form of manometer that displays digital readings. They are way more accurate and give ultra-precision than traditional manometers. The tendency of errors is very low in digital manometers. They can detect pressure changes from almost every system. We can also connect them with computers or programmable control devices for tracking. The best feature of a digital manometer is its easy interface. They are easy to operate, and we can carry them because they are lightweight.

Working Mechanism of Digital Manometer:

The working mechanism of the digital manometer has an advanced analog. It does not come with traditional liquids to detect pressure changes. Instead, they have a pressure transducer. It sees pressure changes and converts them into electrical signals. We can record these values as pressure changes.

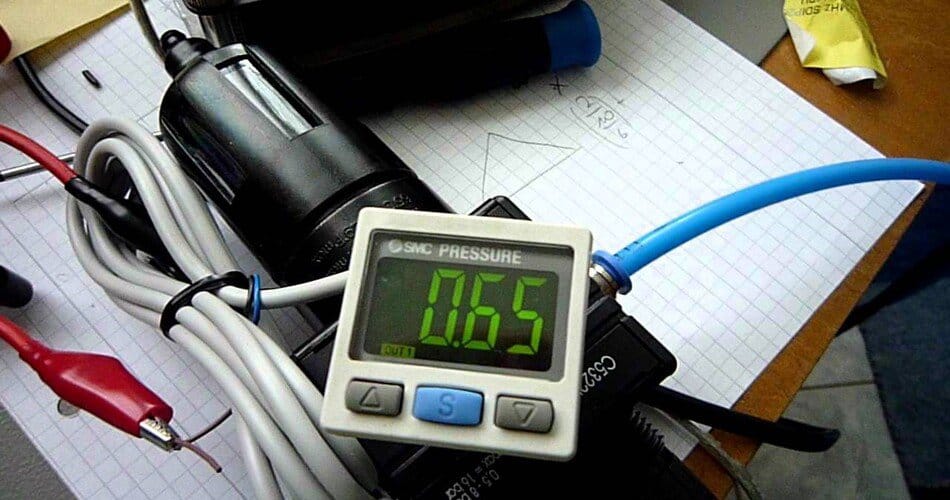

sensors to detect pressure
sensors to detect pressure

The digital manometer works by using sensors to detect pressure. When we apply pressure to the sensor, the device measures it and generates a signal for value. The signal then converts to digital form via a converter. This data shows on the screen, providing an exact measurement to the user. These manometers often allow users to choose between pressure units and other options.

U-Tube Manometer vs. Digital Manometer:

U-tube manometer vs. Digital manometer differs in many aspects. Here is a list of U-tube vs. digital manometer differences.

PropertyU-Tube Manometer Digital Manometer
Pressure MeasurementIt measures pressure with a liquid oil, water, and mercury column.It provides digital readings by measuring pressure using electronics.
AccuracyIt is less accurate due to the fluid column and scale resolution.It is precise due to digital displays and electronic sensors.
ReadabilityWe take readings by observing scale and liquid column height.It provides digital readings which are accurate and easy to understand.
Temperature SensitiveU-tube manometers are sensitive to pressure changes. It can affect the density of the measuring liquid.Less sensitive to temperature changes due to electronic operation.
MaintenanceIt needs maintenance after intervals, which includes cleaning and refilling the U-tube.Digital manometer maintenance requirements are shallow. This is because there are no columns that need refilling or cleaning.
PortabilityTheir size may be bulky and less portable due to liquid columns.Their compact and lightweight nature makes them portable.
Ease of useThe measurements come from reading the scale and liquid column height. It makes this interface hard for the user.The readings are automatic, and exact digits appear on the screen. It makes digital manometers very easy to operate.
PriceThey are often more affordable, which makes them a reasonable choice.They are high in cost due to the electrical components and compact structure.
AdvantagesCost-effective and suitable for basic pressure measurements.It is an accurate and versatile product that gives the mechanism a lot of ease.
DisadvantagesLimited accuracy and temperature sensitivity.It is expensive and may need extra batteries over time.
Applications:Applicable for certain types of systems and cannot perform in all circumstances.It applies to almost every fluid type and can measure pressure changes in every system.
U-Tube Manometer vs. Digital Manometer

Wrapping Up:

Manometers are one of the most efficient pressure-measuring devices. Differential Pressure manometers are critical industrial products. They are a significant type of manometers. We can use them to save the system from hazards.

You can understand how to choose the right manometer by understanding applications. Plumberstar provides you with excellent solutions for everyday plumbing problems. You can check the plumbing products from Plumberstar’s reliable collection here.
