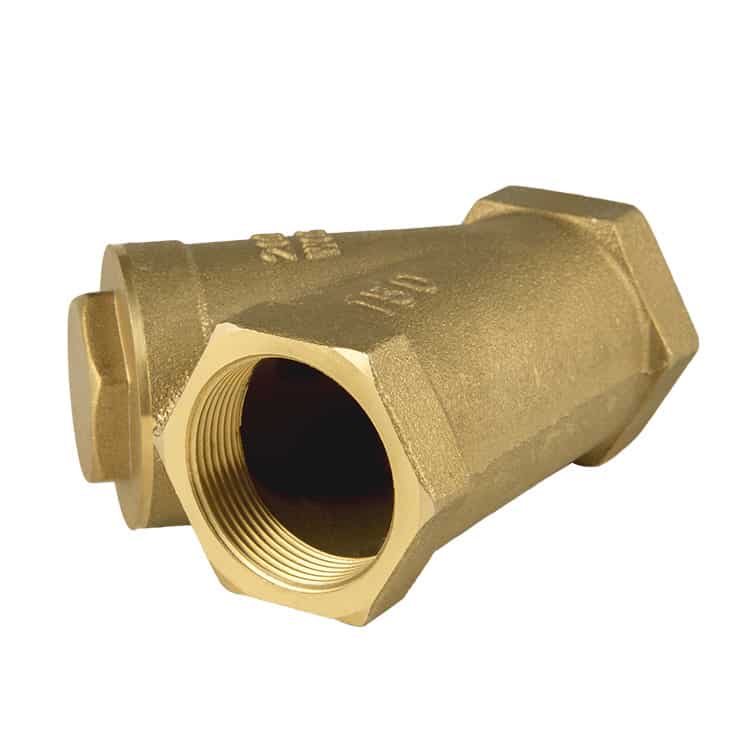

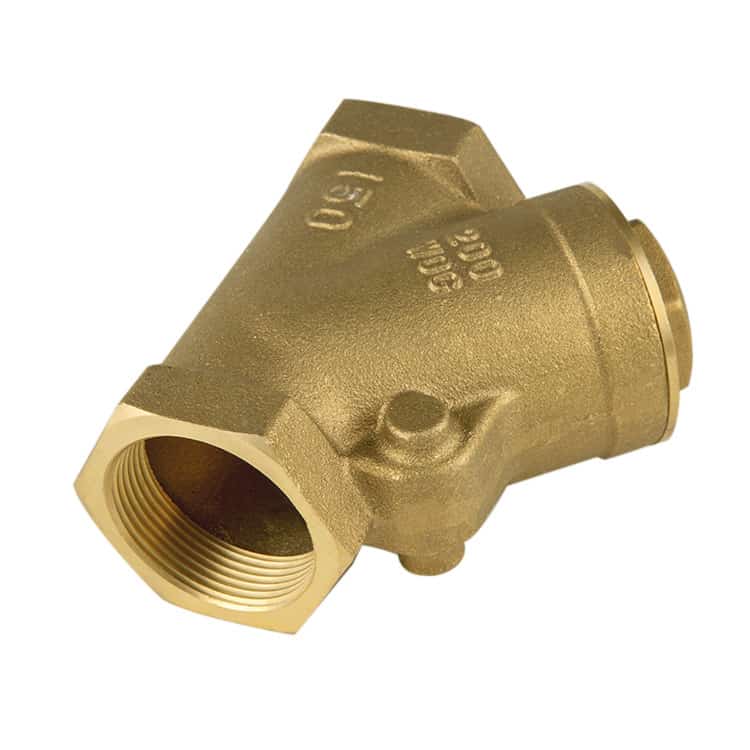

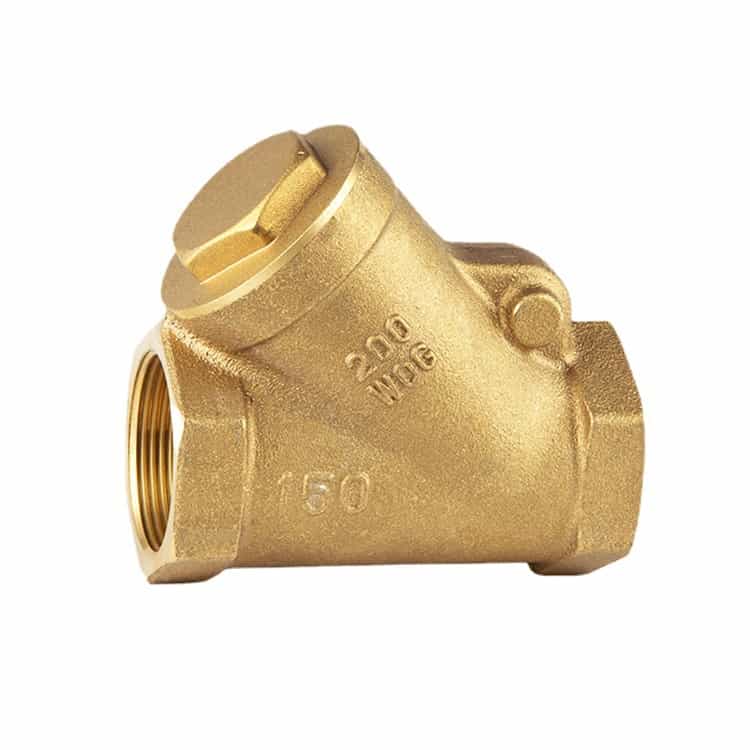

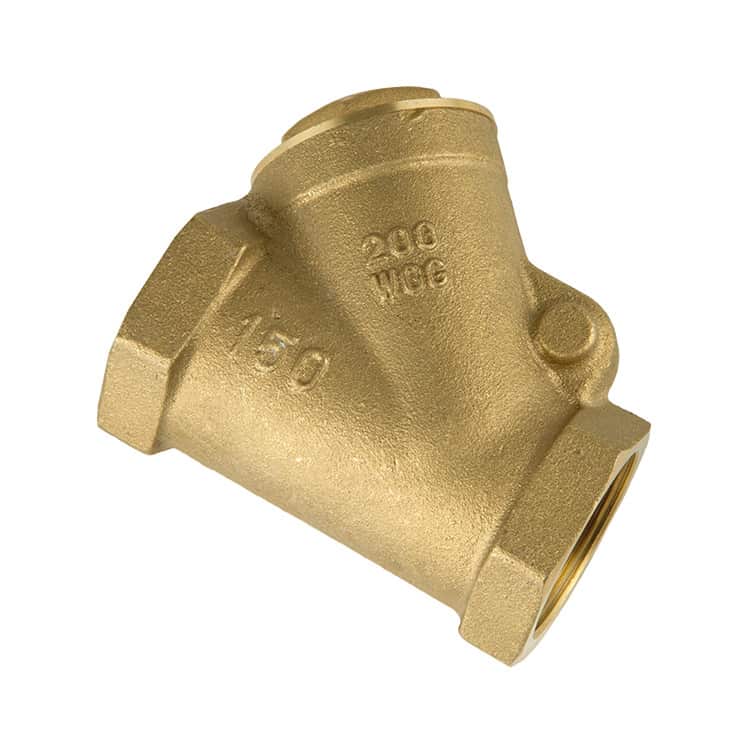

Y Type Check Valve Strainer With NPT Thread
JX-0617
- Brass and Bronze
- Y Strainer
- Size DN15-DN80
- Pressure rated to 200WOG
- Operating temperature: -20°C to 110°C
- Media; Water; Seawater;
- Two-year guarantee.
- Delivery Date:30-45 days
- OEM, ODM, and Customize
- Brand Name: Plumberstar
- DN15;235g,DN20;330g; DN25;560g,DN32;735g; DN40;900g,DN50;1800g,DN80;4000g
Raw materials: The Y-Type Check Valve Strainer is typically made from stainless steel, brass, or bronze, depending on the application and the fluid or gas being processed.
Applications: It is commonly used in plumbing and industrial applications to prevent debris and particles from entering pipelines, valves, and other equipment. It is often used in HVAC systems, water treatment plants, and manufacturing facilities. The Valve Strainer is widely available through plumbing and industrial supply distributors and online retailers. It is important to choose a reputable supplier to ensure the valve’s quality and reliability.
How it works: The Strainer allows fluid or gas to flow through it while capturing debris and particles on the Y-shaped screen. The valve operates by sensing the fluid’s flow, ensuring it moves only in one direction.
Thread size: The NPT Thread size for the check valve strainer typically ranges from 1/4 inch to 4 inches, although other sizes may be available.
Maintenance: It’s periodically removed, and the strainer screen is cleaned to prevent debris buildup and maintain proper flow. The cleaning frequency will depend on the amount of debris in the fluid or gas being processed and the frequency of use. Additionally, it is important to regularly inspect the valve for signs of wear or damage and replace any damaged parts promptly.
Pressure and temperature rating: The pressure and temperature rating for the Valve Strainer with NPT Thread may vary depending on the construction material and the valve’s size. It is important to ensure that the valve is rated for the specific application to prevent failure or damage. It depends on the size, construction material, and pressure and temperature rating. It is important to choose a valve appropriate to the specific application to ensure proper function and prevent unnecessary replacement or repair costs.
FAQs
1. What is a Y-type check valve strainer?
The Y-type check valve strainer is a composite valve that combines a Y-type strainer with a check function. It comes with a built-in filter screen and a check structure inside. It can not only intercept impurities such as sediment and welding slag in pipelines, but also prevent medium backflow. One set of accessories realizes two functions at the same time and simplifies pipeline layout.
2. What Piping Systems Are Y-type check valve strainers used in?
This Y-type check valve strainer serves pipeline systems. The systems need to stop fluid backflow and trap solid impurities at the same time. You can see it on water supply and drainage lines, HVAC floor heating loops, chiller equipment, and small water pump stations. It works with clean water at a regular temperature. Its standard working pressure is 200 psi. It fits building water supply, central air conditioning, circulating water, and boiler make-up water pipes. It can also work with treated, clean industrial cooling water in some cases. Do not use it for strongly corrosive fluids, thick slurry, or liquids with lots of big, hard, solid particles.
3. What is the Difference Between a Y-type check valve strainer and a Standard Y Strainer?
Plumberstar’s Y-type combined check strainer differs from regular Y-type strainers in built-in functions. The combined valve has a check part inside the strainer cavity. It catches debris in the pipe and stops fluid reverse flow at the same time. A standard Y-type strainer only filters impurities. It has no separate check structure.
Pipes need both filtering and anti-backflow protection. This combined design saves space. It removes extra joints you would need if you fit a separate check valve. Your pipe only needs filtration, and reverse flow is not a big concern. A standard Y-type strainer is the simpler choice.
Your system needs both filtering and backflow protection. Common spots include pump outlets, circulating water branches, and equipment inlet lines. You can pick this Y-type combined check strainer. It cuts extra connections from standalone check valves.
4. Can a Y-type check valve strainer be used in hot water circulation systems?
This Y-type combined check and strainer valve fits hot water circulation, HVAC, and regular water supply systems. It traps pipe impurities. It’s a built-in check part that stops fluid backflow at the same time. The standard unit uses EPDM seals. It works for typical hot water circulation setups. For hotter hot water systems, we can offer FKM fluoro-rubber seals. This material handles heat better. We check your actual water temperature, working pressure, and seal sizes first.
You need to pick the right valve size for hot water circulation systems. Match valve bore, system flow, and pipe pressure loss. The common design flow speed sits between 0.8 and 2.0 m/s for reference. Too high a flow speed raises pressure loss inside the valve. It also adds dynamic stress to the check parts. You need to lock the correct valve size and installation way for your exact working conditions. You have extra demands on service life, high-temperature running, or check valve performance for hot water use? Plumberstar can make a custom test plan. We use agreed temperature, pressure, flow, and cycle numbers for the plan. We also support third-party lab verification.
5. Does the Y-type check valve strainer support OEM customization?
Plumberstar’s Y-type combined check and strainer valve accepts OEM custom work. We can adjust the logo on the valve body, filter mesh size, connection types, and some material choices to fit project needs. You can pick brass or 304 stainless steel for the valve body to match your working environment. Seals come in EPDM or FKM options. For a higher pressure rating, we will reassess the valve body structure and sealing ability. Pressure tests will be carried out. The final specs get confirmed through engineering checks. This product supports laser-etched logos, custom nameplates, and tailored packaging. We supply 2D engineering drawings for your review before we start production on special custom orders.
