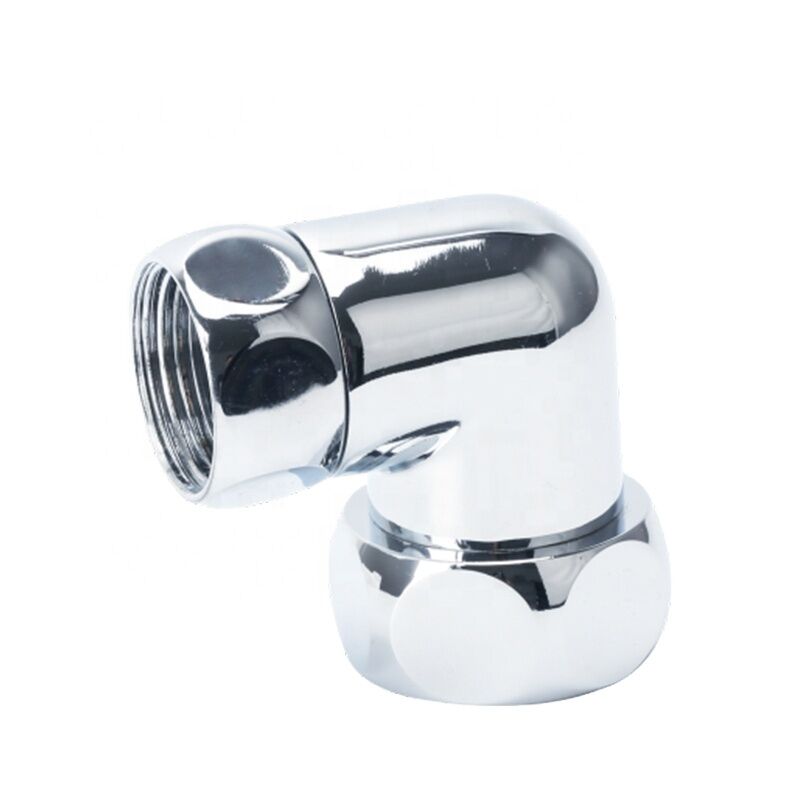

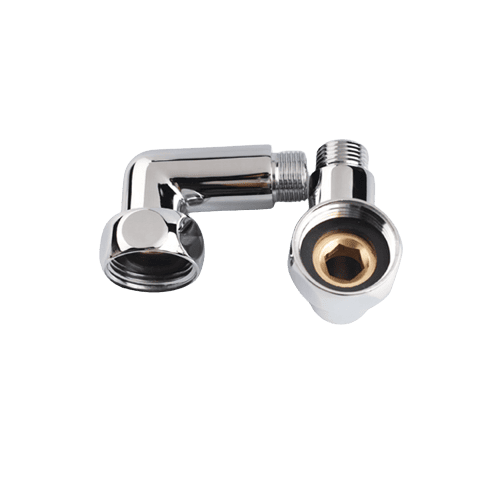

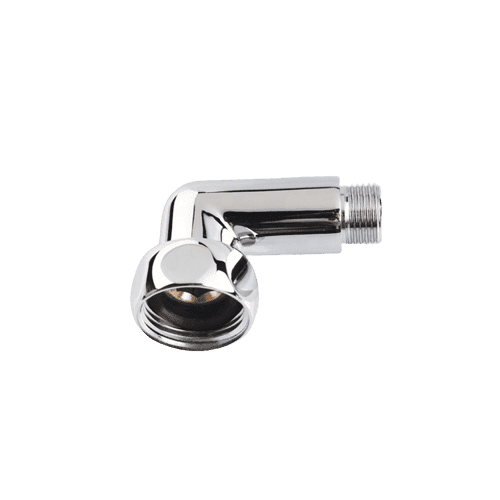

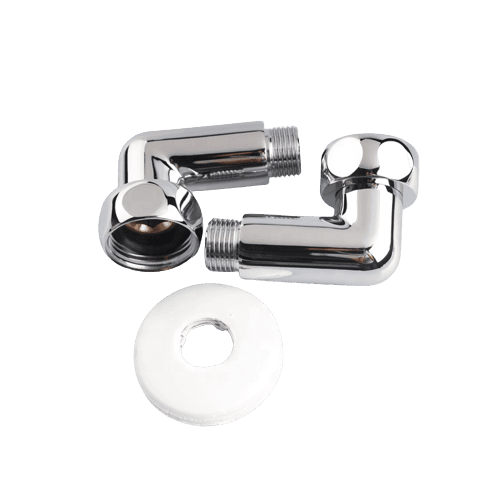

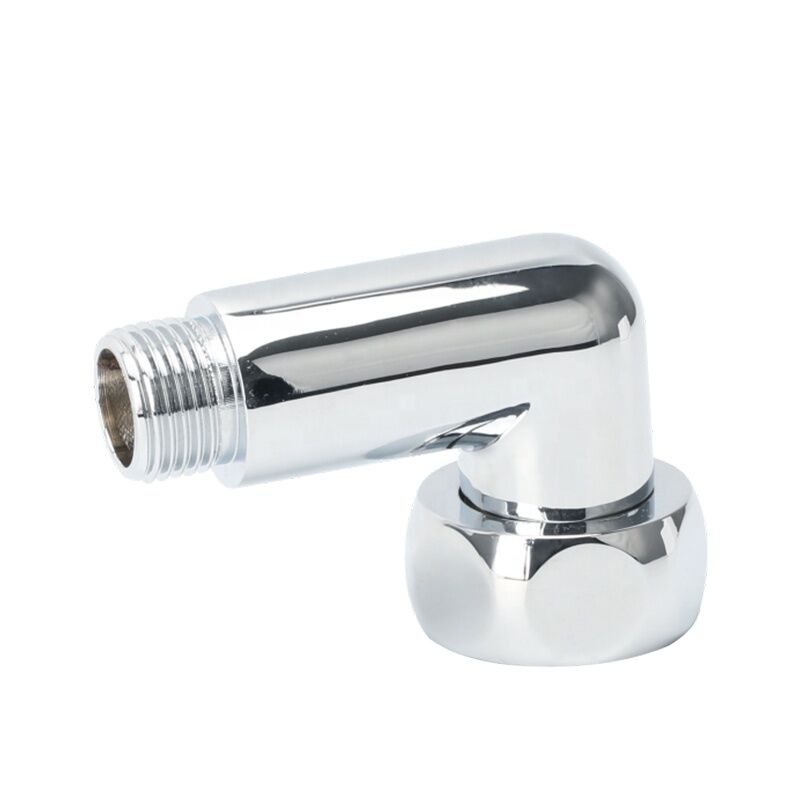

Brass Towel Rails Elbow Fitting
JX-0838
- Descriptions Heated Towel Rail Chrome Fittings Elbow
- Material: Brass H58-3, H59-1, or CW614N
- Processing Forging, CNC Machining
- Size:1/2”/3/4”/1”
- Working Temperature 5℃~85℃
- Norminal Pressure: 8bar
- Surface Finish: Polish & Chrome
- Working Medium Water
- Application: Used for Heated Towel Rail
Brass Towel Rails Elbow Fitting is an elbow fitting for your brass towel rail. These fittings are made from solid brass and come in various styles to suit any room. This includes, but is not limited to: Victorian, Edwardian, and Georgian-style fittings.
The Elbow tube is the perfect way to finish your towel rail installation by choosing two different sizes. These fittings are suitable for solid surface materials and can be fitted on either end of the towel rail. They come in three different finishes – polished brass, antique brass, and satin chrome. All Brass Towel Rail Elbow Fittings feature a rubber washer, which helps prevent water from leaking onto the flooring below.
A brass fitting is a product that creates a perfect joint between two pieces of pipe. It has an unthreaded end, and it can be used to connect pipes with the same diameter or different diameters. The fitting provides easy installation without any need for welding.
This elbow fitting is designed to be used with brass towel rails. It is made of solid brass and features a chrome finish. The elbow fitting allows you to connect two sections of the towel rail, making it easier to install your rail in the desired location. It also gives you more flexibility when configuring your towel rail layout.
The pipe fittings are the perfect way to connect two pieces of towel rail tubing. They are made from solid brass for durability and long life and come in various finishes to match your decor. The fittings are easy to install and make it simple to create the perfect towel rail for your needs.
FAQs
1. What specific grade of brass is the Towel Rails Elbow Fitting used?
This Towel Rails Elbow Fitting uses European standard brass CW617N and CW614N. Forging gives it a tight internal structure, and the material works well with chrome plating. It stays reliable in wet bathroom spaces. You can pick lead-free brass or dezincification-resistant DZR brass if your project needs special material options. We will send material certificates along with your order. We can also send material samples so you can run tests and finish project checks or third-party inspections.
2. How many layers are in the Towel Rails Elbow Fitting’s chrome plating process?
This Towel Rails Elbow Fitting is made of copper with double-layer nickel-chrome electroplating. The nickel coating includes semi-bright and bright nickel, which together help it resist rust while keeping the surface shiny. Our standard plating has an acid copper layer around 6–12 μm, a total nickel thickness of at least 10 μm, and the top decorative chrome layer is about 0.3–0.5 μm.
Nickel is the main layer that protects against corrosion, while chrome mainly keeps the surface smooth, good-looking, and protected. For coastal areas or places with heavy salt spray, we can increase the total nickel thickness up to around 15 μm to make the part even more resistant to rust.
We use an XRF thickness tester to randomly check the coating thickness, and we can provide these coating test records for your order. We can also send samples to outside labs for independent testing if you need more complete quality checks.
3. What is the manufacturing tolerance on the Towel Rails Elbow Fitting’s thread dimensions?
Plumberstar Towel Rails Elbow Fitting uses BSPP (G) British standard parallel pipe thread. Thread sizes and tolerances follow the rules in ISO 228-1. The widely used G1/2 external thread has a basic pitch diameter of 19.793 mm, and its pitch diameter falls between 19.509 and 19.793 mm when we use the Class B tolerance grade.
Internal threads follow one tolerance grade set by ISO 228-1. We can pick Class A or Class B for external threads based on product needs. Our quality inspectors use matched thread go/no-go gauges to check fit and size during production. They also check thread length, angle, and assembly needs while parts are still being made. These checks make sure the elbow connects smoothly with matching pipe fittings.
4. Can the thread of the Towel Rails Elbow Fitting be customized?
5. Do you provide installation instructions with Towel Rails Elbow Fitting orders?
You can ask us for installation guides, and we give these electronic manuals at no extra cost. The files come as PDFs, and you can print them straight away or put them inside your product packages. The guides hold assembly drawings, notes about thread sealing, and important installation reminders. We can change the header logo to show your own brand. You may want physical paper manuals packed together with goods, and we need you to sign off on the size and layout before production. You cover the fees for printing and extra packing work for these paper manuals.
