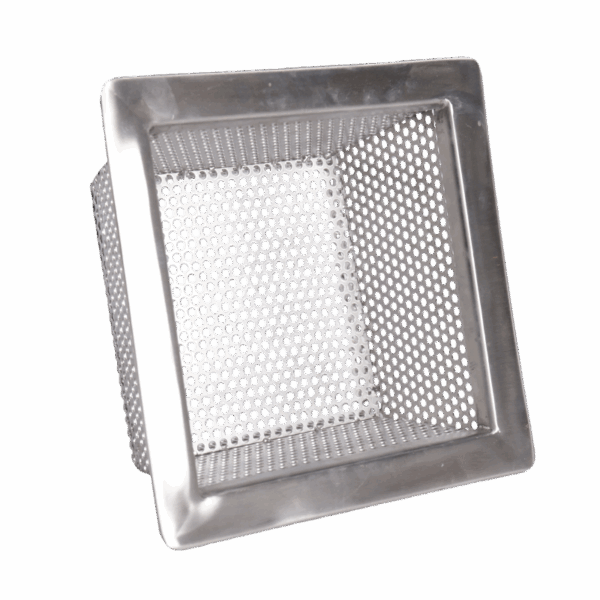

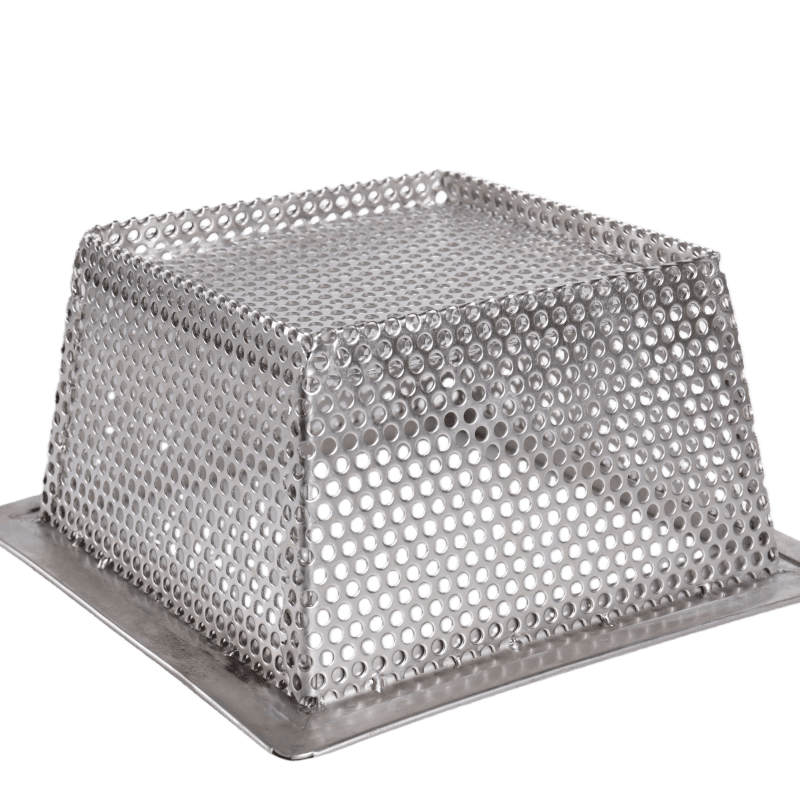

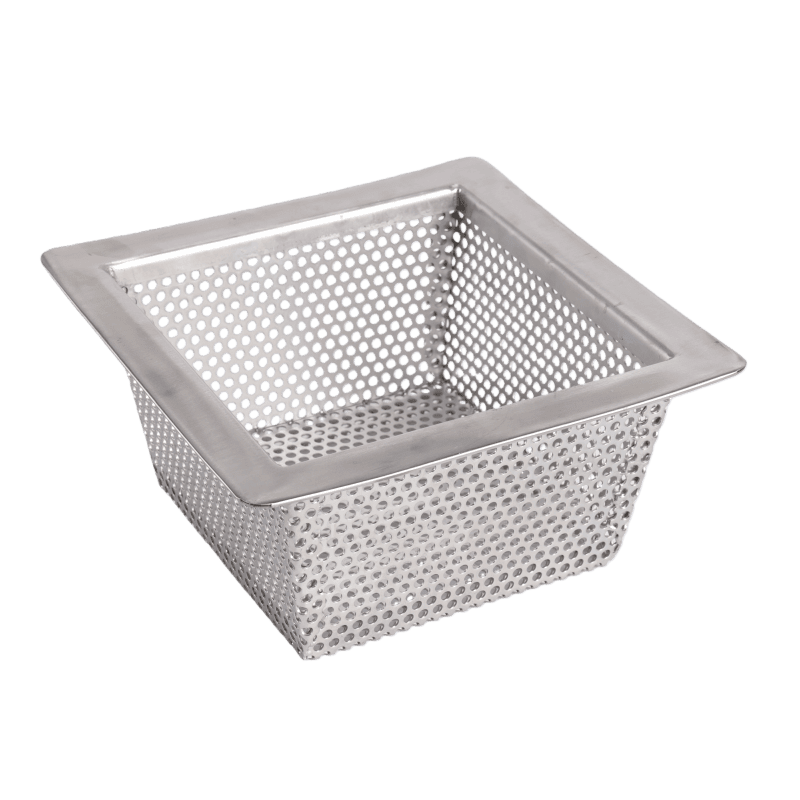

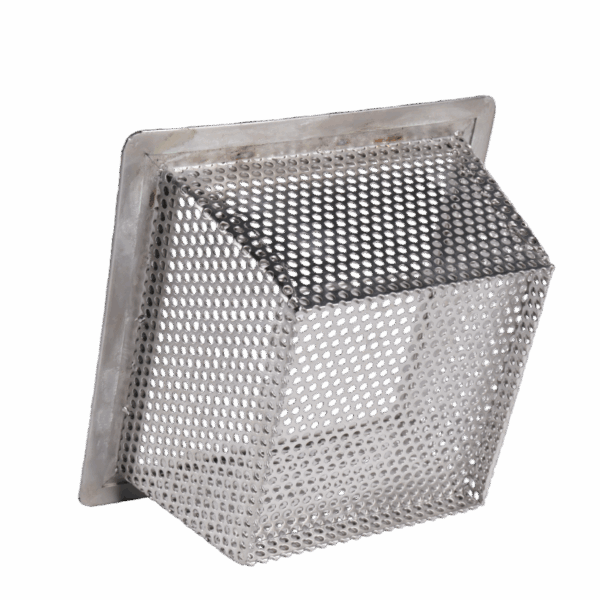

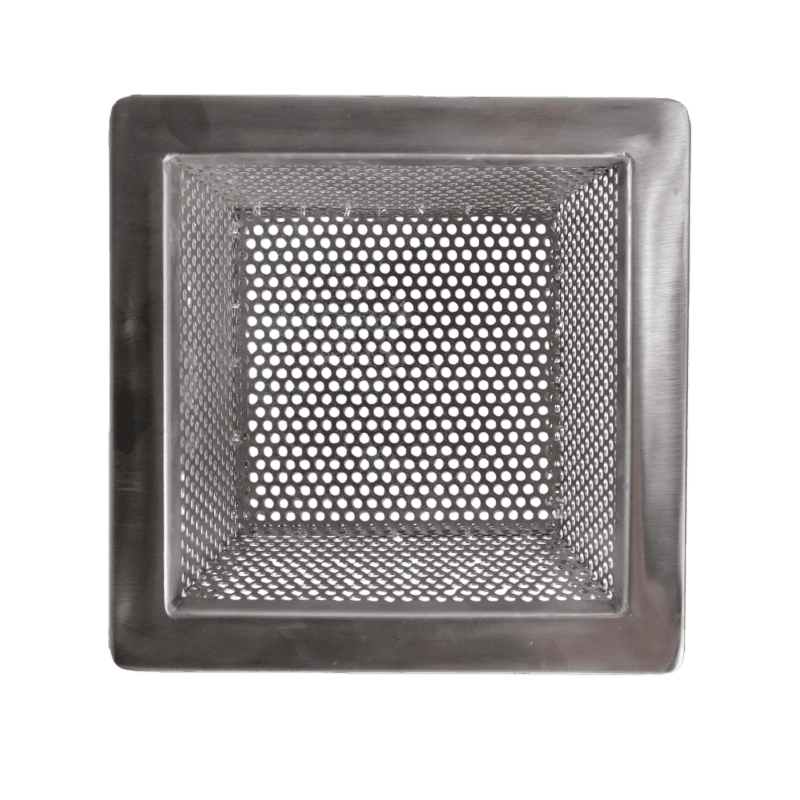

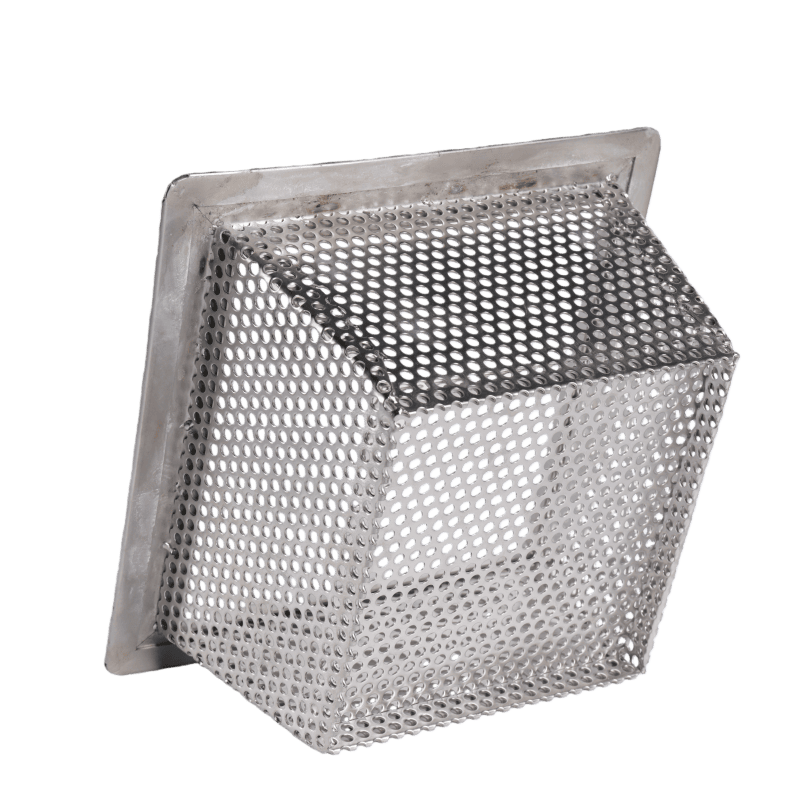

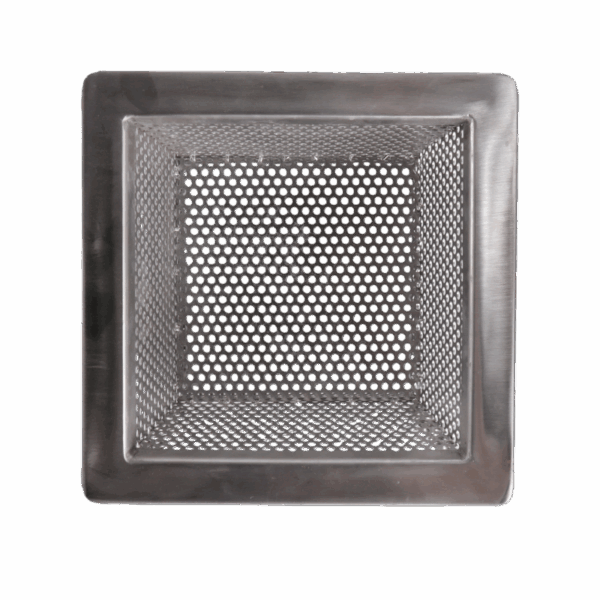

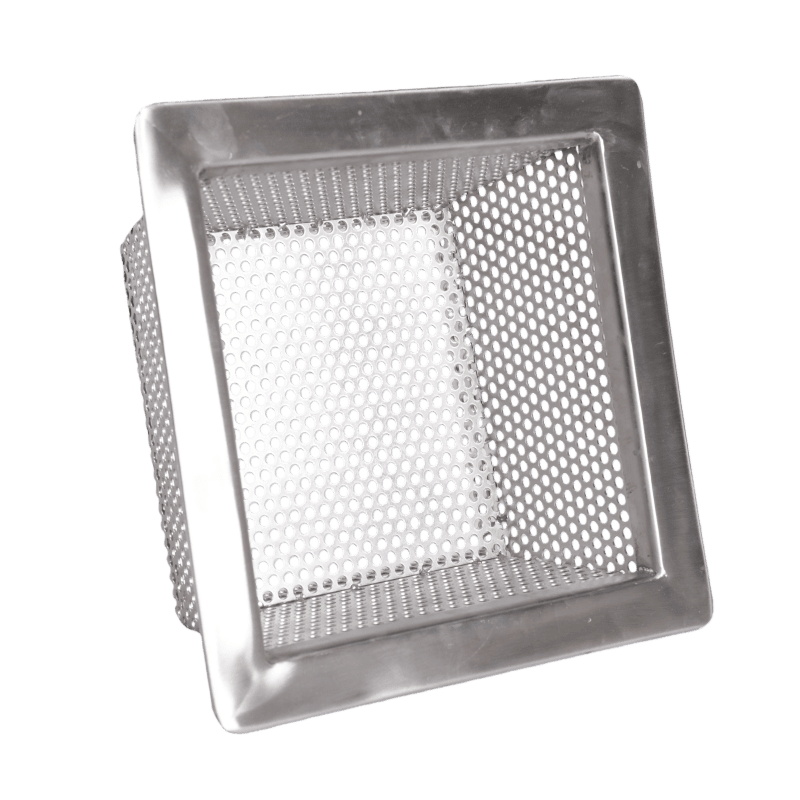

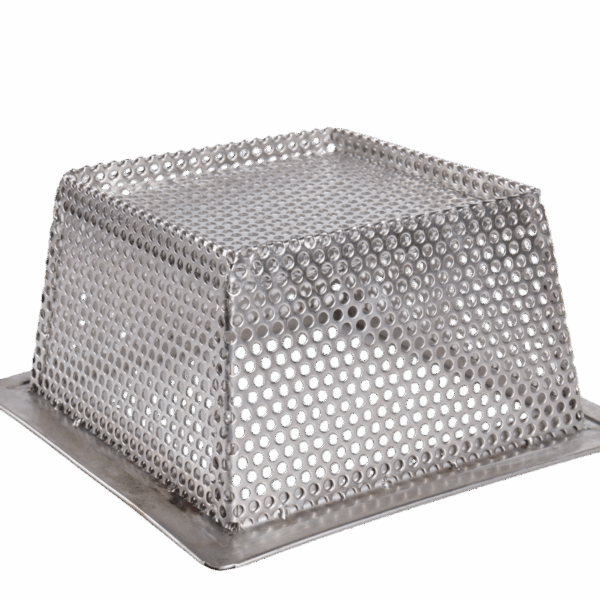

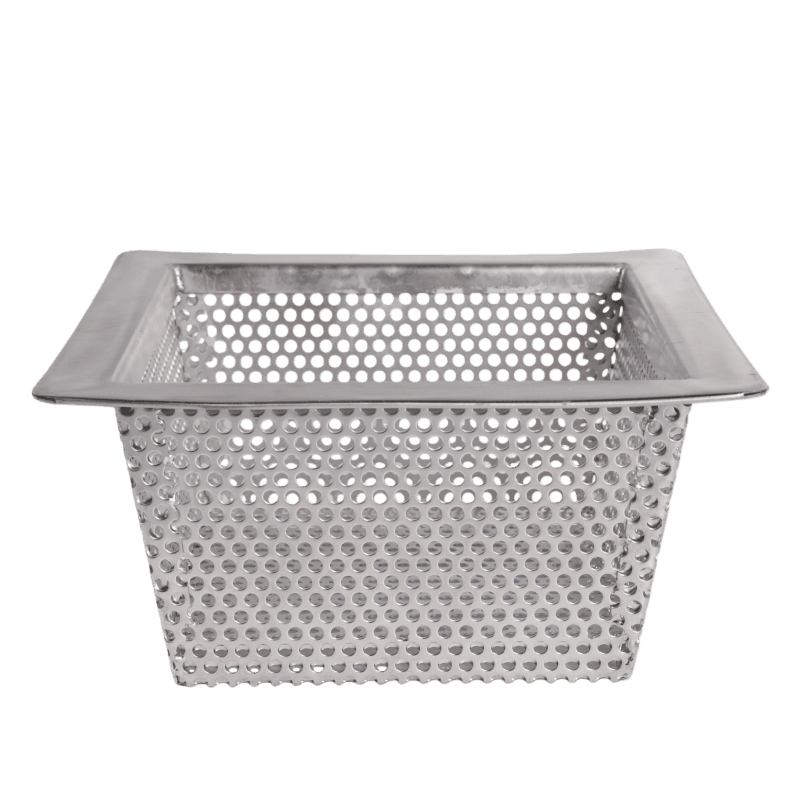

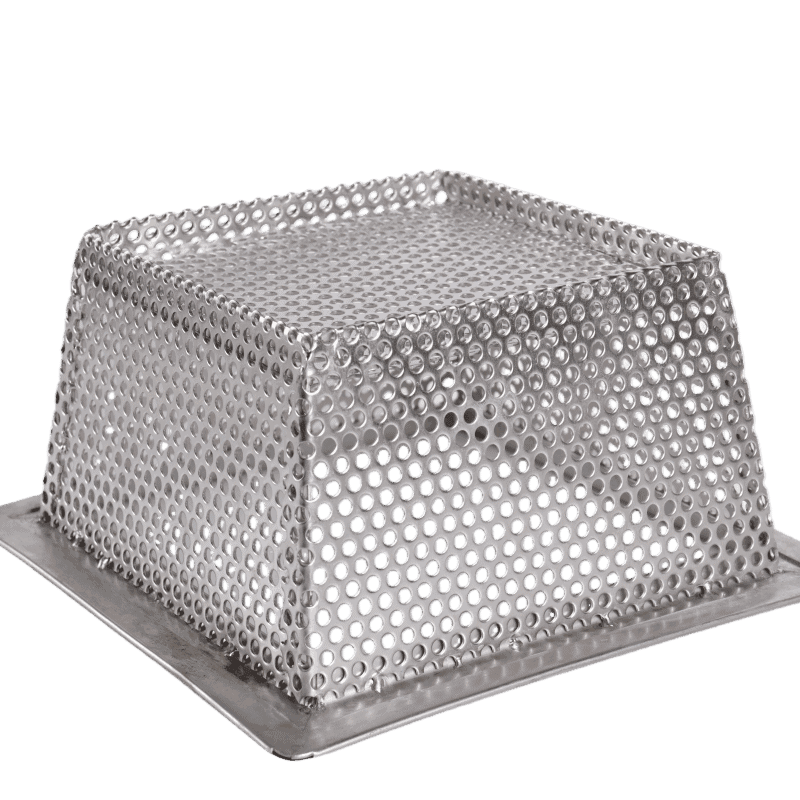

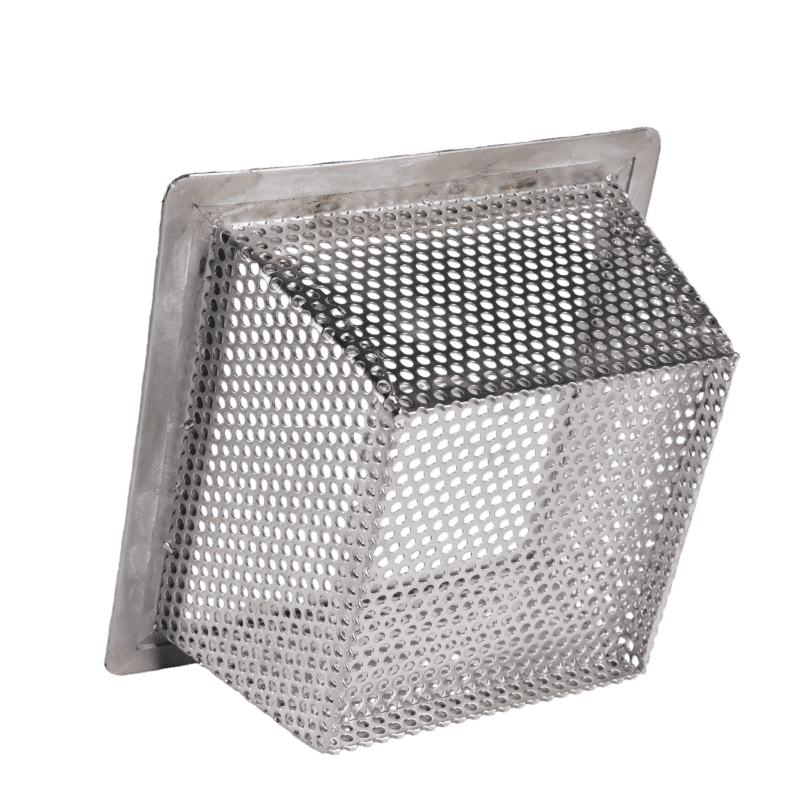

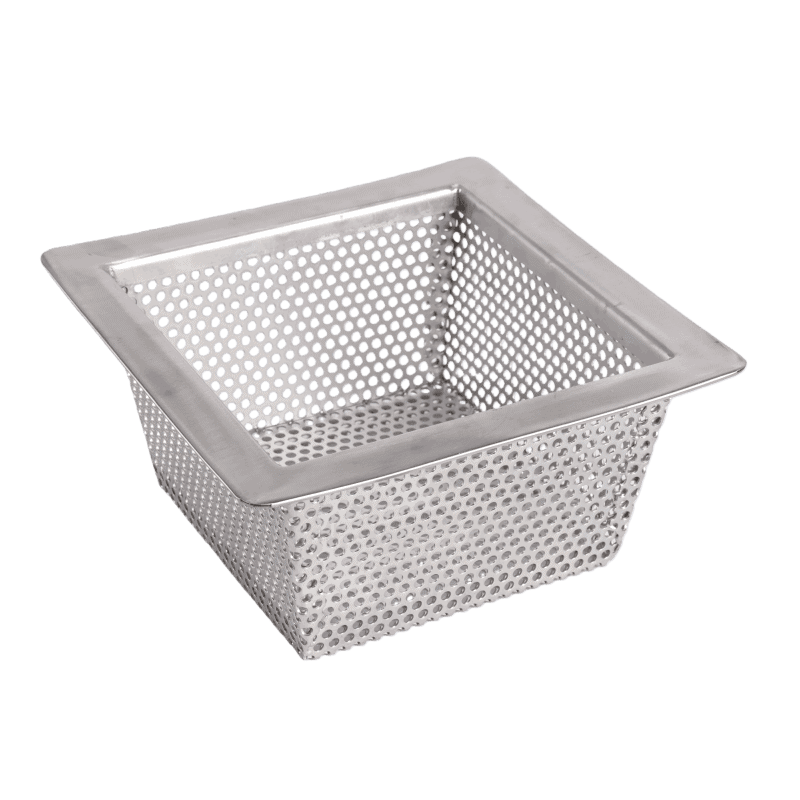

Stainless Steel Floor Sink Basket

Parameters of Stainless Steel Floor Sink Basket

Stainless steel floor sink basket mesh or hollowed-out filter storage accessories for floor sinks. Its overall structure is a square basket shape, and the bottom and side walls are distributed with uniform water-permeable pores. The purpose is to carry out primary filtration on the water flowing into the floor sink, preventing foreign matter from entering the sewer pipe and causing blockage, ensuring the smooth operation of the drainage system, reducing the maintenance cost of pipeline dredging, and improving the sanitation management efficiency of the site.

  • Model No.: JX-10050
  • Material: SS304, SS316L
  • Shape: Rectangular
  • Size: 0.8mm, 10 x 10 x 5 Inch, Custom
  • Use in any kitchen, bar, restaurant, or location where overflowing water is a problem
  • It can drain more efficiently and drain a higher volume of water than its circular counterparts
  • Inside opening: 8-1/4″ x 8-1/4″,Custom
  • Drain Type: ‎Basket Strainer
  • Product Care Instructions: ‎Wipe with a Dry Cloth

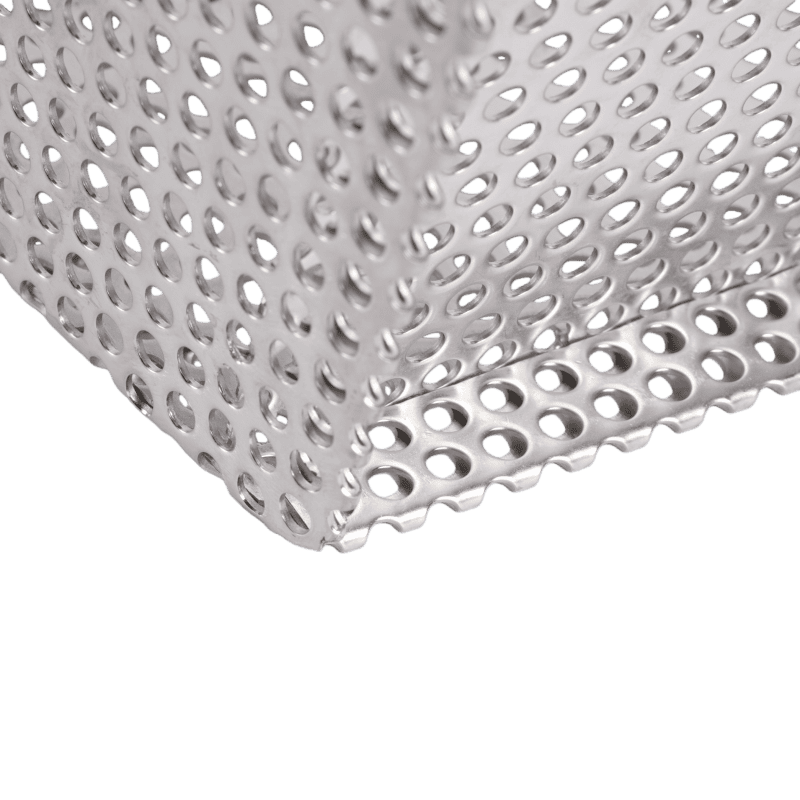

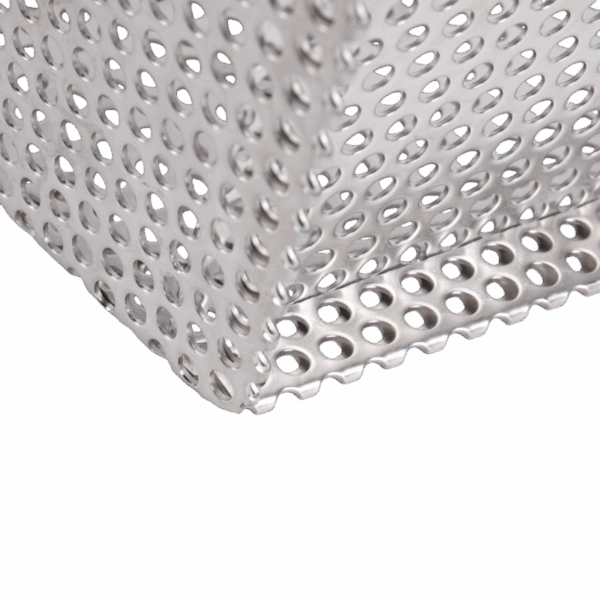

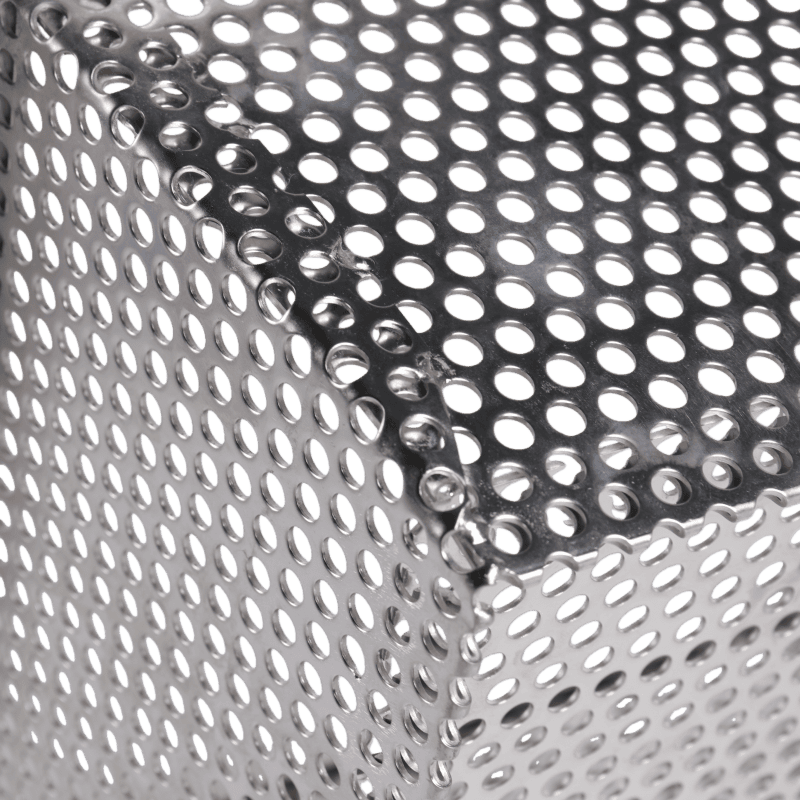

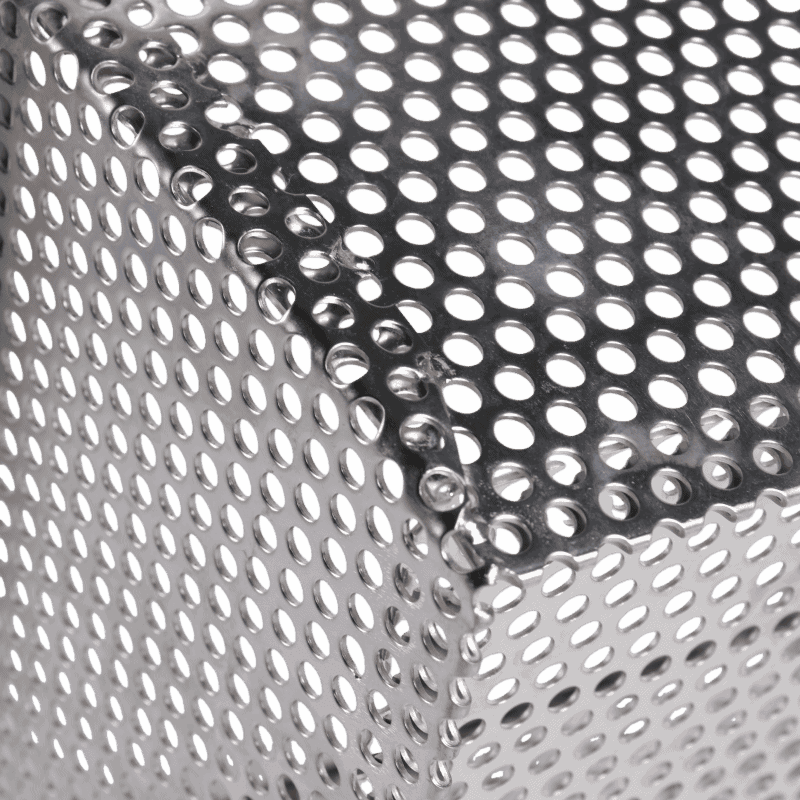

  • 1/8 “perforated design prevents the tiniest debris from entering the drain
  • Tapered sides
  • Free sample

Additional information

Description

Metal Cleanout Spud with Nickel Bronze Round Cover

Metal Cleanout Spud with Nickel Bronze Round Cover is used as a maintenance and clearing interface for underground or ground drainage pipelines. It can not only facilitate the operation and maintenance personnel to open the nickel bronze cover plate when the drainage system is blocked, but also dredge, clean, and repair the inside of the pipeline through the short pipe channel, to avoid problems such as water accumulation and odor return caused by pipeline blockage, and ensure the stable operation of the drainage system.

  • Model No.: JX-0975
  • Material: CW602N, CW617N
  • Cover Finish: Nickel Bronze
  • Size: 4″ Metal Cleanout Spud, 5″ Nickel Bronze Round Cover, Supplied with 3-1/2″ IPS countersunk plug
  • Temperature:-10˚C-120˚C
  • Thread connection: BSP, NPT
  • Cover Shape: Round
  • Standard: ASME A112.6.3-2019, IAPMO, UPC
  • Application: Floor, Basin, Sink, Bathtub
  • 2-year Guarantee period
  • For use with heavy-duty cleanouts


Bronze floor drain grille with screws

The bronze floor drain grille with screws has a hollow grille structure, and the screws are used to fix the grille to the floor drain base. The purpose is to protect and filter the floor drain outlet. Solid sundries, such as hair, sand, and food residue, can be intercepted through the hollow pores of the grille to prevent them from entering the drainage pipeline and causing blockages. The smooth drainage system can be ensured, and the grille can be prevented from shifting and falling off due to personnel stepping, water flow impact, or external force collision.

  • Model No.: JX-0973
  • Material: Bronze, Nickel bronze
  • Material Finish: Casting
  • Overall Diameter: 4-3/4″, 5-5/8”
  • Product Type: Grate
  • Installation Type: Screw-In
  • Grate Surface Type: Square Holes, Shape Round, Includes Screws
  • Load Capacity: 2,000 lb
  • Overall Height: 1/8 in
  • Standard: ASME A 112.6 3.


IPS Brass Spud with Stamped Stainless Steel Filter Drain

IPS Brass Spud with Stamped Stainless Steel Filter Drain IPS Brass Spud with Stamped Stainless Steel Filter Drain IPS Brass Spud with Stamped Stainless Steel Filter IPS Brass Spud with Stamped Stainless Steel Filter IPS Brass Spud with Stamped Stainless Steel Filter IPS Brass Spud with Stamped Stainless Steel Filter IPS Brass Spud The purpose is to adapt to the filtering and diversion of building drainage scenes.

  • Model No.: JX-0971
  • Material: Brass Spud, Stainless Steel Strainer
  • Size: 2 in. IPS Brass Spud with four in. Dia Round Stamped Stainless Steel Strainer
  • Includes (2) screws 3-3/8 in. length
  • Round strainer
  • 2.07 inch overall height
  • For floor drain and shower drain applications
  • Also available with a 3-1/2 inch spud and nickel bronze strainer
  • Inlet Thread Type: Male
  • 2-year Guarantee period
  • Free sample

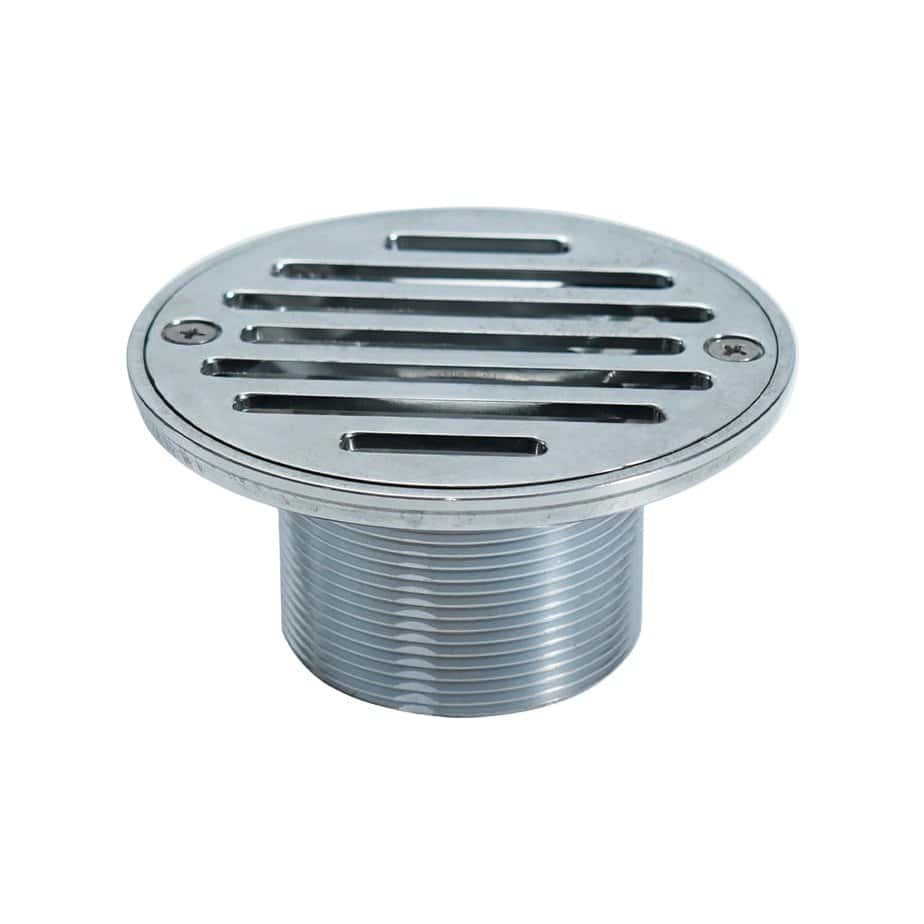

Chrome Plated Brass Shower Floor Drain Filter

The chrome-plated brass shower floor drain filter provides double protection and filtration for the floor drain in the shower area. Its grille or mesh filter structure can effectively intercept hair, shower ball debris, soap dirt, and other solid impurities, reducing the frequency of pipeline dredging and maintenance costs. The detachable structure design facilitates users to clean the trapped debris regularly.

  • Model No.: JX-0967
  • Material: Brass
  • Finising: Chrome-plated
  • Size: 2″, 4″
  • Shape: Round
  • Height: 2″
  • Do not use any strong alkaline, acidic, or detergent
  • Male threaded joint
  • Suitable for most pool types, such as swimming pools, massage pools, and hot spring pools
  • 2-year Guarantee period
  • Free sample


PVC Square Shower Tray Drain Filter

PVC square shower tray drainage filter is designed for square shower tray drainage filter accessories, filter parts are grid or mesh hollowed-out form, the use is to filter and protect the drainage of the shower tray area, its hollowed-out filter structure, prevent foreign matter from entering the sewer pipe caused by blockage, reduce the maintenance cost of pipe dredging, ensure the smoothness of the shower area drainage, PVC material can be used stably in the bathroom humid environment.

  • Model No.: JX-0977
  • Drain material: ABS/PVC plastic, cast iron
  • Size: 2″, 3″,4″
  • Head adapter thread 2″ MIP
  • Adjustable height: 3X15/16″ – 5X15/16″
  • Grate Size: 200mm
  • Outlet Pipe Size: 150mm
  • Outlet Direction: Vertical
  • Type: Square Shower Drain
  • Weep holes are provided on both the top and bottom for secondary drainage.
  • Flow: 0.4 – 0.5 L/s
  • Working temperature: -10-120℃
  • Connection: NPT, UNF,
adjustable bronze round shower floor drain 0898



Nickel Bronze Floor Cleanout Spuds Bronze Drain

Nickel Bronze Floor Cleanout Spuds, Bronze Drain. One end can be connected to an underground drainage pipe, and the other end is equipped with a sealed access cover. It can quickly drain the accumulated water on the ground. In case of blockage or failure, the internal pipeline can be dredged, cleaned, and repaired through the short pipe channel. It does not require excavating a large area of ground, significantly reducing the cost and difficulty of pipeline maintenance.

  • Model No.: JX-0898
  • Material: Bronze, Nickel Bronze
  • Finising: Polishing
  • Size: 4″X 5″, 4″X 6″
  • Temperature: -10˚C-120˚C
  • Thread connection: NPT, UNF
  • Weight range: 2,000 – 4,999 lbs
  • Vandal-proof hexagon socket fastening screws are standard
  • Extra Heavy-Duty
  • The adjustable top is gas-tight and gasketed
  • Standard: ANSI, ASME, ASSE

FAQs of Floor Sink Basket

1. What scenarios are Plumberstar’s ground sink baskets primarily used for?

The ground sink baskets produced by Plumberstar have the characteristics of strong material adaptability and stable filtration and protection performance. The core application scenarios cover three major fields: civil home, commercial services, and industrial production.

1. It is suitable for civilian home scenes. It can be used in the kitchen, bathroom, and balcony areas. It can prevent sewer blockage, block pipe odor with anti-odor design, avoid wet and slippery ground caused by poor drainage, and is suitable for household daily cleaning and high-frequency use scenarios.

2. Suitable for commercial service scenarios. It can be used in restaurants, public places, and food processing shops. Suitable for large flow drainage requirements, stainless steel material can withstand oil corrosion and is easy to clean, reducing the frequency of pipe dredging.

3. Industrial production scenarios. It can be used in light industry workshops, as well as in chemical and pharmaceutical auxiliary areas, and in storage and logistics areas. Nickel bronze or 316 stainless steel models can withstand weak acid and alkali corrosion to ensure smooth piping. Adapt to the high-intensity use requirements of industrial scenarios.

2. How about the load capacity of the stainless steel floor sink basket?

The primary influencing factor of load-bearing is material thickness. The thickness of household models is mostly 0.5-0.8mm, and the load bearing is about 5- 10kg; the thickness of commercial industrial models can reach 1.0-1.5mm, the basic load bearing can be increased to 15- 30kg, and some thickened models can even reach more than 50kg. In terms of structural design, the tank basket with integrated stamping process at the bottom has no welding gap, more uniform force, and 20%-30% higher bearing capacity than welded splicing; the basket body has reinforcing ribs or grid densification design, which can disperse local pressure, avoid excessive deformation due to single point force, and can increase the upper bearing limit by 10%-15%.

Even if the sink basket has strong load-bearing capacity, it is necessary to avoid placing heavy objects under overload for a long time, otherwise it will lead to metal fatigue and permanent deformation of the basket; at the same time, it is necessary to avoid single-point impact of sharp heavy objects on the basket body to prevent damage to welding spots or weak parts, affecting the overall load-bearing performance.

3. What is the difference between square and round sink baskets?

The core differences between square and round sink baskets are space fit, storage form, cleaning difficulty, and visual style.

The corner design of the square sink basket is more suitable for right-angle spaces, such as cabinets and corners, which can maximize the use of corner areas. It can regularly store angular items such as square tableware and kitchen utensils, but its inner corners are prone to accumulating oil stains and residues. When cleaning, it needs targeted cleaning. The overall style is more regular and simple, an industrial style or a modern household style.

The circular sink basket features no sharp corners, resulting in a more uniform force and stronger load-bearing stability. It is suitable for a circular sink or a curved countertop. It is suitable for storing dishes, fruits, vegetables, and other round or irregular objects. Its curved inner wall has no sharp, dead corners, which makes it more convenient to clean. It is visually more rounded and so soft, which suits the war household atmosphere. Meanwhile, the non-angular design of the circular basket body can also reduce the risk of collision and has higher safety.

4. Through which ports can ground sink baskets be shipped?

Our ground tank basket can rely on the domestic core port for convenient delivery, in addition to the standard ports of Shanghai, Ningbo, and, according to the order volume and customer demand, flexible selection of Shenzhen, Guangzhou, Qingdao, and other ports for operations. The time limit for arrival at the port needs to be determined in combination with the specific port of destination. For example, if it is sent to the main ports in Southeast Asia, the shipping time limit is usually 3-7 days from Shanghai/Ningbo Port; the time limit for sending to the basic port in Europe is about 25-35 days; It takes about 18-25 days to ship to the west coast port of the United States, and 30-40 days to ship to the east coast port of the United States via the Panama Canal. The specific time limit can be accurately estimated based on the shipping schedule once the order is confirmed. At the same time, priority will be given to a cooperative, high-quality shipping company to ensure transportation stability.

5. Can the filter aperture or grid density of the floor sink basket be adjusted to customer requirements?

We can adjust the filter aperture and grid density of the floor sink basket to meet the specific needs of customers, providing support for flexible customization. According to the impurity interception requirements of different scenarios, the conventional filter aperture can be adjusted within the range of 0.5 mm to 10 mm, and the grid density can be matched correspondingly. For example, when the food processing workshop needs to intercept acceptable food debris, a small aperture and high-density grid below 1mm can be customized; when the industrial workshop requires rapid drainage and intercepts large metal impurities, a large aperture and low-density grid above 5mm can be adapted.

6. How long is the validity period of the ground sink basket quotation?

Our quotation period of validity is typically 30 days. During this period, if the customer confirms the order, it will be strictly implemented in accordance with the quotation. If the quotation exceeds 30 days, it will need to be recalculated based on the actual situation at the time of ordering. For raw material price fluctuation, if a formal contract is signed within the validity period of the quotation and the advance payment is made as agreed, even if the price of stainless steel, nickel bronze and other core raw materials rises, the quotation will not be adjusted; if the validity period is exceeded or the order is not locked in time, when the raw material price fluctuates by more than 5%, the quotation will be adjusted accordingly according to the latest market price. Before making any adjustments, we will fully communicate with customers in advance and provide detailed price descriptions.

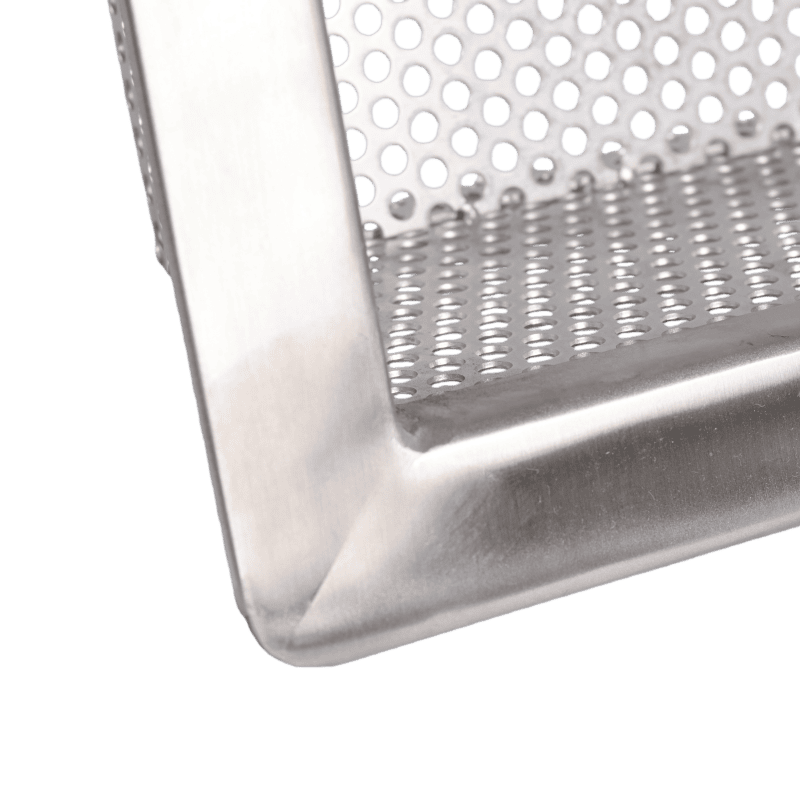

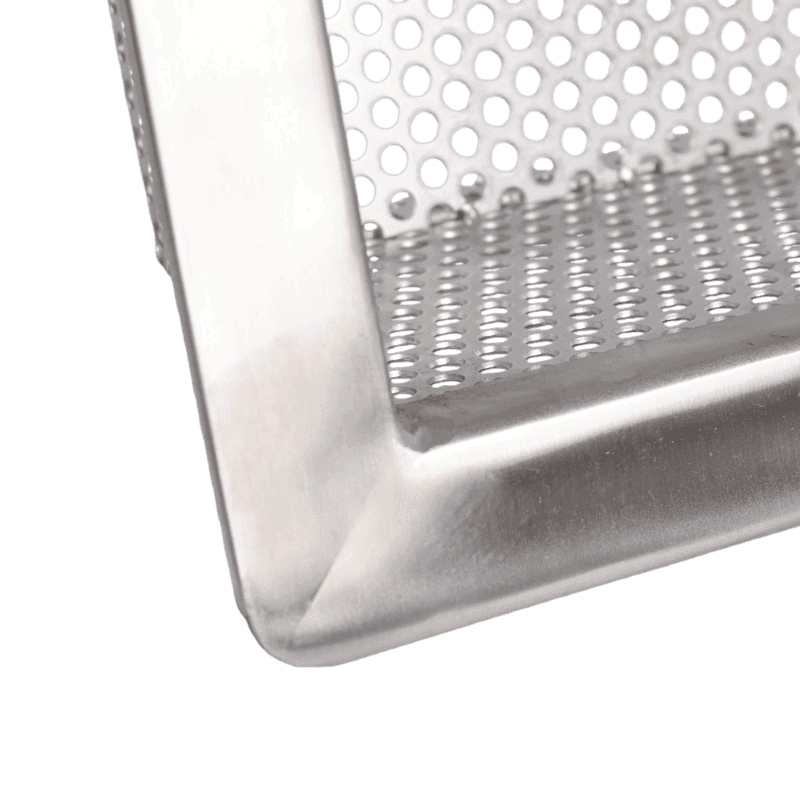

7. Are the edges of Plumberstar’s sink basket scratch-resistant?

Plumberstar’s sink basket has a professional scratch-resistant finish on the edges. The edges are rounded and finely polished. First, the sharp edges are polished to R10 and above, and safety-rounded corners are created using numerical control equipment. Then, a mirror or matte polishing treatment is applied to make the edge surface smooth and burr-free, which not only improves scratch resistance but also reduces the accumulation of oil and water stains on the edges. For industrial-grade heavy-duty products, an additional flanging process is used to enhance edge load-bearing capacity while ensuring scratch resistance.
