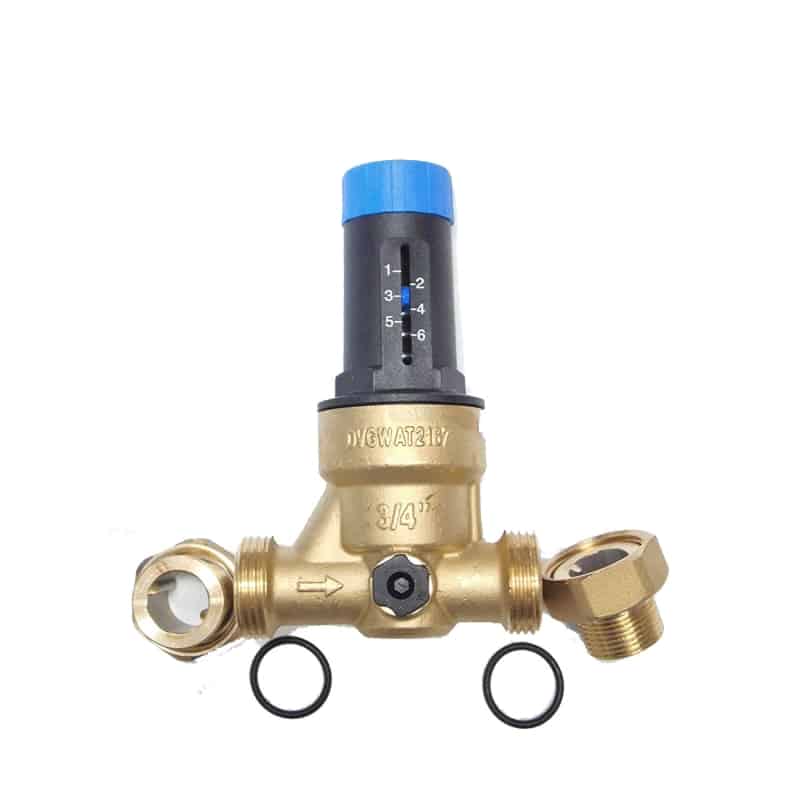

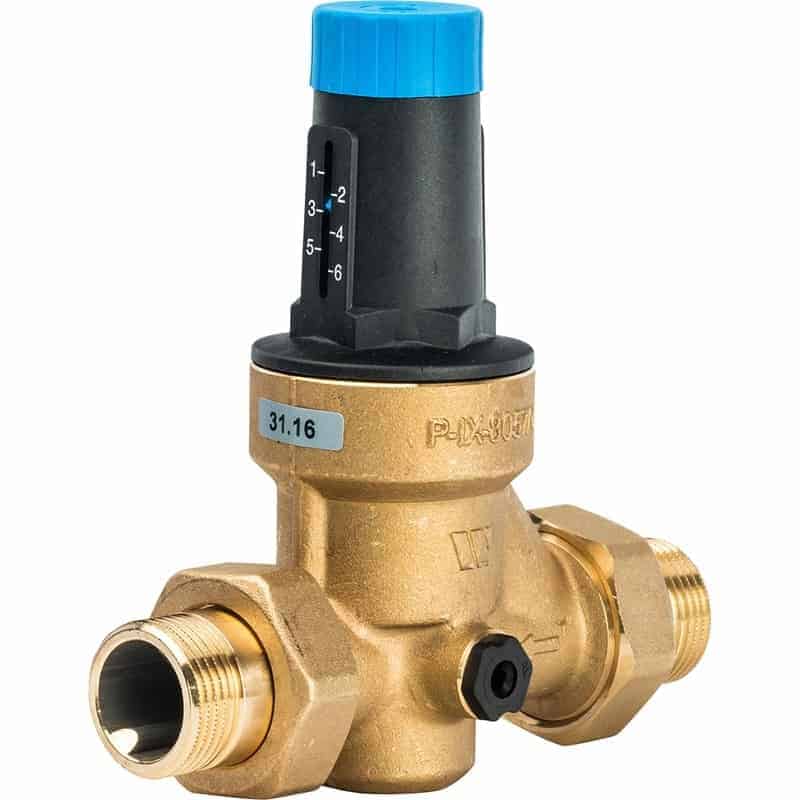

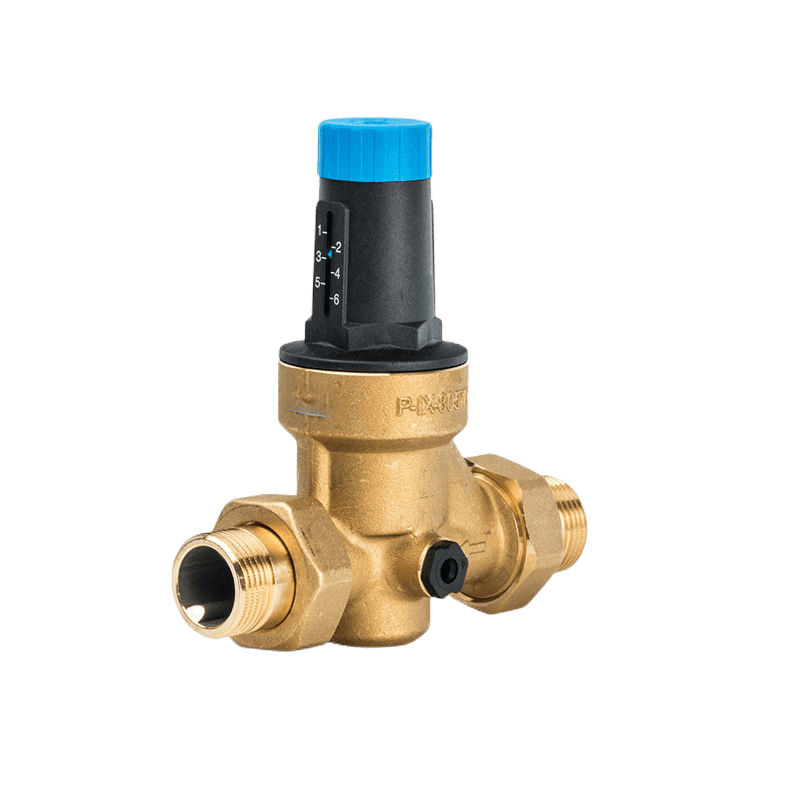

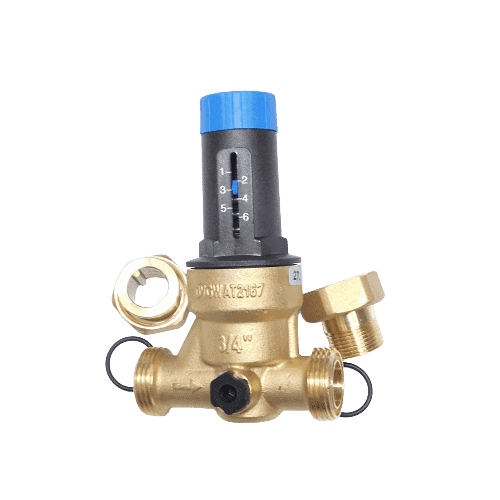

Druckminderer für Wasser Reducing Valve

JX-0946

Introduction: Describes what a water-reducing valve is and how it works

A water-reducing valve is a device that regulates the flow of water through a pipe or system. It does this by controlling the amount of pressure exerted on the water as it flows through, which reduces the amount of water used. The valve uses a spring to create resistance against the water flow. The valve opens when the pressure exceeds a certain level, allowing the water to flow.

How to choose the right water-reducing valve

Water-reducing valves are essential to any plumbing system, but choosing the right one can be tricky. This article will help you understand the different types of valves available and how to choose the right one for your needs.

First, you need to decide what type of valve you need. There are three main types: pressure-reducing valves, backflow prevention valves, and flow-control valves.

Pressure-reducing valves reduce the water pressure in a system. This is important for two reasons: first, it prevents pipes from bursting under high pressure; and second, it reduces the amount of water used by appliances, which can save you money on your water bill.

Backflow prevention valves prevent contaminated water from flowing into the potable water supply. They are required by law in some states and counties.

Installing a water-reducing valve

Water is a precious resource and should be conserved whenever possible. One way to conserve water is to install a water-reducing valve. A valve is a device installed in the plumbing system to reduce the amount of water that flows through it. This can save the homeowner money on their water bill and help conserve this precious resource.

Water is a precious resource that should be conserved whenever possible. One way to conserve water is to fix leaks in your home. A faucet that drips once per second can waste more than 3,000 gallons of water in a year! Fixing leaks can save money on your water bill and conserve this valuable resource.

Conclusion: Summarizes the benefits of using a water-reducing valve

A water-reducing valve is a device that helps regulate the flow of water in a pipe system. It does this by automatically adjusting the amount of water flowing through the valve, depending on the system’s needs. This can save both water and energy, allowing for more accurate water use regulation. Additionally, it can help prevent flooding and leaks by allowing for better control over water flow.

FAQs

1. What material is available for the Druckminderer für Wasser Reducing Valve’s spring?

The standard spring for this Plumberstar Druckminderer für Wasser Reducing Valve uses SUS304 stainless steel spring wire. It fits regular tap water and household hot water pipelines. It fights corrosion and keeps steady pressure control. We offer upgraded SUS316 stainless steel springs for more corrosive water. This material stands up to chloride ions. It works for well water, salt water, and hard water. You may also pick alloy spring steel (50CrVA) for high-temperature use. It loses much less spring force under high heat.

2. Why is Druckminderer für Wasser Reducing Valve’s diaphragm-controlled design superior to a piston-style design?

The diaphragm design picks up small changes in downstream pressure. Its pressure control error stays within ±0.02 MPa. Piston pressure reducing valves of the same size usually have an error of ±0.05 MPa. Our diaphragm model uses an EPDM reinforced fiber diaphragm. The upstream and downstream pressure difference move this part. It opens and closes faster. Small changes in water use downstream will not cause big pressure swings. It fits residential and commercial buildings that need a steady water supply.

Piston valves work with metal pistons sliding back and forth inside the valve body. Dirt and sediment in the water scratch the piston and valve cavity wall. If water impurity levels go over 50 mg/L, seals wear out much faster. Diaphragm valves have no sliding metal parts. Dirt creates less damage to key seal parts.

For the same nominal size, the diaphragm design creates less local pressure drop. At rated flow, pressure loss sits around 0.03~0.04 MPa. Piston valves at the same flow rate have a pressure loss of 0.06~0.08 MPa. The diaphragm type holds steady pressure output even at low flow. Piston valves easily see pressure shift when the flow is low.

3. Can the Druckminderer für Wasser Reducing Valve’s adjustment knob be locked in place?

Our Druckminderer für Wasser Reducing Valve has a locking design on its adjustment knob. Tighten the top lock cap. This locks the knob in place. It stops random turning. Water pressure cannot change by accident. You must loosen the lock cap first to reset the outlet pressure after locking. This works well for apartments and public buildings. These sites need to stop people from changing water pressure without permission.

4. What is the factory-preset output pressure of the Druckminderer für Wasser Reducing Valve as shipped?

This Druckminderer für Wasser Reducing Valve leaves our factory with outlet pressure preset at 3 bar (0.3 MPa). You can adjust its outlet pressure from 1.5 – 6 bar. Every valve gets calibrated on a test bench before shipment. After calibration, we lock the adjustment knob, stick on a pressure label, and then pack the valve.

We can set other target pressures for your project. Common options are 2.5 bar and 4 bar. You need to state your required factory preset pressure clearly when placing the order. After the valve arrives on site, installers can still fine-tune the outlet pressure to match real pipeline working conditions.

5. Can you integrate a pressure gauge into this Druckminderer für Wasser Reducing Valve?

The Druckminderer für Wasser Reducing Valve can work together with a pressure gauge. The standard valve body has a built-in port for the gauge. You can mount the gauge directly. No extra changes to the valve body structure are needed. The standard pressure gauge measures from 0 to 10 bar.

If you want a single-piece valve body with a pre-attached gauge. The minimum order is 1200 sets. After the pressure gauge is fitted, we calibrate the whole unit before shipment. This makes sure the pressure control matches the gauge readings.
