Bronze Swing Check Valve

Parameters of Bronze Swing Check Valve

Swing Check Valves can be installed in horizontal or vertical upward flow pipe systems.

Additional information


Bronze, Lead-free brass


Original, Sand blasted





Thread connection


Working pressure





24 months

Details about Bronze Swing Check Valve

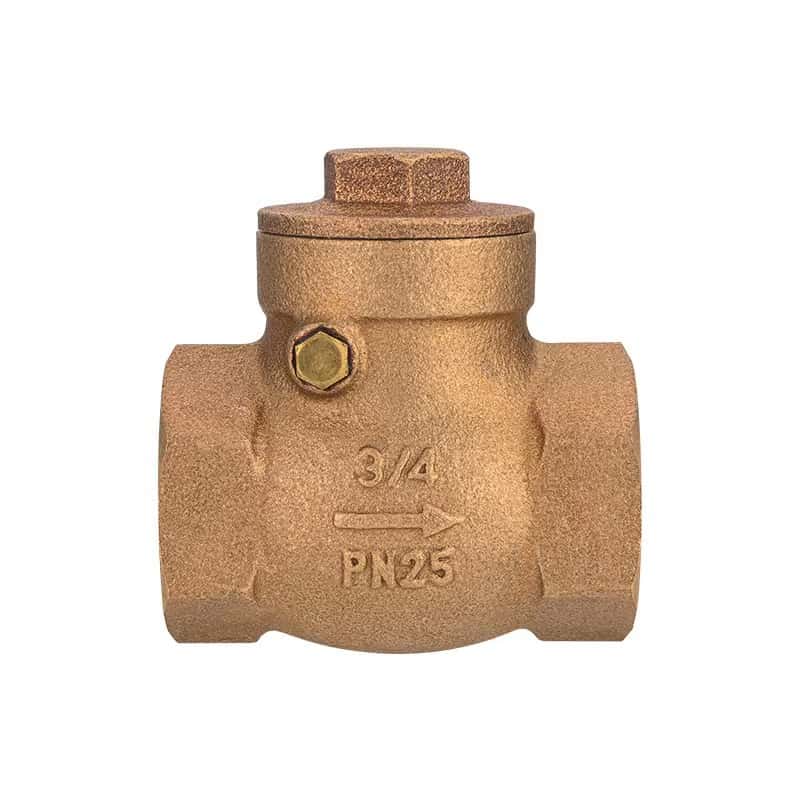

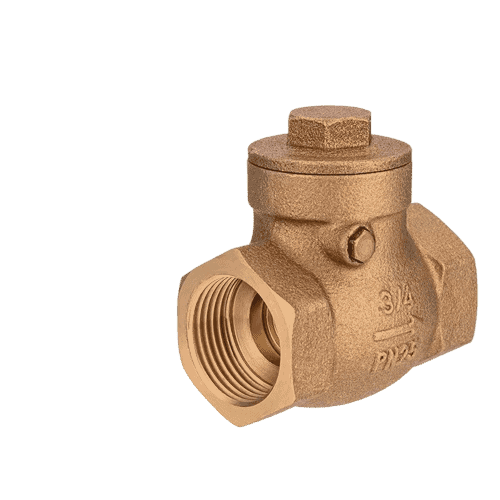

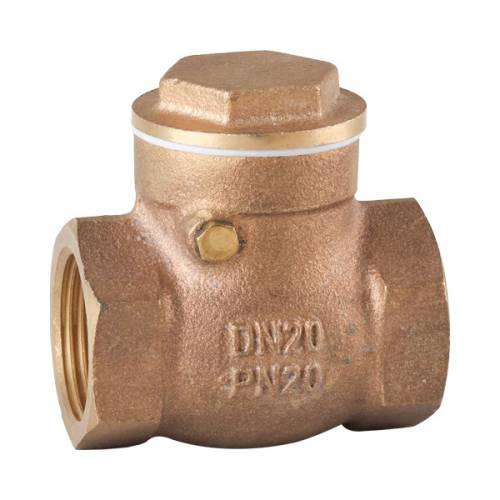

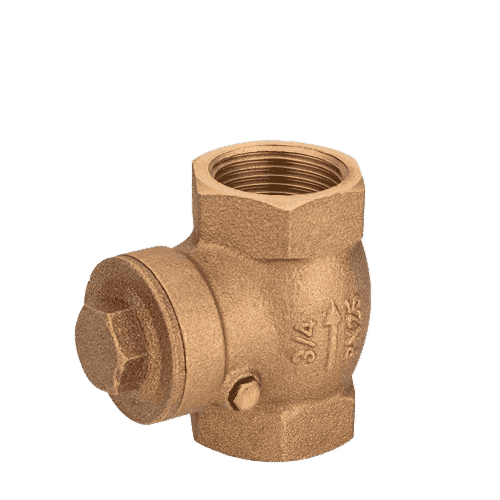

Bronze Horizontal Swing Check Valve


  • Nominal Pressure: 2.0MPa
  • Working Medium: Water, Non-corrosive liquid
  • Working Temperature: -20℃≤t≤150℃
  • Thread to ISO228
  • Note: Sealing Material is Brass
  • Swing check valve size: 1/2-2 inch BSP female x female threaded.
  • Swing check valve material: Brass.
  • Max pressure: 200 Psi.
  • Wide application: Applicable for water, steam, oils, nitric acid, urea, and more. They are mainly used in petroleum, chemical, pharmacy, fertilizer, and electricity pipelines.
  • Good sealing: The lifting and closing parts are opened or closed by the medium flow and the force, and the sealing property is suitable to prevent liquid leakage. This type of valve should be installed horizontally, allowing only the medium to flow in one direction to avoid accidents.
bronze check valve drawing
bronze check valve drawing


bronze swing check valve
bronze swing check valve

Swing Check Valves are used for water and other liquids. Swing Check Valves can be installed in horizontal or vertical upward flow pipe systems. The valve should be fitted with a rubber-faced seal for low-pressure applications and air or gas systems where bubble-tight closure is necessary. The current range does not include this facility, but such a feature can be available for special orders. Applications and uses Check Valve range are available with water, oil, and air up to 20 bar.

A brass swing check valve, also known as a ballcock, is vital for plumbing systems. It is used to prevent the backflow of water and the buildup of pressure in the system. A brass swing check valve can leak or burst if installed correctly or maintained regularly. There are some other things you should know about this device before installing one!

-A brass swing check valve is available in many different sizes. Be sure to choose the right size for your system!

-The valves are also available in either threaded or flanged ends. Choose the type that will fit best with your plumbing system.

-A brass swing check valve should be installed so that water flow always goes in the same direction. This will help to prevent leaks and bursts.

-Be sure to keep the valve clean and free of debris buildup. This can cause the valve to leak or burst.

-If you notice that your brass swing check valve is leaking, it may need to be repaired or replaced. Contact a professional plumber if you have any questions or concerns.

What is a Bronze Swing Check Valve?

A bronze swing check valve is used for flow control in fluid systems. Commonly used in plumbing and industrial applications, the device consists of a disc with a hinge that allows it to open and close. When pressure increases on one side of the valve, it opens to release the excess. When the pressure returns to normal, the disc swings closed again, keeping any backflow from occurring.

A bronze swing check valve is an economical choice for most applications due to its durability and corrosion-resistance qualities. It can be used with many different fluids, including water, oil, and steam. This versatility makes it suitable for various industries, such as chemical processing plants, food processing facilities, and power plants. Additionally, some models may have additional features like non-return valves or filters, which can increase performance even further.

Advantages: Benefits of Using a Bronze Swing Check Valve

Bronze swing check valves are a popular choice among homeowners and business owners alike as they are an efficient way to regulate the flow of liquids and gases. The bronze material in these valves is exceptionally resistant to corrosion, making it an ideal choice for areas with salt water or other corrosive elements. Furthermore, this type of valve offers several advantages that make it the perfect option for any project requiring precise control over liquid or gas flow.

The first advantage of using a bronze swing check valve is that it can offer superior control over liquid or gas flow. This makes them ideal for applications requiring precise regulation, such as industrial processes, fire sprinkler systems, and even plumbing fixtures. Additionally, the fact that these valves can be installed horizontally or vertically, depending on their position, makes them incredibly versatile.

Applications: Where to Use a Bronze Swing Check Valve

Bronze swing check valves are an essential component in many applications. These valves help to control and regulate the flow of liquids, gases, or steam, and they’re commonly used in large-scale industrial applications. Here’s a look at some of the most common uses for bronze swing check valves.

One application where bronze swing check valves are used is in water treatment systems. The valve helps to prevent backflow and drinking water contamination by controlling the flow’s direction. It can also be used in irrigation systems to ensure that pumps don’t become overwhelmed with too much pressure from over-pressurized areas upstream. In addition, it can be installed on fire protection systems to protect against backflow when water pressure fluctuates too drastically.
