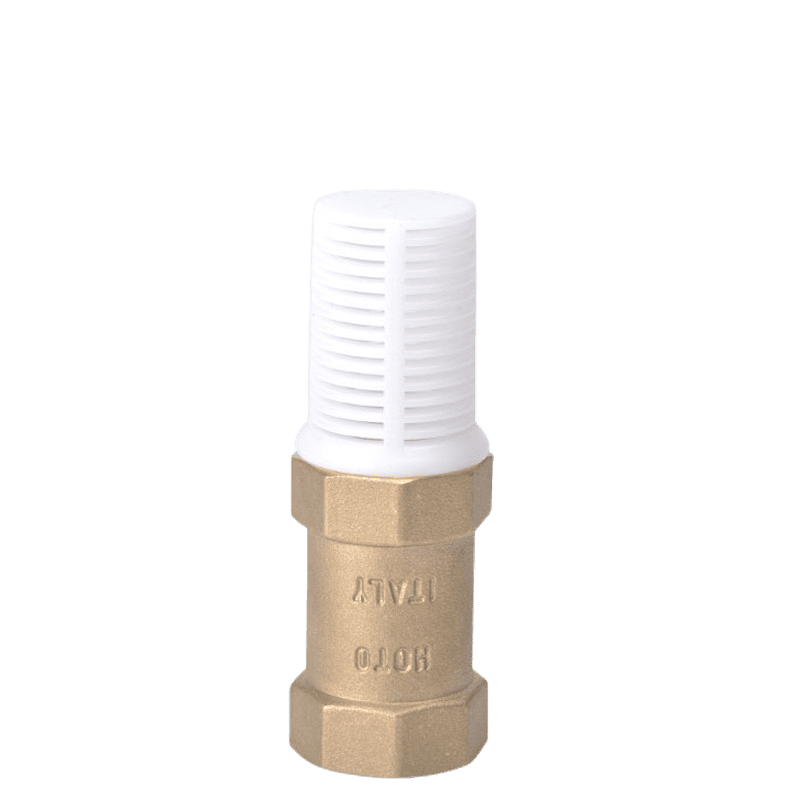

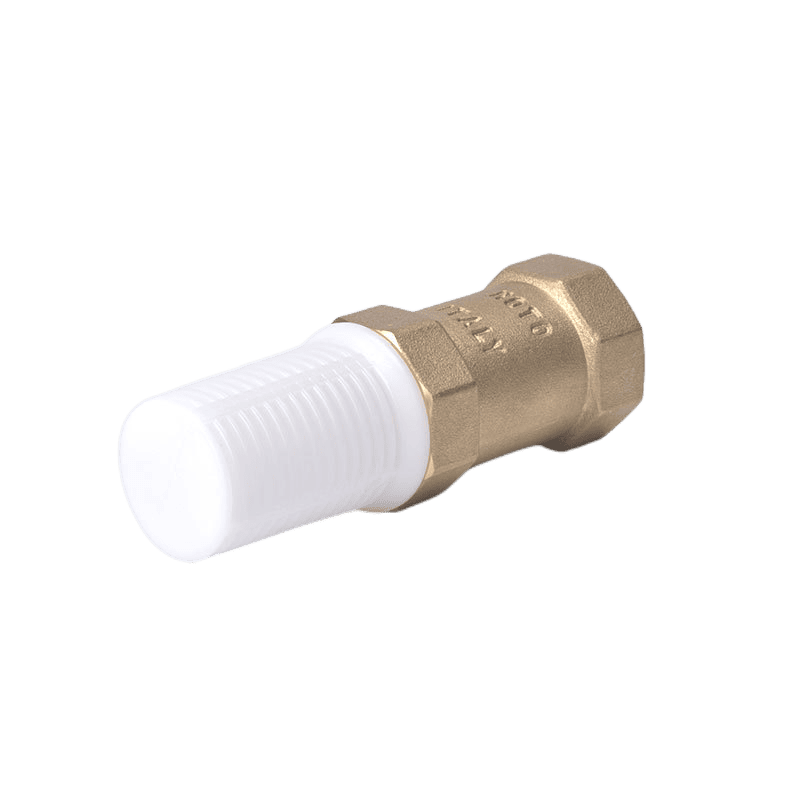

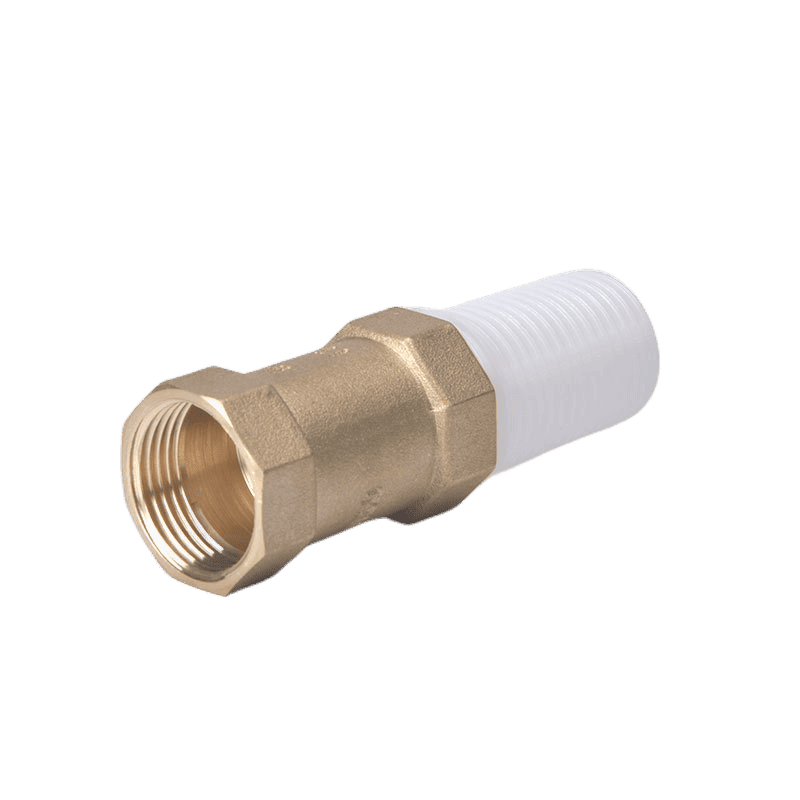

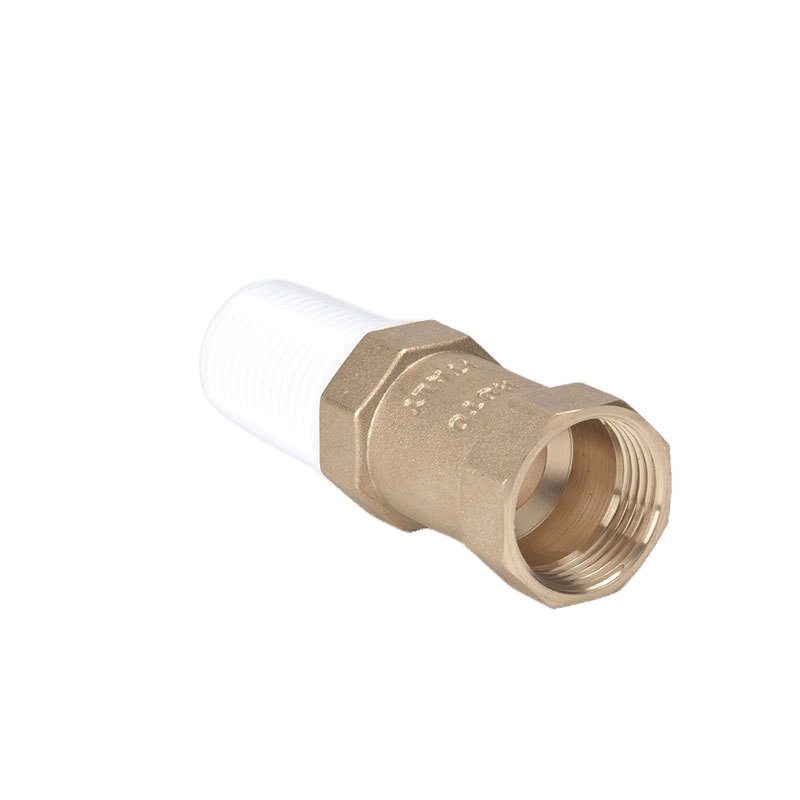

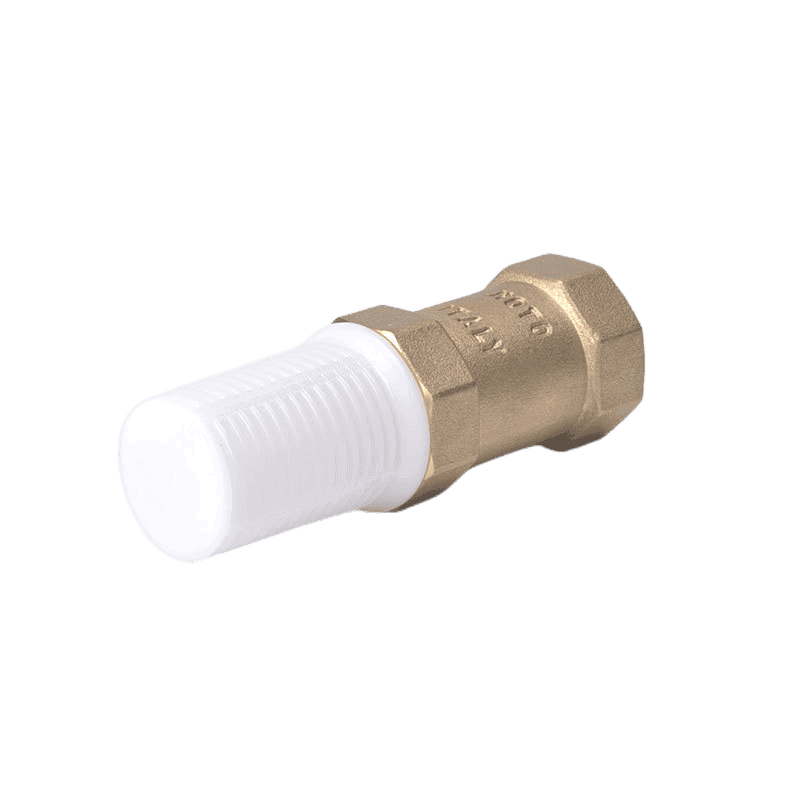

Water Pump Foot Check Valve

Parameters of Water Pump Foot Check Valve

Check valves are designed to permit water to flow in one direction and are a requirement on all submersible pump installations.

Additional information


CW602N, CW617N, H58-3


Sand blasted





Thread connection


Working pressure

200WOG, 250WOG


Stainless steel

Core stem

Brass insert, Plastic insert




36 months

Details about Water Pump Foot Check Valve

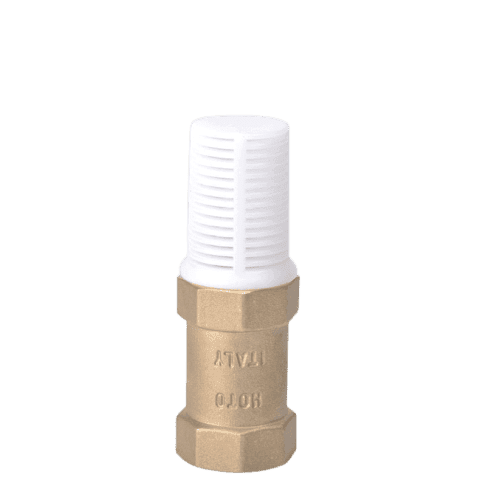

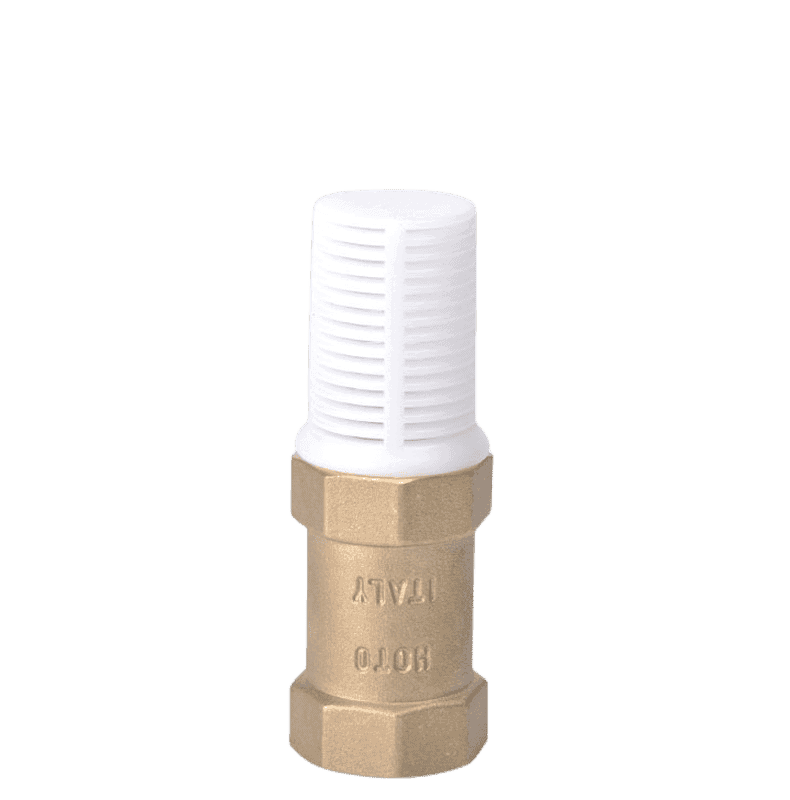

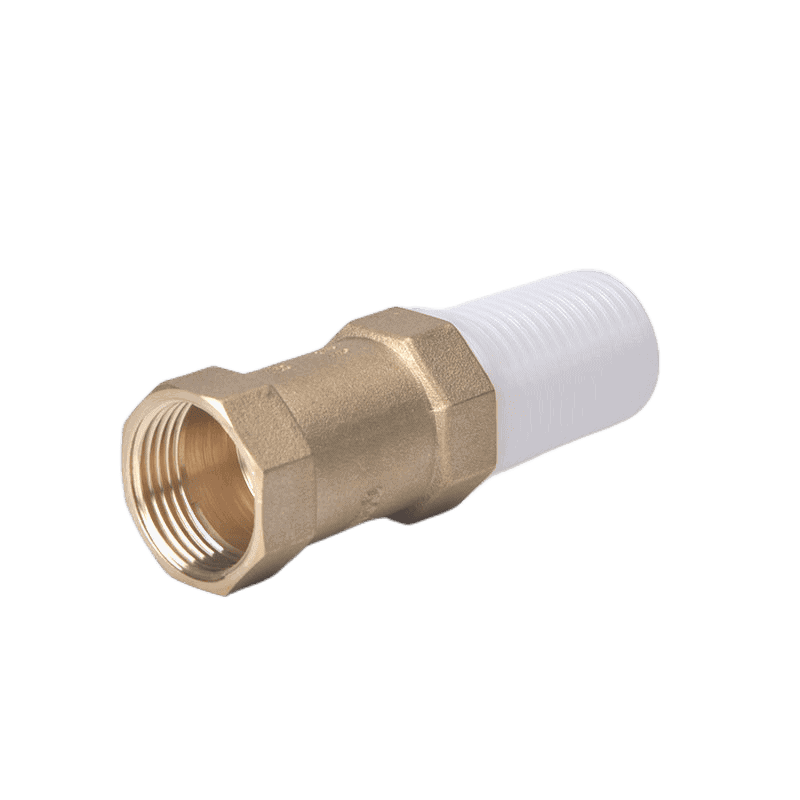

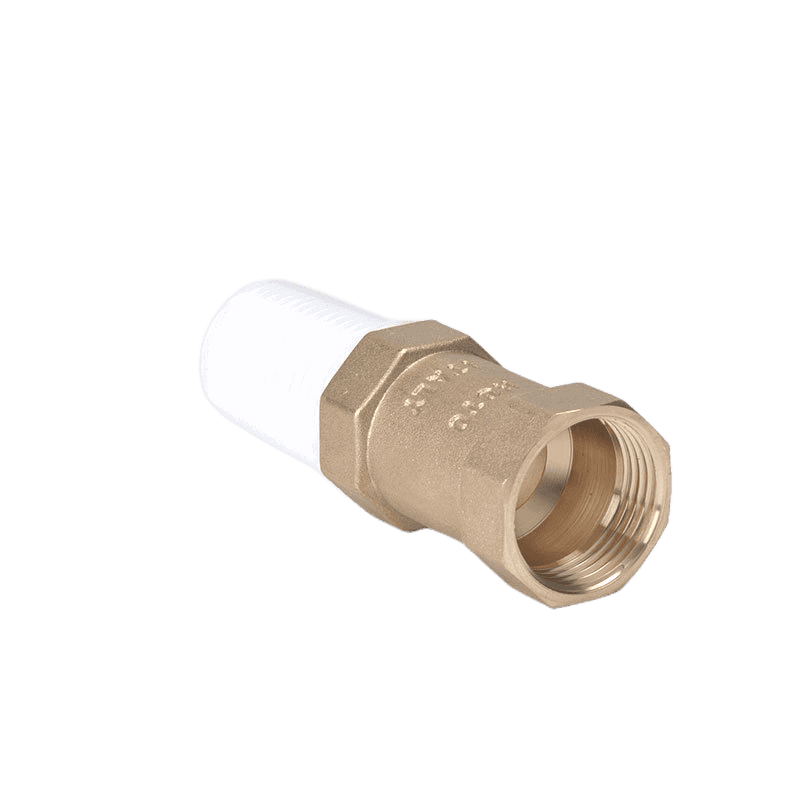

Water Pump Foot Check Valve


  • Brass Check Valve
  • Size 1/2″-2″
  • Materials; Lead-free Brass
  • Pressure rated to 200WOG
  • Operating temperature: -10°C to 110°C
  • Forged Brass with sandblasted
  • Media; Water; Seawater;
  • Thread connection: BSPT, NPT, U.N.
  • 1″ IPS connection
  • Brass body with a stainless steel spring for long-lasting durability
  • PRESSURE: This valve has a PSI of 200 and 5 PSI to open
  • USE: This valve is used to prevent the backflow of fluids
  • INSTALLATION: Installing this valve is easy for contractors or homeowners


  • Introduction: A brass check valve (swing check valve) is used when fluid reverses direction and automatically closes to avoid backflow. Installing an inline brass check valve can be done horizontally and vertically. The brass swing check valve is also known as a one-way valve. This allows liquids, gases, and other fluids to flow in one direction through the pipework. Any turbulence will be controlled with a brass swing check valve, a type of brass check valve.


  • Application: When the brass swing check valve is open, it provides almost negligible resistance to flow. Gases, air, water, oxygen, refrigeration, medicinal, and dental applications use a brass swing check valve. Backflow may also be prevented by using it in pumps and compressor discharge cooling towers, pressure pumps, broilers, and other industrial and home uses. The brass swing check valve can also measure and control various experiments.


  • Features:· The brass swing check valve shows strong corrosion resistance.· Work in demanding environmental conditions· Made by highly accurate and precise machinery· With zero air holes· zero leakage· Having strong and permanent threads which cannot be vanished easily· Capable of controlling any turbulence of any fluid· Works in heavy-duty· show ductility at high-temperature · Having low magnetic permeability· Extreme and can work for a lifetime· Brass discrete· Most versatile and economical option· A product having high-density forging· Can be used for pumps, compressors, discharge cooling towers, and many more of your usages.


  • Specifications: Swing brass check valves that prevent backflow of fluid in many industrial and domestic applications have the following specification. With the given specification, we have the swing brass check valve for our customers. Item type Swing brass check valve flow diagram single pipe size connection type cracking pressure installation Orientation  Horizontal or vertically flow valve.


Foot check valve

Working Specifications:

  • Materials: Water pump foot check valves are typically made of durable materials like PVC, brass, or cast iron, which are resistant to corrosion and suitable for various applications.
  • Valve Type: Foot check valves are one-way valves that allow fluid to flow in one direction while preventing backflow. They rely on a hinged or spring-loaded flap or disc that opens when fluid flows in the desired direction and closes to prevent reverse flow.
  • Pressure Rating: The pressure rating of a foot check valve is an important specification. It indicates the maximum pressure the valve can withstand without leaking or failing. Typical pressure ratings can range from 150 PSI to 300 PSI or more, depending on the valve’s design and material.
  • Size: Foot check valves come in various sizes to accommodate different pipe diameters. Common sizes can range from 1/2 inch to several inches in diameter. The size you need will depend on the diameter of your pipes and the flow rate required for your application.
  • Connection Type: These valves are available with various connection types, such as threaded, flanged, or socket connections. The choice of connection type depends on the specific installation requirements of your system.
  • Seal Material: The sealing material is essential to ensure a tight seal and prevent leakage. The choice of seal material depends on the fluid being pumped. Common seal materials include rubber, EPDM, or Buna-N.


Choosing the right size for a water pump foot check valve is critical to ensure proper flow and performance. Here are some common size considerations:

  • Pipe Diameter: The valve’s size should match the diameter of the pipes in your system. For example, if you have 2-inch pipes, you’ll need a 2-inch foot check valve.
  • Flow Rate: Consider the required flow rate of your system. Larger pipes and valves can handle higher flow rates. If you need to move a significant volume of water, you’ll likely need a larger valve.
  • Installation Space: Ensure that you have enough space to install the foot check valve of your chosen size without obstructions or constraints.
  • System Compatibility: The valve size should also be compatible with the overall design and components of your plumbing or pumping system.

In summary, water pump foot check valves are available in various sizes and working specifications to suit different applications. When selecting a foot check valve, it’s essential to consider factors like pipe diameter, flow rate, installation space, and the specific requirements of your system. Proper sizing and the right specifications are crucial for optimal valve performance and system efficiency.



swing check valve

We provide reliable swing check valve

This product will save your resources, which are extremely valuable today. You cannot live without resources, and this product can protect you from numerous risks. Swing check valves control fluid flow in the home and industrial applications, saving time.

 Customization and OEM of the products based on requirements :

We provide products that exactly match your desired requirements. We can make a swing check valve for your industrial and domestic usage. We are comprehensive solution suppliers covering nearly thousands of different types of products and specifications in many significant areas. These areas include public and private buildings, water control systems, heating of homes and other household buildings, Gass’s safety systems, and family bathroom hardware systems.

Your desire to get the products for your plumbing system. Please select your required products

The Video from R.C. Worst & Co., Inc.

Promotion: There are four elements of the marketing mix; product, location, price, and advertising. The rise comes in the fourth position. It is defined as the mean of communication, and its purpose is given below.· To give the prospective purchaser information about the product characteristics and application.· The demand for a product will be increased when the customer’s knowledge and interest are raised.· To distinguish your product from your competitors, brand loyalty is created.

Why do you need a check valve?

Check valves are designed to permit water to flow in one direction and are a requirement on all submersible pump installations. Their job is to prevent water in the column above the pump and the pressure tank from draining back into the well when it shuts off.

Why need Water Pump Foot Check Valves?

Water Pump Foot Check Valves serve a crucial role in various plumbing and pumping systems. These valves are specially designed to prevent the backflow of water or other fluids within the system, maintaining the efficiency and integrity of the entire setup. Here are some reasons why water pump foot check valves are needed:

  • Backflow Prevention: One of the primary functions of water pump foot check valves is to prevent the reverse flow of water. In applications where maintaining a one-way flow is essential, such as in well systems or irrigation, these valves stop water from returning to its source, ensuring the system’s efficiency and functionality.
  • Maintaining Prime: In many pump systems, it’s crucial to keep the pump primed, meaning that it’s filled with water and ready to operate. Foot check valves help maintain the prime by keeping the water from flowing back into the well or reservoir. Without these valves, the pump may lose its prime, requiring manual re-priming.
  • Preventing Water Hammer: Water hammer is a sudden pressure surge caused by the quick closing of a valve. Water pump foot check valves can mitigate water hammer by providing a controlled closure, which reduces the risk of damage to pipes and other components.
  • Avoiding Contamination: In situations where the fluid being pumped should not come into contact with the environment (such as in chemical processing or wastewater treatment), foot check valves help maintain the integrity of the system by preventing outside contamination from entering.
  • Extended Pump Life: By ensuring that water continually flows in one direction, these valves reduce the stress on the pump. This can extend the life of the pump and other system components, saving on maintenance and replacement costs.
  • Energy Efficiency: Water pump foot check valves help maintain system pressure and reduce the need for the pump to work harder or more frequently to maintain flow. This can result in energy savings and lower operating costs.
  • System Simplicity: Foot check valves are relatively simple and dependable devices. They are easy to install and require minimal maintenance, adding to the overall reliability of a system.

In summary, water pump foot check valves are essential components in various fluid handling systems, helping to maintain flow in one direction, prevent backflow, and protect system integrity. Their use is particularly critical in applications where water hammer, contamination, or the loss of prime can lead to inefficiency, damage, or increased operational costs.
