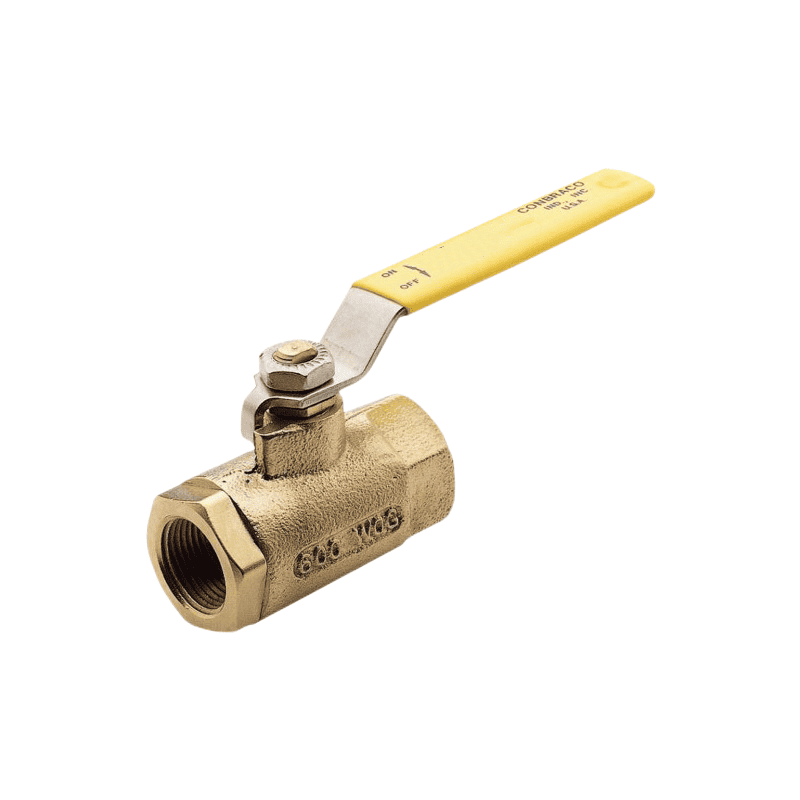

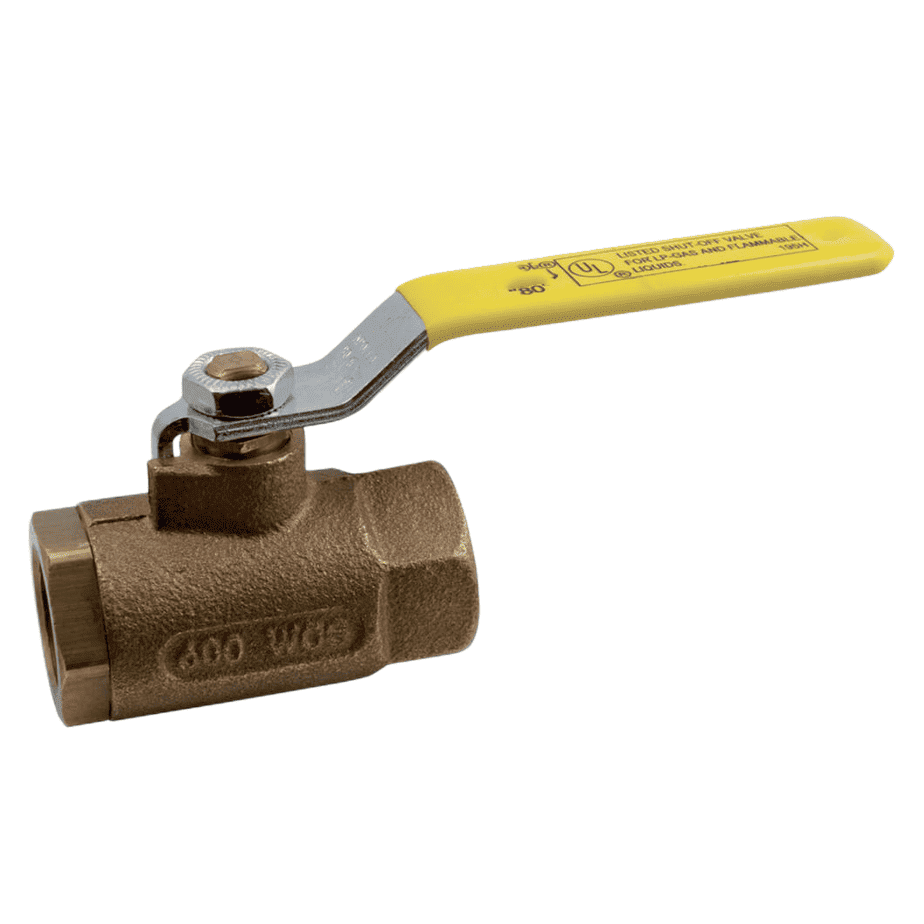

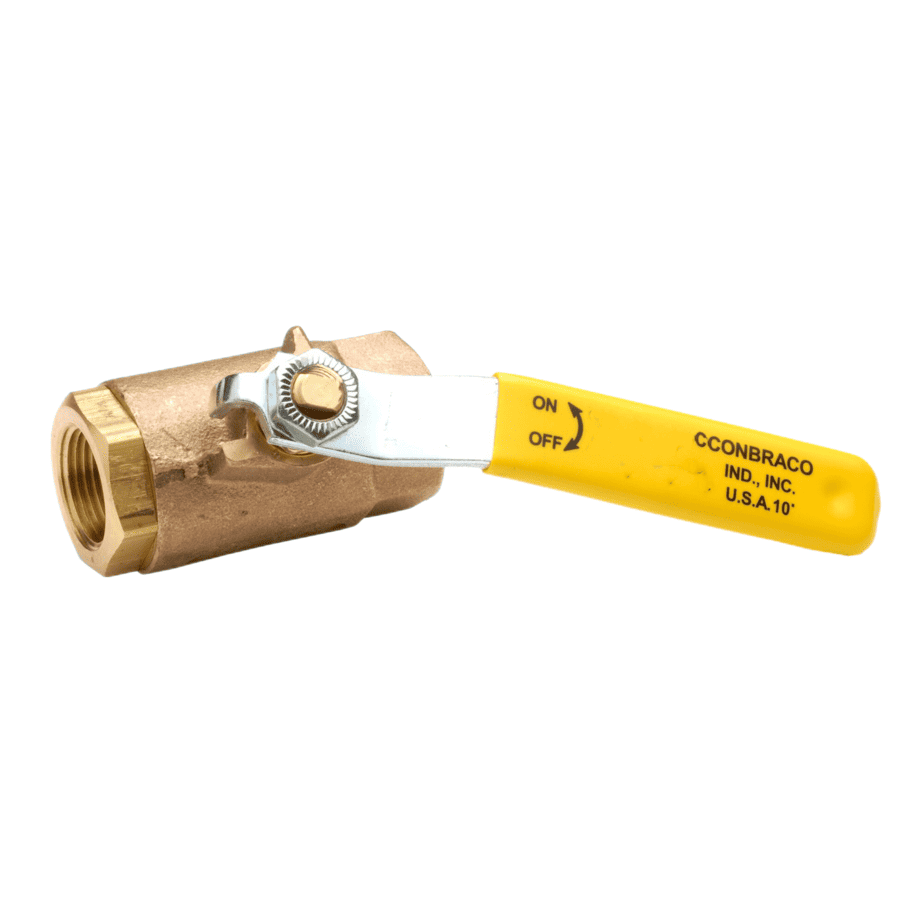

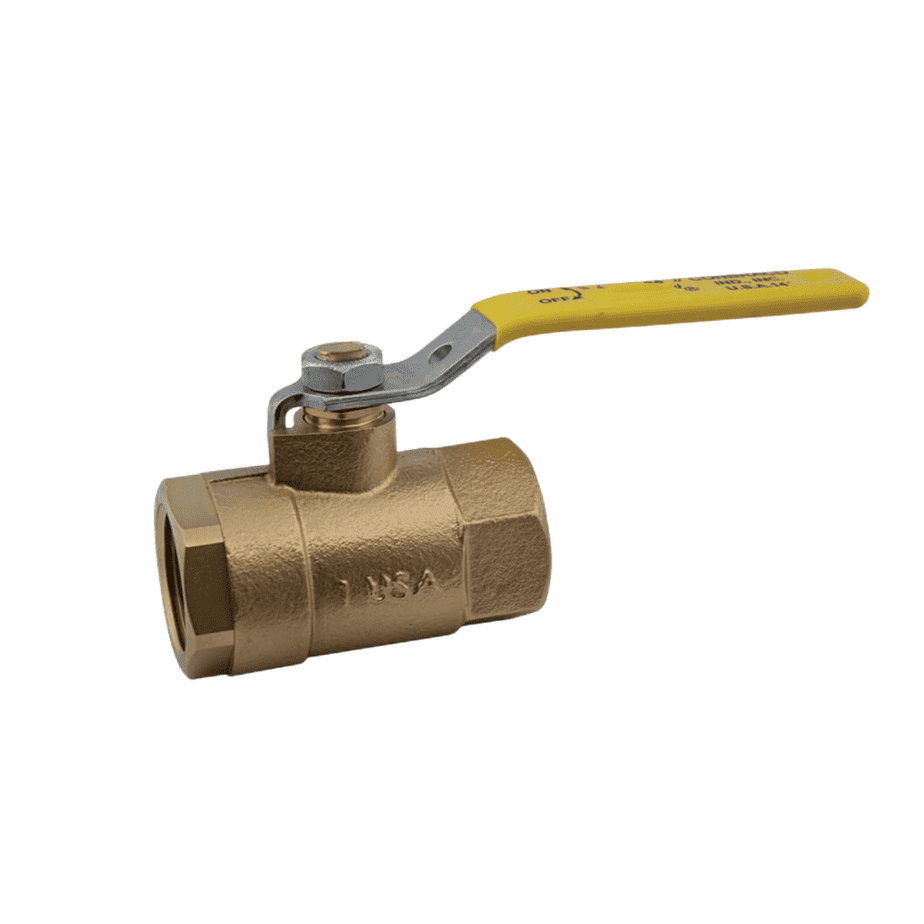

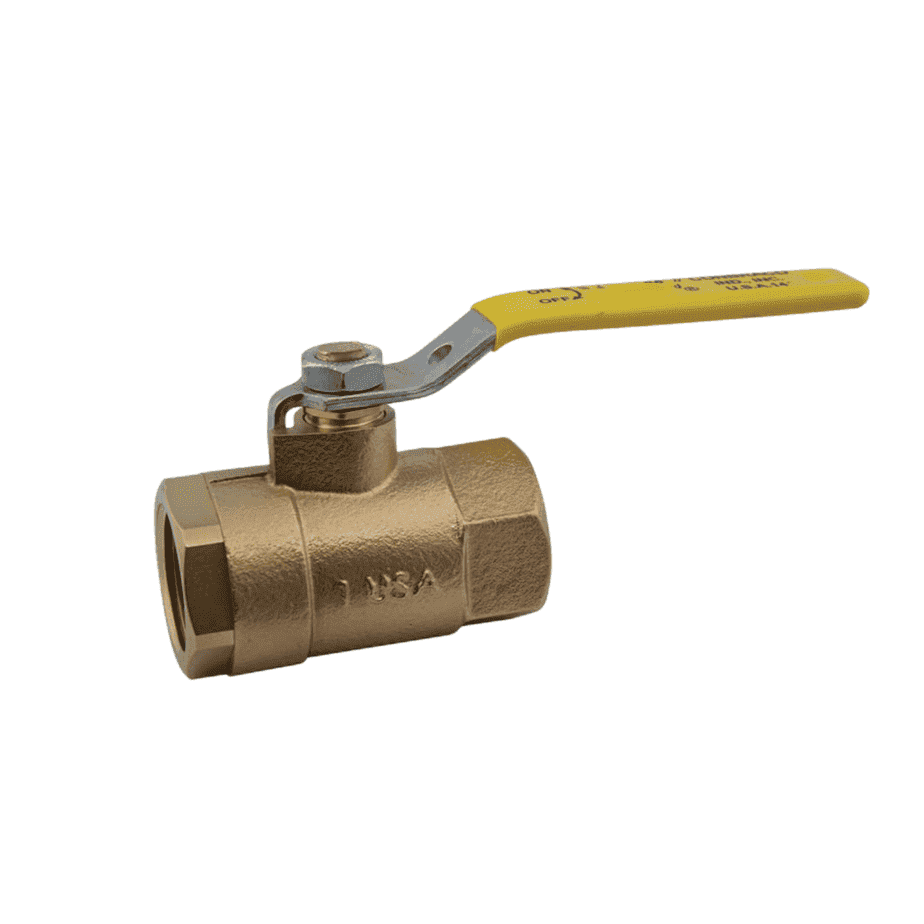

Bronze Ball Valve Inline

Parameters of Bronze Ball Valve Inline

The Brass gas ball valve is a  shut-off valve that controls the gas by means of a rotary ball having a bore.

Additional information

Finising:

Original, Sand blasted

Handle:

Iron with sleeve, Stainless steel with sleeve

Life time:

150000 times On-Off

Materials:

Bronze

Size:

1", 1/2", 3/4"

Temperature:

-10˚C-120˚C

Thread connection

NPT

Working pressure

600WOG

Warranty:

24 months

Details about Bronze Ball Valve Inline

Bronze Ball Valve Inline

JX-0428

  • The Bronze Ball Valve is UL certified and designed as a safety shutoff valve for LP gas, natural gas, flammable liquids, and heated oil.

    Features:

    • Blow-Out Proof Stem Design
    • PTFE Seats and Seals
    • Chromium Plated Ball
    • Maximum Pressure: 600 WOG
    • 150 PSI SWP
    • Gas Shutoff Valve for use with natural and manufactured gases
    • The flammable liquid shutoff valve
    •  Up to 250°F
    Size:

    1/2″,3/4″,1.”

    Max Pressure:

    600WOG

    Material:

    Bronze, lead-free bronze

    Handle Style:

    Steel Lever

    Application:

    Plumbing, Pipeworks

    Type:

    FNPT x FNPT

    Method:

    Threaded

    Thread Type:

    Female

    Features:

    Standard port

    Valve Construction:

    2 piece

    Lead-Free:

    Custom

    Port Type:

    Customize

Overview of Bronze Threaded Ball Valves

Bronze Threaded Ball Valves are a type of valve commonly used in plumbing, industrial and commercial applications. These valves are designed to control the flow of liquids and gases through pipelines. They come in a variety of sizes and styles to meet different needs. Bronze Threaded Ball Valves have several advantages over brass or bronze alloy valves.

This article provides an overview of Bronze Threaded Ball Valves, including their features and benefits. It explains how they function, what materials they are made from, why they are preferred for specific applications, and more. Additionally, it offers tips on maintenance and installation to get the most out of your ball valve system for many years.

Anatomy: Components of a Valve

Anatomy: Components of a Valve is essential for understanding the functionality and purpose of any valve. A Bronze Threaded Ball Valve is a commonly used type of valve found in various applications, such as HVAC systems and plumbing. The anatomy of this specific type consists of four main components: ball, stem, body, and seat.

The ball component is round-shaped with holes that allow water to pass through it or close off the flow when closed. This component rotates with the help of the stem connected to it, which is made from either brass or stainless steel, depending on its application. The body houses the ball and supports both ends of the stem while providing attachment points for other components like handle levers and actuators. Finally, there is a seat that helps create a seal between the body and the ball to ensure an effective shutoff without leakage.

Types: Variety of Configurations

Bronze-threaded ball valves offer a variety of configurations and designs to meet the needs of many applications. The threaded design allows for easy connection to other parts while providing a secure seal on all sides. Depending on the specific application, several different bronze-threaded ball valves are available. These include full port, reduced port, two-way shutoff, three-way shutoff, and four-way shutoff models. Each type has unique features that make it ideal for specific purposes.

Full port valves provide an unrestricted flow path and are suitable for applications where maximum flow is essential. Reduced port valves have a slightly smaller opening than full ports and are often used when less water pressure is needed or in tight spaces where full ports would not fit properly.

Operating Features: Range of Applications

When it comes to industrial equipment, a threaded ball valve is an essential component. The bronze threaded ball valve is one of the most popular models for its reliable and versatile performance in various applications. This type of valve offers superior operating features ideal for multiple uses related to hydraulic and pneumatic systems and plumbing needs.

The advantages of using bronze valves include their ability to withstand higher temperatures and pressures than other materials, making them suitable for both hot and cold water systems. Additionally, they feature a full-port design which allows more excellent flow rates while maintaining optimal efficiency with a minimal pressure drop across the system.
