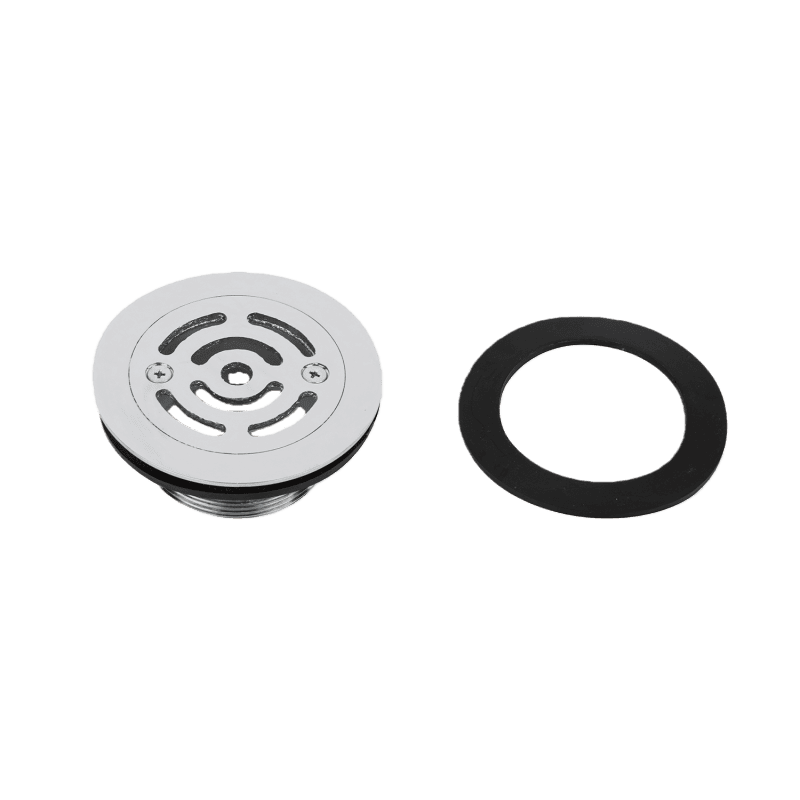

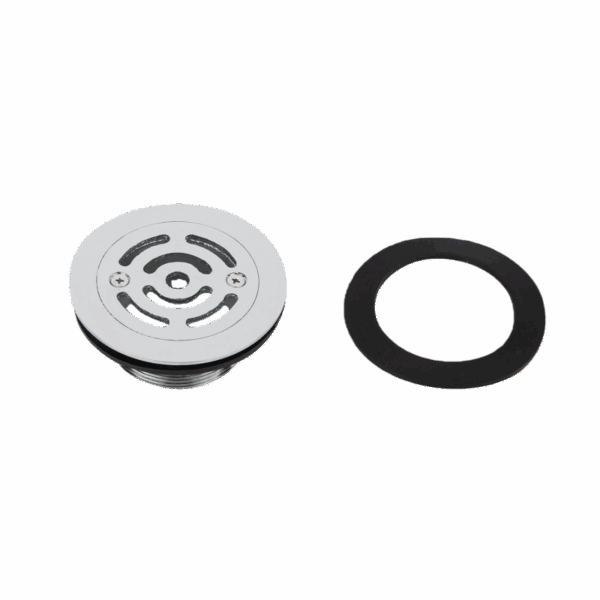

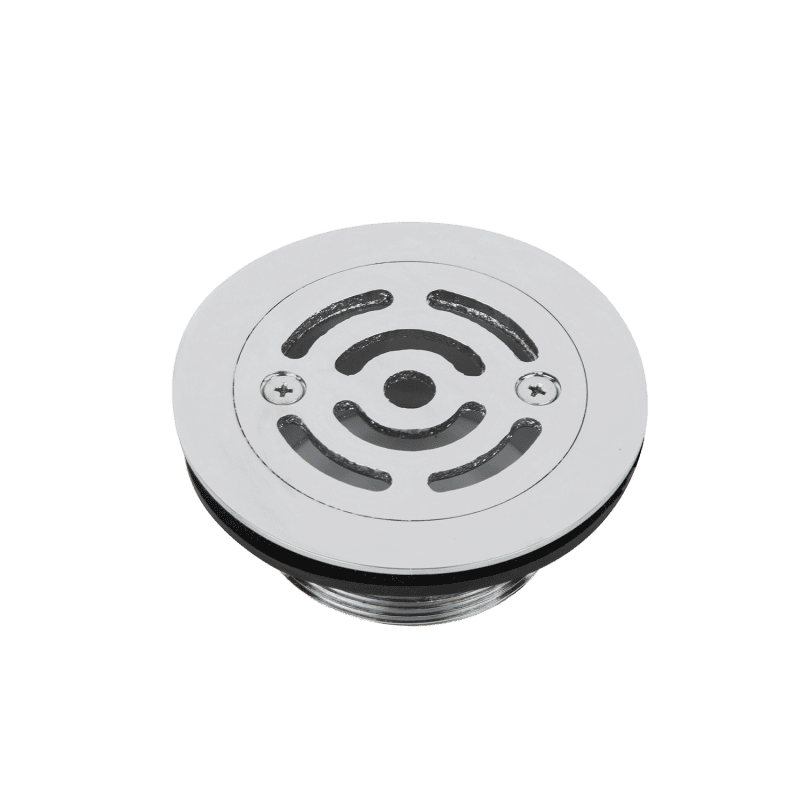

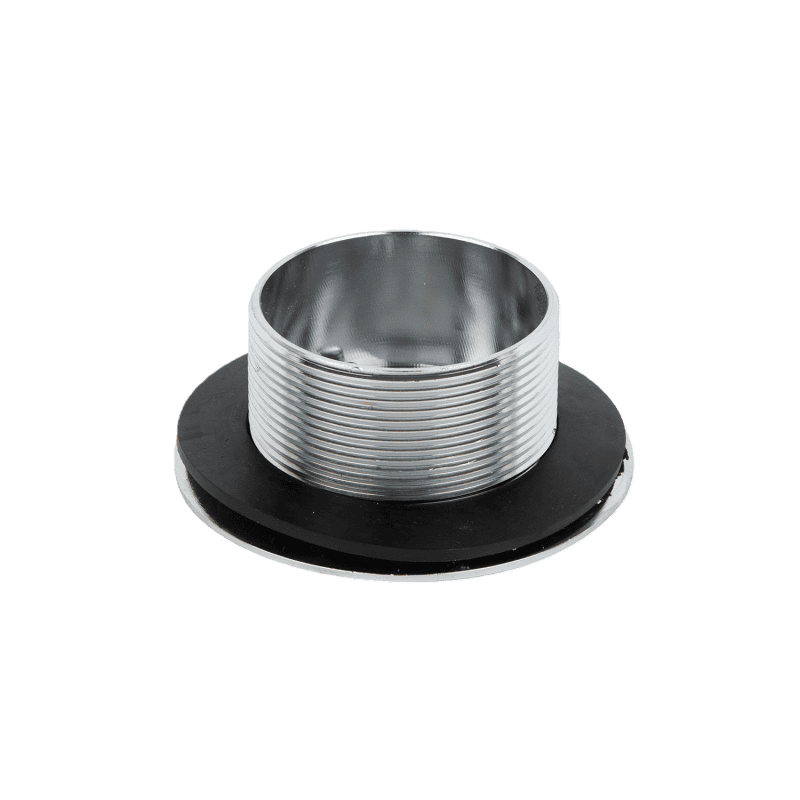

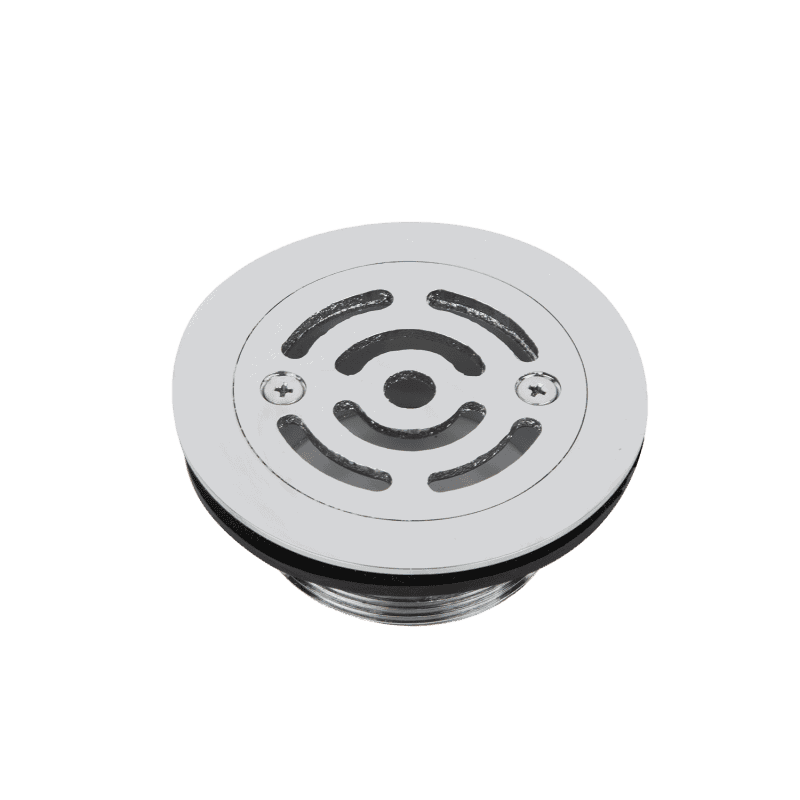

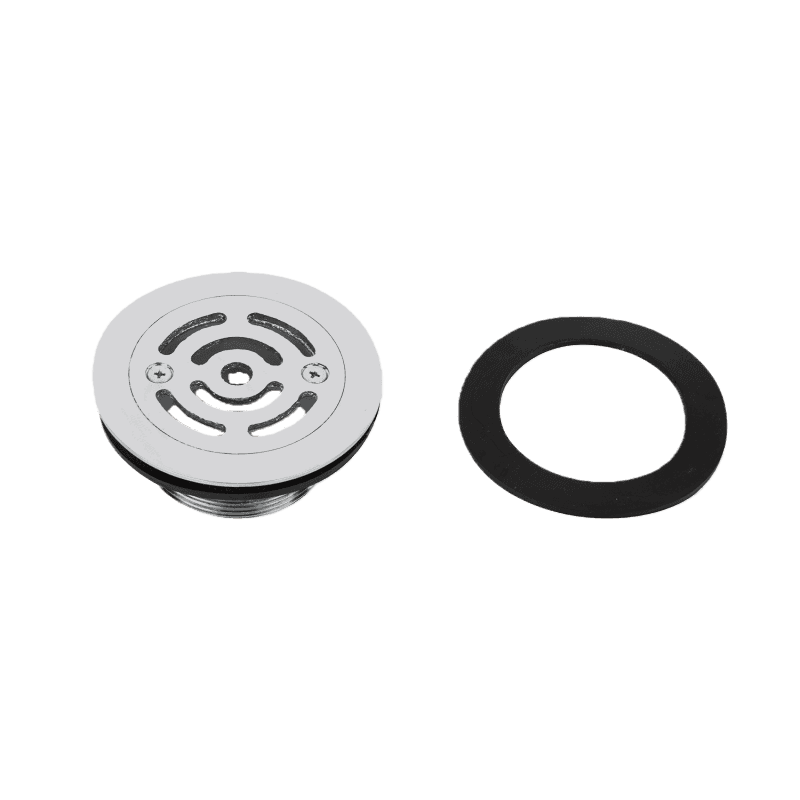

This flat-top chrome bathtub drain is a special fitting for bathtub drainage systems. It has a flat circular strainer panel on top. The panel has annular drain holes. These holes trap debris and stop pipe clogs. The bottom comes with a threaded port. It connects firmly to the bathtub drainpipes. Its low-profile flat design sits flush with the bathtub bottom. You won’t feel uncomfortable stepping on it while bathing. This drain works great for efficient drainage. It also looks sleek and understated.
Model No.: JX-10066
Size: 2-9/16″X3-13/16″
Chrome-plated brass strainer
Material: Brass
Finish: Polishing and chrome-plated/nickel-plated
The top Strainer is Removable
Slip-in with stainless steel lock-down allen key screws
This twist-lever waste drain is a controllable drainage fitting engineered for bathroom and kitchen applications. Made of stainless steel, it has a simple three-part design. The top perforated strainer catches debris to help prevent clogs. Below it is the main drain body, connected to a rotating rod with a black PVC handle.
Model No.: JX-0820
Size: 3-1/2″ x 2″,3″x 1.5″
Material: Brass, Zinc alloy, Stainless steel, and black PVC
Handle: stainless steel handle
One-piece R11000 Diverter valve Rough-in valve
3-1/2″ and 3″ snap-in removable strainer
Finish: Nickel-plated
Flow rate: 17GPM
Connection: NPT
Twist handle with customized length
Application in a commercial kitchen.
Medium: water
Installation type: Manually screw-in mounting
Ni Bronze Cleanout Spuds Square Floor Drain Strainer
Cleanout Spuds Square Floor Drain Strainer is a practical floor drainage accessory. It combines filtering and easy cleaning functions. It catches hair and debris before they go into the pipe. This reduces clogs. The bottom has a male threaded connection. It can connect directly to the floor drain pipe. If the pipe gets clogged, you can remove the screen panel, Clean, and maintain it quickly. This strainer is suitable for bathroom, kitchen, and other similar floor drains.
Model No.: JX-0978
Size: 5″, 6″
Spud size: 3-1/2″
Square brushed nickel strainer
Material: Brass, Nickel-bronze
Finish Type: Brushed Nickel, Cast Iron
Finish: polished
Connection: UNF, NPT
Style: Modern
Type: Strainer with Spud
Packaging: Brown cartons with wooden pallets
Adjustable Shower Floor Drain with Flange
Adjustable Shower Floor Drain with Flange is an adjustable shower floor drain with a flange. It is a drainage accessory commonly used in bathroom shower areas. It consists of a height-adjustable main body, a flange with fixing function, and is composed of components such as a filter cover plate. The purpose is to quickly drain the accumulated water in the shower. A flange part fixes the floor drain firmly on a concrete base or a shower basin bottom. It enhances stability after installation, improves tightness. The adjustable design lets installers adjust the floor drain height. This makes the floor drain flush with the floor. Flush floors allow smooth drainage.
Model No.: JX-0977
Drain material: ABS/PVC plastic, cast iron
With a brass square grille
Size: 2″, 3″
Head adapter thread 2″ MIP
Adjustable height: 3X15/16″ – 5X15/16″
Grate Size: 200mm
Outlet Pipe Size: 150mm
Outlet Direction: Vertical
Type: Square Shower Drain
Weep holes on both top and bottom for secondary drainage.
Flow: 0.4 – 0.5 L/s
Working temperature: -10-120℃
Connection: NPT, UNF
With a 3-year warranty
Cast Iron Roof Drain with Aluminum Dome
This cast iron roof drain with an aluminum dome is a specialized fitting engineered for building roof drainage systems. It features a cast-iron base paired with an aluminum dome screen. Used for quickly channeling away roof rainwater, while the integrated screen traps leaves and debris to prevent pipeline clogs. Adapt to the drainage system of the building roof, and consider both drainage efficiency and durability.
Model No.: JX-0968
Size: 3″, 4″
Material: Cast iron, Aluminum
With an aluminum dome
Kind: Roof Drain
Use for outdoor
Cast Iron Body: Powder Coating
Standard: ANSI-A
Wastewater Type: Rain
Surface: Painting
Self-locking polyethylene dome
Small Area Roof Drain, with Epoxy Coated Cast Iron, Flashing Clamp, Integral Gravel Stop
3 Color Bathroom round Brass Shower Drain with Chrome plated
It is a practical and decorative bathroom shower area drainage accessory. Its main body is made of brass and chrome-plated, with three appearance colors to adapt to different bathroom styles. Its core purpose is to quickly drain water from the shower. The circular filter cover can intercept hair, fiber, and other debris, reducing the risk of sewer blockage. This accessory is widely used in residential bathrooms, hotel bathrooms, and other scenes.
Model No.: JX-0961
Size: 4″X 2″
Type: Round
Material: Brass
Includes (2) screws 3-3/8 in. length
Finishing: Original brass, Chrome-plated and polished
Kind: Shower Drain
Wastewater Type: Domestic Wastewater
Used for indoor using
4 “diameter cast strainer
2 “IPS commercial drain spud
Fits shower or floor drain bases threaded for 2-inch spuds
Thread Size: 3-1/2″
Connection: NPT
Round Brass Deck Plug
The Round Brass Deck Plug is made of brass. It is a common sealing accessory in plumbing systems. It is widely used in ship decks, terraces, pool edges, bathroom floors, and other scenes where temporary sealing of drains is required. The core purpose is to block the flow when there is no need to drain, preventing debris from entering the pipeline due to blockage or avoiding rainwater from ponding in the interior of the room or equipment. When drainage is needed, it can be easily disassembled and opened. It is a practical component to ensure flexible control of the drainage system and pipeline protection.
Model No.: JX-0972
Material: Brass
Size: 3″, 4″
Type; Round
Inside caulk
With a Polished brass ring
Skid-resistant scoriated lid
Surface Treatment: Polish
With a solid 3-year warranty
Odour-proof design
Transport Package: Standard Brown Color Brown Carton with Pallets
Color: Natural brass
Standard: NSF, cUPC
FAQs of Bathtub Floor Drain Fitting
1. What’s the difference between bathtub and toilet floor drains?
Plumberstar bathtub floor drain is designed specifically for bathtub areas with larger drain hole diameter (conventional DN50-DN65) faster drainage flow (≥30L/min) and anti-overflow linkage function that combines with bathtub overflow to form double drainage ordinary floor drain has small hole diameter (mainly DN40) insufficient flow not suitable for bathtub rapid drainage needs not recommended for general use and can be customized to match bathtub size and drainage needs ensuring compatibility.
2. Can the bathtub floor drain’s drainage speed meet large-volume bathtub demands?
Absolutely. Plumberstar bathtub floor drain regular model drainage flow ≥35L/min, large diameter custom model (DN65-DN80) flow up to 50L/min, can quickly drain large volume bathtub water (such as 1.5m³ bathtub emptying time ≤45 minutes). For Jacuzzi, it can also optimize the internal flow channel design to reduce water flow resistance, match with an anti-vortex structure to avoid negative pressure during drainage, ensure smooth drainage without overflow, and provide a flow test report for batch purchase.
3. What are the main materials of the bathtub floor drain accessories?
Core material is high-quality brass (H59/H62) and stainless steel (304/316), with optional chrome plating, nickel plating, and wire drawing treatment. Brass corrosion resistance, good sealing, suitable for conventional residential scenes; stainless steel moisture resistance, rust resistance, high strength, suitable for seaside, high humidity commercial buildings (such as hotels), all meet drinking water safety standards.
4. Can the design of the bathtub floor drain be optimized for specific markets?
Function Optimization & Style Matching: Tailored to Bathroom Habits of Target Markets
1. Function Optimization for Different Usage Needs
Markets that care about deodorization and silence
Optimize the floor drain’s water seal structure. Adopt a deep-water seal and magnetic absorption double deodorization design. It blocks sewer odors. It also reduces water flow noise during draining. Some models can be equipped with an anti-overflow valve. This prevents sewage backflow caused by fluctuations in municipal pipe network pressure.
Markets that prefer easy cleaning and maintenance
Design detachable filter screens and cover plates. No tools needed for disassembly. This makes it easier to clean hair clogs. The cover plate surface has an anti-slip texture. It boosts bathroom safety when using.
Markets that pursue water-saving and efficiency
Optimize the floor drain’s drainage channel radius. Reduce flow resistance. Speed up drainage. Match fast sewer systems. Shorten bathtub drainage time. It balances the need for water-saving and efficient use.
2. Match Bathroom Styles & Aesthetic Preferences of Target Markets
High-end luxury markets
Use brass materials. Add surface treatments like mirror polishing and a brushed matte finish. Design covers in popular bathroom styles — minimalist, retro, and more. Customize LOGOs or special patterns. Improve product decoration and brand recognition.
Cost-effective markets
Ensure core drainage functions first. Simplify non-critical structure designs. Use ABS + stainless steel composite materials. Cut down product costs. The cover adopts a classic all-inclusive style. It fits most economical bathroom decoration styles.
3. Provide Localized Installation Adaptation Solutions
Adjust floor drain installation structures according to differences in bathtub installation in various markets.
For example:
European embedded bathtubs: Design ultra-thin flange floor drains.
North American freestanding bathtubs: Equip extended threaded joints. Adapt to different pipe embedding depths. Ensure installation convenience and tightness.
5. Does the Bathtub Drain have a deodorizing function?
All models are equipped with a deodorant design, which operates through two methods: 1. Water seal deodorant (a drainage pipe with water storage forms a seal, isolating sewer odor). Deodorant core deodorant (a built-in silicone/copper deodorant core allows one-way conduction, preventing odor backflow). According to customer needs, choose a single deodorant or a double deodorant.
6. How is the bathtub floor drain’s hair filtering function?
Built-in stainless steel filter (pore diameter ≤2mm) can filter more than 90% of hair and debris, preventing pipe blockage. The filter design can be removed directly without tools, allowing for convenient cleaning. Bulk purchases include free spare filters, reducing customer maintenance costs.
7. What standards bathtub floor drain meet for export to Europe?
Plumberstar bathtub floor drain complies with EN 24550 (European sanitary drainage accessories standard) and CE certification (pressure equipment directive), produced to this standard with up-to-standard drainage flow tightness and corrosion resistance. CE certification documents and test reports are available for smooth customs clearance.
8. What is the range of custom bathtub drain lengths?
The length of regular drain pipe is 50cm-100cm, and the length of customized 10cm-300cm (stainless steel corrugated pipe or PVC pipe) can be adapted to different installation scenarios (such as bathtub is far away from sewer); there is no extra cost for customized length, only need to specify in the order, and the delivery cycle is extended by 2-3 working days.
9. How to customize drainage fittings for special-shaped bathtubs?
The customer shall provide the size (diameter, installation hole position) and shape drawings of the drain port at the bottom of the bathtub. Plumberstar will design the matching drain port main body and connecting parts according to the drawings to ensure the installation fit. We can provide 1:1 samples for reproduction after confirmation. The customization cycle is 10-15 working days.
10. Can you customize the “anti-scald” bathtub floor drain fitting?
The anti-scald model uses thermal insulation material (outer layer wrapped with silicone insulation sleeve) or special surface treatment (temperature conductivity coefficient ≤0.1W/(m·K)) to keep surface temperature ≤40℃ during use, preventing scalds from children’s contact.
11. How long is the warranty period for the bathtub floor drain fitting?
Standard warranty period of 1 year, from the customer acceptance date. Warranty scope: material defects (such as cracking, rust, or non-artificial damage), and manufacturing process problems (such as loose sealing or thread slip). We offer free replacement of new products or maintenance within the warranty period. Beyond the warranty period, we provide cost-effective accessories to reduce customer after-sales costs.
12. Can you provide technical support for bathtub floor drains if wholesale customers need it?
factory profile plumberstar
Yes, Plumbersatr manufacturer provide full technical support: 1 provide multilingual installation manual and video guidance free of charge;2 arrange online training for engineers (such as Zoom meeting) for batch orders to explain product installation and maintenance points;3 send engineers for on-site guidance for major projects (cost negotiation); and provide 24-hour online customer service to answer customer questions in time and help customers quickly push to market.
