Ball valve Butterfly Handle

Parameters of Ball valve Butterfly Handle

A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore

Additional information

Finising:

Sand blasted, Sand blasted and Nickel plated

Handle:

Iron with sleeve, Stainless steel with sleeve

Life time:

150000 times On-Off

Materials:

Bronze, C37700, CW602N, CW617N, H58-3, Lead-free brass

Size:

1/2"-4"

Temperature:

-10˚C-120˚C

Thread connection

BSP, NPT

Working pressure

200WOG, 400WOG, 600WOG

Warranty:

12 months

Details about Ball valve Butterfly Handle

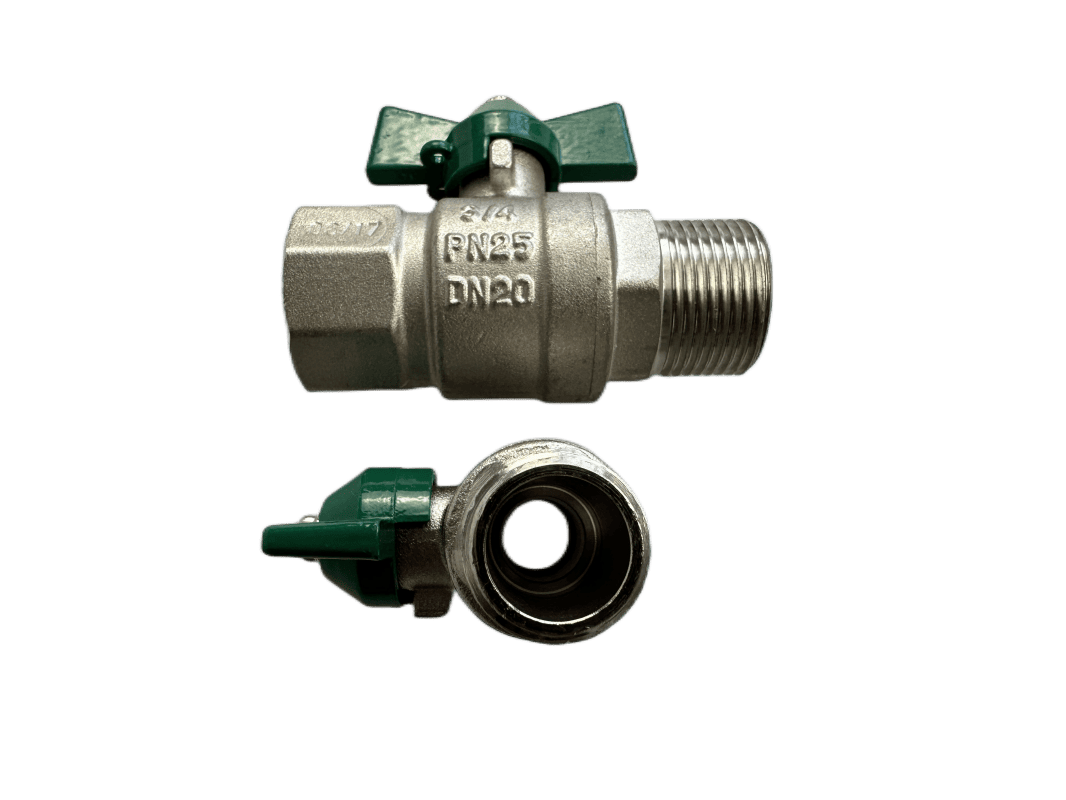

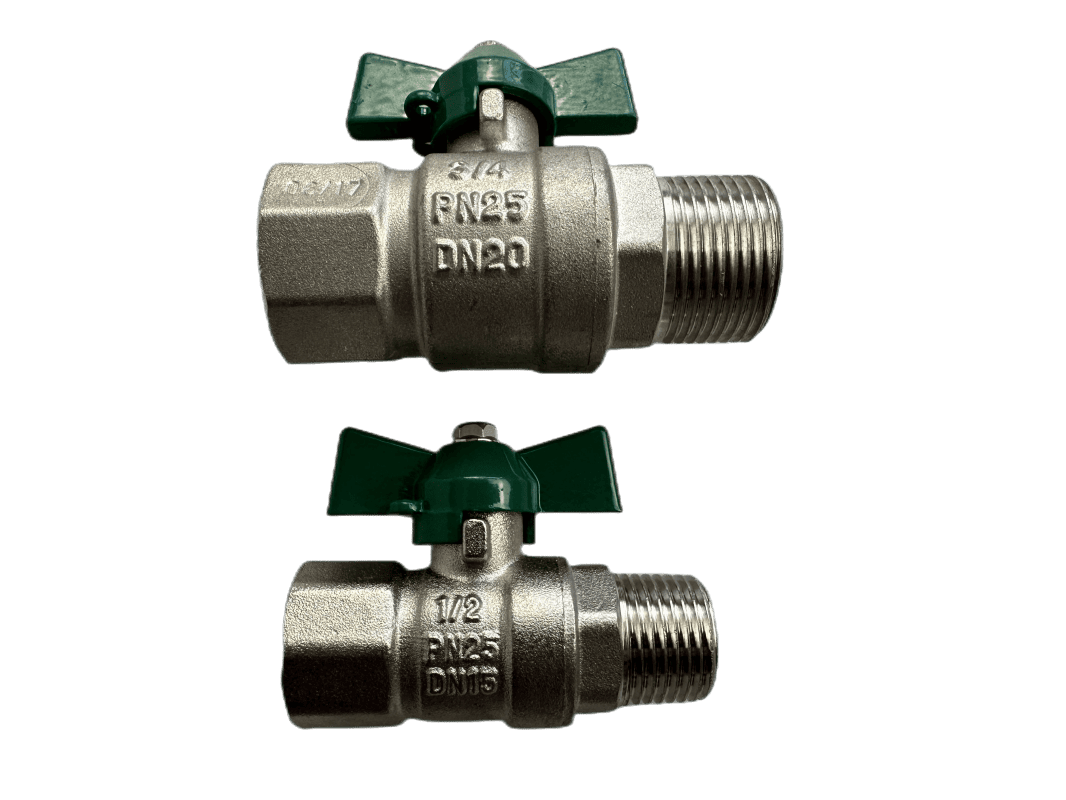

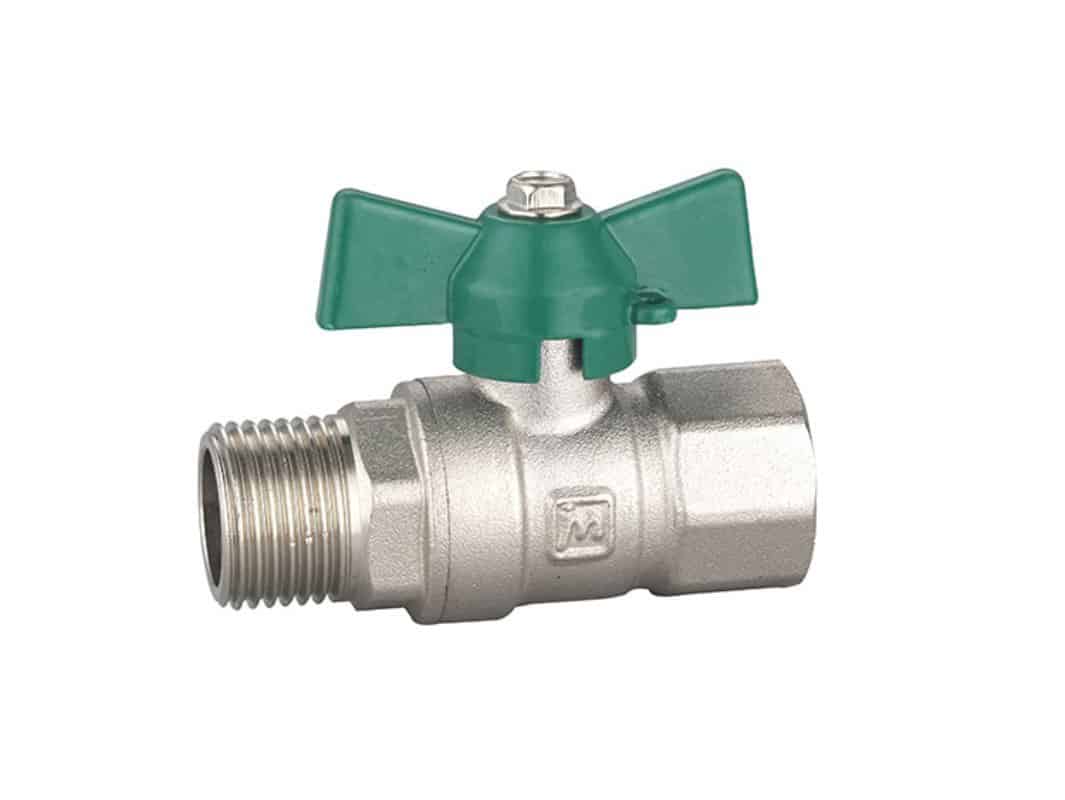

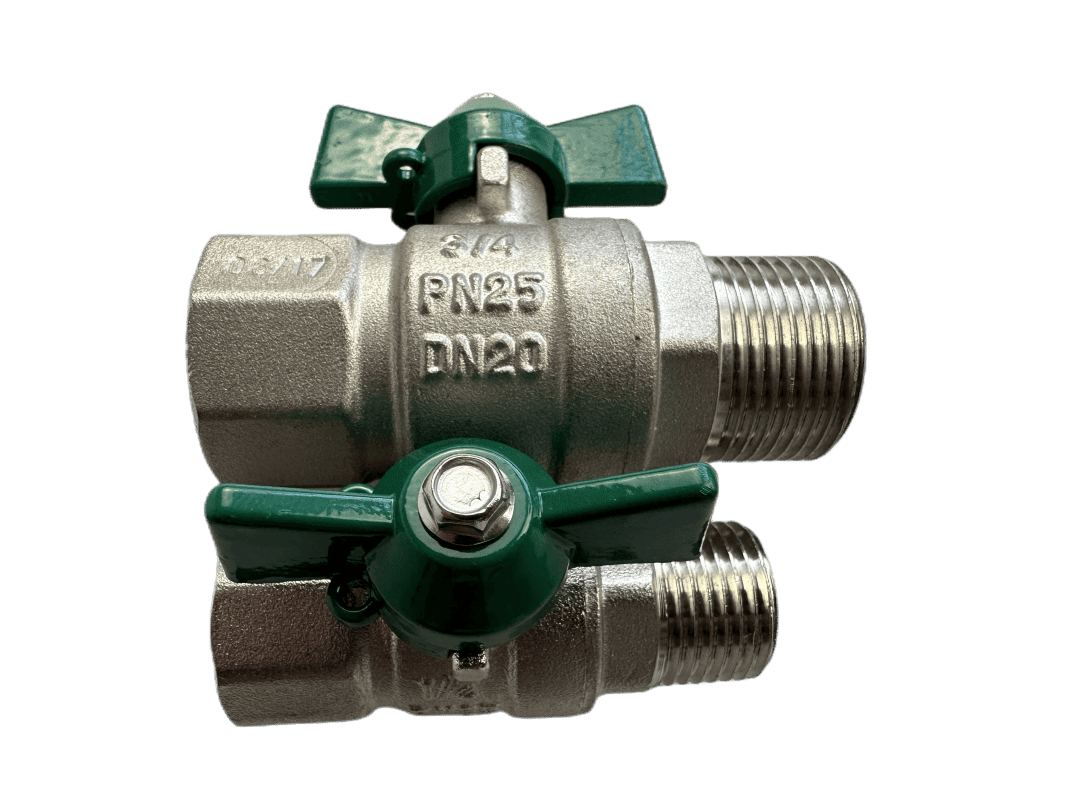

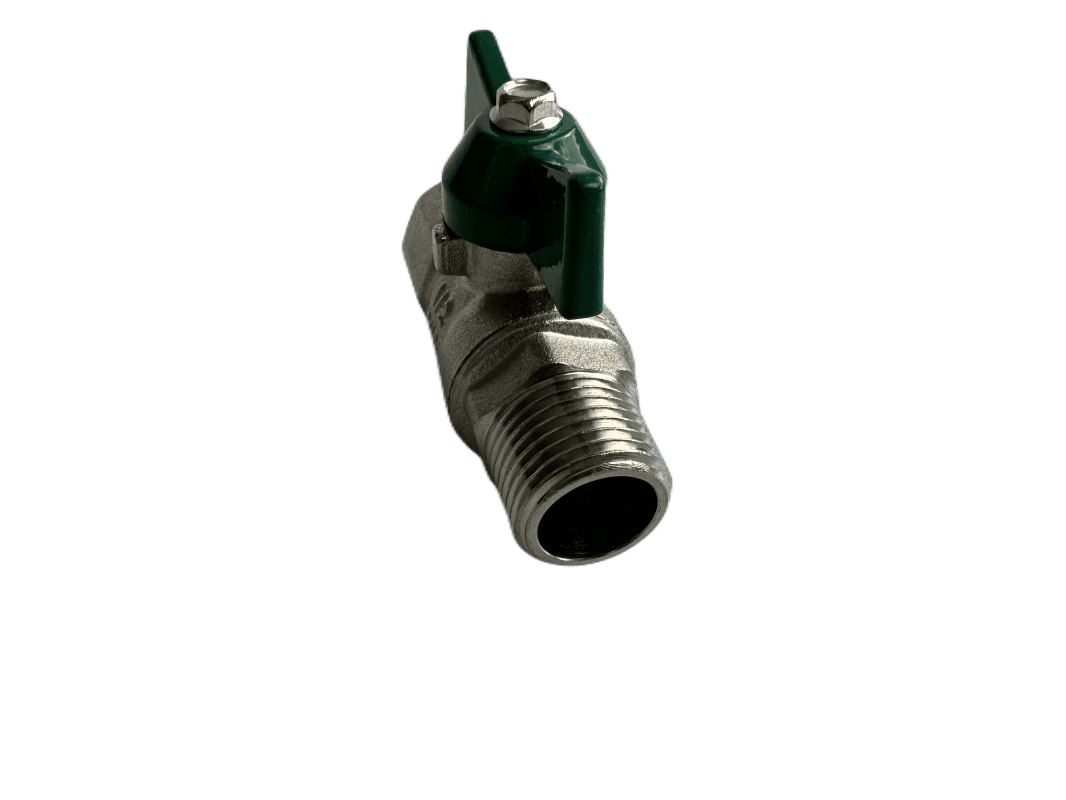

Ball valve Butterfly Handle

JX-0404

  • Brass Butterfly Ball Valve
  • Size 1/2″-1″
  • Max work temperature; -10℃-120℃
  • Max work pressure;25 bar
  • Media; Water; Seawater;
  • Valve bodies are made of brass for rust protection and long service life, durable and easy to use.
  •  Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse.
  •  This thread ball valve has minimal flow resistance, and the closing piece can withstand the high-pressure difference during closing.
  •  The valve can realize fast opening and closing, has a compact structure, is small in size, and is lightweight.
  • Ball valves can control the flow between pipes, tubes, and hoses, including water, oil, and gas.
    • An introduction
    • What is a ball valve?
    • How can you know whether a ball valve is open or shut?
    • Components
    • Ball Valve Working
    • Ball Valve Types
    • Benefits of a Ball Valve
    • Applications
    • Final Words
