What is a CF8M Ball Valve?

In this blog post, you’ll read:It is important to have the right equipment for fluid control in industrial settings. One such piece of equipment is the CF8M ball valve. This valve is used for control mechanisms in liquid and gas flow systems.
Table of Contents

It is important to have the right equipment for fluid control in industrial settings. One such piece of equipment is the CF8M ball valve. This valve is used for control mechanisms in liquid and gas flow systems.

This blog post will explore a CF8M ball valve and its workings and applications.

CF8M Ball Valve

A CF8M ball valve is a type of valve that is made from a special alloy of metals. This alloy includes iron, nickel, chromium, and Molybdenum.

cf8m ball valve
cf8m ball valve

The CF8M ball valve comprises a specific blend of metals. Each of them plays a vital role in its performance.

The C in CF8M stands for corrosion resistance. It means the alloy is resistant to rust and other forms of corrosion. This property is an essential valve characteristic used in liquid and gas flow systems. And ensures that the valve will remain functional and efficient over time.

The F in CF8M represents a blend of iron, nickel, and chromium in different percentages. The composition of these metals determines the strength and durability of the valve.

The 8 in CF8M denotes the carbon content in the alloy. It also affects the valve’s strength and durability.

However, the most crucial element in the CF8M alloy is Molybdenum.

The M in CF8M stands for Molybdenum. This element helps the metal resist corrosion. Harsh chemicals may cause corrosion, like acids, halides, and chlorides. As a result, the CF8M ball valve is very resistant to pitting and crevice corrosion. This makes it ideal for use in harsh environments like marine water systems.

In addition to its corrosion-resistant properties, the CF8M ball valve is also solid and durable. It can withstand high-pressure and high-temperature fluid operations. So, it is a reliable choice for managing flow in various industries.

Working of CF8M ball valve

 A CF8M ball valve uses a ball with a hole through its center to control fluid flow. When the valve is open, the ball is rotated 90 degrees. This allows fluid to pass through the hole in the ball and flow by the valve. When the valve is closed, the ball is rotated back to its original position. And blocks the flow of fluid.

working of cf8m ball valve
working of cf8m ball valve

This simple working allows for easy fluid flow control and is widely used in many industries.

 Features of CF8M Ball Valves

CF8M ball valves are durable and have high tensile strength. The alloy that produces CF8M ball valves is a blend of iron, nickel, chromium, and Molybdenum. Each alloy component increases the valve’s high tensile strength and durability.

  • High tensile strength

Their high tensile strength allows them to handle high pressure and temperature. These valves are used in chemical plants and oil refineries. And also in other industries that deal with high pressure and temperature.

  • Non-corrosive nature

CF8M ball valves have a significant advantage – they don’t rust easily. This means they won’t contaminate fluids during use. This is important in industries like food and pharmaceuticals. The valves are made from a particular type of metal that resists corrosion. It makes them perfect for use in environments where corrosion is a concern.

  • Advantages of using Molybdenum

Some valves used in water systems can get damaged because of certain chemicals in the water. But scientists have found a way to make valves resistant to these chemicals! They add Molybdenum to the metal they use to make the valves. This makes the valves more resistant to damage from acids, halides, and chlorides. This is important for valves used in marine water systems. So, by adding Molybdenum, they make sure the valves last longer and work better.

 Applications of CF8M ball valve:

brass cf8m ball valve applications
Brass cf8m ball valve applications

The CF8M ball valve is a type of valve popular in many industries. It is made from a particular kind of metal. It has excellent corrosion resistance and is very strong and durable. Here are some examples of how this valve is used:

  •   Chemical plants:

When making chemicals like sulfuric acid, the equipment used to manage the flow of fluids must be exact and able to resist corrosion. A CF8M ball valve is an excellent option for these applications.

  •  Food and pharmaceutical industries:

High hygiene standards are required in food and pharmaceutical production. A CF8M valve is perfect for such applications as it is non-corrosive. Hence, it presents no risk of contamination during fluid system control.

  • Paper mills:

The Kraft method is used in the milling process. It involves the flow of corrosive chemical reagents and by-products like different colors of liquors. Applyicati316 stainless steel ball valve in the system makes perfect the integrity of each product line. It reduces the risk of valve degradation.

  • Marine water systems:

The chloride content in marine water makes it corrosive to most metals. As such, systems that come into contact with marine water would work best with a marine stainless steel ball valve. CF8M ball valves are commonly used in marine water systems for their exceptional corrosion resistance.

  •  Oil and gas industries:

CF8M ball valves are commonly used in the oil and gas industry. This is because of their corrosion resistance. And also the ability to withstand high pressure and temperature. They are used in various applications, from onshore oil and gas wells to offshore platforms and pipelines.

  •  HVAC systems:

CF8M ball valves are also used in heating, ventilation, and air conditioning (HVAC) systems. They are ideal for regulating the flow of hot and cold water. And can resist the high temperatures and pressures associated with these applications.

  • Water treatment plants:

Water treatment plants often require valves that withstand harsh chemicals and high pressures. So, CF8M ball valves are used in water treatment plants.

kevinzhou cf8m ball valve works with a worker
cf8m ball valve works with a worker

Specifications of CF8M Ball Valves

CF8M ball valves are excellent at controlling fluids in systems. They work great because they follow industry standards for designing and making them.

There are specific standards like API 600, API 6D, and ASME B16.10 that these valves meet. These standards help to make sure the valves work well in different situations. In this section, we’ll talk more about these standards.

  • API 600 and API 6D Standards:

API 600 and API 6D are crucial design and manufacturing standards for CF8M ball valves. API 600 is the standard for gate valves, while API 6D is the standard for pipeline valves.

CF8M ball valves conforming to API 600 and API 6D standards are durable and reliable. And are ideal for use in harsh environments. These valves are designed to withstand high-pressure and high-temperature fluid operations. They are also highly resistant to corrosion, providing a long service life.

  • ASME B16.10:

 ASME B16.10 is another vital standard for CF8M ball valves. It tells us the exact distance between the valve ends so the valves fit well in pipeline systems. This standard guarantees that valves from different makers have the same size. So that they can work with varying systems of pipelines; this helps to make installation and maintenance easier.

asme b16.10 valve
asme b16.10 valve

This standard is essential for ensuring their proper installation and operation in pipeline systems.

This standard is essential for ensuring the proper installation and operation of CF8M ball valves in pipeline systems.

  • Flange dimension standards:

When installing CF8M ball valves, using the right size flanges is important. Two necessary standards are  ASME B16.5 and ASME B16.47. They tell you what size flanges to use with valves. These standards make sure that valves and flanges from different makers fit together. It makes it easy to install and maintain the valves.

  • API 598 and API 6D:

CF8M ball valves must undergo rigorous testing before they are certified for use in fluid systems. API 598 and API 6D are two crucial pressure test standards. These specify the requirements for testing valves under pressure.

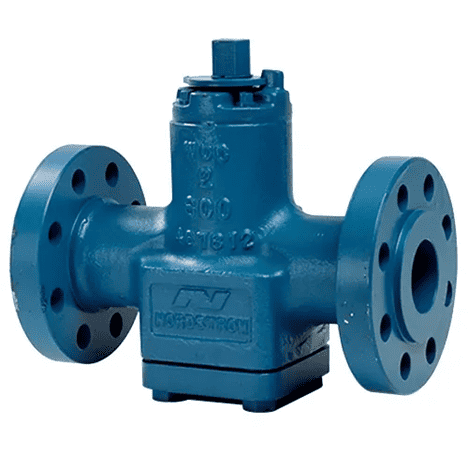

flange valve
flange valve

These tests ensure that CF8M ball valves can withstand the specified pressure levels and are free from leaks or defects.

  • API 607:

Fire safety is also critical for CF8M ball valves, and API 607 is the standard for fire testing of valves.

This standard specifies the requirements for testing valves under fire conditions. It ensures that CF8M ball valves can withstand fire. And maintain their integrity during a fire event.

  • Quality management system certifications:

Quality and product certifications are also crucial for CF8M ball valves. The three necessary quality management system certifications are ISO 9001, ISO 14001, and ISO 18001.

That ensures the design, manufacturing, and quality control processes meet international standards. These certifications demonstrate a manufacturer’s commitment to producing high-quality valves.

  • Fugitive emissions and NACE standards

It’s essential to ensure CF8M ball valves don’t let out any fluids or gases they’re not supposed to. This is called fugitive emissions. And ISO 15848-1 checks for this. CF8M ball valves also need to handle challenging environments, like the ocean or with sour gas. NACE MR 0103 and MR 0175 are tests that check if they can resist getting damaged in these places.

3 way ball structure
3-way ball structure


 In conclusion, CF8M ball valves are specially made to work well in different settings. They follow strict rules like API 600, API 6D, ASME B16.10, and ISO certifications. These valves give users confidence that they’ll last for a long and do their job well in controlling fluids.
