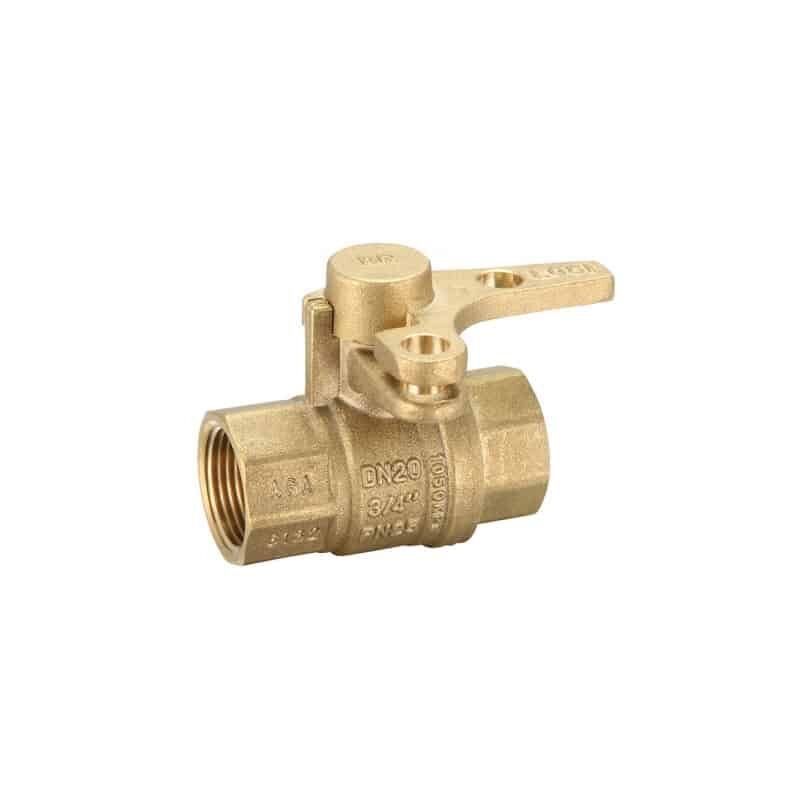

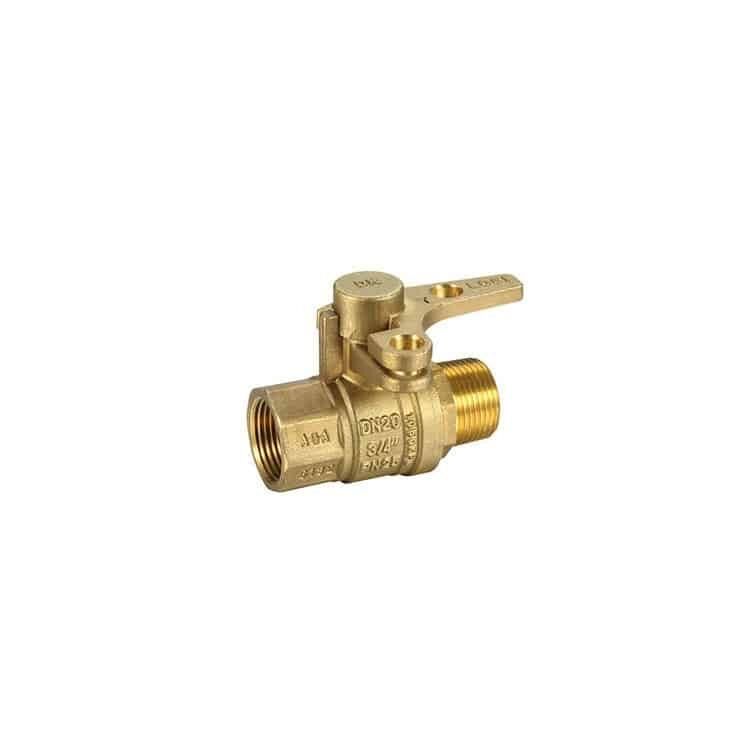

Ball Valve Inline FI X FI L

Parameters of Ball Valve Inline FI X FI L

If you are interested in a brass lock ball valve, here is a link to a selection of different styles from the water management company-Plumberstar

Additional information

Finising:

Sand blasted

Life time:

150000 times On-Off

Materials:

C37700, Lead-free brass

Size:

1", 1/2", 3/4"

Working pressure

25 bar

Warranty:

36 months

Details about Ball Valve Inline FI X FI L

Service Ball Valve Inline FI X FI L

JX-0445

1/2    DN15     25 bar

3/4   DN20     25 bar

1       DN25      25 bar

Service Ball Valve Design:

Service ball valves are one of the most popular components in fluid control mechanisms. They have a ball-like closure element that is hollow in their center. The valve works with this ball, which rotates inside the body to shut on/off the liquid or gas flow. When the hole aligns with the flow path, the valve is open; otherwise, it is shut.

When the ball turns through 90 degrees, the hole is now perpendicular to the flow path, and the valve is closed, stopping the flow. Tight sealing and easy operation with low wear are assured in design. They are usually fitted with a lever handle for manual operation.

Size Chart for Service Ball Valve Inline FI X FI L

(inches)

Valve Size (inches) Port Sze (Inches) Dimensions (LxWxH, inches)
½ 0.5 2.25 x 1.0 x 1.25
¾ 0.75 2.5 x 1.25 x 1.5
1 1.0 3.0 x 1.5 x 1.75
1 ¼ 1.25 3.75 x 1.75 x 2.0
1 ½ 1.5 4.25 x 2.0 x 2.5
2 2.0 5.0 x 2.5 x 3.0

Raw Material:

The service ball valves are fabricated from good-quality raw materials to ensure the devices are robust, efficient, and long-lasting. The primary raw material used in their manufacture is stainless steel, regarded as an excellent resisting material against corrosion and high temperatures. Brass comes standard with good mechanical properties at a reasonable cost.

PTFE or Teflon is used for the seats and seals; good chemical resistance and low friction properties are ensured. All these materials together guarantee the resistance of the valve to rough operating conditions and a tight seal.

Ball Valve Inline FI X FI L Temperature and Pressure Range

Service ball valves are meant to handle varying temperatures and pressures. They usually work inside the -50°F to 550°F temperature range (-46°C to 287°C). Pressure for these valves runs up to 150 Bar. This makes it very compatible both in the industrial and commercial areas.

Ball Valve Inline FI X FI L Features:

  • Excellent corrosion resistance
  • Broad temperature and pressure range
  • Long service life
  • Versatile mounting options
  • Tight sealing capability
  • Low maintenance requirements
  • Easy operation with lever handle
  • High-quality construction materials
  • Available in various sizes
  • Suitable for both liquid and gas applications

Applications of Service Ball Valve:

Ball valves have been in service in many industries and sectors owing to their versatility and reliability. They find industrial applications in pipeline systems, chemical processing plants, and water treatment plants. Commercially, they are applied in plumbing and gas supply networks where good, uninterrupted performance is required.

In residential service, ball valves are installed to shut off water in safe and secure household plumbing. These valves are suitable for various specialized applications, from handling corrosive fluids in chemical industries to managing high-pressure systems within the oil and gas sectors.

Advantages of a Service Ball Valve:

Service ball valves have several advantages, making them one of the most prevalent options for many uses. They are reliable regarding their operation without failure, which decreases their downtime and maintenance costs.

They are cost-effective in price against performance. Regarding flexibility, the ball valves in service range from low-pressure residential to high-pressure industrial applications within different systems.

Another key benefit of using them is excellent safety because tight shut-off prevents any leakage that may cause hazards. Due to the durable construction, long service life allows service ball valves to bear the harshest conditions and provide years of service.

Why Choose Plumberstar Service Ball Valve:

Plumberstar valves are made from top-grade raw materials that excel in corrosion and wear resistance. This valve has a design feature that ensures tight closure and smooth operation, thus reducing the possibility of leakage and maintenance.

We provide a wide range of sizes to meet diversified applications. For customers of Plumberstar, it is possible to ensure the quality of products, with consumer satisfaction being emphasized, to ensure safe and effective operation in your systems.

FAQs

  1. What is the difference between a service ball valve and other valves?

Service ball valves are designed to make a quick and tight shut-off through easy quarter-turn action, unlike gate or globe valves, which may require several turns and are not as tight-sealing.

  1. What kind of certification should I seek when buying a service ball valve?

Look for ISO 9001, ANSI, and API—these are the hallmarks of quality and high performance to let you know the valve will perform up to your expectations.

  1. How do I troubleshoot a leaking service ball valve?

Troubleshooting includes checks for loose fittings, worn seals, and damaged parts. Most of the time, leaks can be fixed by tightening the connections or changing faulty parts.

  1. What are the latest developments in service ball valve technology?

Newer developments include better materials for corrosion resistance, enhanced sealing technologies to provide tight shut-off, and smart valves with integrated sensors that permit remote monitoring and control.

  1. Can service ball valves handle corrosive fluids?

Service ball valves can process corrosive fluids if they are made from materials resistant to corrosion, such as stainless steel or specialized alloys.
