Heating System Brass Intelligent Manifold

Parameters of Heating System Brass Intelligent Manifold

The Manifold connects the heat source – a boiler, heat pump, or other – with the water underfloor heating circuits, regulates the incoming water temperature via the Mixing Unit and distributes this warm water throughout the floor circuits for an energy-efficient heating system.

Additional information

Materials:

Brass, CW617N

Size:

1"

Temperature:

-20˚C-110˚C

Thread connection

BSP, NPT

Working pressure

10 bar

Loops:

2-12

MOQ:

100pcs

Warranty:

12 months, 24 months

Details about Heating System Brass Intelligent Manifold

JX-0707

Brass Radiant central heating manifold

Temperature 10℃-110℃
Max working pressure
1 Mpa(10Bar)
Product Application
Working medium water, non-corrosive fluid
Threaded of main pipe G 1 meets the standard of Iso 2008
Raw material: CW617N and Brass

3/4″ and 1″ by the 2 options

2- 12 Loops Plumbing Manifolds w/ 1/2″ Pex Ball Valves with a flowmeter
Brand: Plumberstar
Adapter; 3/4″x16,3/4″x20
Exterior Finish Brass
Inlet Connection Type Cross-Linked Polyethylene
Outlet Connection Type PEX
Outlet Connection; Thread
for radiant floor heating and sprinkler system;
Not for potable drinking water
3/4″ trunk size, works with 1/2″ pex tubing
low lead brass

Brass heating manifold

Manifold

3/4″,1″

Manifold pressure

PN10 (145 Psi)

Manifold Materials

Normal brass, Lead-free brass, stainless steel

Manifold Standards

BS2779,EN331,ISO228,DIN 259

Working Temperature:

From 5 ℃ To +110 ℃

Seat sealing Material:

PTFE

Accessories

Flow meter, manifold clamp, air vent valve, pressure gauge

Thread connection:

ISO228,BS2779,DIN 259, ASME B1.20.-1983 Pipe Thread

Quality/valve Certifications

CE,ISO9001,ACS

Finish;

Original

Cartridge

Brass cartridge

Manifold operator

Handwheel, Worm Gear, Electric actuator

Nickname

Manifold valve

O ring

NBR

Salt spray test

Acetic acid/ASS 24 hours

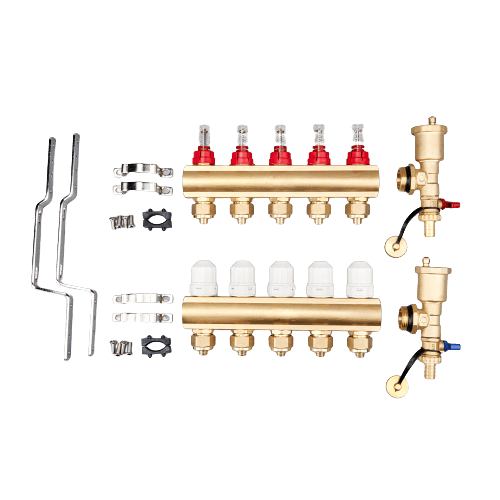

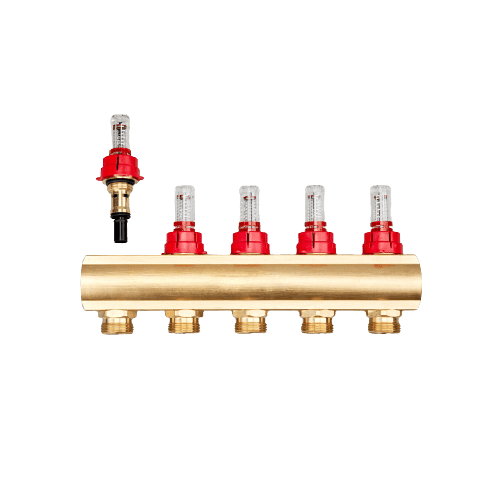

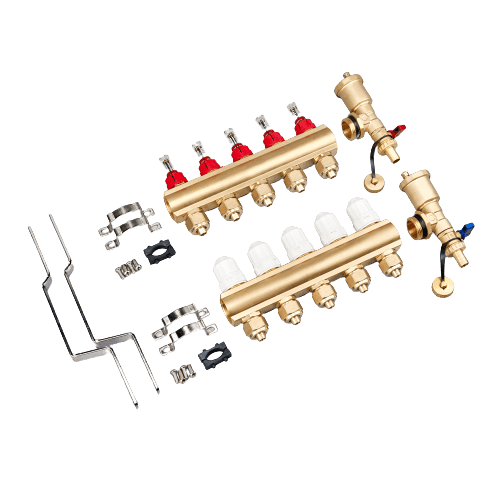

(1) Wholesale PEX manifold with PEX tubing outlets and adjustable flow meters; Manifold flow meters (flow indicators) allow for the monitoring of GPM (Gallons Per Minute) water flow through individual manifold branches.

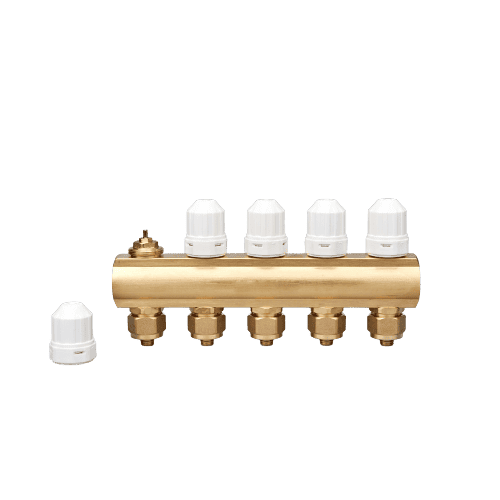

(2) Return the PEX manifold with balancing (flow adjustment) valves; Balancing valves allow each branch’s water flow adjustment independently and help properly balance the radiant heating system.
(3) Isolation ball valves with 1″ NPT and  G BSP threaded connections and temperature pressure gauge. Air vent and Ball valve accessories are easy installation and pressure test. While pressure temperature gauges help monitor supply and return water temperatures to keep the same.
(4) Automatic air vent (air eliminator); Float air vent is automatically used to purge the air drains from the radiant heat system. An air vent cap and chain are included for pressure testing purposes.
(5) Drain valves; Both drain valves feature a 3/4″ male garden hose connection for convenient draining/filling of the system. Caps included.
(6) Mounting brackets with bolts; Copper Heavy-duty classic design

(7) 1/2″ PEX Manifold Adapters

– free with manifold’s purchase. Compatible with all types of PEX tubing.

The intelligent manifold is a device that connects to the heating system, and it works as an interface between the control panel and the individual zones. It can be used for regulating temperature in one or more rooms. The flow meter precisely measures water consumption and helps regulate usage by automatically controlling the boiler’s water supply (s).

This brass intelligent manifold with a flow meter is suitable for heating systems. It can be used where the water pressure is insufficient to provide the required water pressure. In this case, this manifold will help to get more pressure and distribute it evenly among different areas. The device will work without any problems or noise during its operation and is easy to install. This product also has a warranty for one year from the date of purchase which covers all defects caused by improper use or malfunctioning parts related to our company’s production process and malfunctions caused by external factors such as mechanical damage, fire, flood, etc.

This is an intelligent brass manifold with a flow meter. It works for home heating systems and can monitor the system’s gas pressure, temperature, and flow rate. Two-way valves allow you to easily switch between different positions without removing any pipes or parts of the system. The unit features a 100% copper body construction that’s corrosion-resistant and is made following international standards.

water pressure gauge
