Brass TRV thermostatic valve

Parameters of Brass TRV thermostatic valve

The name is the thermostatic valve with water temperature controls.

Additional information


CW617N, H58-3



Thread connection




Lead time:

45 days


12 months

Details about Brass TRV thermostatic valve

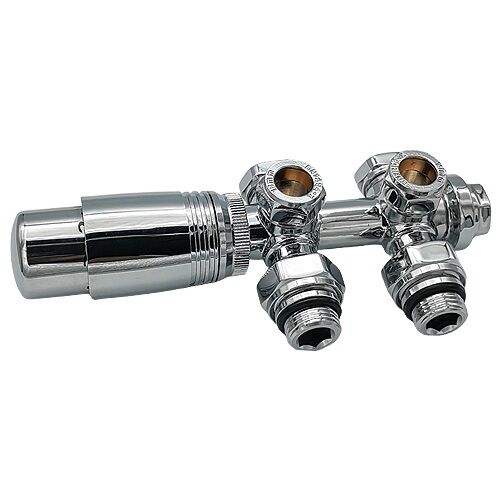

TRV thermostatic valve


16×1/2-in PEX inlet connection

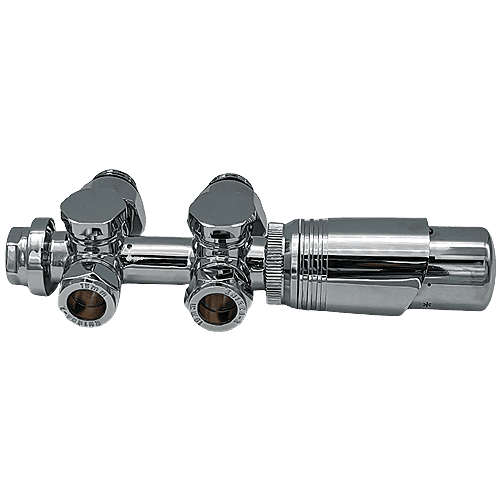

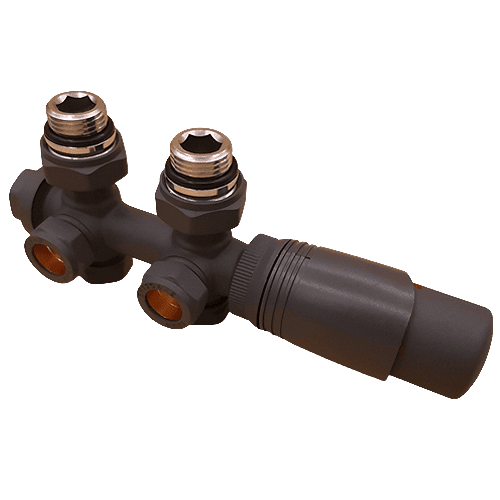

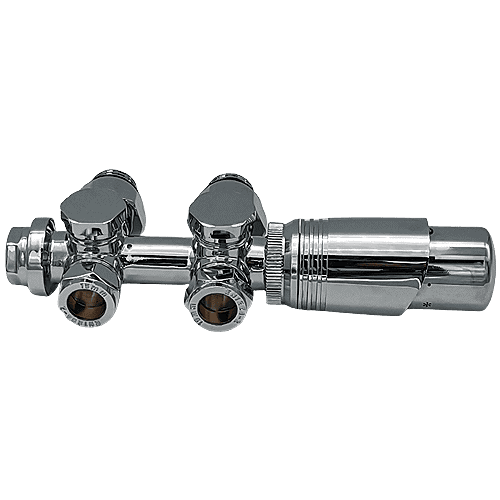

Chrome-plated; ORB, Porcelain color

Postal parcel packing for Germany.

Convenient installation and replacement;

Processing Forging brass, CNC Machining

Size;G1/2”*15MM&16MM*50MM center distance

Color White/Anthracite/Chrome

Working Medium Hot/Cold Water

Range of Temperature Adjustment 0 ~ 28℃

Range of Scale 0 ~ 5

Max Working Pressure 10 bar

Max Pressure Difference 0.6bar

Max Working Temperature 50℃

Max Medium Temperature≤ 100℃

Influence of Pressure Difference,0.4K

Influence of Temperature Difference,0.5K

Test Standard, EN215

Material Details for Each Part

Top rated in Germany; One more free connectors

High-standard finishing with salt-spray tested

Here is our new part and top-rated successful in German marketing currently;

The name is the thermostatic valve with water temperature controls;

1/2″ BSP thread connection.

Top rated in Germany; One more free connectors

Our box is standard German mail-order packing with one pc in every box.

For the Straight ones: 16MM*G1/2 H Valve PAP connection, one side is

TRV insert, the other side is lock shielder, packaged with Allen wrench

Compared with market-similar casting process products, which could have high leakage rates after using a period, The Plumberstar has funded the solution to overcome the forging process difficulties and eliminate the possibility of leakage, making the quality more reliable.

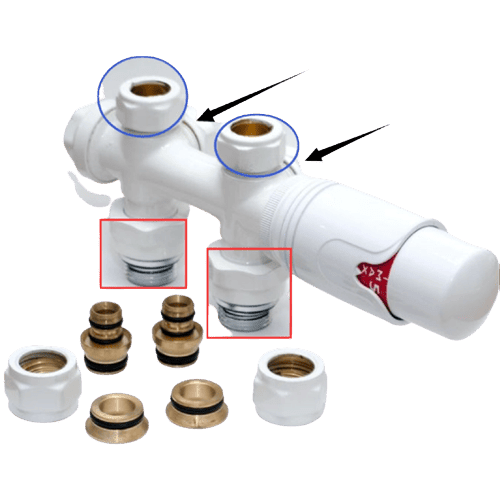

15mm connection for copper pipe and 16mm connection for PEX pipe

The end-user can exchange it flexibly according to their need,

Adopting Germany’s imported sensor element, which can detect the temperature change sensitivity, is longer.

Japan imported stainless steel spring SUS631-17-7H improves the resilience, and a lifetime can reach 100000 times.

Professional engineer designed and produced to give excellent and reliable performance.

A thermostatic mix valve is a plumbing device that allows the user to regulate the flow of hot and cold water. The primary purpose of this product is to maintain an ideal temperature for use by occupants. It removes the guesswork from selecting between warm or cool water, as it will adjust based on what you need at any given time! For more information about how these valves function and how they can benefit your home, continue reading…

Thermostatic mix valves are available in both single and three-way configurations. The single version has one inlet and one outlet, while the three-way has two inlets and one outlet. This type of valve is typically used when there is a need to blend hot and cold water before entering a fixture. It can also be used as an emergency backup for maintaining water temperature during outages.

The three-way thermostatic mix valve is often used in commercial settings where multiple fixtures are supplied with tempered water. Each institution must receive the same temperature in these cases so that no guest experiences an uncomfortable shower or bath! Using a thermostatic mix valve can ensure that your guests will always have a pleasant bathing experience.

If you’re looking for an easy way to maintain water temperature in your home, consider a thermostatic mix valve! This product is available at most hardware stores and can be easily installed following the manufacturer’s instructions. For more information, visit our website or give us a call today!
TRV thermostatic valve is a device used to control the temperature of water or other liquids. It consists of two concentric valves that regulate fluid flow through a pipe. The inner valve, called the control element, has an adjustable set point that controls the flow rate through the outer valve. A TRV is often installed on a hot-water supply line to maintain constant water temperature for space heating and domestic use.

TRV thermostatic valve is a heating system used in various industries. It is an essential component of the heating system that controls the temperature and pressure inside the tank.

TRV thermostatic valve is the best way to control your heating system. TRV thermostatic valves are used in underfloor heating and split-system air conditioning units. The temperature is controlled by a bimetallic spring that opens or closes the valve as needed. TRV thermostatic valves are designed with hot water (up to 100 °C) or steam (up to 120 °C). They come in different variations, including single-port, double-port, 3-way, and 4-way configurations.
