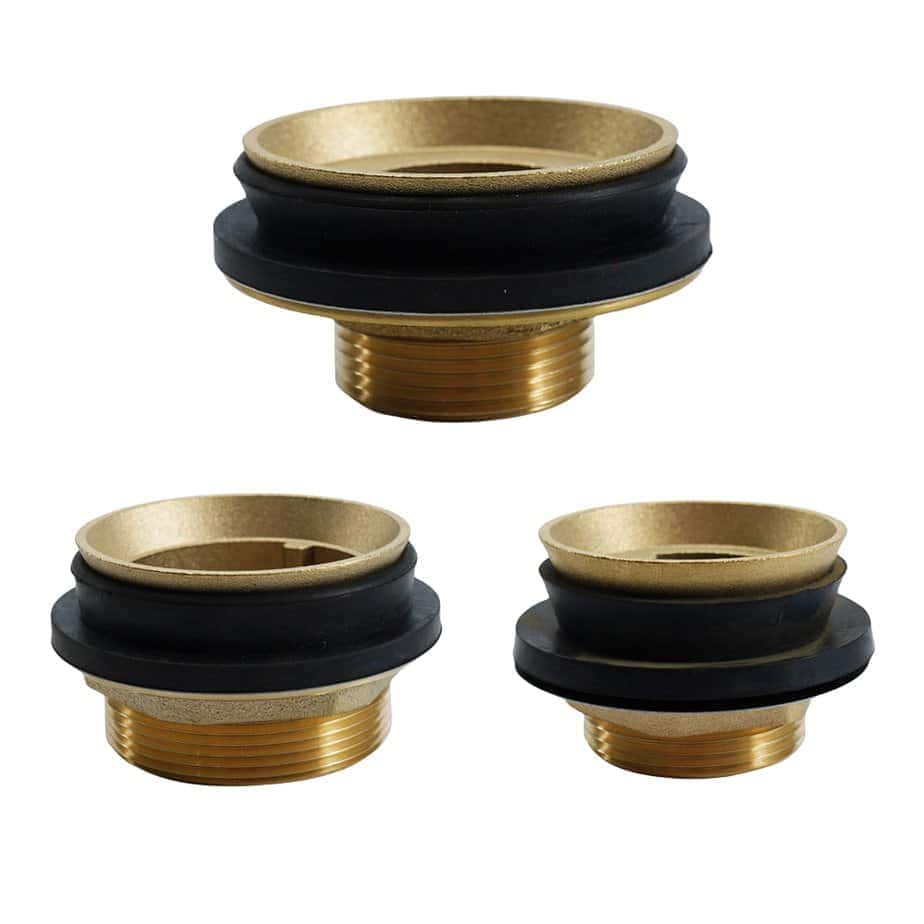

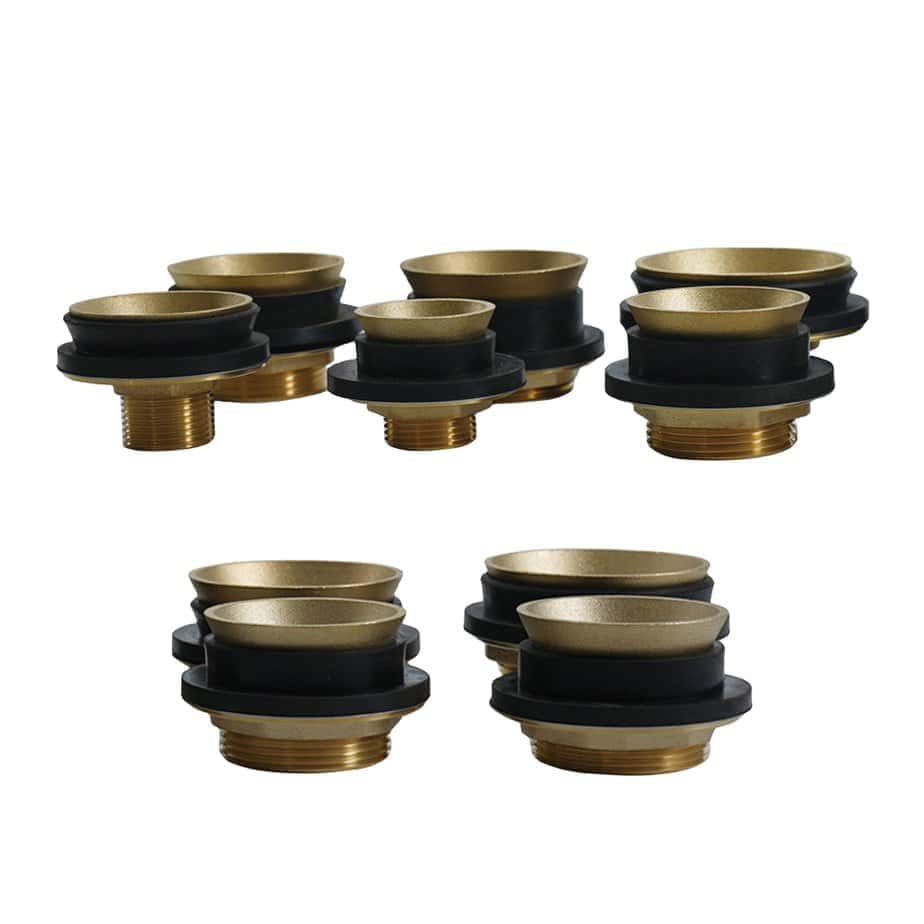

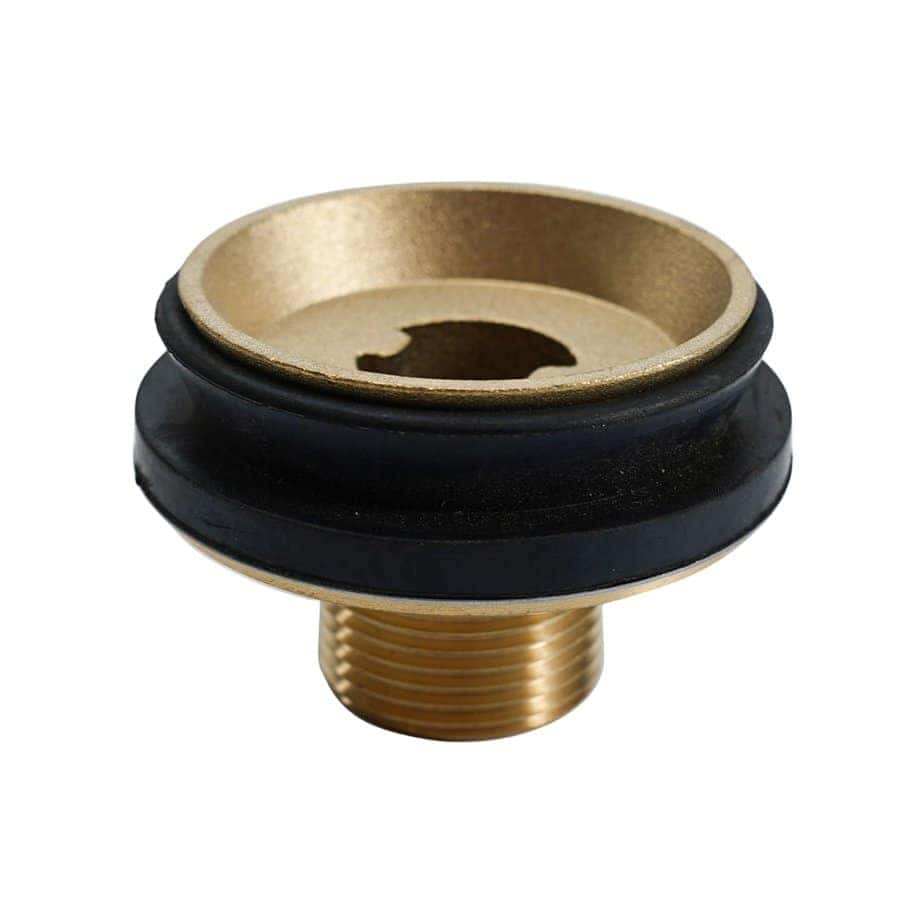

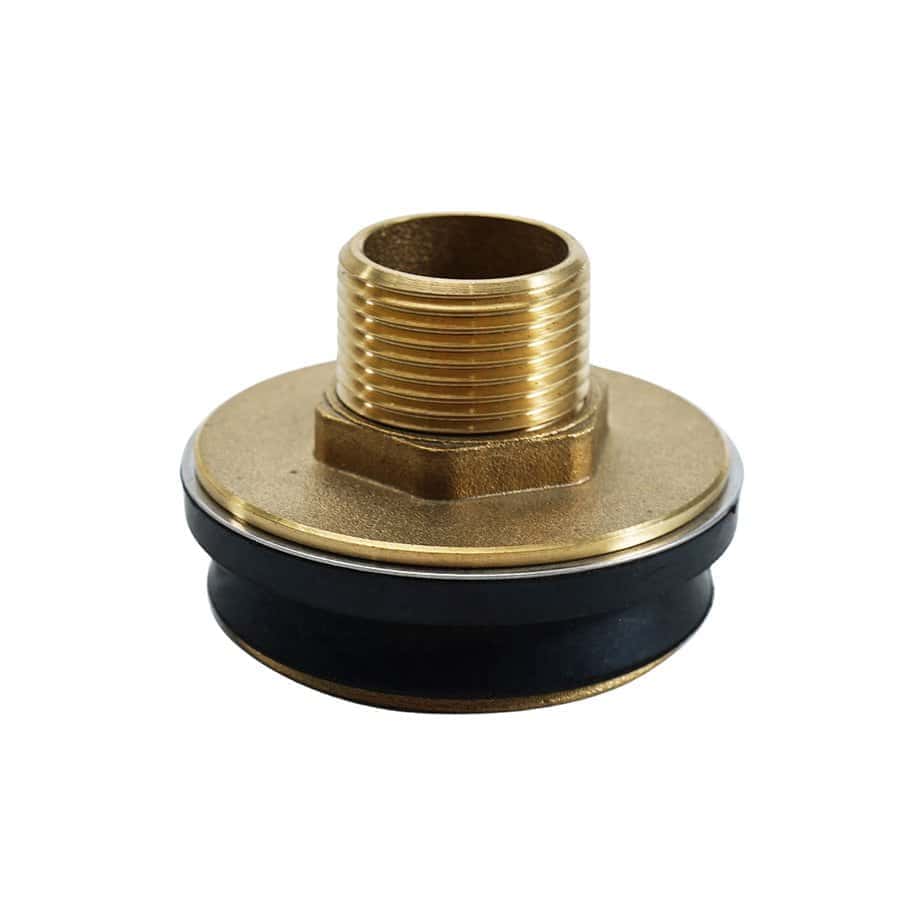

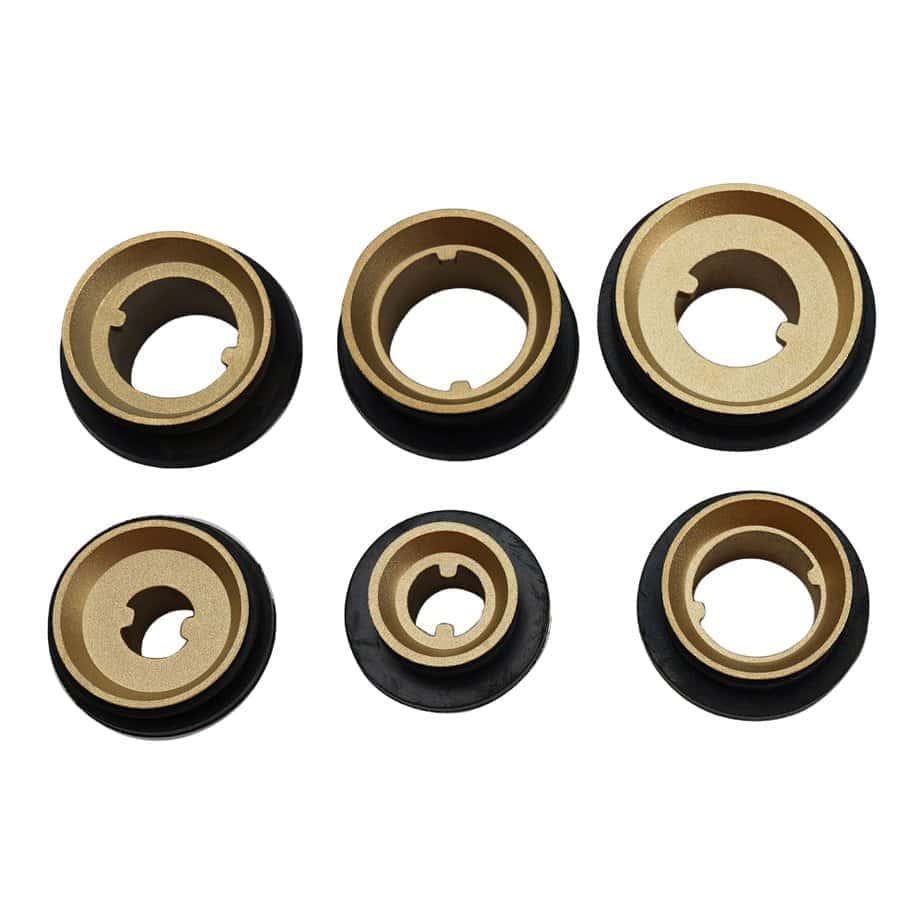

Brass Closet Spud Urinal Pipe Fitting

JX-0872

Brass Closet Spud Urinal Pipe Fitting: North American vs. South American Varieties

In the intricate realm of plumbing, brass closet spud urinal pipe fittings are specialized components primarily used in the connection of flushometer valves to urinals. These fittings provide a watertight seal and ensure the smooth operation of restroom facilities. But what variations exist between North American and South American designs? And are there notable differences in their application, standards, or specifications?

Understanding these regional nuances is crucial for plumbers, contractors, and distributors to ensure compatibility, functionality, and long-term durability. Let’s dive into the distinctions between the two.

North American Brass Closet Spud Urinal Pipe Fitting:

North American fittings typically adhere to strict standards set by organizations like the American Society for Testing and Materials (ASTM) and the American National Standards Institute (ANSI). These standards cover aspects such as material quality, durability, and dimensions.

Dimensions and Size:

North American plumbing often follows the imperial system, with measurements typically in inches. The fittings might be designed to fit standard North American urinal designs and sizes.

Material Composition:

In North America, concerns about lead content have led to regulations that limit the amount of lead in brass fixtures used for potable water. While a urinal spud isn’t directly related to drinking water, it’s still likely that the brass composition adheres to these low-lead standards.

Thread Patterns:

The National Pipe Thread (NPT) is the standard thread type for plumbing in North America. Brass closet spuds designed for this market would typically use NPT threading.

South American Brass Closet Spud Urinal Pipe Fitting:

Each country in South America may have its own regulatory body that dictates plumbing standards. While some countries might adopt international standards, others could have localized specifications to meet unique regional needs.

Dimensions and Size:

Although metric measurements are predominant in South America, the dimensions and sizes of the fittings could vary based on local urinal designs and preferences.

Material Composition:

Brass composition might differ based on regional availability and regulatory guidelines. The brass used in South American fittings might be more diverse in its alloy constituents.

Thread Patterns:

South American nations might employ a different thread standard than NPT. It’s essential to ensure compatibility, especially when sourcing fittings from different regions.

Key Differences to Remember:

Standards and Regulatory Adherence: Each region has specific standards and regulations that influence the design and functionality of the brass closet spud.

Measurement Systems: The difference between imperial and metric systems can significantly impact compatibility and installation.

Material and Composition: Regional guidelines and availability dictate the material composition, which might affect durability, corrosion resistance, and safety.

Thread Patterns: This is crucial for ensuring a watertight seal and compatibility with other components in the plumbing system.

Conclusion:

While the fundamental purpose of a brass closet spud urinal pipe fitting remains consistent across regions, nuances in design, standards, and material composition exist between North American and South American varieties. Being aware of these differences is paramount for professionals in the plumbing industry, ensuring optimal system performance, longevity, and safety.

FAQs

1. What is the difference between a “closet” spud and a “urinal” spud?

Brass Closet Spud and Urinal Spud connect commercial flush valves to ceramic plumbing fixtures. You pick the right part by checking the mounting hole size, flange measurement, usable assembly length, and sealing parts. Closet Spud fits toilet flush valve connections. Common sizes are 1‑1/4″, 1‑1/2″, and 2″. Certain models can mix different inlet and outlet sizes. Some units handle working pressure up to 125 PSI. Urinal Spud works for urinal setups. Popular sizes include 1″×3/4″ and 1‑1/4″×3/4″. Its overall size and inner opening are built to fit the limited space inside urinals. Closet Spuds have bigger flanges and gaskets. These parts fit right into the cut‑out openings on toilet ceramic bowls. Most styles have a usable assembly length between 1.4 and 2.0 inches. Urinal spuds come complete with matching flanges, lock nuts, and gaskets, and all these parts are made to fit the tighter space inside urinals. Some of our urinal spud models offer an effective assembly length from 0.9 to 1.4 inches.

2. Can this brass closet spud urinal pipe fitting be used in high-pressure flushometer systems?

Plumberstar Brass Closet Spud and Urinal Spud work with commercial flushometer high‑pressure flush valve systems. Standard units hold a maximum continuous working pressure rating of 125 PSI (8.6 bar). This fits the typical 15‑80 PSI working range for most flush valves sold today.

Each full kit comes with brass lock nuts, rubber gaskets, and metal anti‑pressure washers. The gasket set is built to take sudden pressure hits when the flush valve activates. It can handle short‑term static water pressure up to 125 PSI. Do not run the system steadily above 80 PSI for long periods. Too much pressure speeds up rubber gasket wear. Leaks will show up much earlier.

3. Can you customize the brass closet spud urinal pipe fitting size for a specific fixture model?

Plumberstar can make custom-sized Brass Closet Spuds and Urinal Spuds to match special sanitary ware units. We modify key dimensions, including flange outer diameter, overall body height, inner bore, thread style, and the step size that touches ceramic surfaces.

All custom orders require confirmed drawing approval, sample verification, and agreed lead times. Please provide details such as the ceramic opening dimension, ceramic wall thickness, flush‑valve connection specs, and required assembly height.

These custom components are finished with secondary CNC machining. After drawings are signed off, we produce the initial sample, holding dimensional tolerance to ±0.08 mm. Each sample goes through hydrostatic leak testing and simulated assembly torque checks. The full production cycle for custom orders runs 21‑30 working days.

4. What seal materials are available for the brass closet spud urinal pipe fitting?

Our Brass Closet Spuds and Urinal Spuds offer three gasket materials to choose from: EPDM, NBR nitrile rubber, and Neoprene rubber. Just pick the one that fits your working conditions. EPDM is our standard part, included with every order. It has a Shore A hardness of 60‑65 and works well with most commercial flushometer valve systems, but you should not let EPDM remain in mineral oil for extended periods. NBR performs much better when oil is present and maintains a continuous operating temperature below 82℃ for hot‑water applications. Neoprene offers moderate hot‑water resistance, with a long‑term hot‑water temperature limit of about 93℃. Our factory tests gasket samples from every batch.

5. What is the lead time of the brass closet spud urinal pipe fitting?

These brass Closet Spuds and Urinal Spuds follow a fixed turnaround for standard stock orders. Once we confirm your purchase order, stock orders take 7‑10 working days. You can mix different in‑stock items in one order. Closet spuds and urinal spuds can be combined together. Sample orders take 3‑5 working days, if parts are in stock.

Secondary CNC custom work can only change the body height, inner hole size, or gasket material. The shape of the forged flange stays the same. Once you approve the drawings, the whole lead time will be 21‑30 working days. If you want to change the flange shape or step structures, you will need brand‑new forging molds. This job includes making molds, testing forging, adjusting the molds, and running pulse flush simulation tests on the first sample part. The full production cycle for this work takes 28‑35 working days.
