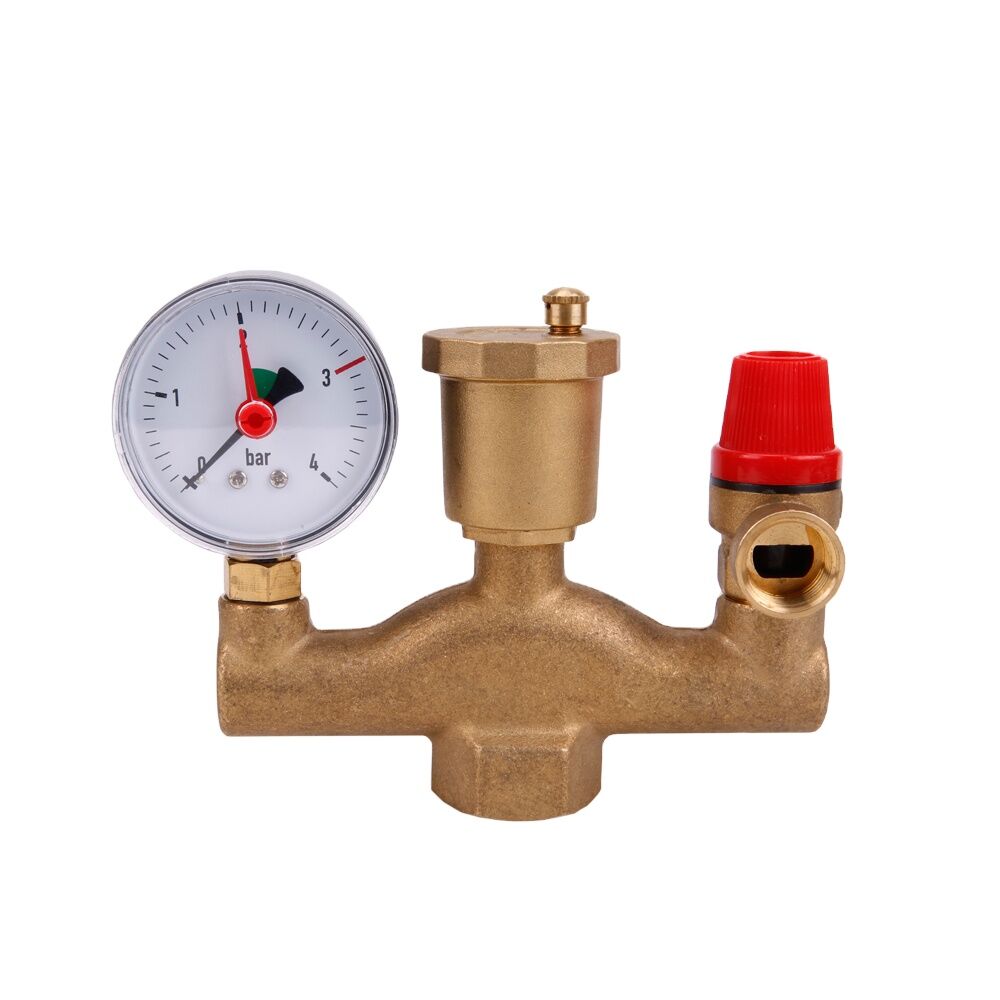

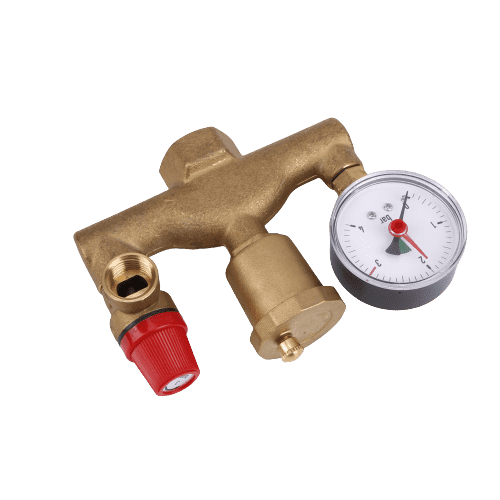

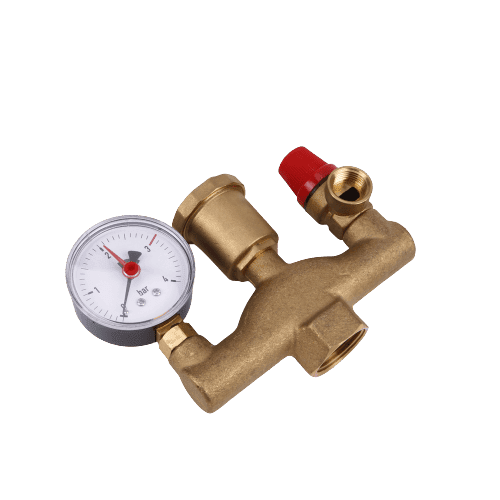

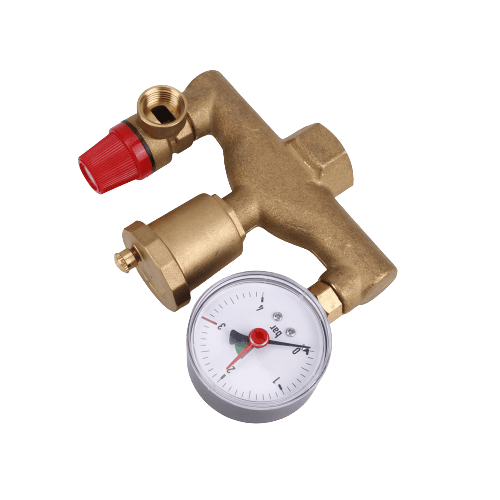

Boiler kit with Vent Safety Valve

JX-0939

• The temperature of Media: High Temperature
• Power: Hydraulic
• Media: Water
• Port Size:1″
• Structure: Stop
• Spring: carbon steel
• Max exhaust capacity: 15%
• Shutdown pressure: 15%
• Applicable medium: water/air
• Max working temp: 5-110℃
• Setting pressure: 1-10bar

A boiler valve kit is a must-have for any homeowner with a boiler system. This brass valve kit features a vent safety valve that helps to protect your home from dangerous gas build-up. The included instructions make installation easy, and the durable brass construction ensures lasting performance. Keep your family safe with this essential boiler valve kit.
1. Preset pressure:6bar
2. Max operating temperature:110°C.
3. Working Medium: water, Non-corrosive liquid, gas
4. Pipe thread to ISO 228 (BSP, NPT)
5.No second pollution
6. Stable outlet pressure and High reliability, Perfect seal at low and high pressure, and wear-resistant, solid, and reliable for lifetime use. Easy to install.
7. Perfect seal at low and high pressure, wear-resistant, solid, and reliable for lifetime use. Easy to install.
8. opening /closing tests:20000times.
9. When the calibrated pressure is reached, the valve opens automatically and discharges the atmosphere to protect the whole system from damage caused by overpressure
10. This brass boiler valve kit is perfect for any steam-powered project. The kit includes a pressure gauge, safety valve, and two shut-off valves. The pressure gauge helps you monitor the pressure in your boiler, the safety valve keeps your boiler from exploding, and the shut-off valves let you turn off the steam supply without having to drain the boiler.

What Is a Boiler Safety Valve?

This brass boiler valve kit is a great way to replace an old, corroded, or faulty valve on your boiler. The included vent safety valve ensures that excess pressure is released during a rupture, preventing dangerous explosions. This kit is easy to install and comes with all the necessary fittings. Keep your family safe with this essential boiler valve kit. This is a brass boiler valve kit with a vent safety valve. It is a necessary part of your plumbing system and helps ensure that your boiler remains in good condition. The vent safety valve allows excess pressure to escape, which helps keep your boiler functioning safely and efficiently. This kit is easy to install, and it comes with all the necessary hardware included. Order today to get started on keeping your boiler in top shape!

How Do Boiler Safety Valves Work?

This brass boiler valve kit is perfect for any steam-related projects you may have. It includes a durable boiler and vent safety valve to keep your project safe and functional. The included instructions make it easy to install this kit in no time. This boiler valve kit is the perfect addition to your tool collection with its high-quality construction and affordable price. This brass boiler valve kit is ideal for any steam-based appliance. The kit includes a boiler valve, vent safety valve, and all the necessary fittings for a quick and easy installation. The included vent safety valve helps to ensure safe operation by releasing excess pressure in the event of a malfunction. This kit is ideal for use with any boiler, including cast iron, steel, or copper boilers.

Vent safety valves are required for all direct-fired appliances; this kit includes everything you need to install one. The boiler valve is brass and has a 1/2-inch pipe thread fitting that can be connected to the vent pipe. It also features an adjustable pressure relief valve with a gauge, protecting your home from high-pressure steam or air from the system. This kit comes with two elbows (1 in., two in.), four nipples (3/4 in., 1/8 in., 3/8 in.), three straight fittings (5/16 inches), and five pipe connectors (3 ways).

This boiler kit includes a brass pressure relief valve with an air vent, which is required by law. It also has a 1/2″ discharge elbow and two unions connecting the pipe inlet to your water heater. The safety valves are designed to prevent excess pressure from building up inside the tank, which can cause dangerous boil-overs or even potential explosions. This kit is excellent for homeowners with existing water heaters without this equipment installed.

FAQs

1. Why choose a Boiler kit with Vent Safety Valve?

This Boiler kit with Vent Safety Valve puts the vent valve, safety pressure relief valve, connectors, and seals together as one single kit. Buyers do not need to order each spare part separately, which reduces the risk of mismatched components and speeds up full boiler assembly.

This set is made to work with boilers under high heat and high pressure. When pressure goes over your chosen limit, the safety valve opens by itself to let extra pressure out, while the air vent keeps pulling trapped gas out of the pipes. This stops air clogs, loud running noise and hot spots in the system. These two parts work together to guard the boiler and lower the risk of broken parts and water leaks. It works well with wall-hung boilers and small heating boilers, and buying this full kit saves you more money than purchasing each part alone.

2. Is this Boiler kit with Vent Safety Valve compatible with both heating and chilled water systems?

Our Boiler kit with Vent Safety Valve suits heating hot water and closed chilled water circulation systems. The standard unit operates at water temperatures from roughly 5℃ to 110℃. The automatic air vent takes working pressure up to 10 bar. The safety valve comes preset at 3 bar. It opens to release pressure once the system pressure rises too high.

The valve body uses CW617N brass, and EPDM forms all sealing parts. It works with plain water and liquid mixes with ethylene glycol. We suggest keeping ethylene glycol concentration below 30% for the standard setup. This makes the kit fit regular boiler heating loops and many closed chilled water systems.

We test every kit for tightness and safety valve function before shipment. For the 3-bar safety valve, our test checks its opening near the set pressure, pressure release action, and sealing performance once pressure falls back down. We can provide pressure test records for large projects upon request.

3. What is the available set pressure of this Boiler kit with Vent Safety Valve?

This Boiler Kit with Vent Safety Valve can use safety valves with different preset pressures to match heating system designs. Popular options include 2.5 bar, 3 bar, and 4 bar, and we can also offer other pressure grades such as 3.5 bar and 6 bar to meet specific project needs. The 3 bar variant sees the most use for household sealed heating circuits and wall-hung boiler systems.

We get different preset pressures by fitting matching internal springs and valve core parts. For custom pressure models, our factory tests each safety valve on a pressure test bench to check its opening pressure, re-seating behavior, and sealing quality. We stamp the rated pressure on the valve body or nameplate after testing. We can hand over factory pressure test records if your project needs these files.

Plumberstar can customize the parts in this Boiler Kit to suit your boiler models, connection sizes, and system pressure requirements, and we can provide samples for assembly checks and real-world system testing.

4. Does this Boiler kit with Vent Safety Valve meet the European standard?

Yes, this Boiler kit with Vent Safety Valve uses CW617N brass for its valve body, and EPDM seals come as the standard option. It works within a normal temperature range from 5℃ to 110℃. It uses BSPP (G) threads following ISO 228 standards for connections, and this thread type fits most European heating pipes and boiler systems easily.

You can choose preset safety valve pressures such as 2.5 bar, 3 bar, or 4 bar to fit your system. We use different springs to set each pressure level correctly. Every safety valve is tested to check if it opens properly, closes tightly, and seals well before it leaves our factory. We keep the set pressure within ±10% of the value listed on our product specs. For projects in the EU, we follow the rules from PED 2014/68/EU, and we can provide material certificates, batch test reports, and compliance papers as you need for your order.

5. Can you offer a pallet package for the Boiler kit with Vent Safety Valve?

We can pack the Boiler Kit with Vent Safety Valve onto full pallets. Standard export orders use fumigation-free plywood pallets. We check the importing country’s latest wood packaging rules before shipping. You can choose solid wood Euro pallets. We supply heat-treated pallets that meet ISPM 15, with valid IPPC marks.

Full pallet packing stacks cartons layer by layer. Paper corner guards go on all four corners. Stretch film wraps around to secure the cargo. Sea freight orders may add PP straps for stronger support. Pallet size and price are calculated separately. We use actual product dimensions, load weight, and target market for this calculation.

We send photos of stacked pallets before bulk delivery. We confirm details such as quantity per pallet, outer dimension, gross weight, and volume, and add all this information to the Packing List.
