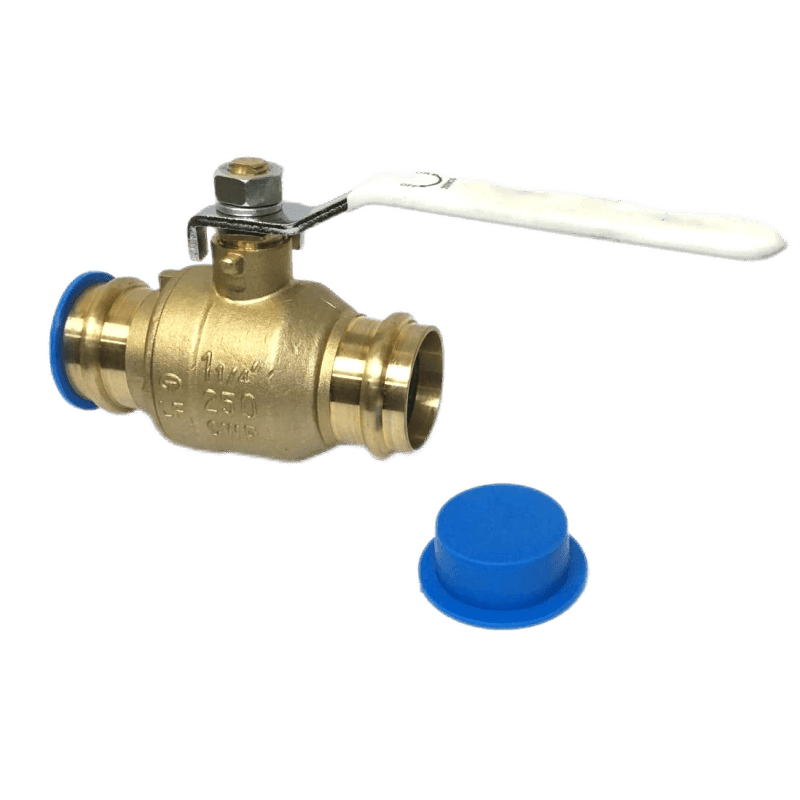

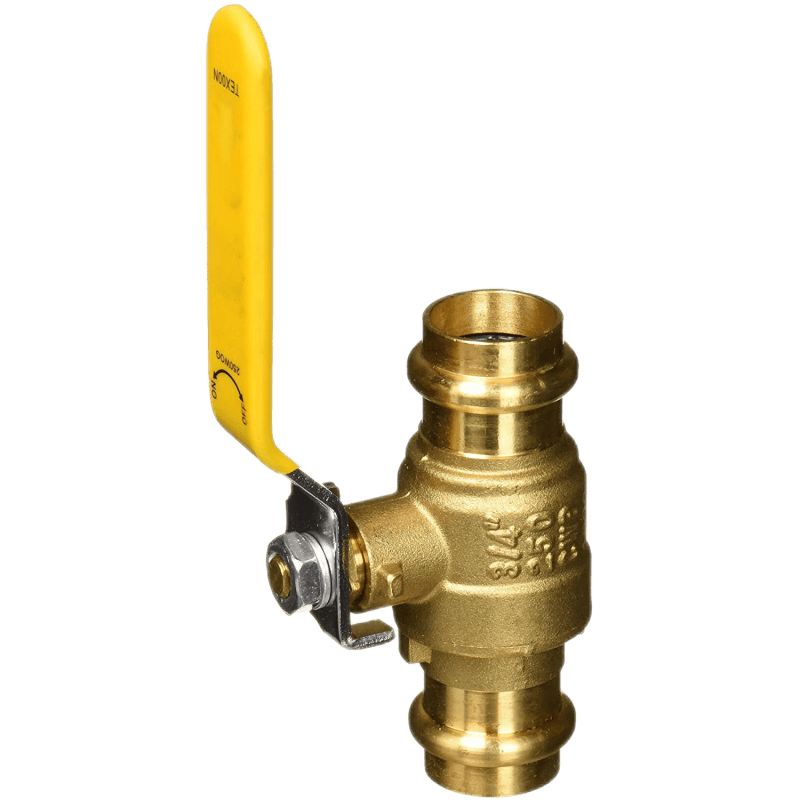

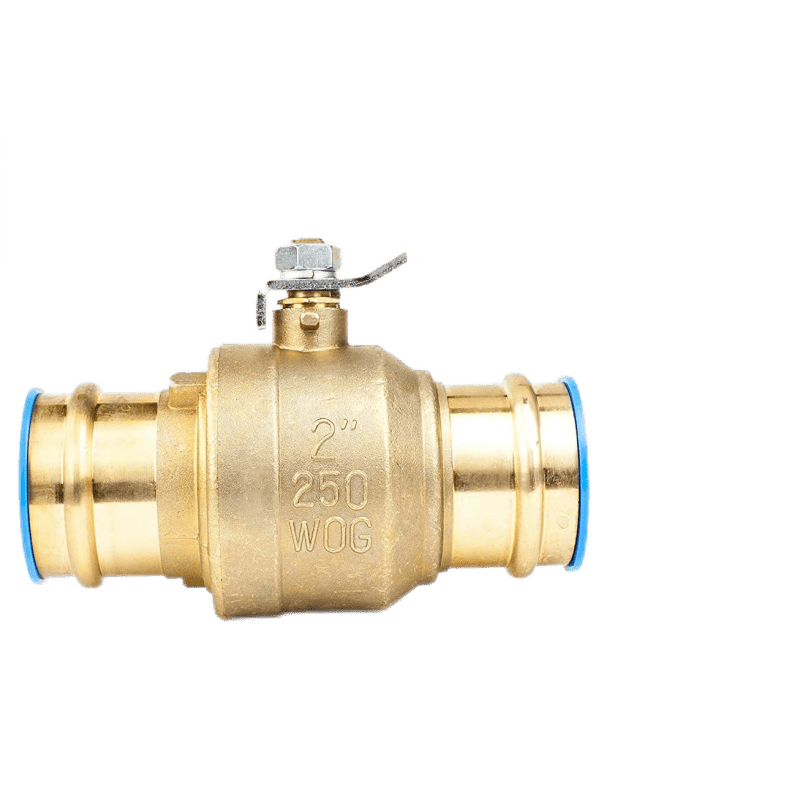

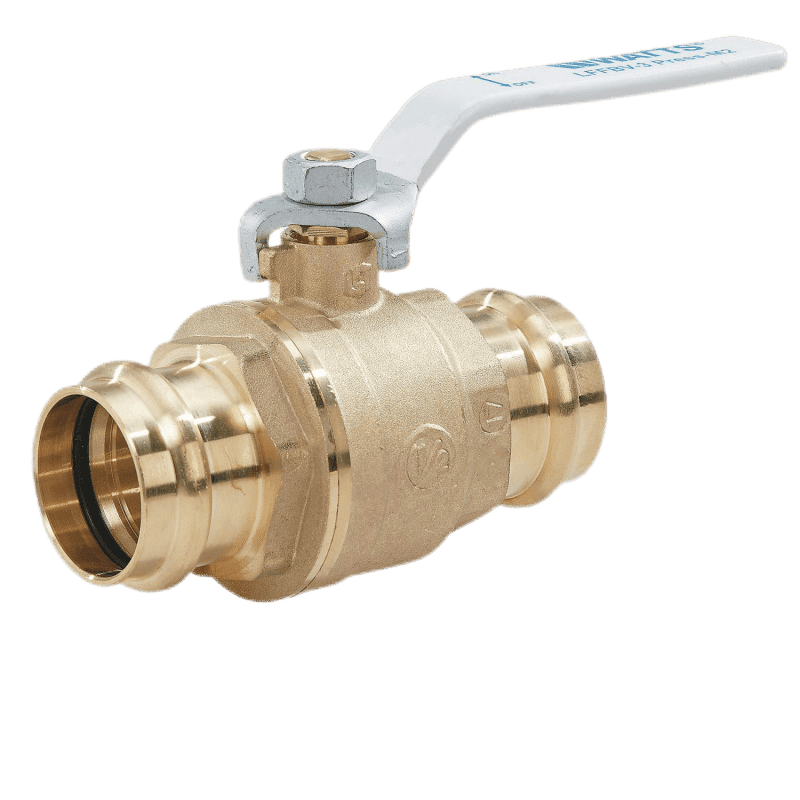

2pc Lead-Free Brass Press Ball Valves with NPT
JX-0443
Specifications
- Size Range: Full Port: From 1/2″ – 4″
- Creates a strong, tight, waterproof seal within the plumbing, heating, and potable water applications
- Full-port design features a lead-free brass body (rated NSF61-8); an adjustable packing gland; a bottom-loaded blowout-proof stem with packing nut; and PTFE seats, seals, and thrust washers.
- Made with integral ASTM-B88-compliant press end connections designed for types K, L, and M hard copper tubing
- Press connection rated to 250 psi CWP up to 210 degrees F
- Works in temperatures of up to 210 degrees F
History of lead-free valves
Lead-free valves are important in many industries, such as the food and beverage, medical, and automotive industries. Lead-free valves are made of alloys that do not contain lead. The history of lead-free valves began in the early 1990s when the European Union banned the use of lead in products that came into contact with food. This ban led to the development of lead-free valve alloys. Lead-free valve alloys are made of nickel, copper, and titanium. These alloys are more expensive than traditional valve alloys, but they are safe for use in contact with food. The production of lead-free valves is a new and emerging industry. As the usage of these valves increases, the price will likely decrease. Lead-free valve manufacturing has been relatively slow because it is still expensive.
Lead-free valve materials
Lead-free valve materials are becoming more common to comply with environmental regulations. While some lead-free valve materials are available, there is still a lack of reliable information on the long-term performance of these materials. In particular, the effects of lead-free valve materials on water quality and corrosion need to be better understood. As with traditional valve bodies, the lead-free material is usually cast in a solid form that is drilled and threaded to achieve the required metering capability. 4.3.3 Materials for valve seals and gaskets The choice of material for the seals and gaskets used in valves greatly impacts their service life, reliability, and cost.
Ball valve design considerations for lead-free service
Lead-free ball valves quickly become the new standard in many industries due to health concerns over lead exposure. While the market for lead-free ball valves is growing, some design considerations still need to be considered to ensure reliable and long-lasting service. We will discuss some of the key design considerations for lead-free ball valves. The first thing to consider is the material used for the ball. In general, most lead-free materials are made from a different type of brass alloy than lead. Therefore, the service life of a ball valve needs to be considered. Some of the more common lead-free materials are brass and copper.
Brass is an excellent material for ball valves due to its low cost, ease of fabrication, and high corrosion resistance.
Valve maintenance and lead-free service
Lead-free service is a requirement for many products and businesses. Valve maintenance is one of the most important aspects of a lead-free service. Keeping valves in good condition is essential to avoid any leakage that could contaminate the product or area. Many things can cause damage to valves, such as corrosion, dirt, and scale. To maintain your valves and ensure they are providing reliable lead-free brass valve service, you should follow these tips:
- Inspect your valves regularly for signs of damage or wear.
- Keep the area around the valve clean and free of debris.
- Use an appropriate lubricant on the valve stem if needed.
- Replace any worn or damaged parts immediately.
Lead-Free Brass Valves
Lead-Free Brass Valves are the ideal choice for plumbing and piping systems. These valves are designed to be highly reliable, efficient, and safe to use. They provide maximum protection against water contamination caused by lead or other heavy metals that can harm human health.
2pc Lead-Free Brass Press Ball Valves are a popular choice due to their durability and easy installation. Constructed from 100% lead-free brass, these two-piece valves feature strong construction resistant to corrosion and other environmental conditions such as humidity and temperature fluctuations. The smooth operation of the valve allows for precise control over flow rate and pressure, making it suitable for residential and commercial applications.
The 2-piece Lead-Free Brass Press Ball Valve also features an integrated full port design for minimal pressure drop, which helps reduce energy costs over time.
Benefits of Lead-Free Brass Valves
Lead-free brass valves provide clean and safe water flow for any plumbing system. Their design is often used in home and commercial applications to ensure that the water flowing through your pipes is free of contaminants. There are many benefits to using lead-free brass valves, including corrosion resistance and improved durability.
Lead-free brass valves have superior corrosion resistance compared to other types of materials. This makes them an ideal choice for areas with high acidity or chlorides in the water supply, as they can withstand these harsh conditions without corroding or breaking down over time. In addition, their composition makes them resistant to scale build-up, which can cause blockages in your plumbing system over time. Combining these two features ensures that lead-free brass valves will provide reliable performance for years.
Types of 2pc Lead-Free Brass Valves
Two-piece lead-free brass press ball valves are a type of valve used to regulate the flow of water. They feature two separate pieces that join together and include a solid brass body, stem, handle, and O-ring. These valves provide durability and dependability while preventing corrosion in hot and cold water systems.
These valves are available in several types: full port, reduced port, standard port, and mini ball valves. Full port valves offer the highest flow rate but require more space than other types because of their larger size. Reduced port valves offer less flow but occupy less space and are ideal for tight spots such as behind cabinets or beneath sinks. Standard port valves provide an intermediate option between the full and reduced port models in size and flow rate.
Maintenance Tips for 2pc Press Ball Valves
2pc Lead-Free Brass Press Ball Valves have become popular for many commercial and residential applications. These valves offer excellent performance with a long-lasting operation that is virtually maintenance-free. However, some important maintenance tips should be followed to ensure your 2-piece press ball valve will continue functioning correctly.
Start by inspecting the valves for any signs of wear or damage. Look for cracks, rust, or leaks at the joint areas and replace them as necessary. You should also regularly check all seals and gaskets to ensure they are in good condition and properly sealed. In addition, be sure to lubricate all threaded connections regularly with an approved lubricant such as silicone grease or Teflon tape. This will help prevent corrosion and ensure optimal performance of the valve over time.
FAQs
1. Why choose a 2-piece body design for the Lead Free Press Ball Valve?
This valve uses a two-piece body structure held together with threaded connections between its two main parts. You can remove the ball and sealing seat for replacement by taking the valve body apart. This reduces maintenance costs compared to one-piece valves. The two-piece build also makes production and quality checks easier, and gives us more room to adjust product dimensions. It can support many different bore sizes, even for small production runs, while one-piece valve bodies face tight limits set by their molds.
2. What seal material is available for the 2-piece Lead Free Press Ball Valve?
This two-piece lead-free press ball valve comes with PTFE seats, seals, and thrust washers right out of the box. The valve can work up to 250 psi CWP and 210°F (99°C), and it’s great for water pipes, heating lines, and drinking water systems.
Plumberstar also has other seal options, including EPDM, NBR, and FKM.
- Optional EPDM works for both cold and hot water, and it resists aging, ozone, and outdoor weather well, with a usual working temperature from -40°C to 120°C.
- Optional NBR works nicely with mineral oils and grease, and its normal temperature range is about -30°C to 100°C.
- Optional FKM can stand hotter temperatures and stronger chemicals better than regular EPDM or NBR.
3. What is the primary application for a 2-piece Lead Free Press Ball Valve?
This two-piece lead-free press-fit ball valve is built for drinking water pipe systems. It works with both cold and hot water pipes in homes and commercial buildings. You can use this valve to replace old copper water pipes, and it also works nicely for pipe installations in new buildings. It fits purified water branch lines in hotels and apartment buildings. This valve isn’t limited to potable water. It also works well for small HVAC chilled water circuits. Thanks to its press-fit joint design, installers can fit the valve in place fast on-site, without welding or threading the pipe ends.
4. What types of copper tubing are compatible with the 2-piece Lead Free Press Ball Valve?
They work with ASTM B88 copper water pipes, including the widely used K, L, and M grades. K, L, and M pipes have different wall thicknesses, so you need to check compatibility against your exact pipe specification and press profile. For European projects, we can supply this valve to work with EN 1057 copper tubes, offered in R250 half-hard and R290 hard tempers.
5. Is the 2-piece Lead Free Press Ball Valve manufacturing facility ISO 9001 certified?
The Plumberstar factory holds a valid ISO 9001 quality management certificate. This quality system makes sure we can track all materials, and we save records for every batch of valve bodies, ball cores, and PTFE seals. Every incoming raw material gets checked with spectral composition tests, and we throw away any materials that don’t pass this test.
We sample finished goods in accordance with AQL 0.65 standards. The workshop uses standard operating documents to lock machining tolerances, and thread tolerance stays controlled within ±0.02 mm. Our product defect rate has consistently remained under 0.46% over the last five years.
We can send you scanned copies of our ISO9001 certificate for your project check. Third-party companies such as SGS and BV are welcome to come and do on-site system checks and sample product inspections. Beyond ISO9001, this production line also holds supporting certifications including CE and cUPC. We can provide batch inspection records for these two-piece lead-free press ball valves together when your project needs them, to help smooth project acceptance.
