Closet Spud Guide 101

In this blog post, you’ll read:There are many moving parts in a toilet, and the closet spud constitutes one of these components. There are a few other names, including spud washer, closet spud gasket, and spud gasket.
Table of Contents

What is a Closet Spud?

A toilet has many moving parts, and the closet spud constitutes one of these components. Other names include spud washer, closet spud gasket, and spud gasket. It is available in various shapes, dimensions, and materials.

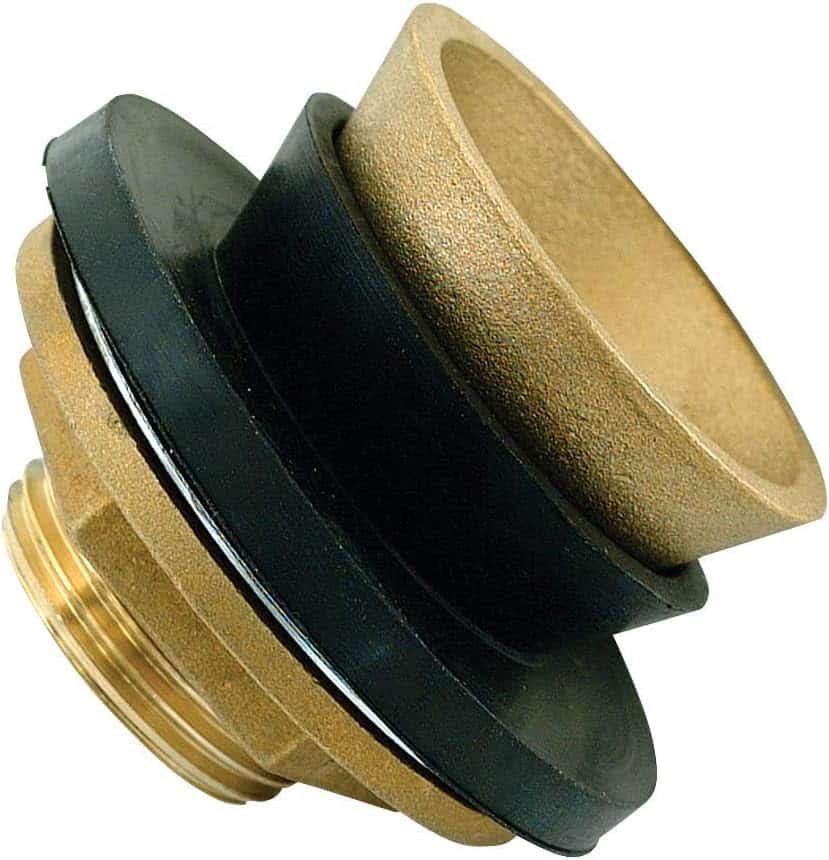

brass closet spud for toilet
Brass closet spud for the toilet

Parts Identification of Closet Spud

A closet spud washer is a round, cylinder-shaped gasket with a beveled edge on one end and a flat edge on the other. The size is about that of a small tea cup. Some are made of rubber, while others are made of brass, copper, and rubber. The one made of brass is the most widespread & long-lasting. Most of them have a threaded end that screws right into the toilet.

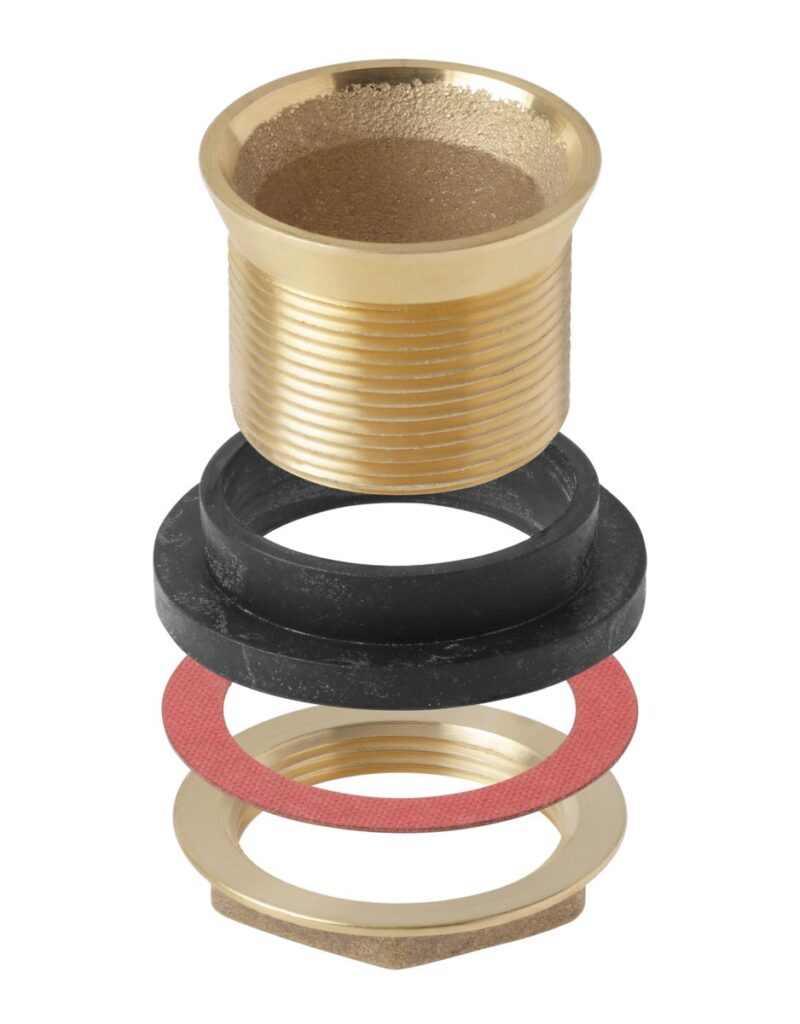

closet spud assembly
Closet spud assembly

How can you find out a spud?

There is a spud washer inside the toilet. It is put in between the seat and the gas tank. It helps connect the two parts of the bathroom. The spud gasket is located on the backside of the toilet seat. You may access it by unscrewing the two screws on the bottom of the tank. After that, lift the tank off the toilet seat. It is planned to fit underneath the flapper valve, which is the component that must be raised to allow water to enter the bowl.

How does Closet Spud work?

The spud washer goes to the bottom of the toilet, where water from the tank drains into the bowl. It helps to create a seal to keep the water in the tank. It’s meant to be a watertight way to connect the tank and seat while letting water flow from the tank to the bowl. When the spud gasket nut on the toilet is tightened, it squeezes the rubber gasket, which stops water from leaking.


Repair or Replace Closet Spud

The toilet might leak on the floor because of a broken or worn-out closet spud. If the spud is no longer watertight, water could leak out of the rubber seal and onto the floor. To fix it:

  • Unscrew the tank and pull out the spud to change it.
  • Take the old spud out and put in a new one.
  • Put the toilet together by lifting the tank back onto the base and tightening the spud lock nut.

Specification of an Ideal Brass Closet Spud

IitemNo.Desctription and SizieMaterials
1C27-1341X3/4 BRASS CLOSET SPUDBrass
2C27-12611/4X3/4 BRASS CLOSET SPUDBrass
3C27-12511/4X11/4 BRASS CLOSET SPUDBrass
4C27-15011/2X11/2 BRASS CLOSET SPUDBrass
5C27-2012X11/4BRASS CLOSET SPUDBrass
6C27-2022X11/2 BRASS CLOSET SPUDBrass
8C27-12711/2X11//4 BRASS CLOSET SPUDBrass
9C27-31011/2X3/4 BRASS CLOSET SPUDBrass
Specification with sizes

Operation of Closet Spud

It would help if you first took off the old valve. We have to get rid of this thing because it lets water through. Take it out with a smooth jaw and a wrench while trying to get the whole thing to spin. You can hold onto that tailpiece if it turns. A pair of channel locks keep it until you can get this loose. There is a small metal or rubber washer. We need to get this thing out of the toilet without breaking it. We need to clean up and put in a new brass closet spud. The small washer has to be tightened, and the retention nut with a wrench. Turning or spinning won’t work because the whole thing will move. The threaded area should be where the channel is locked. Use a smooth jaw wrench on the bottom to hold it in place. We need to tighten this up and make the nut tighter.

The rubber seal around the toilet should be stretched out. There’s no need to push harder to get a good seal. So all the steps will be taken care of in this way. Ensure there is no gap and the valve is back together. Then we’ll see if it leaks. Put a refraction breaker. We can then put our valve on top of that.

Why brass spud and flange are the best choices for your closet?

Deciphering the Closet Spud

For the uninitiated, a closet spud might sound like a baffling term. But, in plumbing jargon, “closet” refers to the toilet. The closet spud is the component that creates a leak-proof seal between the toilet tank and the bowl, ensuring that when you flush, the water goes where it’s supposed to go: down and out, without any sideward leaks.

Understanding its Pivotal Role

Let’s imagine a day without it to truly appreciate the closet spud’s importance. Water would leak every time you flush, causing not only a wastage of water but potential damage to the bathroom floor and the structural components below. The cost of repairs could be exorbitant.

Closet Spud Varieties

Regular Spud: This is your everyday spud used in most households. Typically made of durable materials like brass or plastic to withstand daily use.

Offset Spud: This comes into play when the alignment of your bowl and flush isn’t quite correct. It compensates for any misalignment.

Top Spud: More common in commercial setups, these are positioned on top of the bowl, connecting to overhead valves.

Integral Spud: A more modern, sleeker design where the spud is integrated into the toilet, eliminating the need for external attachments.

Unraveling the Installation Process

Installing a closet spud may seem daunting, but with the right approach, it’s manageable. Here are the steps and factors to keep in mind:

Measurement: Before embarking on your installation journey, measure the old spud. This will guide your purchase, ensuring a perfect fit.

Tools Matter: As with any job, the right tools can make all the difference. A spud wrench is invaluable, but an adjustable wrench should suffice if you don’t have one.

Gasket Replacement: If you’re already replacing the spud, replacing the gasket is also a good practice. Over time, gaskets can wear out, reducing their efficacy.

Avoid over-tightening: Achieving a snug fit is crucial, but overdoing it can damage the toilet or the spud. It’s a balance that needs a gentle hand.

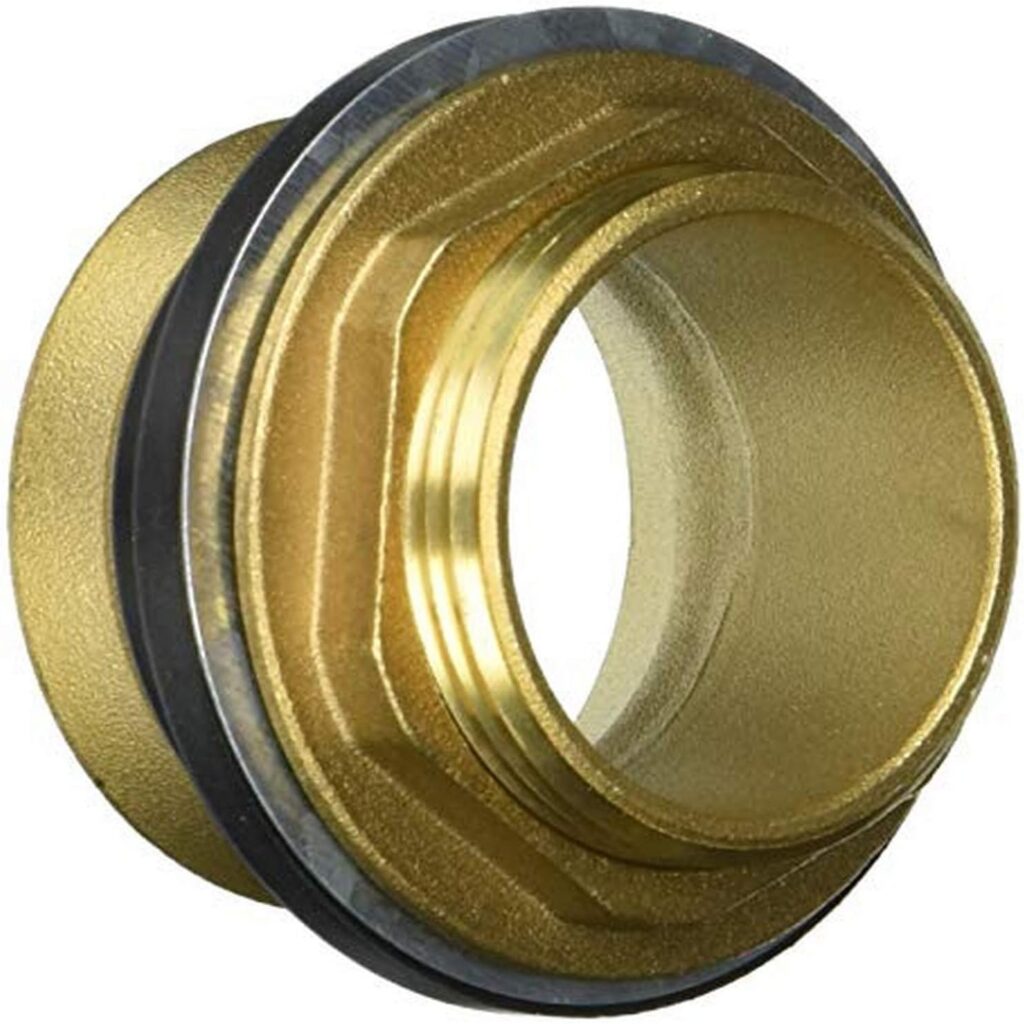

closet spud inside
closet spud inside

Maintenance: Ensuring Longevity

Regular maintenance of your closet spud can save you a lot of hassle and expense in the long run. Here’s what you can do:

Routine Checks: Make it a habit to inspect your closet spud periodically. Check for signs of wear and tear, corrosion, or any slight leakage.

Cleaning Approach: For cleaning, gentle is the keyword. Harsh chemicals can erode the materials, reducing their lifespan. A mild cleaning agent and a soft cloth are all you need.

Stay Updated: Plumbing techniques and tools evolve. Stay updated with new methods and materials. Sometimes, a simple upgrade can enhance efficiency and longevity.

Professional Input: While DIY can be satisfying, there’s no harm in getting a professional opinion occasionally. A plumber can offer insights that the untrained eye might miss.

Closet Spud and Modern Innovations

The plumbing industry isn’t static. Over the years, the humble closet spud has seen innovations in materials and design. Considering the global push toward sustainability, modern spuds are designed to be more efficient, longer-lasting, and even eco-friendly.

Moreover, as bathrooms become more than just a functional space, aesthetics play a role in closet spud design. Sleek designs, minimalistic appearances, and even color variations are now available for the discerning homeowner.

Concluding Thoughts

The closet spud is an unsung hero of your bathroom. It’s a small component with a significant responsibility. As homeowners or even renters, understanding these essential parts can make maintenance more accessible and effective. With knowledge comes empowerment, ensuring that our homes run smoothly and efficiently.

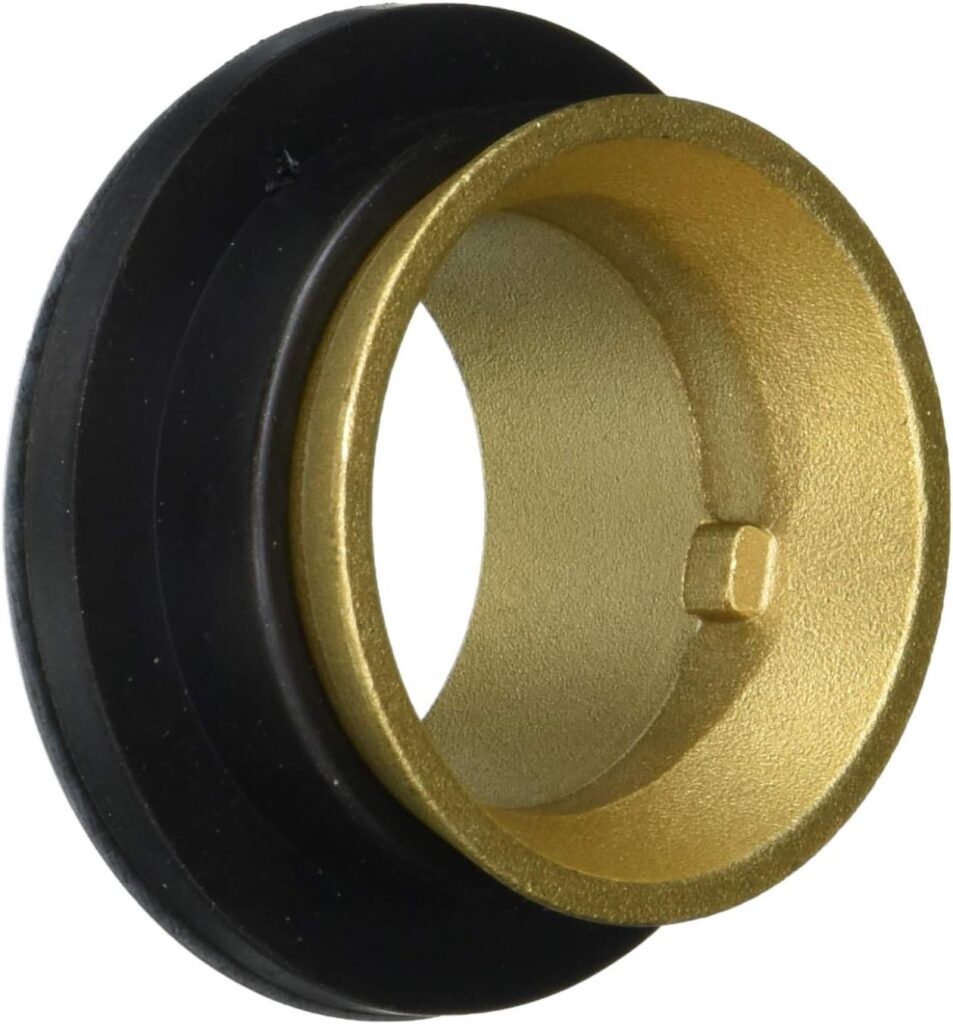

closet spud brass
Closet spud brass

The versatility of the brass closet spud and the flange makes them superior to other metals. There is a wide variety of lengths, widths, and forms available for brass; following detailed instructions makes the process much more straightforward and has a much more noticeable impact on the functionality of the home’s water solution. Alternate coatings for brass are possible. Closet spud and flange look great when displayed, thanks to the variety of attractive finishes. Brass hardware can be polished, lacquered, aged, nickel-plated, or chrome-plated.


Brass is easier to work with than iron or steel, making it ideal for making the closet spud and flange. Brass is easier to work with than other metals, making it suitable for plumbing and other hygienic applications. Because it is so simple to install, costs are minimal. The malleability of brass makes it simple to maintain. A dangling brass spud is no indication of its strength.

Resistant to Corrosion:

When compared to other metals, brass has the lowest corrosion potential. Those who live in areas where the water is highly acidic will benefit significantly from switching to brass pipes because they won’t rust. The clothes in your brass closet won’t rust. Since corrosion and rust are the primary causes of fittings wearing out, protecting them with brass spud is the most effective strategy.

How to Install a Closet Spud: A Step-by-Step Guide

Installing a closet spud ensures a proper, leak-free connection between your toilet tank and the bowl. While the task might seem intricate, with the right tools and a bit of patience, you can handle it like a pro. Here’s a comprehensive step-by-step guide to help you through the installation process:

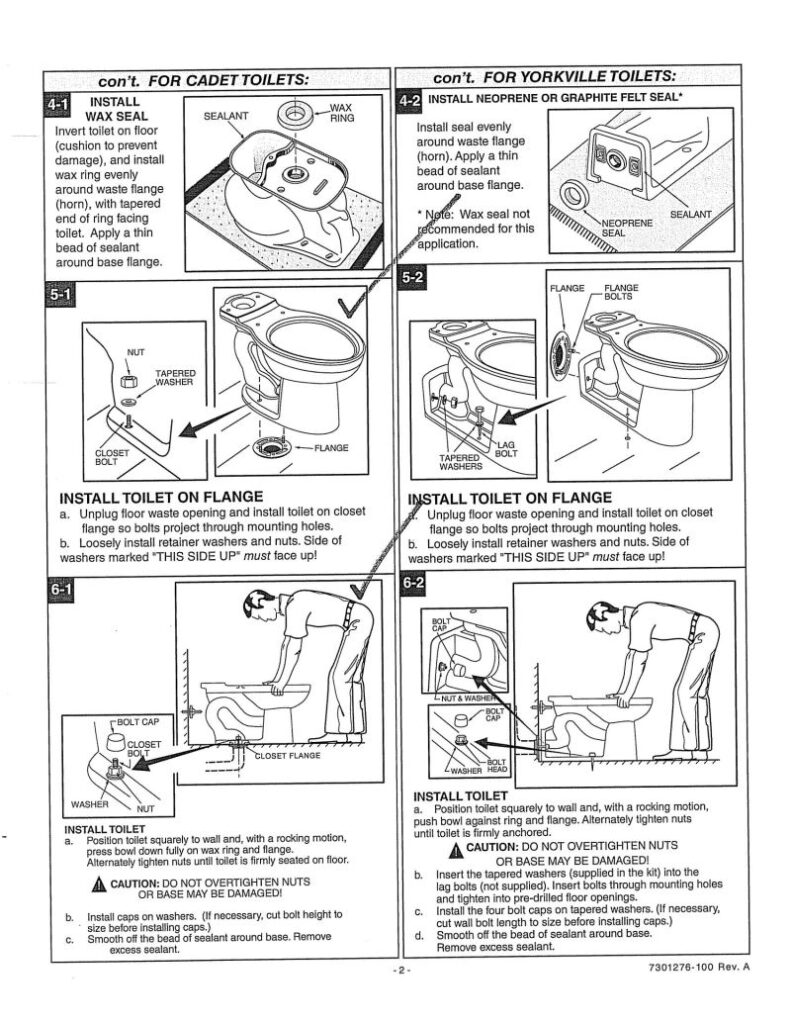

toilet closet guide
Toilet closet guide


a. Gather Necessary Tools:

  • Adjustable wrench or spud wrench
  • Rubber gloves
  • Towel or sponge
  • Replacement closet spud
  • Plumbers’ putty or sealant (if required)

b. Safety First:

  • Turn off the water supply to your toilet.
  • Flush the toilet to drain any water remaining in the tank.
  • Disconnect the water supply line from the base of the tank.

Removal of the Old Closet Spud:

a. If an old spud is in place, begin by loosening and removing the retaining nut at the bottom of the spud using your wrench.

b. Gently wiggle the old spud free from its position. It should come out relatively quickly, but years of mineral deposits can sometimes make it stubborn.

c. Clean the area where the old spud sat, ensuring no debris, rust, or old sealant. A clean surface is crucial for the new spud to seal correctly.

Preparing the New Closet Spud:

a. Before inserting the new closet spud, inspect it for any signs of damage or defects.

b. Apply a thin layer of plumbers’ putty or sealant (if recommended by the manufacturer) around the base of the spud to ensure a watertight seal.

Installation of the New Closet Spud:

a. Insert the tapered end of the spud into the opening, ensuring it fits snugly.

b. From the underside, attach the retaining nut to the threaded section of the spud. Hand-tighten it initially.

c. Using the wrench, tighten the nut securely. Be cautious not to over-tighten, as this might crack the toilet or damage the spud.

Reconnecting and Testing:

a. Reconnect the water supply line to the base of the tank.

b. Turn on the water supply and allow the tank to fill.

c. Flush the toilet a couple of times to ensure no leaks. Pay close attention to the area around the closet spud to ensure it remains dry.

d. If you notice any small leaks, you might need to tighten the retaining nut slightly.

Final Touches:

Clean up your workspace once you’re satisfied with the installation and there are no signs of leaks. Dispose of the old spud responsibly.


Installing a closet spud is a straightforward task that can save you a trip from the plumber. Always ensure you have the right tools on hand, and take your time to ensure each step is executed correctly. Regular maintenance and checks can also extend the life of your closet spud, providing a well-functioning toilet for years to come.
