Brass Ball Valve Vs. PVC Ball Valve

In this blog post, you’ll read:Have you ever completely understood brass vs PVC ball valves while comparing? If not, you're at the right site. Ball valves are commonly employed as on/off control valves in pipe systems to control the flow of liquids and gases. Both valves have their uses, and their choice depends on the application's requirements.
Table of Contents

Have you ever completely understood brass vs PVC ball valves while comparing? If not, you’re at the right site. Ball valves are commonly employed as on/off control valves in pipe systems to control the flow of liquids and gases. Both valves have their uses, and their choice depends on the application’s requirements.

Since there are many uses for ball valves, it is vital to understand the many options available before purchasing. Even though brass and PVC ball valves are not the same, they are both robust choices that may help you save time and money on your next project.

How Does Ball Valve Work?

ball valve work open and closed
Ball valve work open and closed

This diagram shows the ball valve’s closing and opening and closing positions. This will help you understand the ball valve’s working mechanism in this illustration.

A ball valve is a kind of shutoff valve that regulates the passage of a liquid or gas using a rotating ball with a bore. By rotating a quarter turn (90 degrees) around its axis, the passage of the medium is either allowed or blocked. Even if the valve is not in use for an extended period, they have a long service life and provides a reliable seal throughout the life. As a consequence, they are more common as shutoff valves than, for instance, gate valves. Most other valves are less resistant to contaminated media than ball valves.

In unique configurations, ball valves serve as control valves. Compared to other varieties of control valves, this application is less frequent due to the relatively imprecise flow rate regulation. In this

What is a Brass Ball Valve?

components of brass ball valve
Components of brass ball valve

Brass ball valves are an alloy of copper (57–63%) and zinc (35–40%) and are often a light yellow or gold color. Ball valves made of brass are very durable and can withstand corrosion. These valves may have plates applied to them in specific circumstances. For instance, the nickel plate on a brass valve makes it more corrosion-resistant.

Main Advantages of Brass Ball Valve

Brass ball valves are robust and long-lasting. They are resistant to high temperatures and pressures as well as corrosion. Additionally, brass ball valves are simple to clean and maintain. They are an excellent option for applications requiring a secure seal, such as plumbing or water lines. Brass valves, if left untreated, will erode faster than other valves. They must be coated with lubricant, oil, or another substance to prevent corrosion over time.

Brass ball valves are also more expensive than their PVC counterparts. The best method to avoid this additional cost is to purchase them on sale or to research the manufacturer’s return policy before buying.

Ball Valve Normal Sizes

¼ inch0.232.992.20
3/8 inch0.322.992.20
½ inch0.514.022.20
¾ inch0.754.252.72
1 inch0.994.533.50
1 ½ inch1.505.244.49
2 inch1.896.064.72
Size specifications
  • And some applications with 2½ inch,3 inch, and 4″

What Is a PVC Ball Valve?

A PVC ball valve regulates water flow in a piping system. The valve’s globe regulates water flow by opening and closing the passage. PVC ball valves are available in many sizes and designs to meet specific requirements.

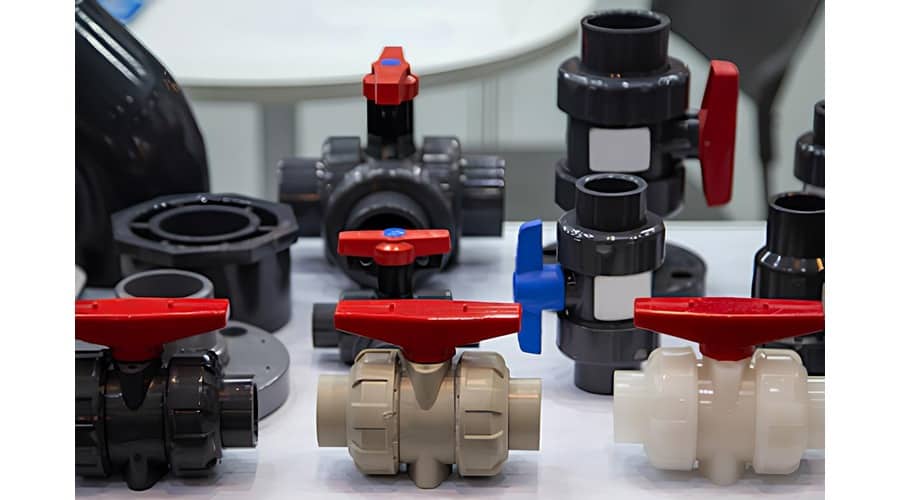

colors of pvc ball valves
colors of pvc ball valves

PVC ball valves are resilient and resistant to extreme temperatures and pressures. In addition to being resistant to corrosion and having a long lifespan, these valves are classified as oil and gas valves because they are typically used in many applications but can also be utilized in residential applications. When selecting a PVC ball valve, it is essential to consider the valve’s size, pressure, temperature, and material compatibility.

Advantages of PVC Ball Valve

  • PVC ball valve maintenance

PVC ball valve maintenance is straightforward. There is no particular instrument required for maintenance. Seats and gaskets are adaptable to an application’s requirements.

  • Efficiency

The PVC ball valve’s seats and seals eliminate the need for lubricating oil. However, the valve is highly airtight and frictionless. For spheres to travel, a material with flexibility is required.

  • Compact and Seamless

These are seamless and compact, which makes them more durable. It prevents the fluid from halting its passage.

  • Price

This characteristic of PVC ball valves is the most widely known. The cost of PVC ball valves was significantly less than those of other materials.

Brass Vs. PVC Ball Valve

The material is one of the most essential considerations when purchasing a ball valve. Brass and PVC are two of the most prevalent materials for chemical processing, but what’s the difference? Here is the main difference between brass and PVC ball valves.

brass ball valve vs.pvc ball valve
Brass ball valve vs. PVC ball valve
  • Temperature Limits

PVC can withstand higher temperatures than brass, making it a superior material for high-temperature applications. PVC has a low softening point and dissolving point. The temperature range is -15 to 60 degrees Celsius.

  • Corrosion Resistant

PVC is the most commonly used material for manufacturing ball valves. Durability is a crucial factor in their popularity. The material is rust-resistant and requires no maintenance, so they can be used in outdoor applications where they are not frequently needed but must function correctly. They can also be utilized in chemical blending applications where corrosion would be a significant issue. PVC’s resistance to high pressure also makes it a popular material for applications involving high-pressure liquid flow. There is minimal pressure loss when the valve is open because the ball and conduit’s port are nearly similar in size.

In contrast, brass ball valves are highly corrosion-resistant and ideal for severe conditions. Brass resists corrosion and is unaffected by acidic or basic substances. This corrosion resistance allows brass ball valves to endure longer without requiring routine maintenance or replacement. This advantage ultimately results in a greater return on investment over time.

  • Durability

Due to its inherent characteristics, such as chemical resistance and durability, numerous customers prefer PVC over brass ball valves.

Material Composition

All brass ball valves are made from alloys. However, each valve has unique qualities because the alloys used to cause them differ. Adding copper to zinc makes brass. U-PVC (unplasticized Polyvinyl chloride) makes up a PVC ball valve. This material is also known as rigid PVC. Manufacturers always use unplasticized PVC when discussing PVC as a material for valve housings. Only P.V.C. has phthalates in it, but U-PVC doesn’t have any. You can use hot water with CPVC, which stands for chlorinated PVC. It can handle more heat. When you chlorinate PVC, you get CPVC. It has 67 % more chlorine than before. Some things, like water heaters, only use CPVC because it’s more expensive than regular PVC.

Maintenance Requirements

Both materials need about the same amount of maintenance. However, PVC may be a better choice if not cleaned or drained. This is because it can fight chemicals commonly found in places where it’s used. Electricity and metals react chemically when metals are immersed in water. PVC doesn’t have the same problems with this as brass does. Additionally, areas that come into touch with fluids don’t have to be cleaned before they are sealed together, so there is no chance of rusting. In general, PVC might be a better choice for some users, like those who work in toxic environments like the manufacturing and petroleum industries.

Brass Vs. PVC Ball Valve: How to Select

Choosing the appropriate valve for a given application can be difficult. Here are some elements to consider when comparing brass and PVC ball valves.

  • Temperature Range

The operating temperature range for PVC and brass valves is 150 degrees Fahrenheit.

  • Design of Heat Exchangers

Some heat exchangers employ valves with threaded connections, making them more compatible with threaded ports, while others require solder connectors, making them compatible with welding junctions. This factor may determine which ball valve type is optimal for welded joints.

  • Fluid Handling

Brass ball valves are superior for fluid control because they do not experience plasticizer leaching over time, unlike PVC valves. Plasticizer draining in PVC piping systems causes severe corrosion and degradation, diminishing longevity. Brass, however, does not rust as rapidly as PVC when exposed to water and other fluids.

  • Clogging

Due to their low density, PVC valves typically obstruct quicker than brass valves. Brass is a denser metal that makes it simpler for fluids to travel through tubes without becoming blocked with residue and particulates.

  • Bore Design

The bore design of the PVC ball valve can be linear 2-way, T-port, or L-port 3-way. A 2-way valve is preferable for straight passage. A 3-way valve is utilized for combining, disseminating, and diverting applications.

  • Quality of Water

Brass is highly resistant to chlorides and other corrosive compounds in water, whereas PVC materials corrode more rapidly when exposed to these compounds.

Gas ball valve works
Gas ball valve works.

Brass Vs PVC Ball Valve: Applications

  • Applications for Brass Ball Valves

In most applications, brass ball valves provide the same level of performance and durability as stainless steel ball valves. However, stainless steel, a more durable material, may be preferable in applications with extremely high pressure or temperature requirements. However, the flexible seals, typically made of PTFE, will continue to be the weakest link. This necessitates the use of specialized barrier materials in these extreme applications.

Ball valves built with brass are commonly used in residential and commercial plumbing, HVAC, and other applications. To comply with FDA regulations, specific applications, such as those involving potable water or food processing, must utilize lead-free brass ball valves.

  • Applications of PVC Ball Valves

It has both domestic and industrial use. PVC ball valves provide many vital purposes.

  • Aquariums
  • Swimming pools
  • Landfills
  • Domestic irrigation
  • Water features and fountains
  • Water treatment
  • Chemical processing
  • Food processing

Brass Ball Valve Vs. Stainless Steel Ball Valve?

Both brass and stainless steel ball valves have benefits, but brass valves offer more advantages to users. Brass ball valves are more cost-effective, resistant to corrosion and heat, versatile, and resistant to heat and corrosion. When purchasing a new valve or replacing older valves, brass ball valves are the best option. They are superior to stainless steel in quality, durability, and cost, making them the best choice for your plumbing requirements.

3pc stainless steel ball valve
3pc stainless steel ball valve


In the conclusion of this article, brass vs PVC ball valve, we conclude that brass ball valves are more robust and resilient than PVC valves but are also more expensive. Brass is the material for ball valves that can resist high temperatures and corrosive substances. In contrast, PVC ball valves are typically less costly than brass ones, so if you’re not overly concerned with durability but still want a dependable product that won’t break the bank, choose PVC. Ultimately, it goes down to the individual’s specific requirements and spending capacity.
