A Complete Guide to Balance Valves

In this blog post, you’ll read:A balance valve is used in plumbing and HVAC systems to regulate fluid flow and ensure even distribution. They maintain a preset optimal flow rate within a system and can adjust automatically or manually to the changing conditions. By doing so, they not only help provide a consistent output but also contribute to the system's overall energy efficiency.
Table of Contents


Balancing valves are special devices in plumbing and other applications. They control the flow of fluids like water or air. They help balance the media flowing across. They ensure that the right quantity of liquid flows through the pipes. In this article, we will get the details of balancing valves. Here is a complete guide on balancing valves.

Plumbing and HVAC (Heating, Ventilation, and Air Conditioning) are complex and filled with specialized components that keep systems running efficiently. One such integral component is the balance valve. This comprehensive guide aims to demystify balance valves, outlining their function, types, applications, and the value they add to various systems.

A balance valve is used in plumbing and HVAC systems to regulate fluid flow and ensure even distribution. They maintain a preset optimal flow rate within a system and can adjust automatically or manually to the changing conditions. By doing so, they not only help provide a consistent output but also contribute to the system’s overall energy efficiency.

balance valve diagram
balance valve diagram

Applications of Balance Valves

  • HVAC Systems: Here, balance valves are crucial for maintaining consistent temperatures across different rooms and levels in a building.
  • Industrial Processes: Factories and processing plants regulate fluid flows, ensuring that various components receive the necessary amounts for optimal operation.
  • Water Supply Systems: In residential and commercial buildings, balance valves ensure that all points of use get a consistent water supply, irrespective of their distance from the source.
  • Irrigation: In agricultural settings, they help distribute water evenly to different parts of a field.

Advantages of Using Balance Valves

  • Improved System Efficiency: By ensuring the even distribution of fluids, they reduce the workload on pumps and other components, thereby saving energy.
  • Extended Lifespan of Equipment: Reducing the stress on system components leads to lesser wear and tear, effectively prolonging the lifespan of the equipment.
  • Cost-Effectiveness: Over time, the energy savings and reduced maintenance requirements translate into significant cost reductions.
  • Enhanced Comfort: In HVAC systems, balance valves contribute to a more comfortable indoor environment by maintaining consistent temperatures.

Choosing the Right Balance Valve

  • Compatibility: Make sure the valve you choose is compatible with the fluids used in your system.
  • Size: The valve size should correspond with your system’s size and complexity.
  • Material: Depending on the application, you might need valves made of specific materials like brass, stainless steel, or PVC to withstand different types of fluids or operating conditions.

Balance valves may seem like small cogs in the larger machinery of plumbing and HVAC systems, but their role is essential. Choosing the correct balance valve can mean the difference between a system running smoothly and efficiently and one plagued with problems and inefficiencies. Therefore, understanding their types, functions, and benefits is crucial for anyone designing, operating, or maintaining such systems.

Balancing Valves Specifications

A balancing valve regulates the flow of liquids. Its function is to ensure that the flow of water or air is correct. It prevents too much or too little from passing through. This helps keep the system working. It also contains any problems from occurring.

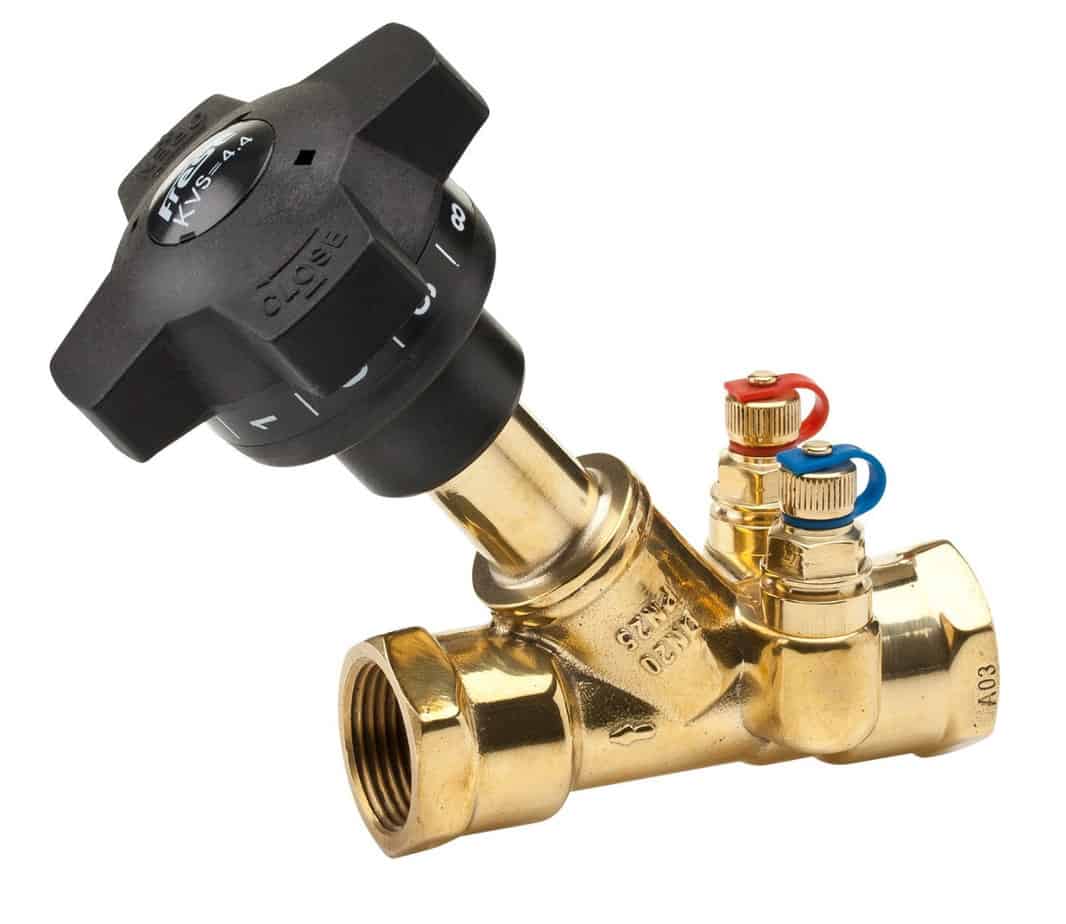

brass balancing valve regulates the flow of liquids
The brass balancing valve regulates the flow of liquids.

Balancing valves are important as flow control equipment. Imagine a water pipe distributing water to different parts of a building. It may be sinks, toilets, and showers. If the water flow is too strong in one area and too weak in another, it can cause problems. Balancing valves helps solve this. They do equal distribution of water. Thus, each part gets the right amount.

Use of Balancing Valves in Hydronic Systems:

Balancing valves are a central product in hydronic systems. Hydronic systems are heating and cooling systems where the medium is water. Let’s check how balancing valves apply to hydronic systems.

  • Radiators:

Balancing valves are standard in hydronic systems. They regulate the flow of hot water to radiators. They ensure that each radiator receives the proper hot water. It results in smooth heating of the system. Balancing valves maintain an even distribution of heat throughout the building. It prevents some rooms from becoming too hot while others remain cold.

  • Underfloor Heating:

In underfloor heating, balancing valves are essential. They control the flow of hot water through pipes beneath the floor. Balancing valves help distribute the heat across the floor surface. It heats all room areas.

  • Fan Coil Units:

Fan coil units are devices that cool and heat hydronic systems. Balancing valves regulate the flow of water to these units. Balancing valves work to get the desired temperature in each unit. It optimizes different rooms or zones of a building.

  • Air Handling Units:

In larger buildings, these units circulate conditioned air. Balancing valves in these units control the flow of chilled or hot water. In circulated air, they affect temperature and vapors. Balancing valves help maintain a balanced environment.

  • Chilled Beams:

Chilled beams are devices installed in ceilings or walls to cool hydronic systems. Balancing valves regulate chilled water flow to these beams. It makes efficient cooling in specific areas. Balancing valves helps prevent overcooling or insufficient cooling. It maintains a suitable temperature throughout the space.

  • Heat Exchangers:

Heat transfers from one liquid, in exchangers, to the other. Balancing valves regulate liquids to the heat exchangers. It enables efficient heat transfer. Balancing valves ensure the appropriate exchange of heat. It optimizes the system’s performance.

How Does a Balancing Valve Work?

Balancing valves have a special working mechanism to control water flow. They have an adjustable opening. We can change it to make the flow faster or slower. It’s like a tap that we can turn to regulate water.

balancing valves
Balancing valves

In open conditions, the valve allows more water to pass through. It increases the flow rate. It is helpful to supply more water to a particular area. It also suits the need for faster cooling or heating. When the valve is half closed, it restricts the water flow. The flow of water slows down.

These valves help us to maintain a balance in flow. To adjust the balancing valve, we turn a handle or a knob. By turning it one way, we can increase the flow. By turning it the other way, we can decrease the flow.

The valve works by adjusting the valve to the correct flow rate. It lets each part of the plumbing system get enough water. This helps prevent uneven heating or cooling. It also keeps everything smooth working.

So, balancing valves work by giving us control over water flow. They have an adjustable opening. We can change it to make the flow faster or slower. Finding the right balance ensures an equal water supply for every part. It keeps everything in balance.

Types of Balance Valves

  • Static Balance Valves
  • Manual Balance Valves: These are hand-operated and require manual adjustment to set the flow rate. They are often used in smaller, less complex systems.
  • Automatic Balance Valves: Self-adjusting valves maintain constant flow regardless of pressure changes. They are ideal for larger, more complex systems where manual adjustment is impractical.

A static balancing valve maintains a consistent water flow rate. We use it in systems where the flow requirements remain constant. A static balancing valve has an adjustable opening. It allows manual control of a specific flow rate. It lets us control the amount of water passing through the valve. Adjusting the valve can increase or decrease the flow rate. It helps to achieve a balanced water distribution.

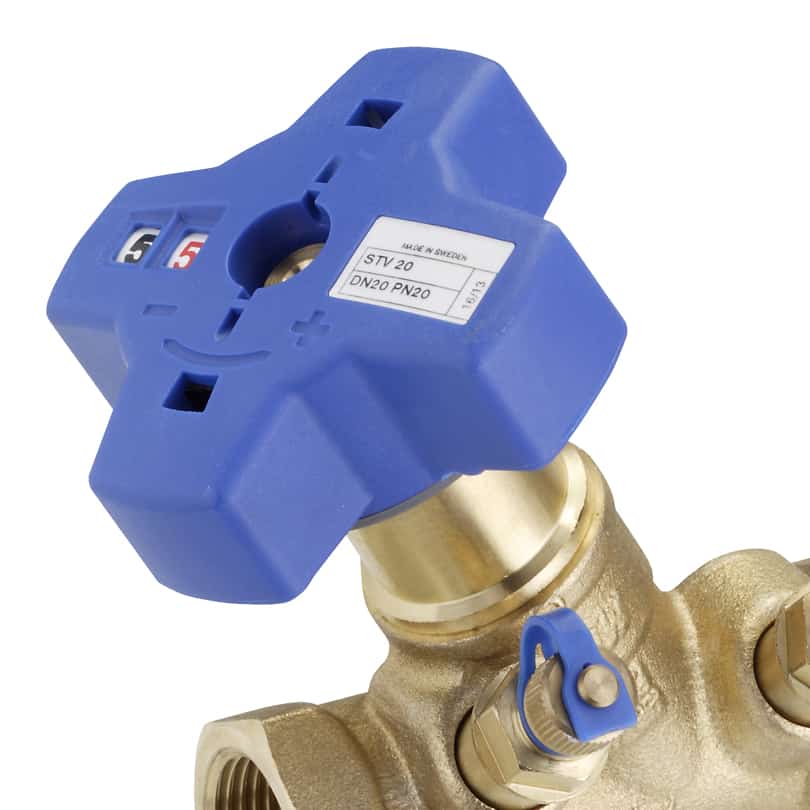

balancing valves static
balancing valves static

Static balancing valves have a handwheel or knob for manual control. They may also have markings or indicators. It helps us set the desired flow rate. Once the valve is set, it remains in that position. It then maintains a constant flow rate.

Static balancing valves are applicable in heating and cooling systems. These include both buildings and homes. They ensure that each heating/cooling element receives the right amount of water. They allow even temperature throughout the space.

  • Dynamic Balancing Valve: Pressure Independent Control Valves (PICV): These are advanced valves that automatically adjust to pressure changes and can be remotely controlled. They are most often used in commercial and industrial applications.

A dynamic balancing valve is another type to maintain a balanced water flow. It applies in systems where the flow requirements vary. The purpose of a dynamic balancing valve is to adjust the flow. Its working depends on the changing conditions of the system. It monitors the flow rate. It adjusts the valve opening to maintain a balanced flow in real time.

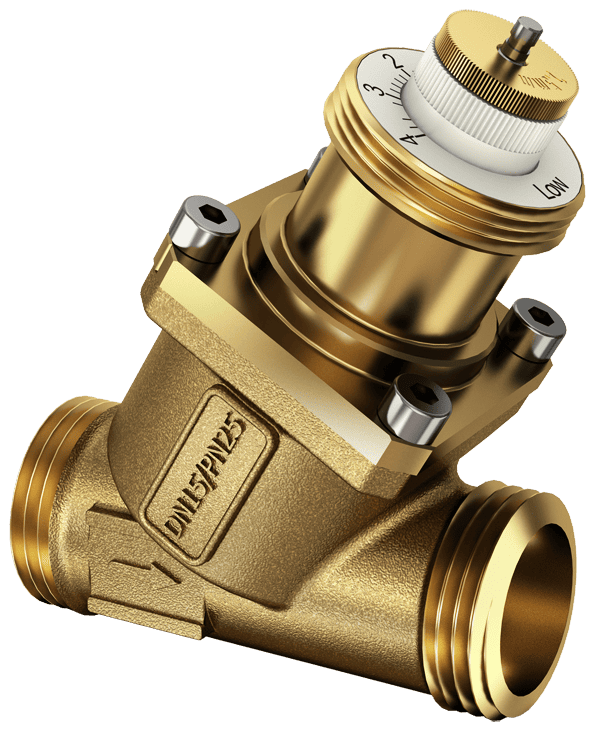

dynamic balancing valve
dynamic balancing valve

A dynamic balancing valve incorporates sensors that measure the pressure in the system. The valve’s internal mechanism adjusts the opening to maintain a consistent flow. This ensures that each zone receives the amount of water as per requirements.

Dynamic balancing valves have advanced mechanisms for automatic valve opening. They may include electronic sensors, control circuits, or mechanical mechanisms. It responds to dynamic pressure and flow. These valves adapt to the dynamic conditions of the system to balance flow.

Dynamic balancing valves are applicable in large heating and cooling systems. These may be commercial buildings or industrial facilities. They are useful in systems with variable flow requirements. For example, variable air volume (VAV) systems. These places demand heating or cooling changes in different zones or areas.

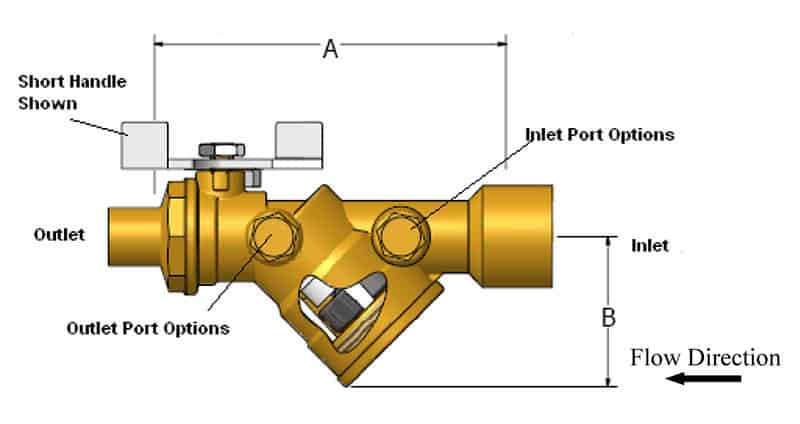

dynamic pressure and flow construction outlet and inlet
dynamic pressure and flow construction outlet and inlet

Balancing valves have two broad types.

Both static and dynamic balancing valves maintain a balanced water flow. Static balancing valves allow manual flow rate change. It ensures consistent water distribution. Dynamic balancing valves have automatic flow changes. It ensures a balanced flow in systems with varying demands.

Features of Balancing Valves:

Some standard features include:

Flow Measurement: Some balancing valves have a built-in flow measurement feature. It lets us track the water passing through the valve. They perform fluid control system optimization.

Locking Mechanism: Balancing valves may have a locking mechanism. It prevents accidental adjustments once the flow rate is set.

Tamper-Proof Cover: Some valves have a cover or cap over the adjusting handle. It prevents unauthorized tampering.

Durability: Balancing valves consist of durable brass or stainless steel materials. It ensures long-lasting performance.

Easy Installation: Balancing valves have easy installation. It allows plumbers to connect them to the system with ease.

Sizes of Balance Valves

The size of the balance valve you’ll need depends on the system’s requirements and the flow rate it must handle. Here are some general guidelines:

  • Smaller Systems (Residential and Light Commercial): Use balance valves between 1/2″ and 2″ in size.
  • Medium Systems (Larger Commercial Buildings): Typically, they require balance valves ranging from 2″ to 6″.
  • Large Systems (Industrial Applications): May need balance valves of 6″ up to 12″ or even larger.

Always refer to the system’s specifications and consult with a professional when determining the appropriate valve size.

Size Chart:

balance valve size and specifications chart
Balance valve size and specifications chart

Temperature Considerations

The temperature resistance of a balance valve is crucial, especially for systems that deal with high or fluctuating temperatures. Here’s what you need to know:

  • Standard PVC Valves: Suitable for temperatures up to 140°F (60°C).
  • Metal Valves (e.g., Brass, Stainless Steel): Typically can handle higher temperatures, often up to 250°F (121°C) or even more.
  • Specialized High-Temperature Valves: Designed for specific industrial applications, these can withstand temperatures exceeding 400°F (204°C).

Selecting a valve material that can endure the highest temperature your system may reach is essential to ensure longevity and safe operation.

Working Pressure Considerations

Working pressure, often measured in pounds per square inch (psi), denotes the pressure a valve can handle when operating. Here’s a general overview:

  • Residential Systems: Balance valves designed for these applications typically have a working pressure of up to 150 psi.
  • Commercial Systems: These often require valves with a working pressure range of 150 psi to 300 psi, depending on the system’s demand.
  • Industrial Systems: Given the rigorous demands of many industrial applications, balance valves in these settings might need to withstand pressures exceeding 400 psi.

Always ensure that the balance valve’s working pressure rating meets or exceeds the maximum pressure in your system. Overlooking this aspect can lead to valve failure or even catastrophic system breakdowns.

A balance valve’s size, temperature resistance, and working pressure rating are vital considerations when selecting the right product. It’s always recommended to consult with professionals or system designers to ensure the chosen valve aligns perfectly with your system’s specifications.

Raw Materials:

The raw materials for balancing valves depend on the type and manufacturer. Yet, there are some common materials. Here are the best raw materials for balancing valves.

bar raw materials
bar raw materials
  • Brass:

Brass is a common raw material in balancing valves. Brass is favored for its strength and versatility. It makes the valve body and other components of the balancing valve.

  • Stainless Steel:

Stainless steel is another raw material in balancing valves. Stainless steel is applicable for rust resistance. It makes those parts of the valve exposed to fluids.

  • Plastic:

Certain parts of the balancing valves consist of plastic. These parts can be knobs or handles. Plastic materials, such as HDPE or ABS, are lightweight. They are sometimes ideal for handles of balancing valves.

  • Rubber or Silicone:

Rubber or silicone materials are gaskets or seals in balancing valves. These materials provide a watertight and flexible seal. It prevents leakage around the balancing valve.

Spare Parts of Balancing Valves:

Spare parts are parts we can replace if they get damaged. Here are some common spare parts of balancing valves.

  • Seals or O-rings create a watertight seal between the parts of the balancing valve. If they become worn, we can replace them from the body.
  • Valve handles or knobs rotate to adjust the flow of water. These spare parts allow us to open or close the valve or adjust the flow rate.
  • Valve stems are another replaceable part. They send the turning motion of the handle to open or close the valve. We can switch to a new one if the valve stem becomes bent.
  • Bolts and nuts are small metal fasteners in balancing valves. These spare parts can get damaged, and we can replace them with new ones.
  • Some types of balancing valves use a spring mechanism. Springs provide tension in opening or closing the valve. If a spring loses its pressure, we can switch to the other.
  • Gaskets are flat seals between two surfaces in the valve. These spare parts prevent leakage at connection points or joints. They are also available for replacement in balance valves.

Advantages and disadvantages of Balancing Valves:


  1. The advantage of balancing valves is the balanced flow in the system where they apply. Every area gets the right water quantity. It prevents uneven heating or cooling issues.
  2. Balancing valves helps improve energy efficiency in heating and cooling systems. They ensure that energy is well-spent by supplying excessive water to certain areas. It results in efficient operation and less energy use.
  3. Balancing valves add to comfort and performance in buildings. They maintain consistent temperatures and ensure optimal performance. It provides a comfortable environment.
  4. Balancing valves offer flexible control over the flow of water. They adjust to meet specific flow rate requirements. It allows customization of different needs and preferences.


  1. Balancing valves have a higher initial cost compared to regular valves. The extra features that enable flow control add to the cost of the valve.
  2. Due to their mechanisms, Balancing valves can be more complex than standard valves. This complexity needs a professional for installation or changes.
  3. Balancing valves may need regular maintenance for proper functioning. Seals or O-rings may need replacement. It adds to the maintenance costs.

How to Select a Balancing Valve?

Selecting a suitable balancing valve ensures proper control and performance. Here’s a simplified guide on how to choose a balancing valve.

  • Check System Requirements:

First, get to know the conditions of your plumbing system. Keep the elements such as the flow rate for each area in mind. Check the temperature range of the system and any pressure details. It will help determine the balancing valve you need.

  • Consult with Professionals:

Advice from experts is always a good choice. They may be plumbers or engineers with expertise in balancing valves. They can assess your system and guide you to the best options.

  • Consider Valve Type:

There are many balancing valves present, such as static or dynamic. Consider the nature of your system and its requirements to choose a type. Static balancing valves are suitable for systems with constant flow. Dynamic balancing valves are better for systems with dynamic flow.

  • Check Features:

Look for balancing valves with features that meet your specific needs. This may include adjustable flow rates, temperature, and pressure ratings. Consider extra features that can be beneficial. It can be indicators or markings for easy control.

  • Consider Cost:

Consider the cost of the balancing valve and compare it with your budget. Remember that balancing valves with more advanced features may be pricier. The balancing valve cost and quality are important to ensure you get reliability.

How to Install and Replace a Balancing Valve?

Installing and replacing a balancing valve requires careful attention and proper procedures. Here’s how to install and replace a balancing valve.

Installing a Balancing Valve.

  • Gather the Necessary Tools:
gather the necessary tools
Gather the necessary tools

Get the tools you’ll need in the procedure. It includes;

A Pipe Wrench,

Teflon Tape

A Screwdriver.

Make sure to get a balancing valve suitable for your system.

  • Prepare the Plumbing System:

Shut off the water where you’ll install the balancing valve. Ensure the system is drained to prevent leakage during the installation.

  • Remove the Old Valve (If Applicable):

If replacing an existing valve, use the pipe wrench to remove the old one. Turn it anticlockwise until it comes off. Be careful not to damage surrounding pipes or fittings during this process.

  • Apply Teflon Tape:

Add a few Teflon tape layers on the balancing valve threads.

  • Install the New Valve:

Thread the new balancing valve onto the pipe in a clockwise direction. Use your hand to tighten it as much as you can. Then, use the pipe wrench to give a finishing turn. Do not overtighten, as it can deform the valve or the pipes.

  • Check for Leaks:

Turn the water through the balancing valve and observe it. If there are leaks, tighten the balancing valve.

Replacing a Balancing Valve:

The replacement process is almost similar to the installation. Follow the process by getting tools and preparing the system. Remove the old balancing valve and insert a new one. The rest of the procedure is the same as above.

2 types balance valve
2 types of balance valve

Concerns while Purchasing a Balancing Valve:

When purchasing a balancing valve, it’s important to be aware of specific concerns. Here are some points to remember.

  • Make sure the balancing valve you choose is compatible with your system. Consider your system’s pipe size and temperature requirements. Consulting can help you get the right valve.
  • Look for a balancing valve made of high-quality materials. A durable valve will withstand regular use and maintain working over time. Check for product reviews, warranties, and the manufacturer’s reputation. It gives you a reliable and lasting product.
  • Consider the flow control features of the balancing valve. Some valves have adjustable mechanisms that allow you to fine-tune the flow rate. This can be beneficial in achieving optimal performance and efficiency.
  • Choose a balancing valve that is easy to install without difficulty. Some valves use special tools or extra components. You should consider the installation process and any associated costs.
  • Understand the maintenance requirements of the balancing valve you intend to buy. Some valves need periodic maintenance for proper functioning. Consider whether you are willing to fulfill these maintenance needs.

FAQs related to Balancing Valves.

Q1: Why do I need a balancing valve?

A balancing valve maintains a balanced flow of water in the plumbing. It ensures proper performance, energy efficiency, and comfort. It prevents certain areas from receiving too much or too little water. This resulted in a more balanced and efficient system.

Q2: How do I know which balancing valve is suitable for use?

Determining the suitable balancing valve for your system depends on factors. These include the size of your pipes, flow rate requirements, and temperature considerations. It’s best to consult professionals who can provide appropriate recommendations.

Q3: Are balancing valves difficult to install?

The installation of balancing valves depends on the nature of the system. While some installations can be easy, others may need a professional. It’s better to consult with a plumber for the balancing valve.

Q4: Can I replace a regular valve with a balancing valve?

Replacing a regular valve with a balancing valve is sometimes possible. It relies on the specific requirements of the plumbing system. It’s best to consult professionals to check if it needs any modifications.

Q5: Are balancing valves expensive?

The cost of balancing valves changes depending on the type, features, and brand. Balancing valves may be more expensive than regular valves. They offer added functionality and benefits. Reviewing prices when checking costs is better.

double regulating balance flow meter valve
Double regulating balance flow meter valve.


Balancing valves increases the efficiency of the plumbing. These valves come with new specs for better performance. Their applications lie in almost every industry. Balance valve eases the industrial process. They balance heat distribution in solar systems. Balance valves also maintain water pressure in buildings. HVAC is another common application of balancing valves.

The above article gives enough detail on balancing valves. It can help you prepare for buying a balance valve. You can mark the features to get a relatable product. A good manufacturer should be a priority. It leads to buying satisfying products.
